Test D: Electronic Pressure Control Solenoid (PCA)
Test D: Electronic Pressure Control Solenoid (PCA)
Pinpoint Test D - Electronic Pressure Control Solenoid (PCA)

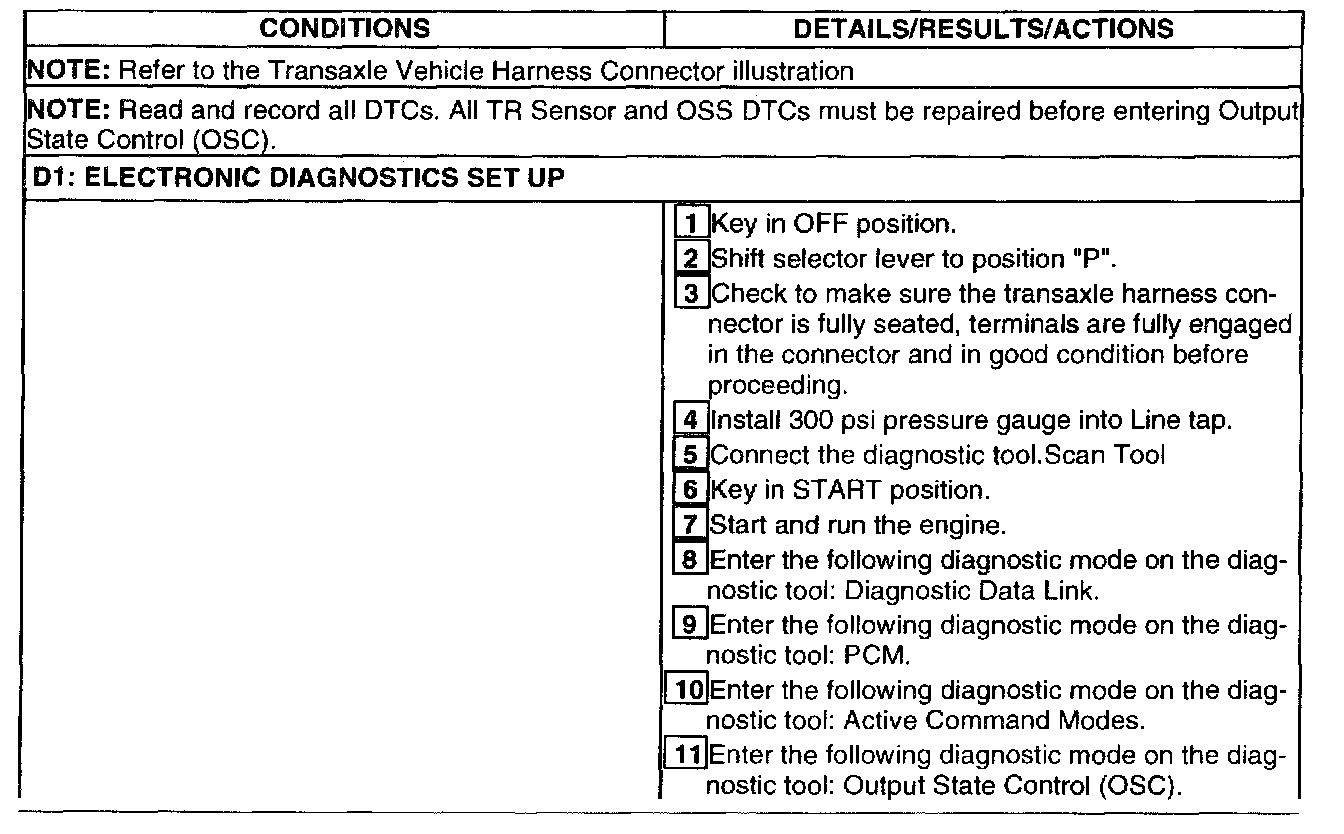

Test D1

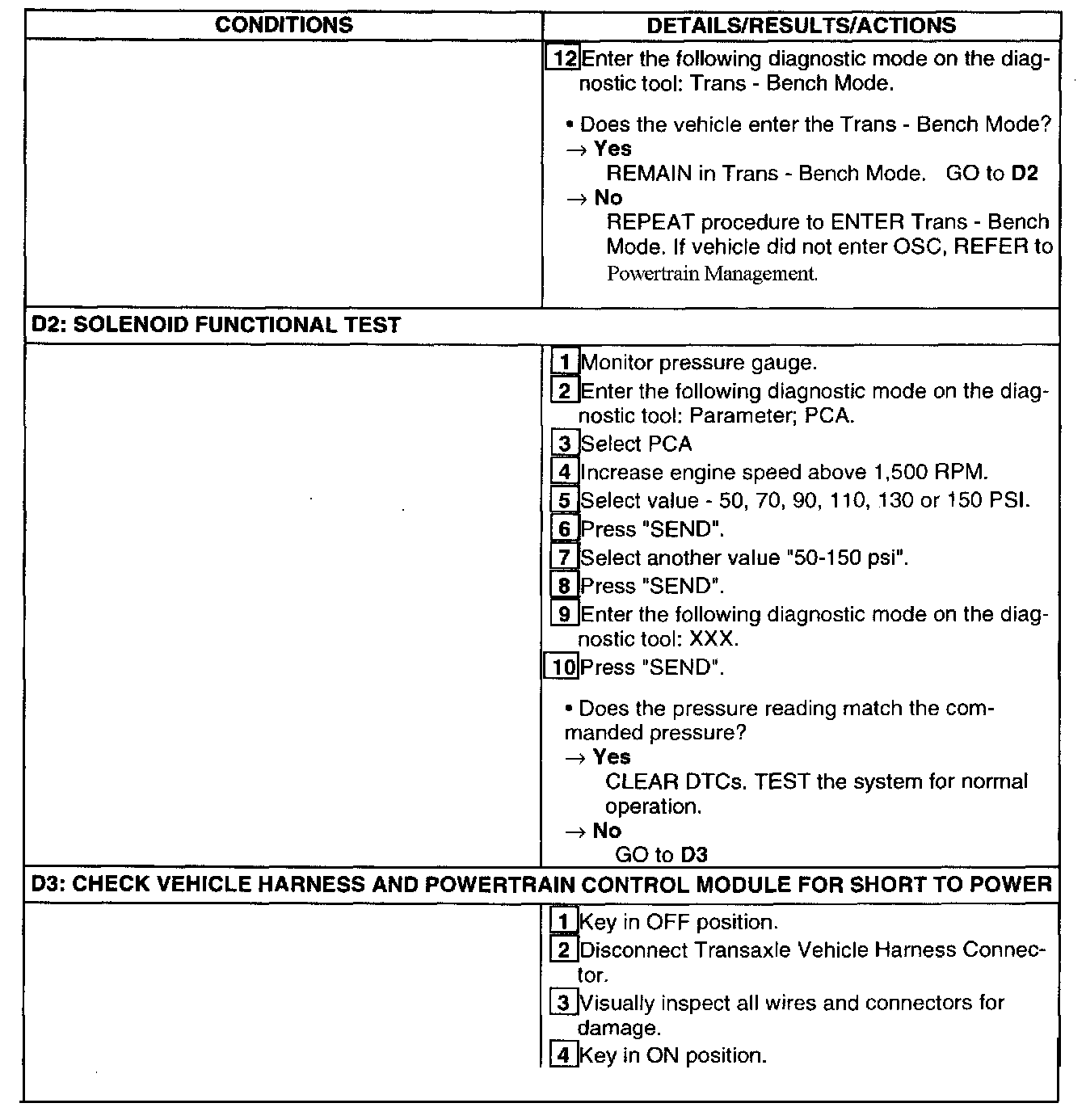

Test D2-D3

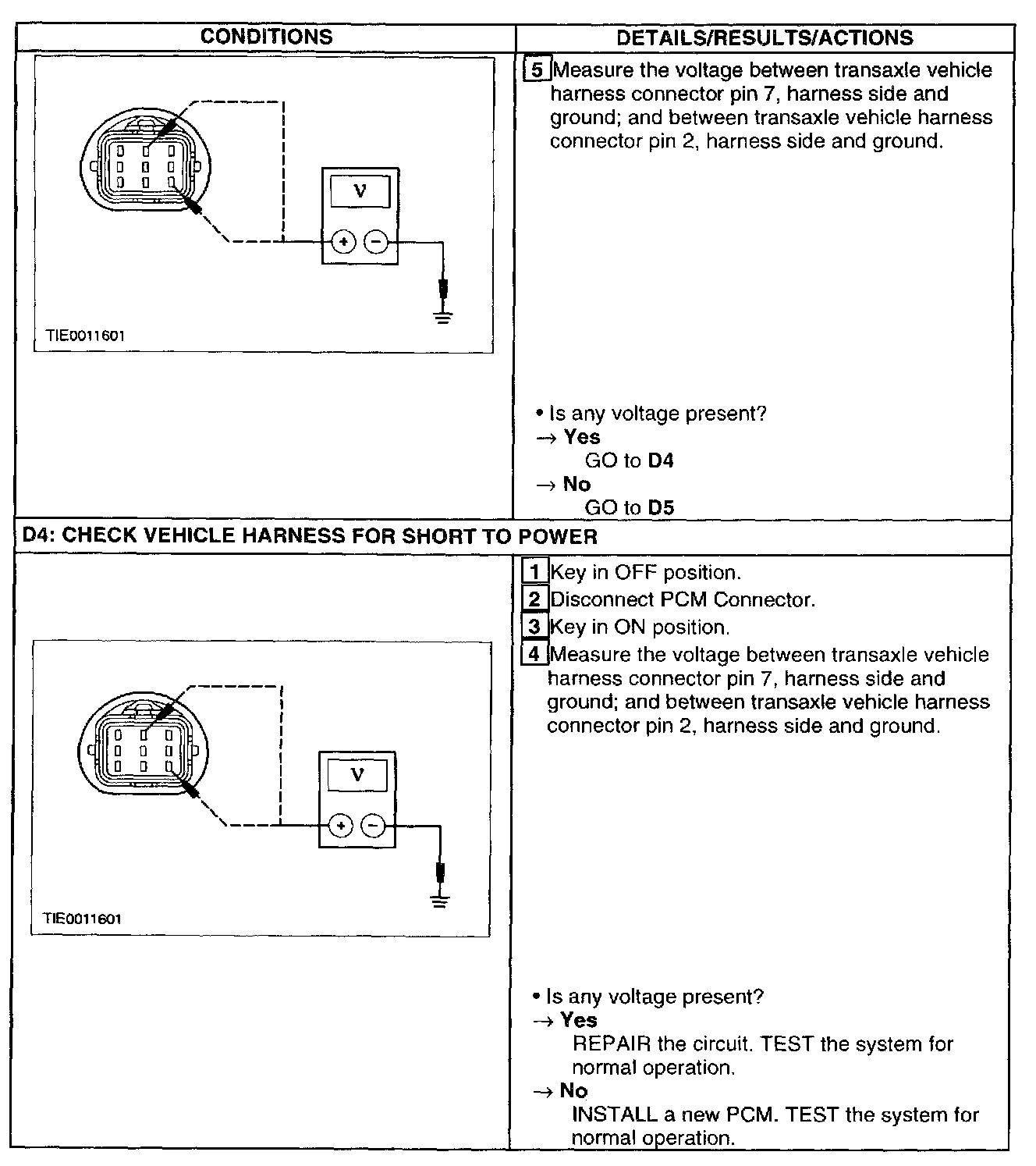

Test D4

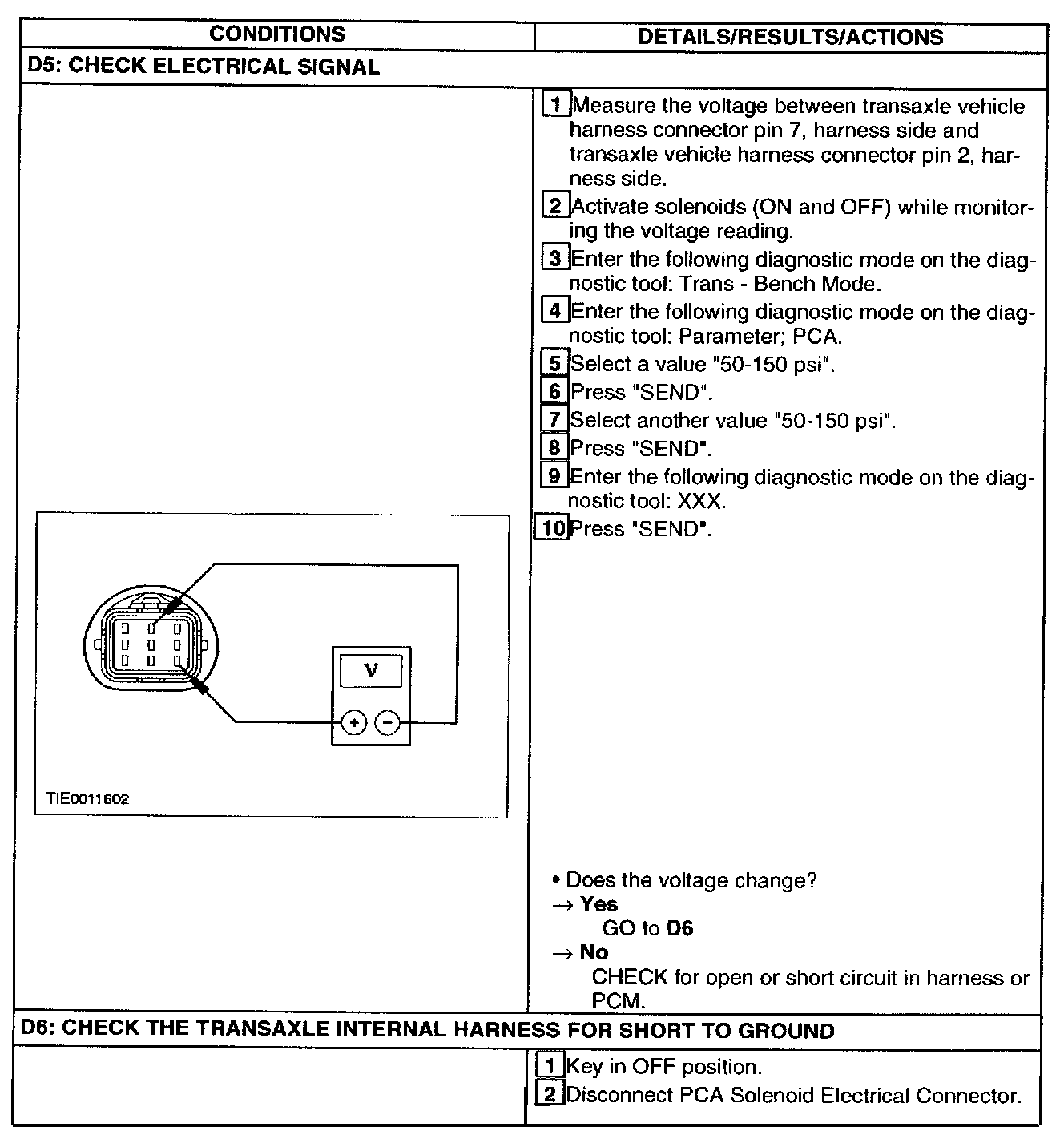

Test D5-D6

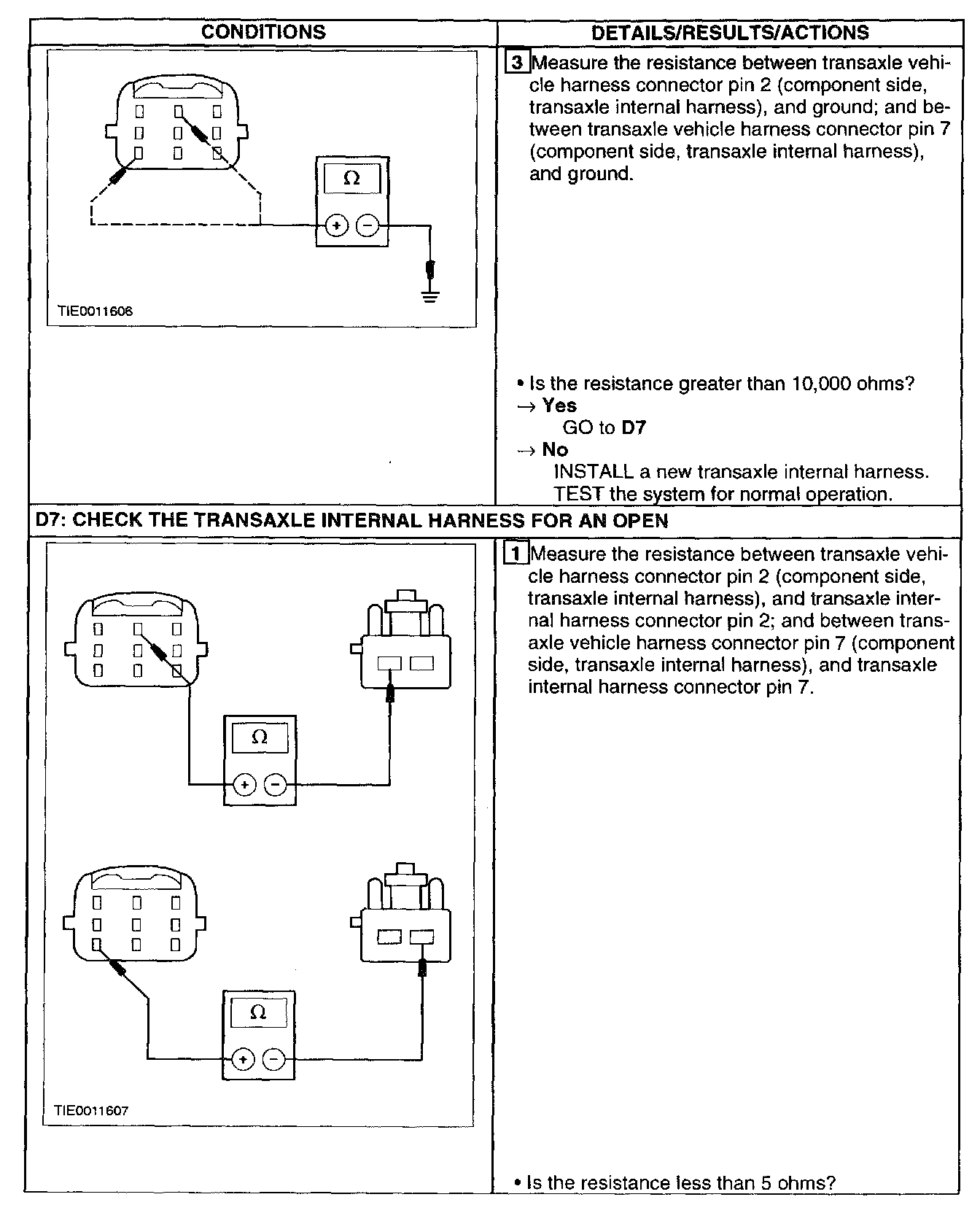

Test D7

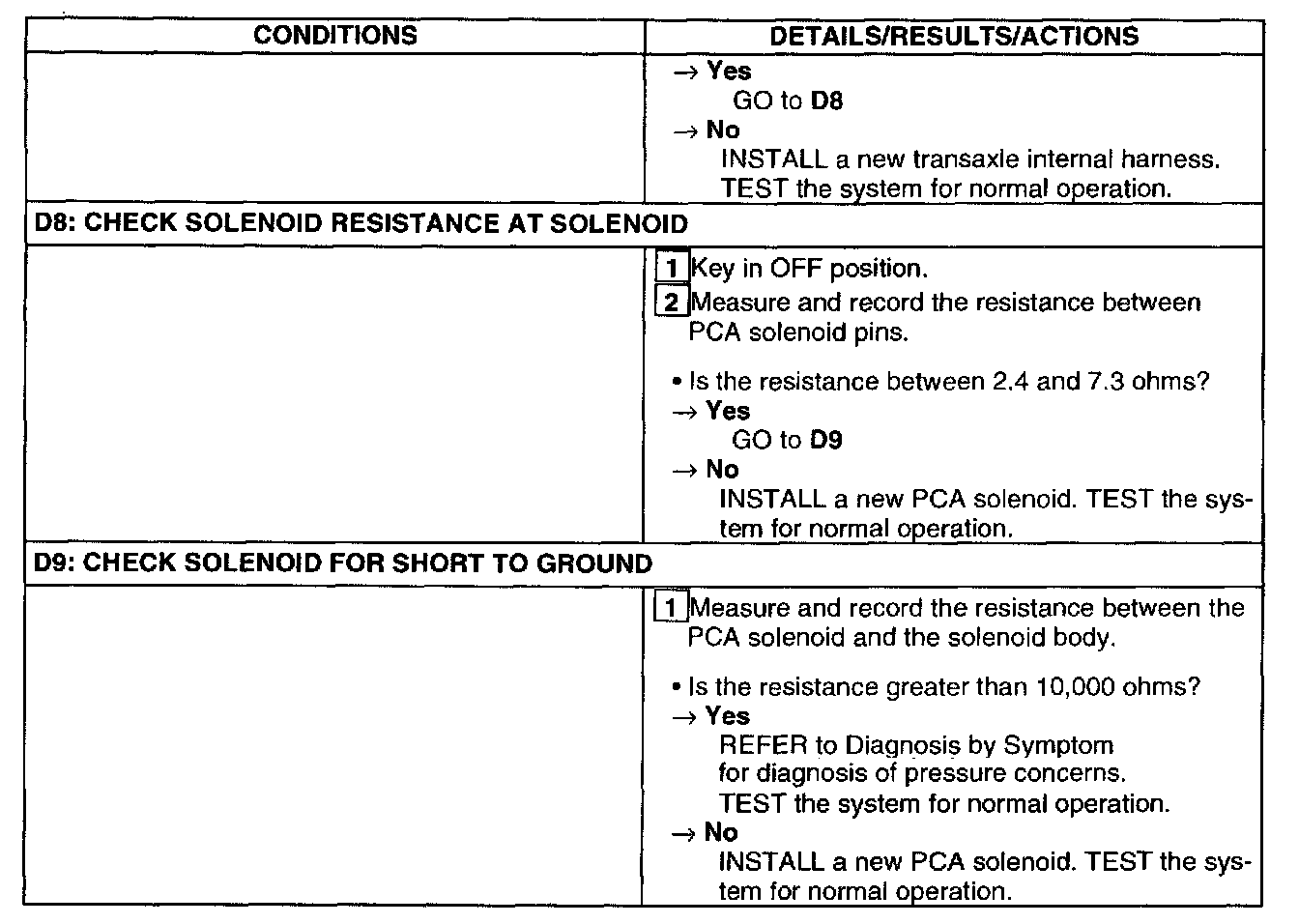

Test D8-D9
