Pinpoint Tests - External Controls

PINPOINT TEST A: THE SHIFT INTERLOCK SYSTEM DOES NOT RELEASE/LOCK PROPERLY/IS BLOCKED

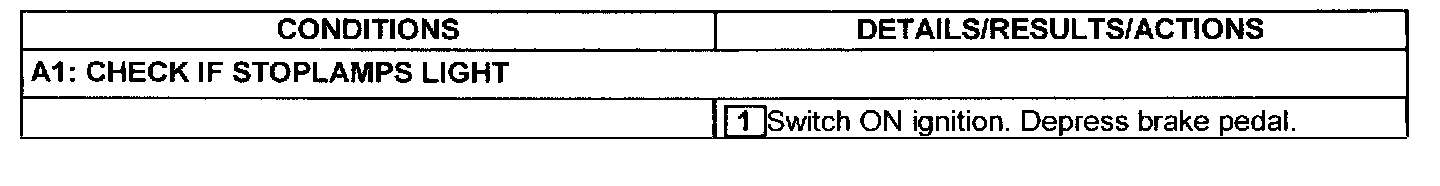

Test A1

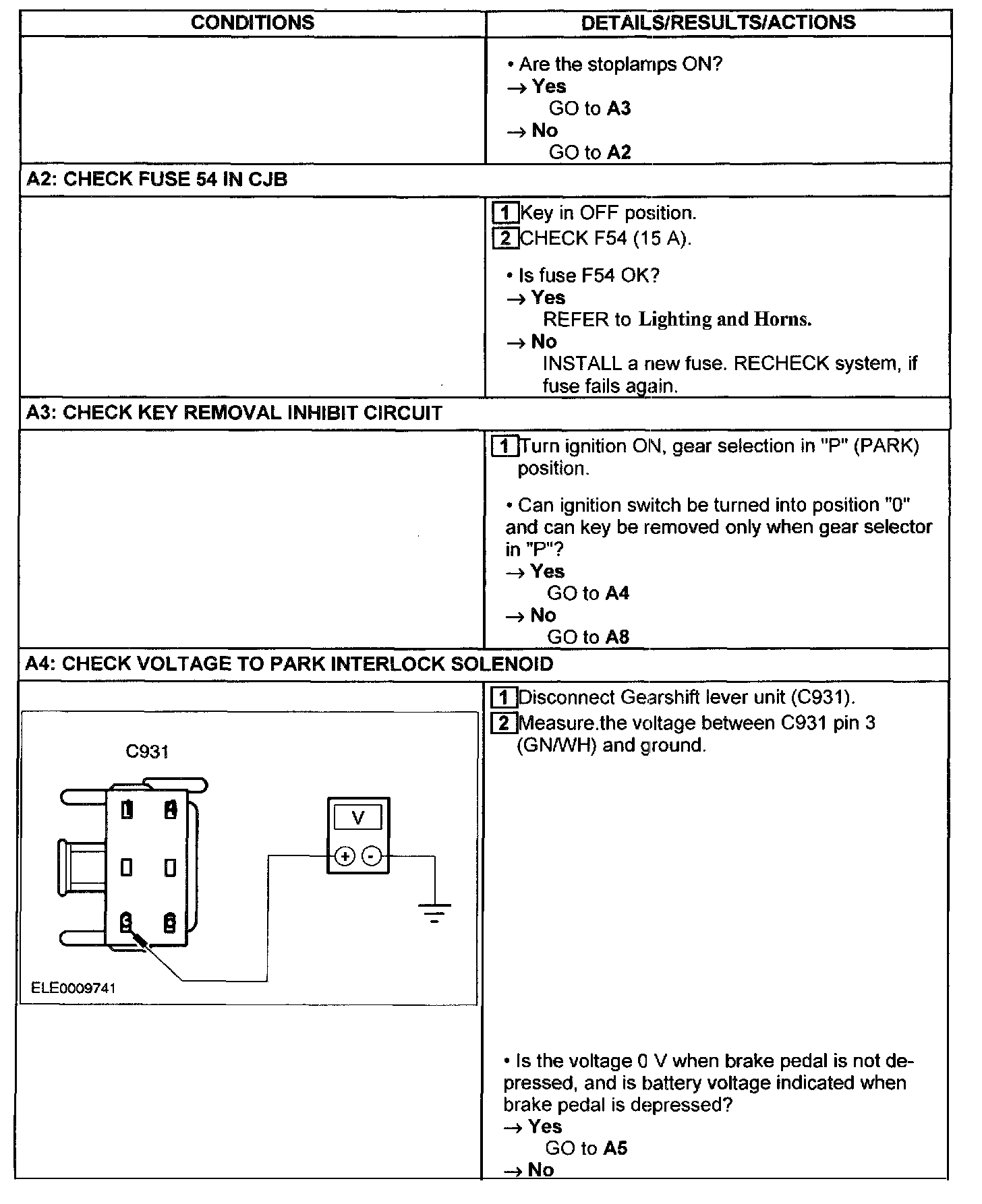

Test A2-A4

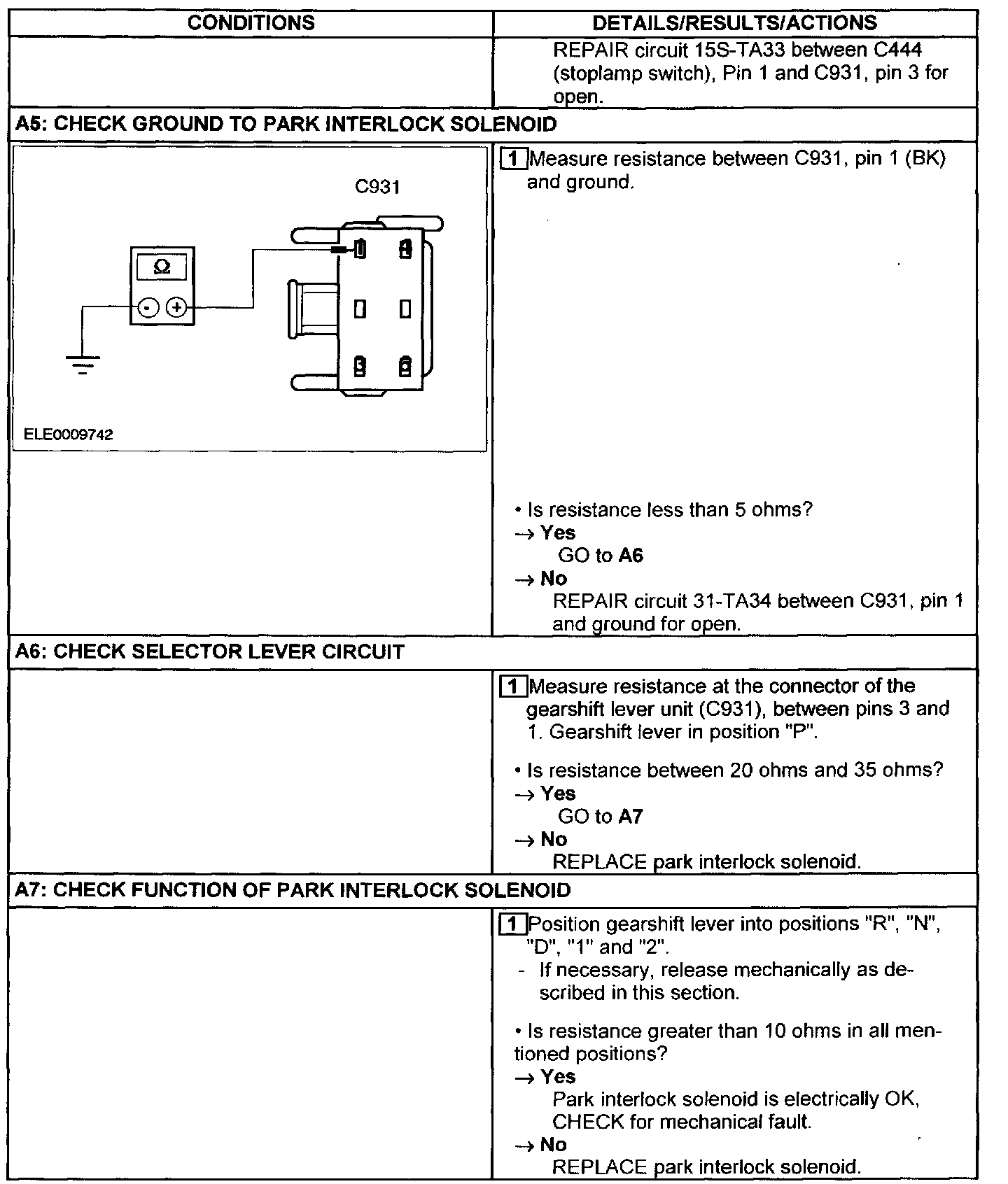

Test A5-A7

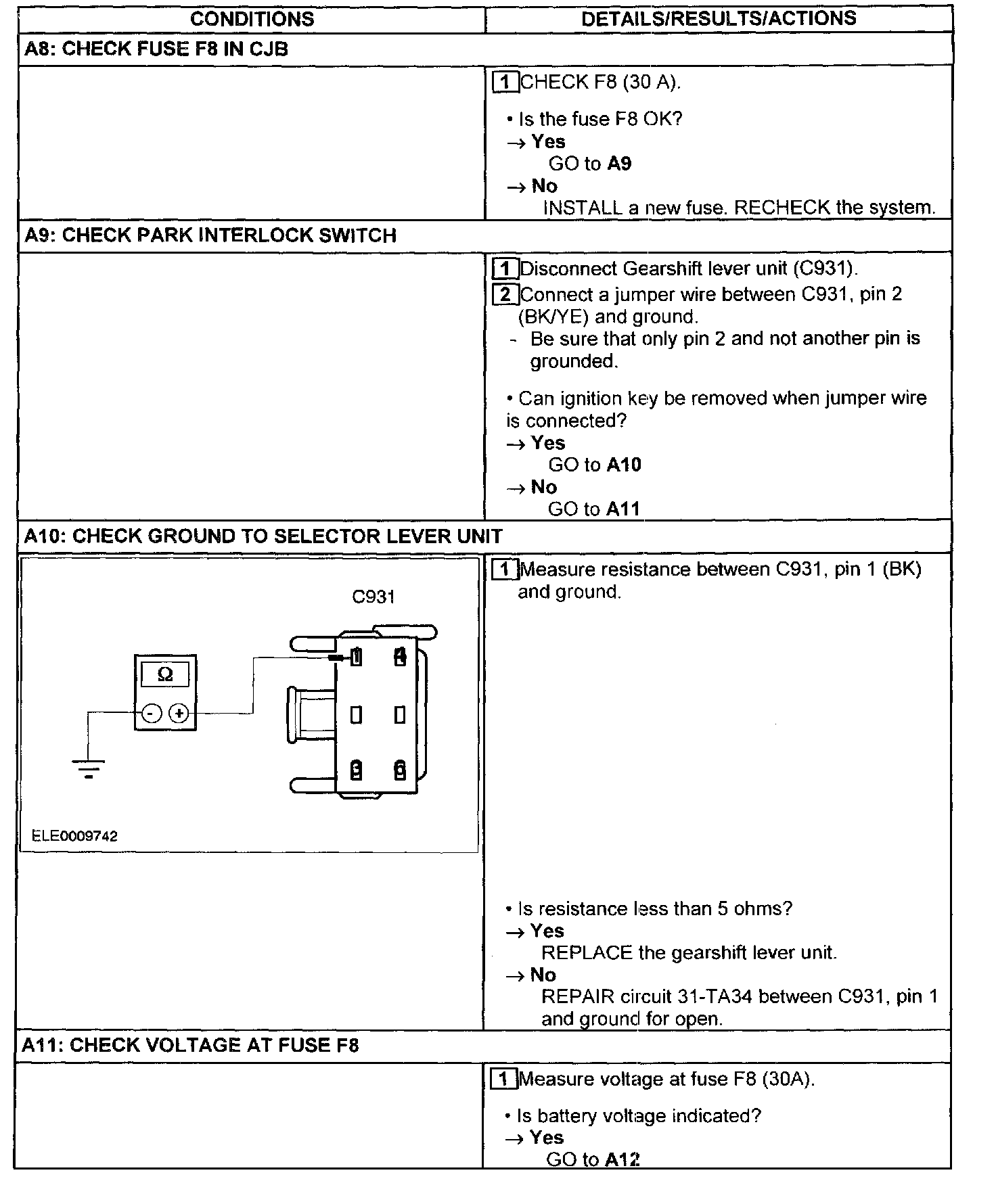

Test A8-A11

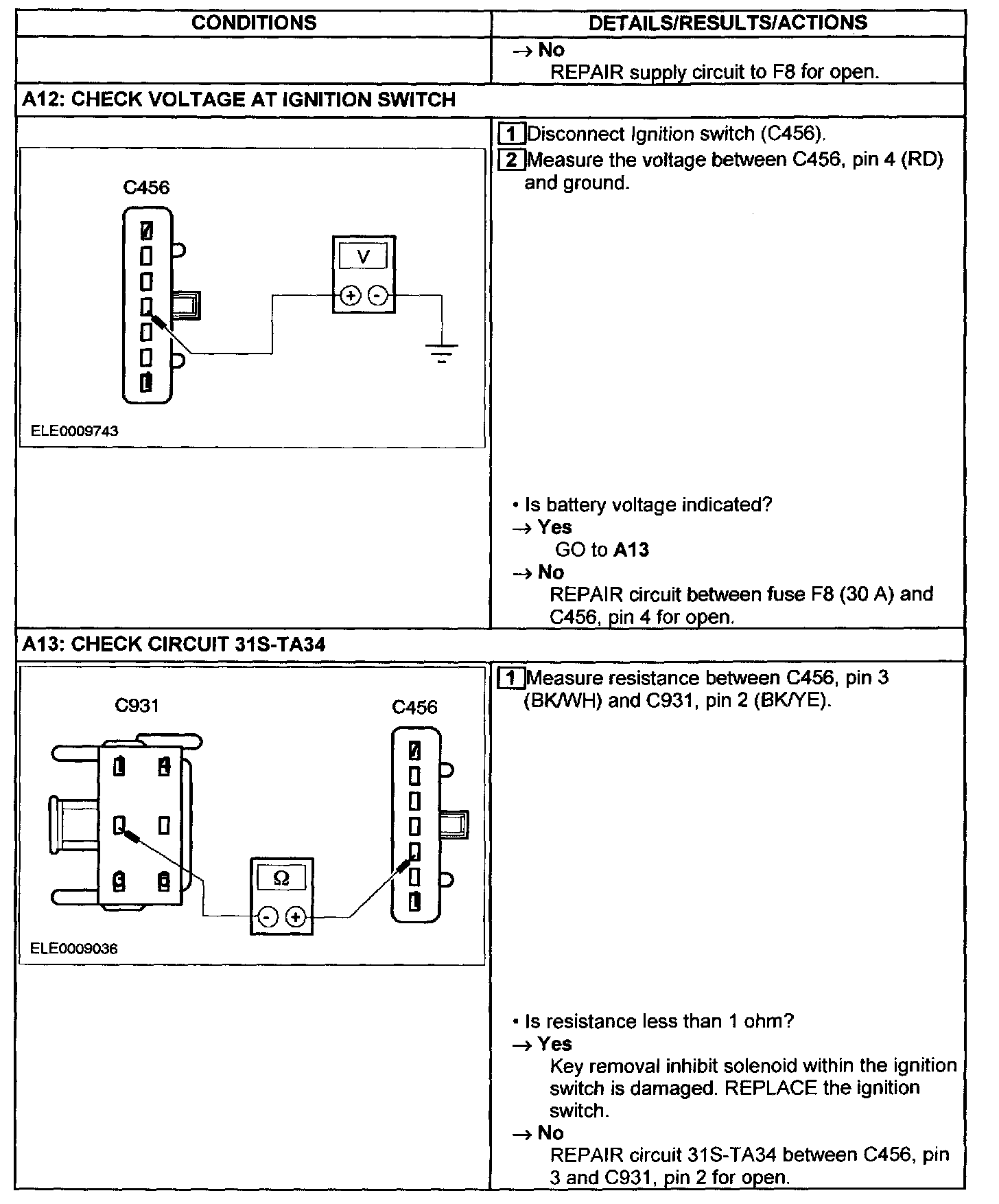

Test A12-A13
