Input Shaft

Input Shaft

Disassembly

CAUTION: Handle the synchronizer ring and synchronizer cone with care.

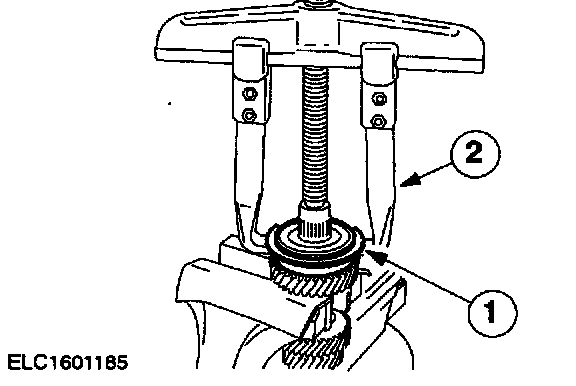

1. Using a puller, remove the bearing (transaxle end).
1. Install the snap-ring.
2. Install a standard puller underneath the snap-ring and pull off the bearing.

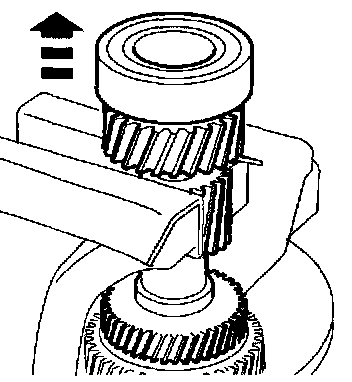

2. Remove the bearing (clutch end).

Assembly





1. Carefully clean and check all parts and coat with Manual transmission fluid before reassembly.

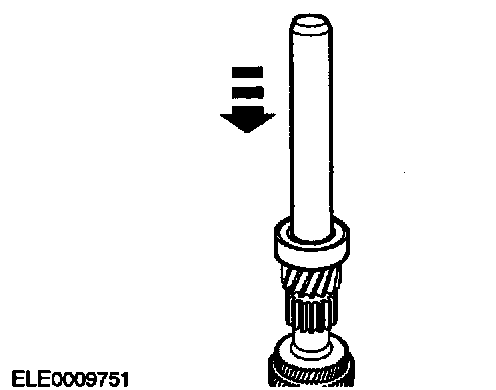

2. Using a press and a suitable tube, install the bearing (clutch end).





3. NOTE: The annular groove in the bearing must face outwards.

Using a press and a suitable tube, install the bearing (transaxle end).
