Selector Plate

Selector Plate

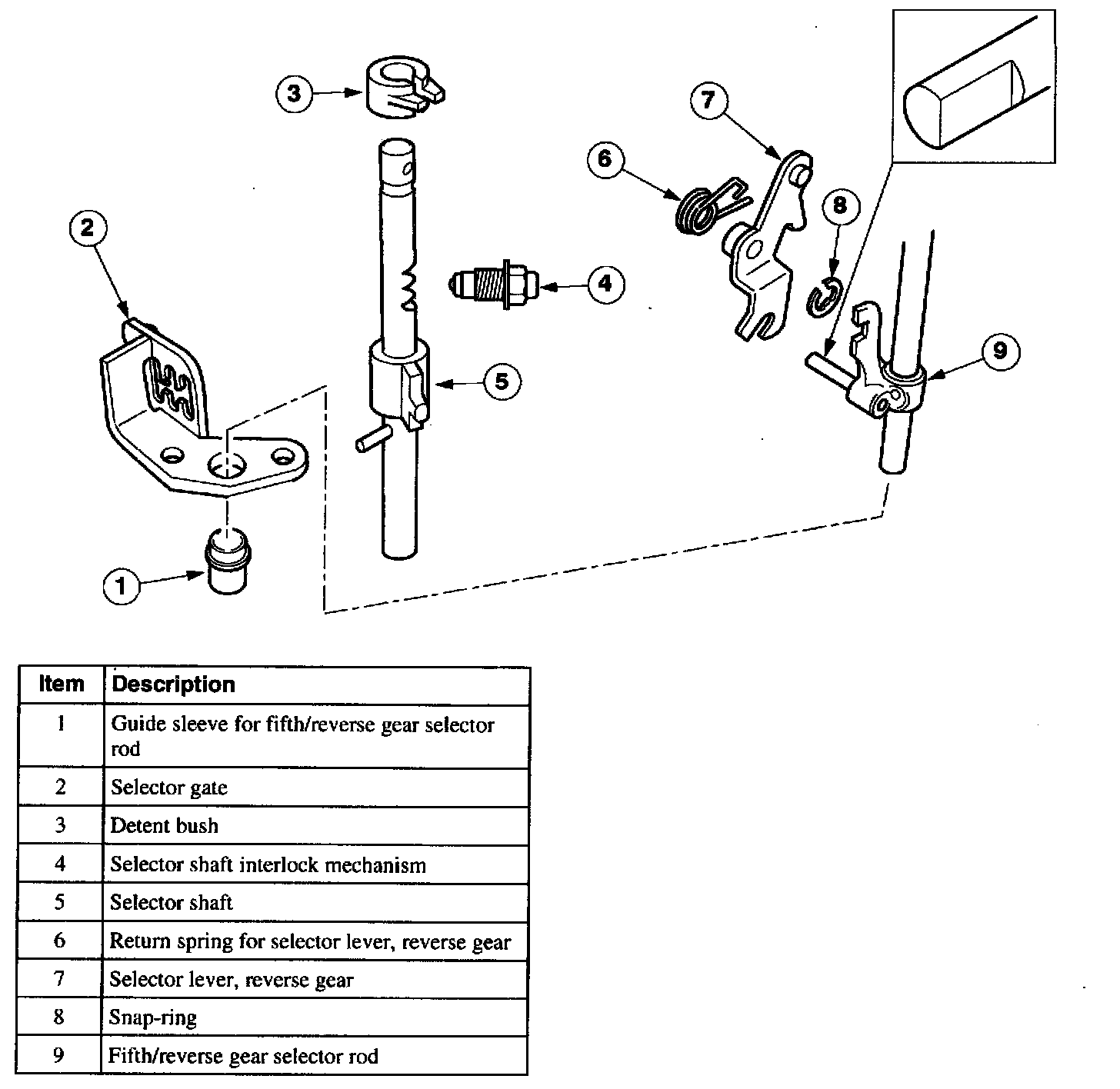

Overview, selector mechanism

Disassembly

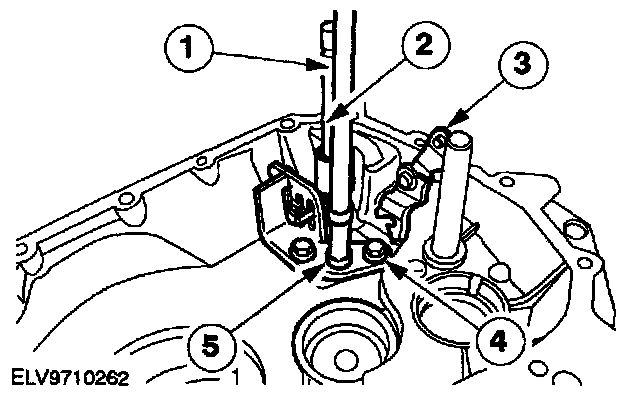

1. Remove the selector mechanism.
1. Fifth and reverse gear selector rod.
2. Selector shaft.
3. Reverse gear selector lever.
4. Selector plate.
5. Fifth and reverse gear selector rod guide sleeve.

Assembly





1. Install the selector mechanism.
1 Selector shaft.
2. Reverse gear selector lever.
3. Fifth and reverse gear selector rod guide sleeve.
4. Selector plate.
5. Fifth and reverse Gear selector rod.
