Electrical Diagrams

DETAILED DIAGRAMS

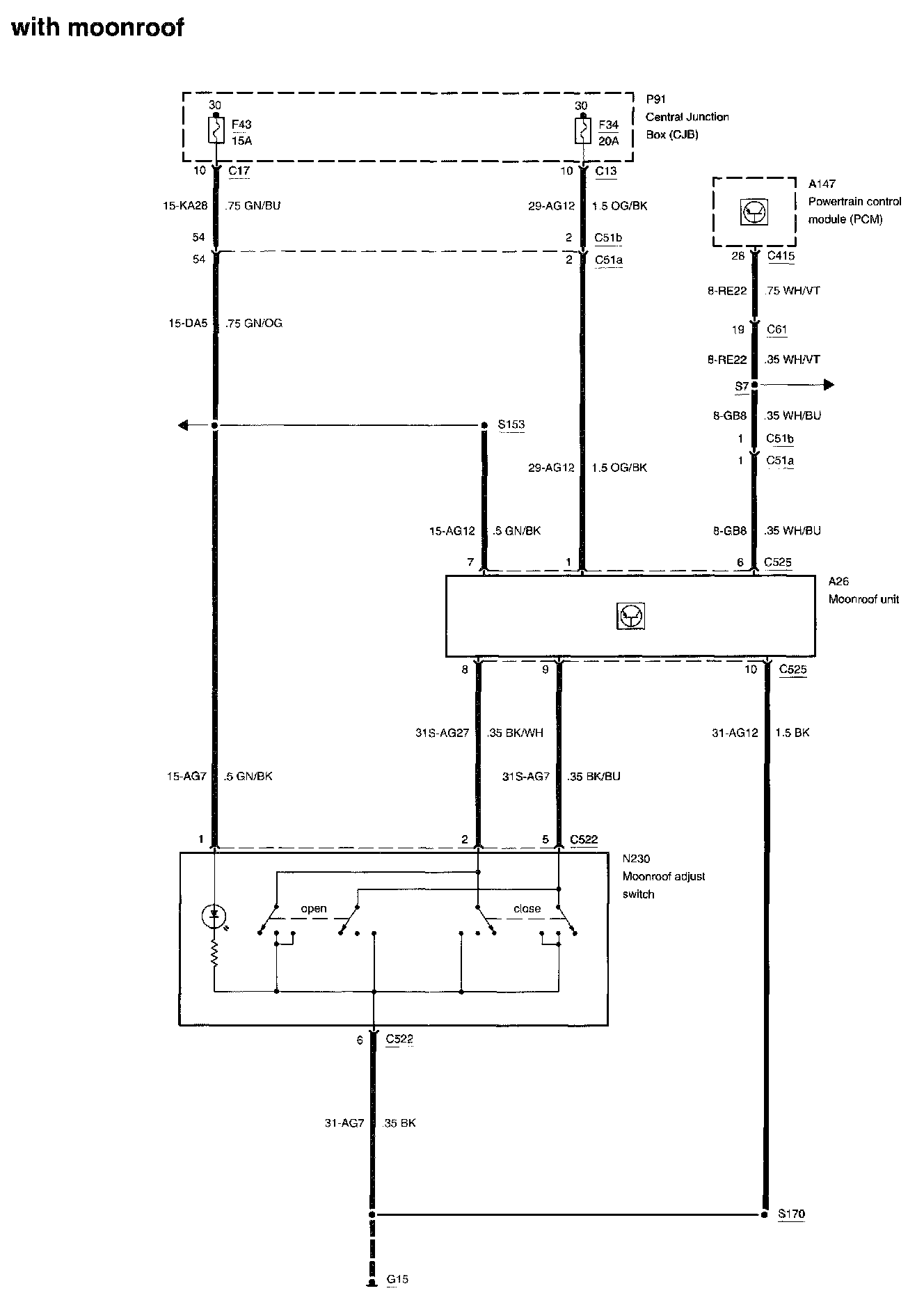

Diagram 501-11-00-1:

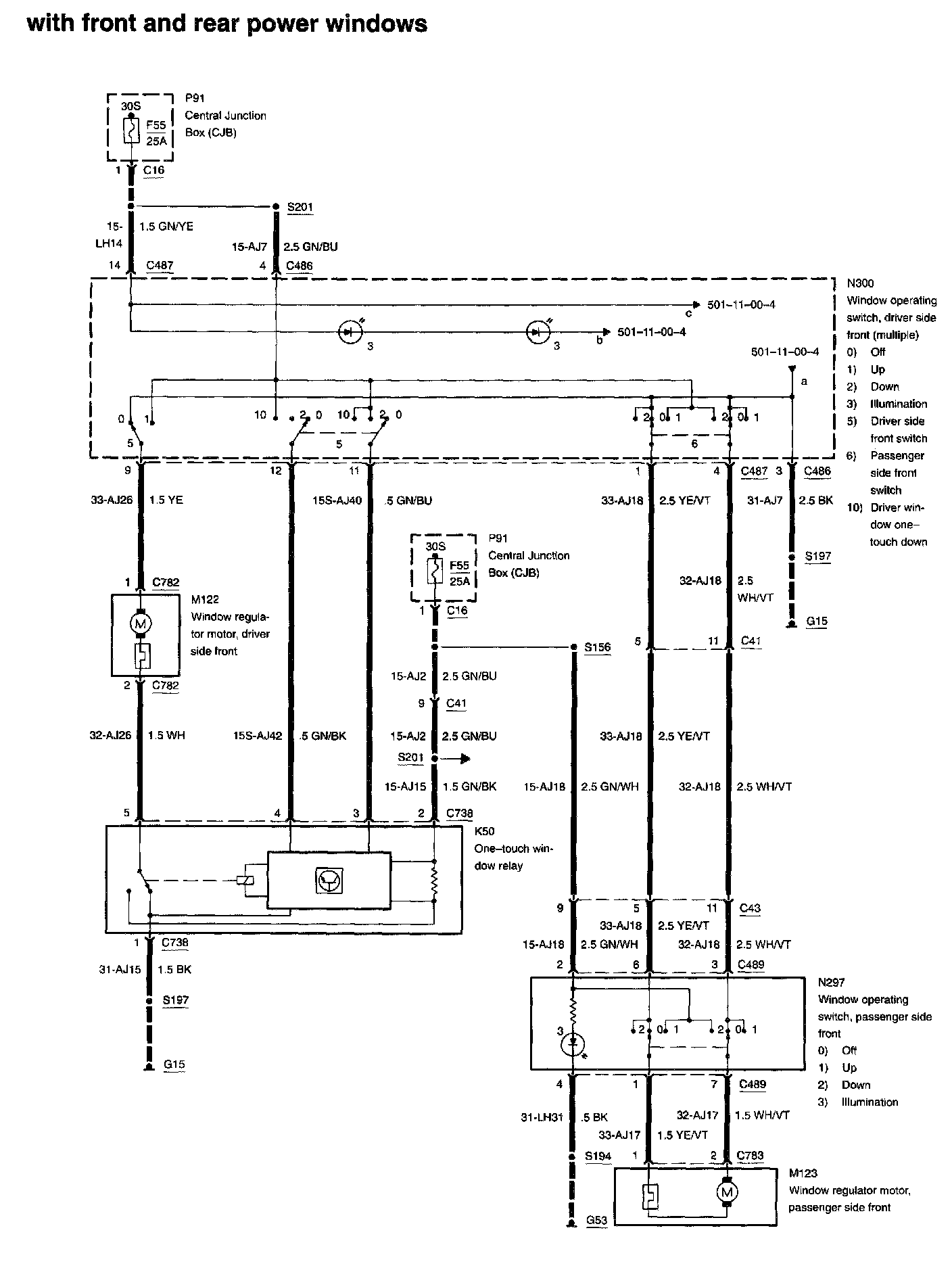

Diagram 501-11-00-2:

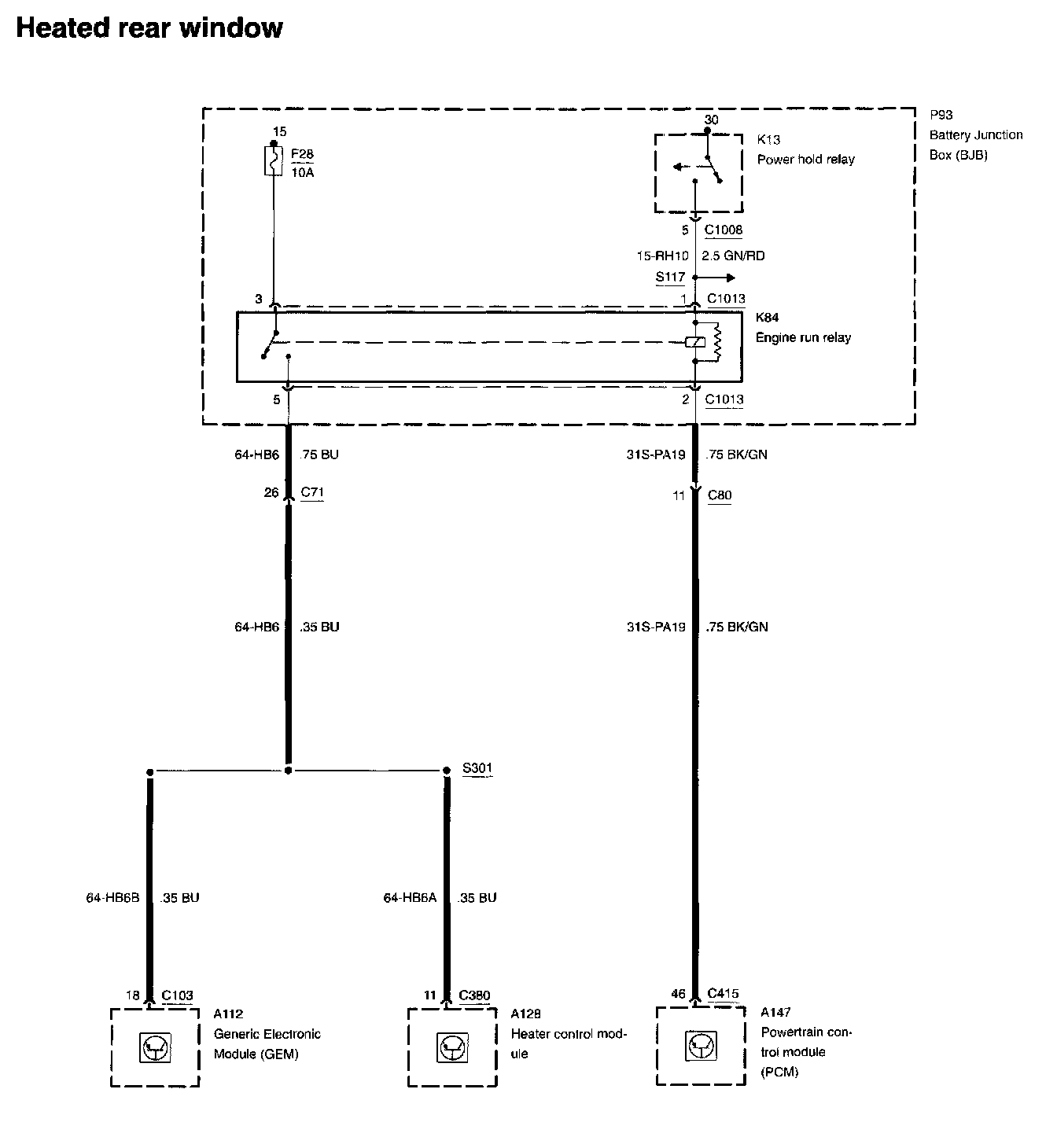

Diagram 501-11-00-3:

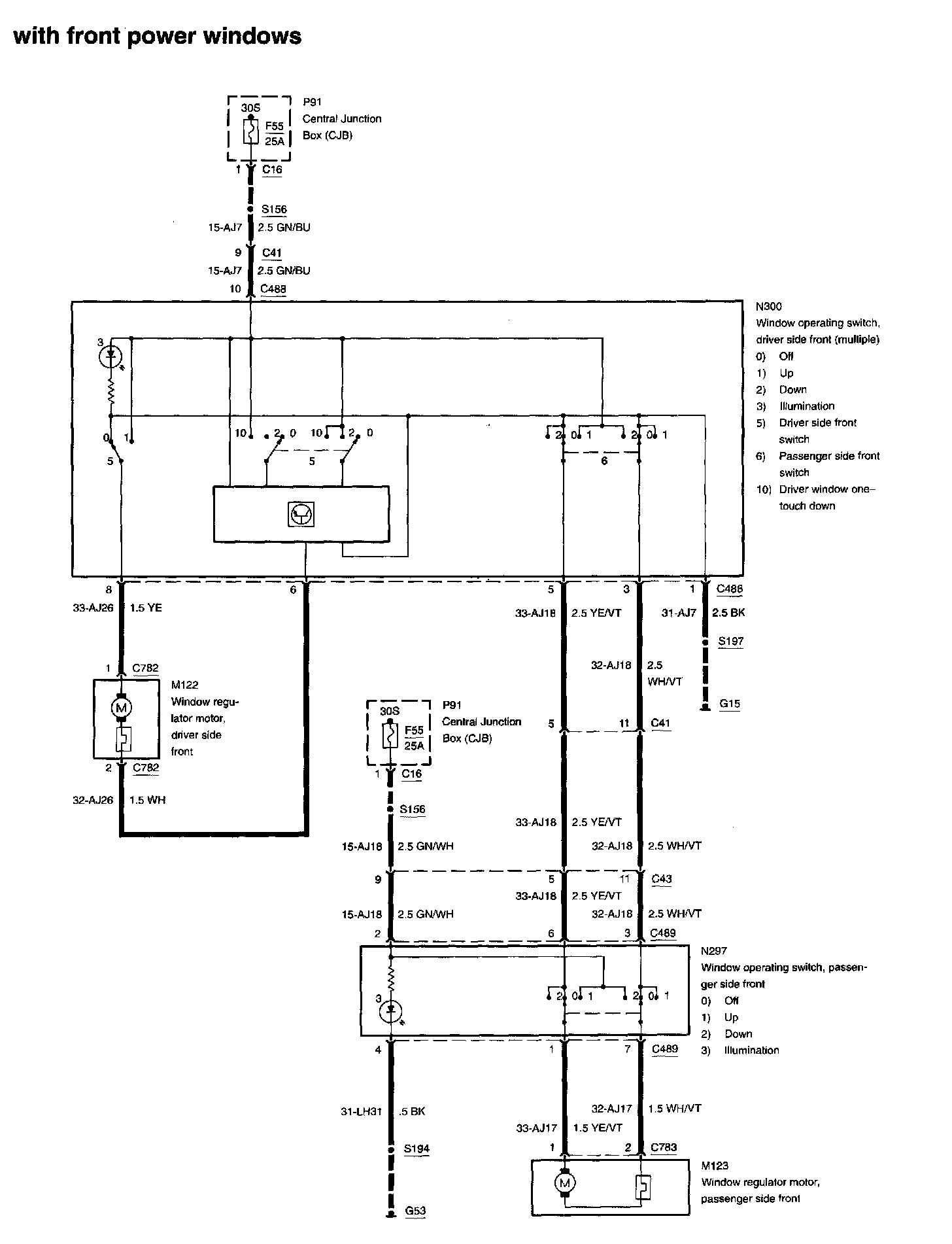

Diagram 501-11-00-4:






Diagram 501-11-00-5:

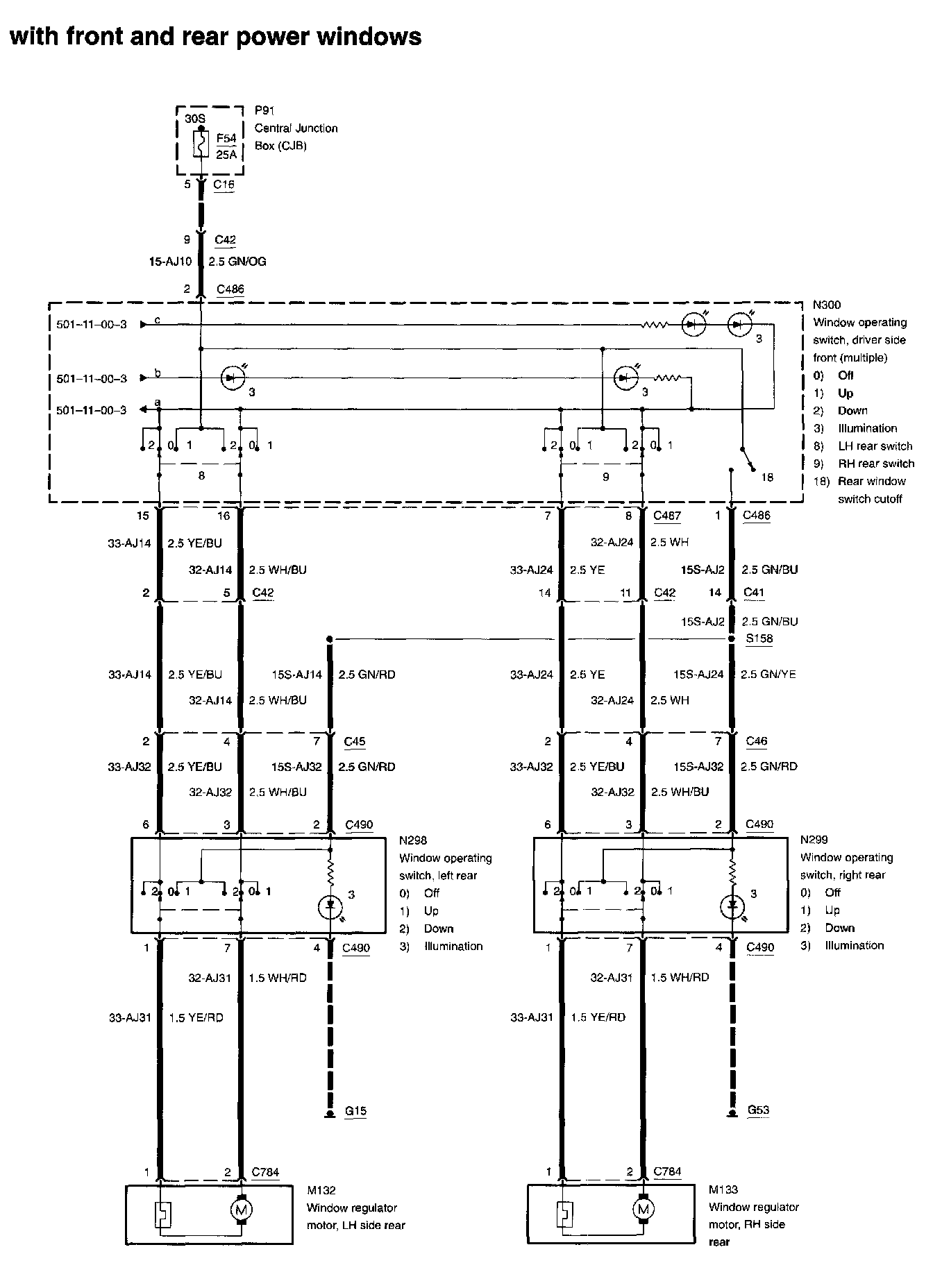

Diagram 501-11-00-6:






RELATED DIAGRAMS

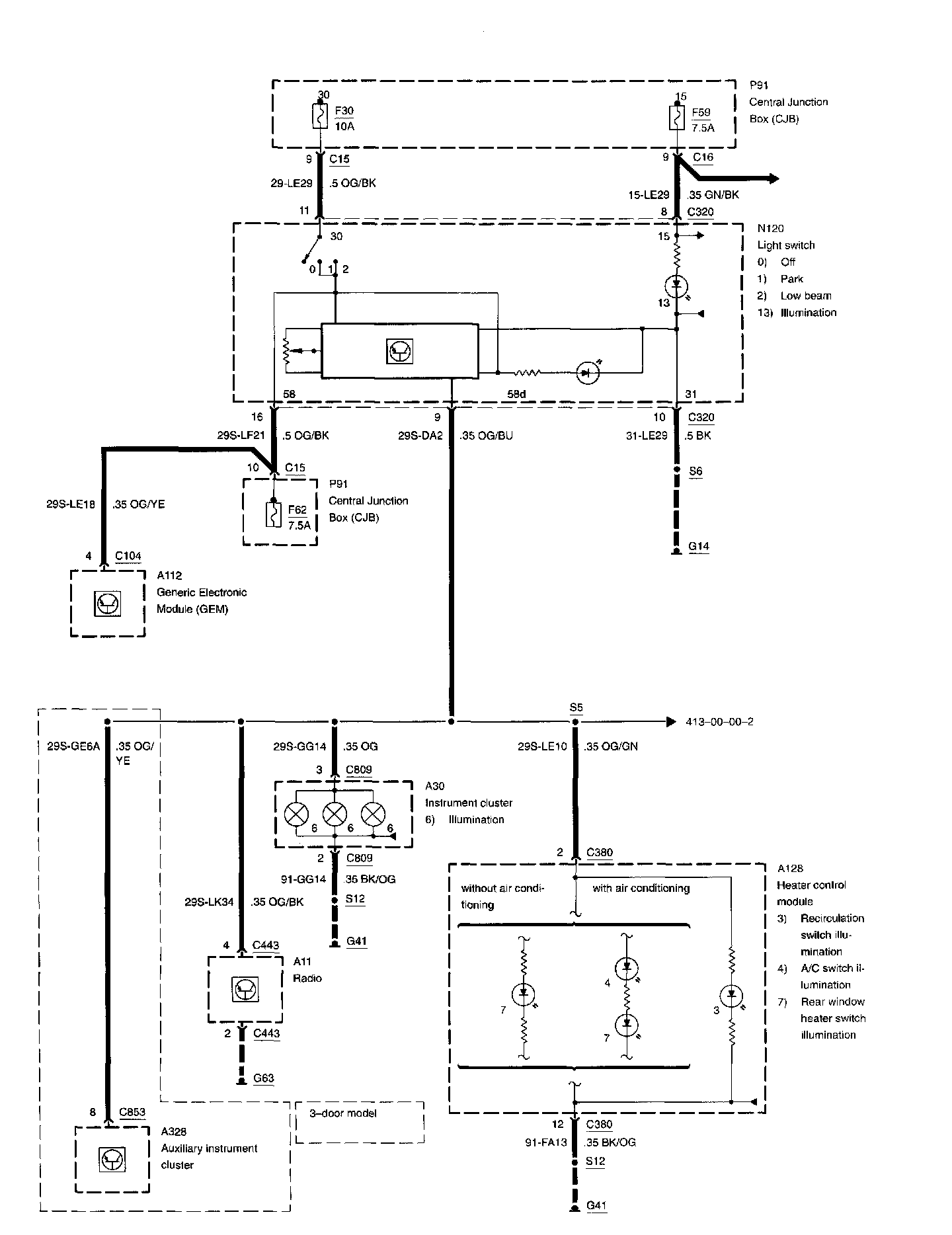

Diagram 413-00-00-1:
