Test D: Luggage Compartment Door Is Inoperative Using The Remote Transmitter

D1 - D3:

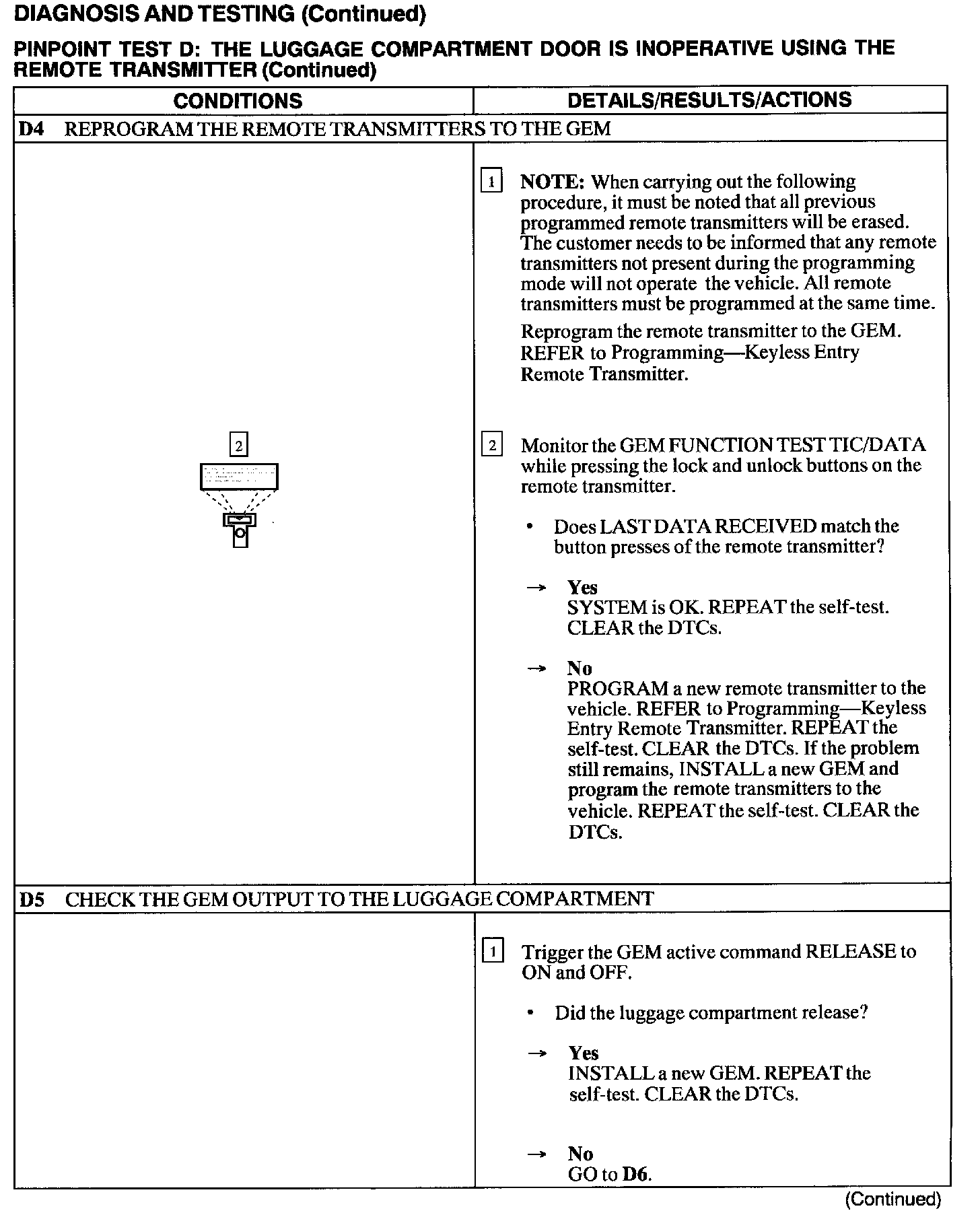

D4 - D5:

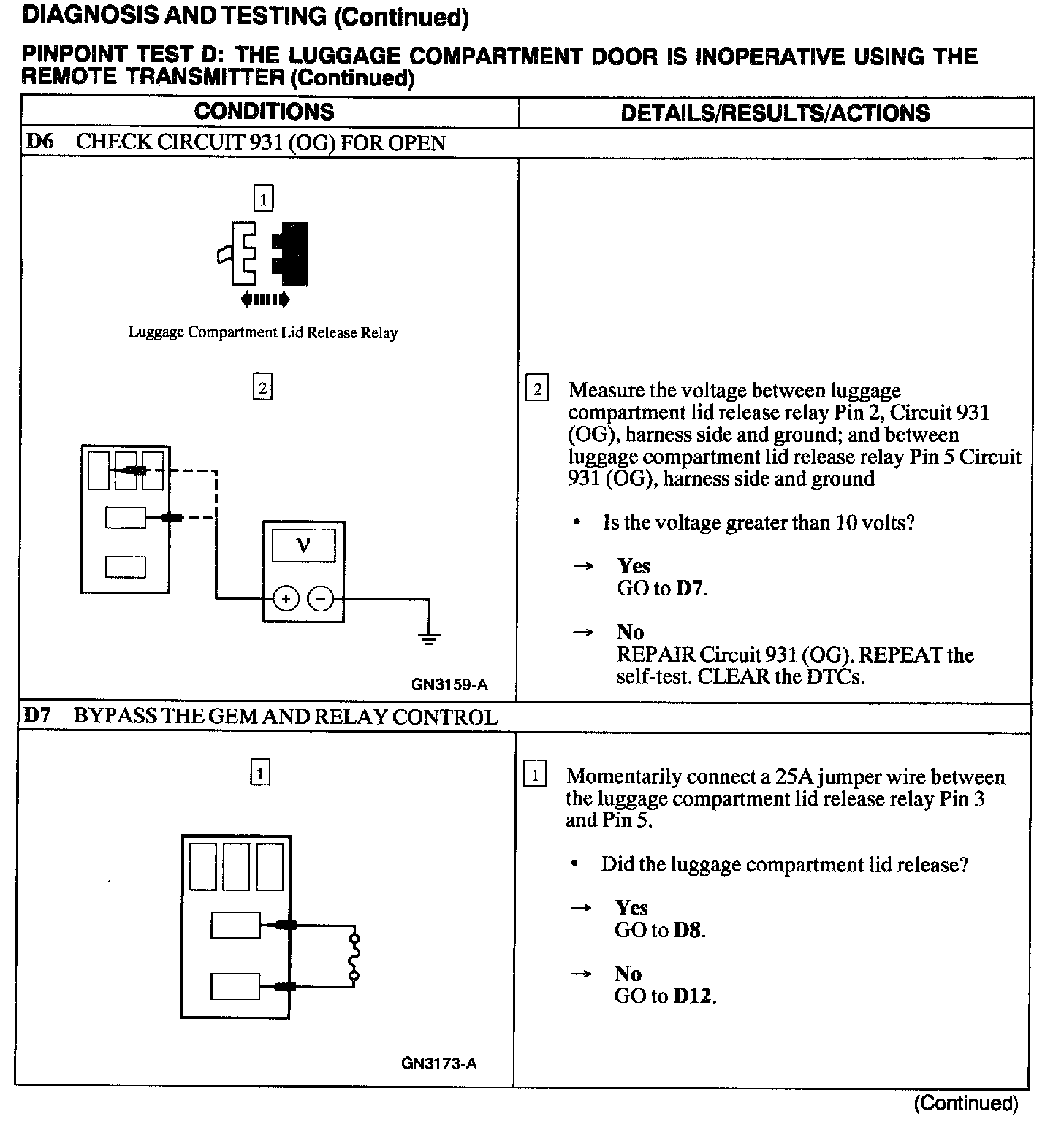

D6 - D7:






D8 - D9:

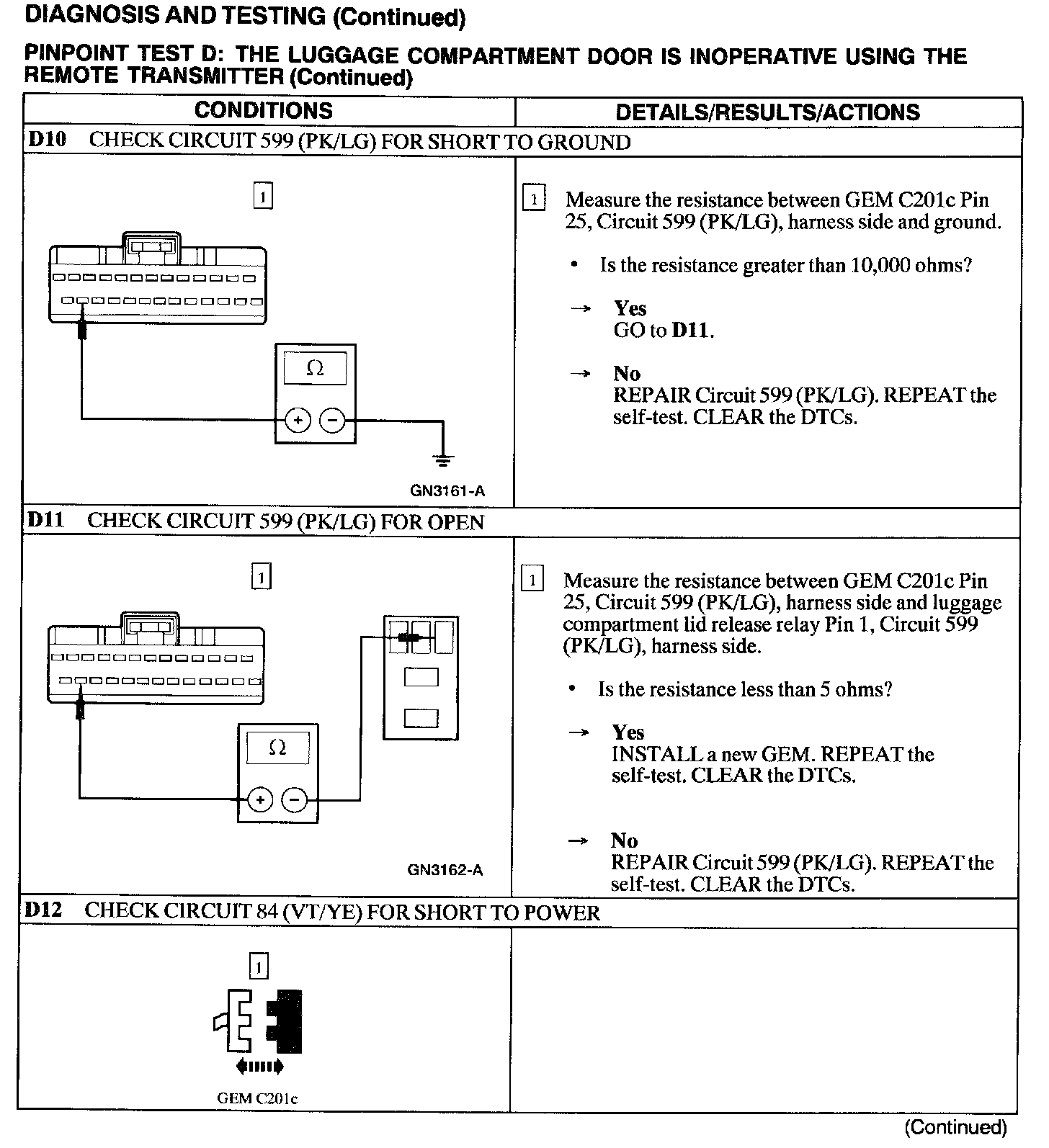

D10 - D12:

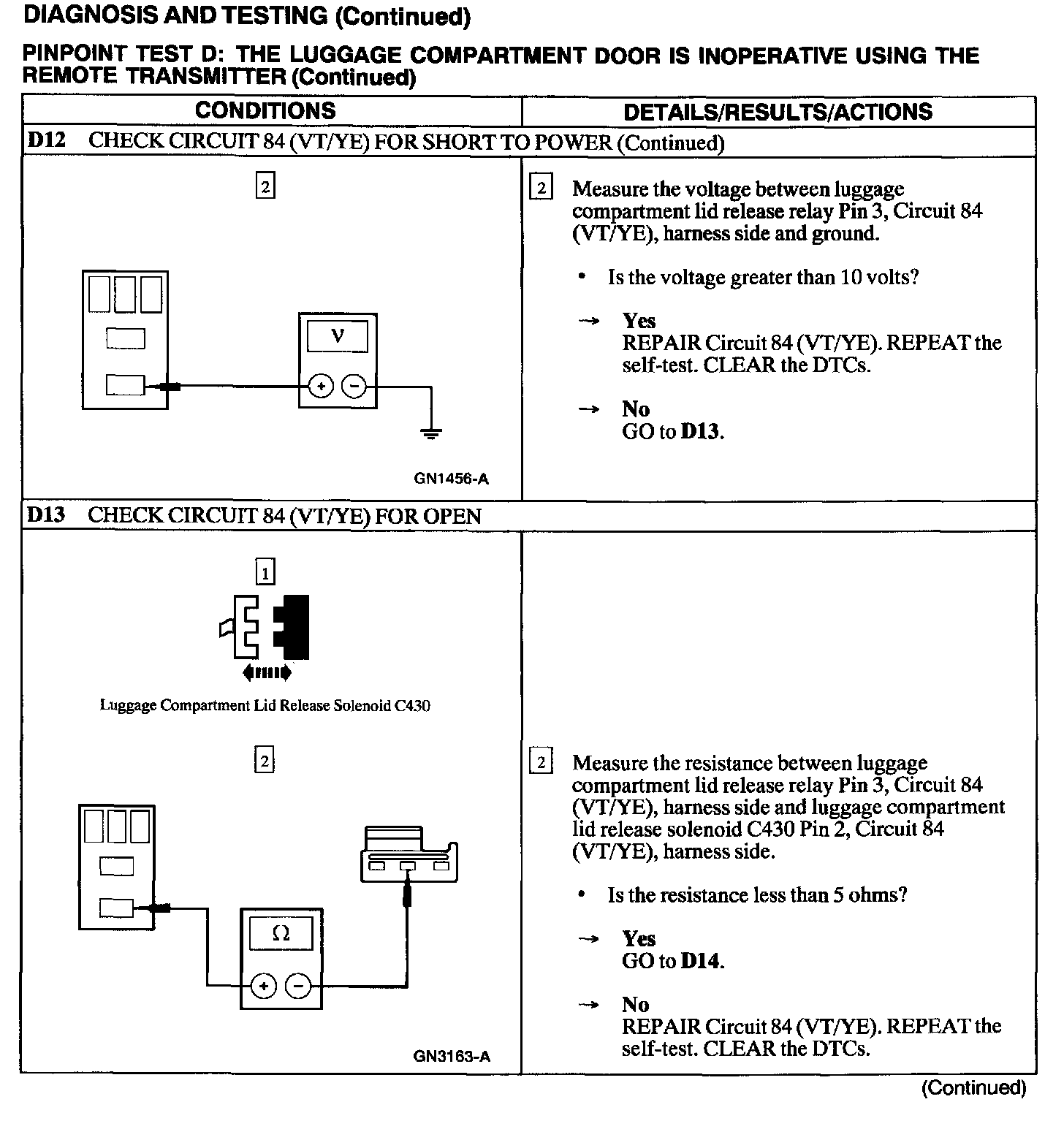

D12 - D13:

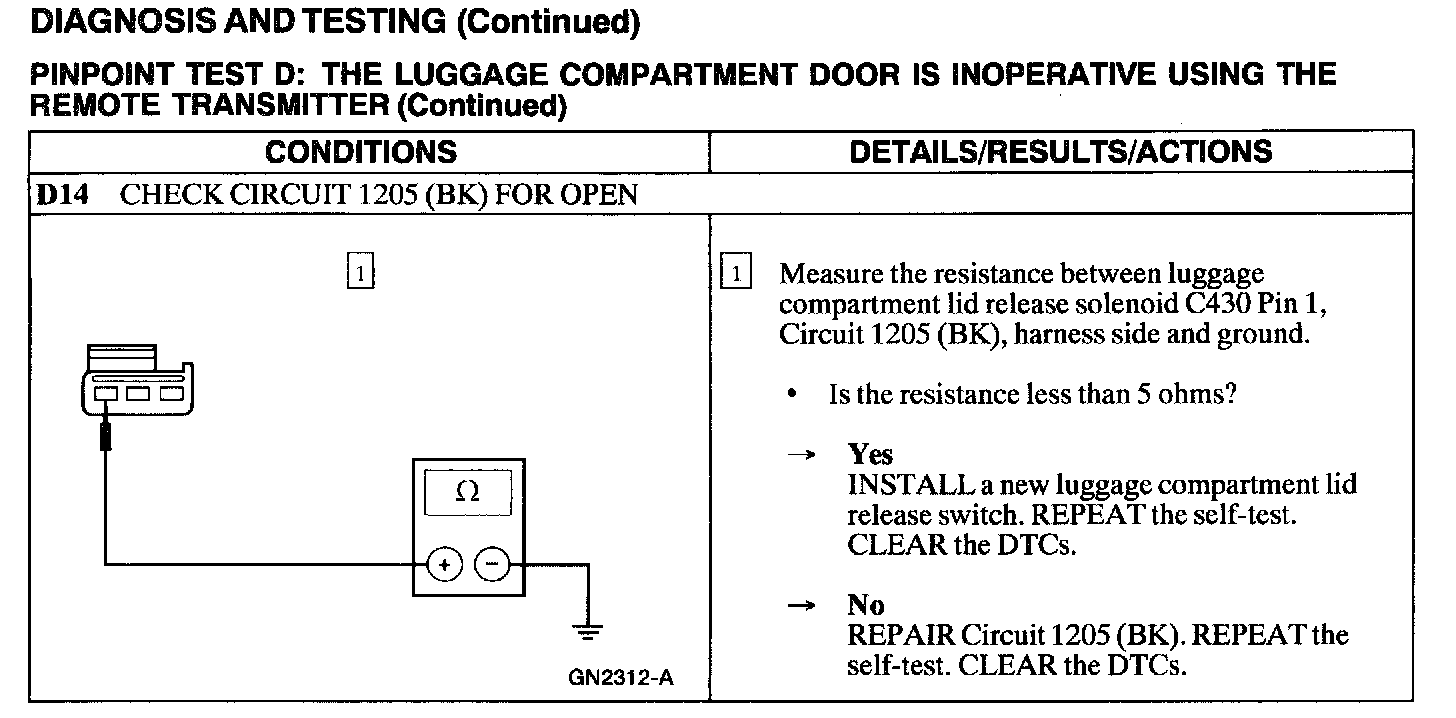

D14:
