Test G: PATS Received Incorrect Key Code From IG. Key Transponder

G1 - G2:

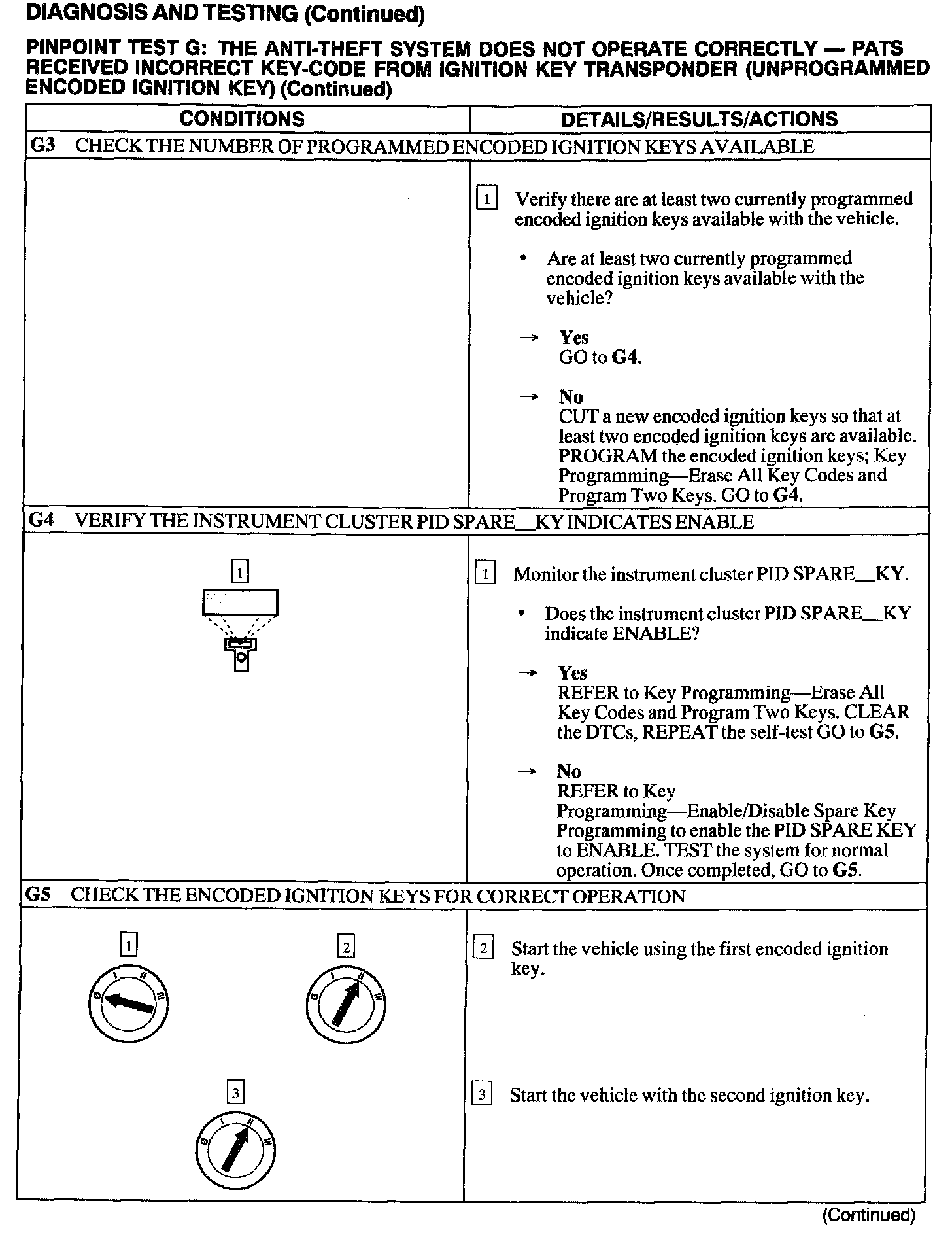

G3 - G5:

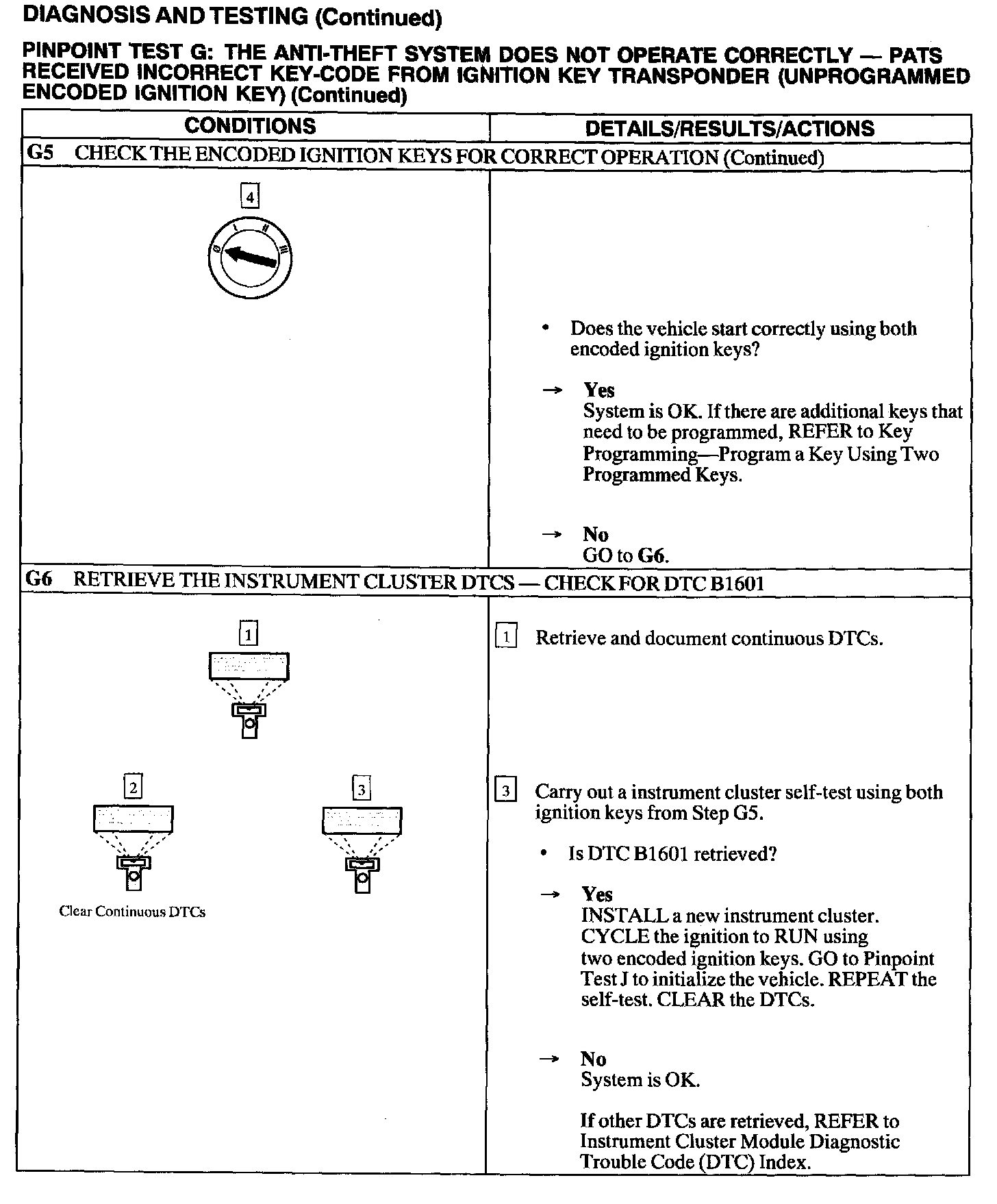

G5 - G6:






G: Anti-Theft System Does Not Operate Correctly - PATS Received Incorrect Key-Code From Ignition Key Transponder
