Front Door: Service and Repair

REMOVAL
1. Remove the door trim panel.
2. Disconnect the necessary electrical connectors to remove the harness and grommet from the door.

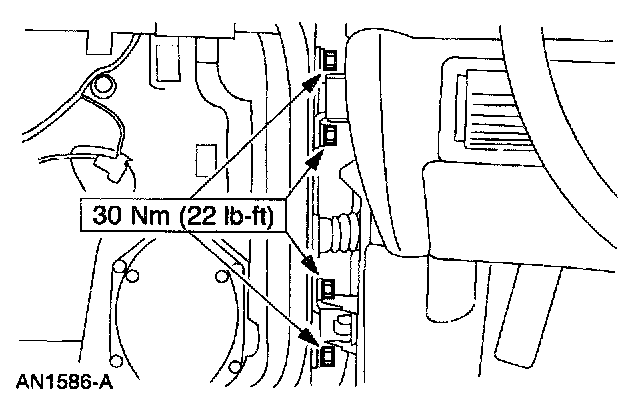

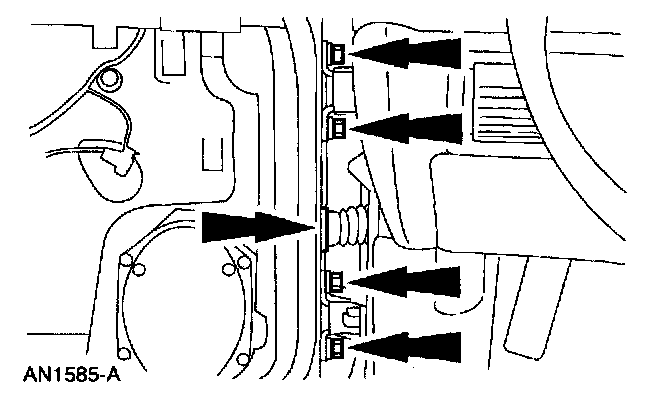

3. Remove bolts and the door.

NOTE:
^ This procedure requires an assistant.
^ Mark the location of the door hinge on the door.

INSTALLATION







1. To install, reverse the removal procedure.
