Home >> Ford >> 2002 >> Mustang V6-3.8L VIN 4 >> Repair and Diagnosis >> Body and Frame >> Relays and Modules - Body and Frame >> Trunk / Liftgate Relay >> Diagrams

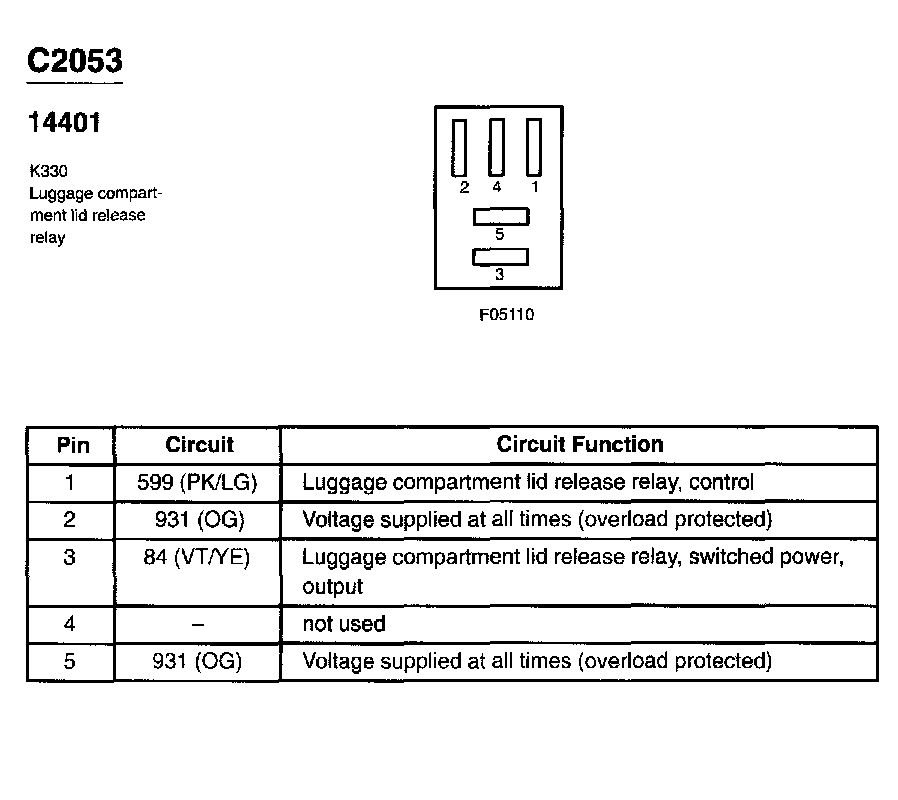

Trunk / Liftgate Relay: Diagrams
