Test A: Convertible Top Does Not Raise/Lower
Test A: Convertible Top Does Not Raise/Lower
A1:
A2 - A3:
A4 - A5:
A6 - A8:
A8 - A10:
A10 - A12:

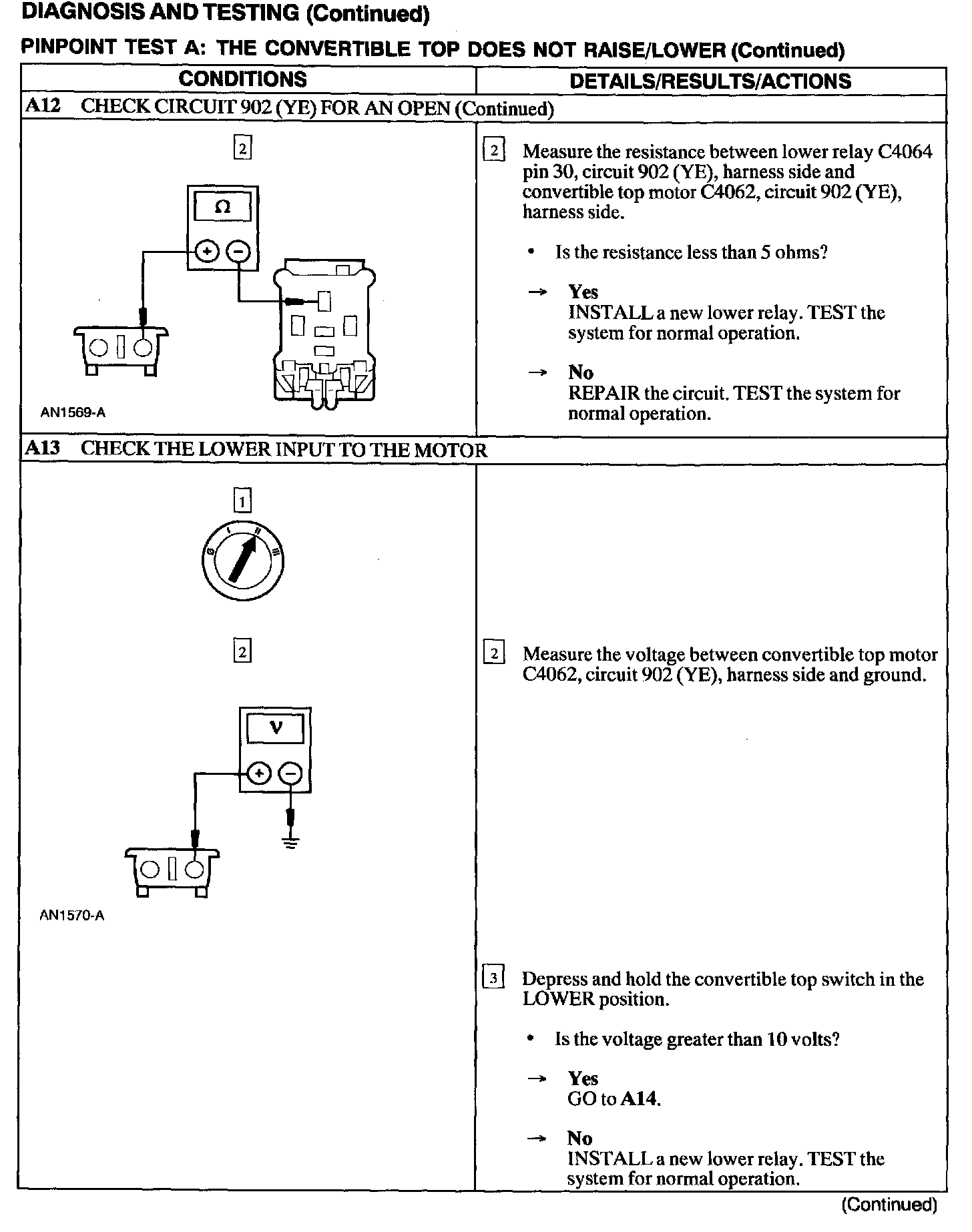

A12 - A13:
A14 - A15:
A16:
