Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2002
>>
Mustang V6-3.8L VIN 4
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test C: Power Seat Does Not Move Vertically - Rear
Test C: Power Seat Does Not Move Vertically - Rear

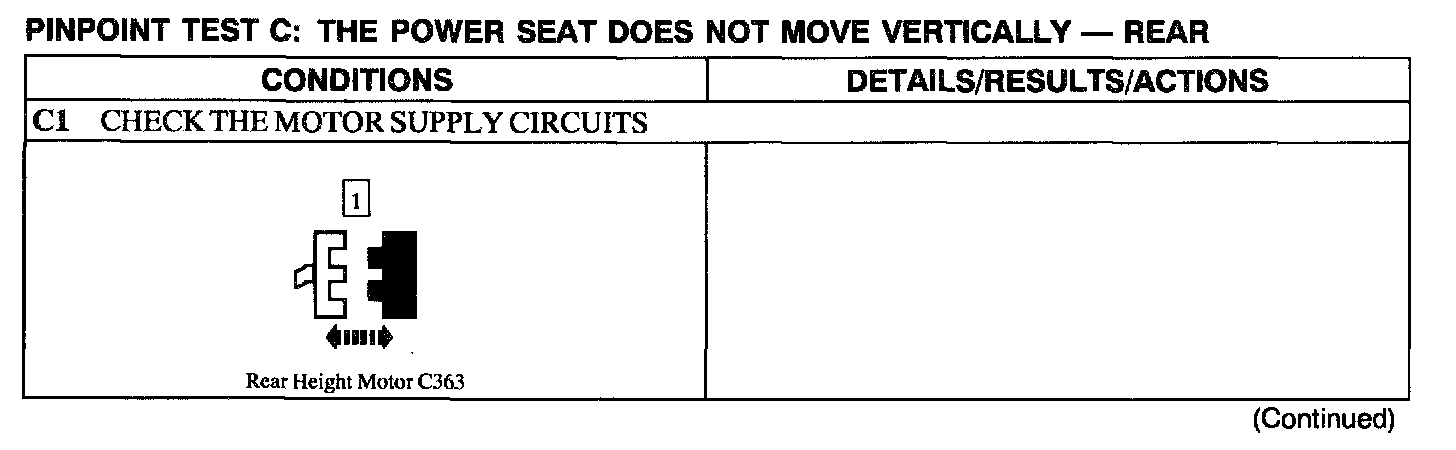

C1:

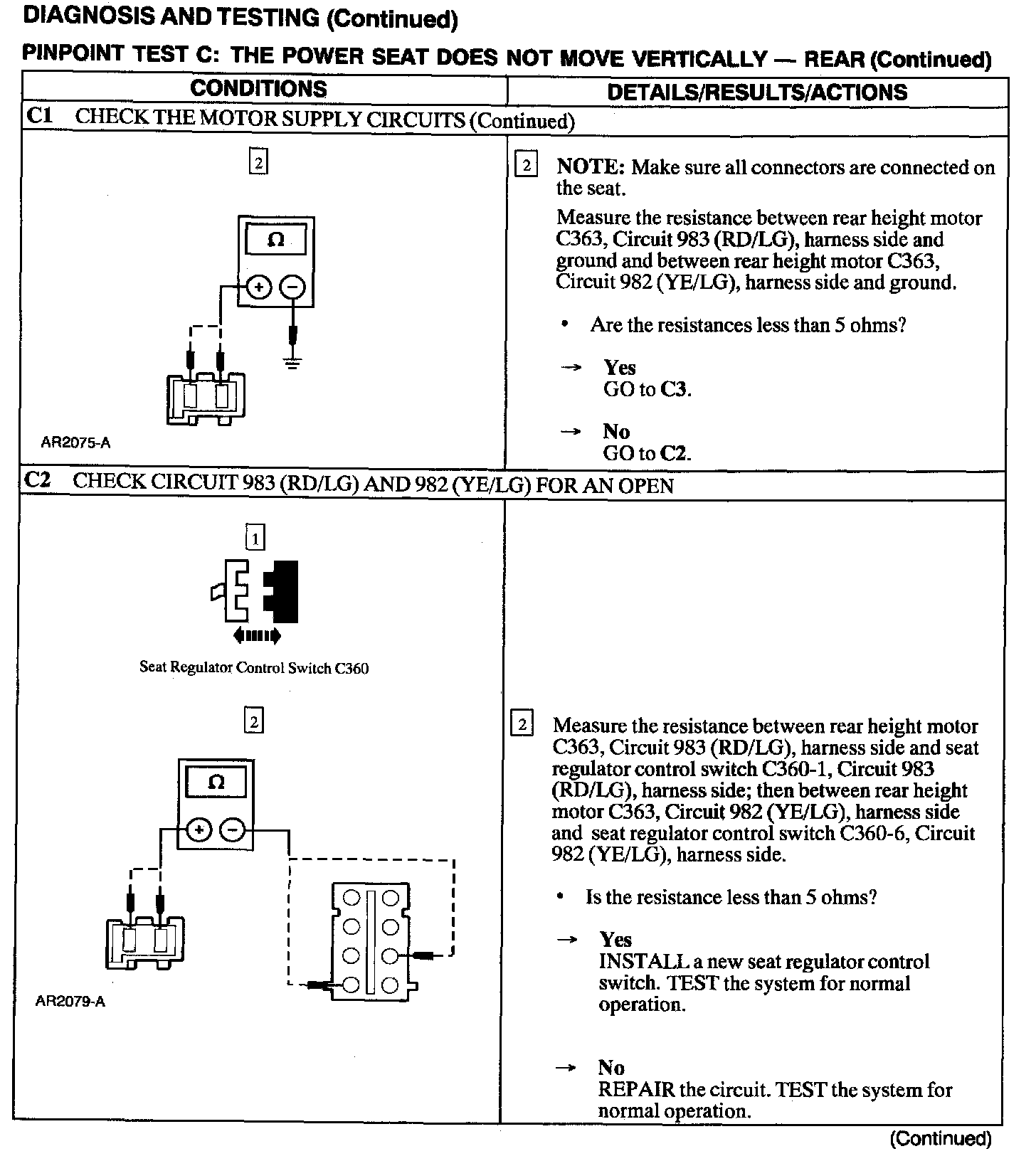

C1 - C2:

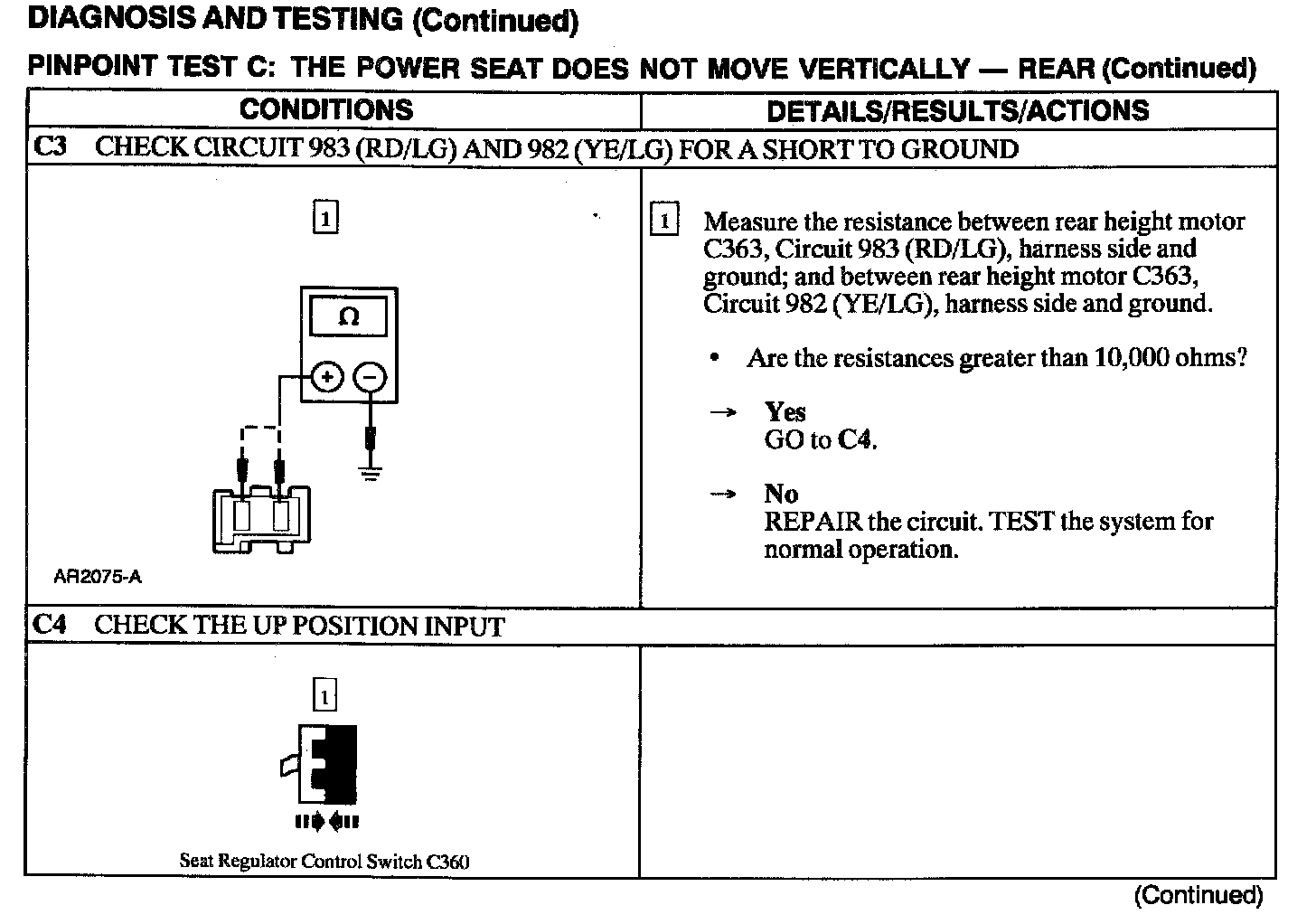

C3 - C4:

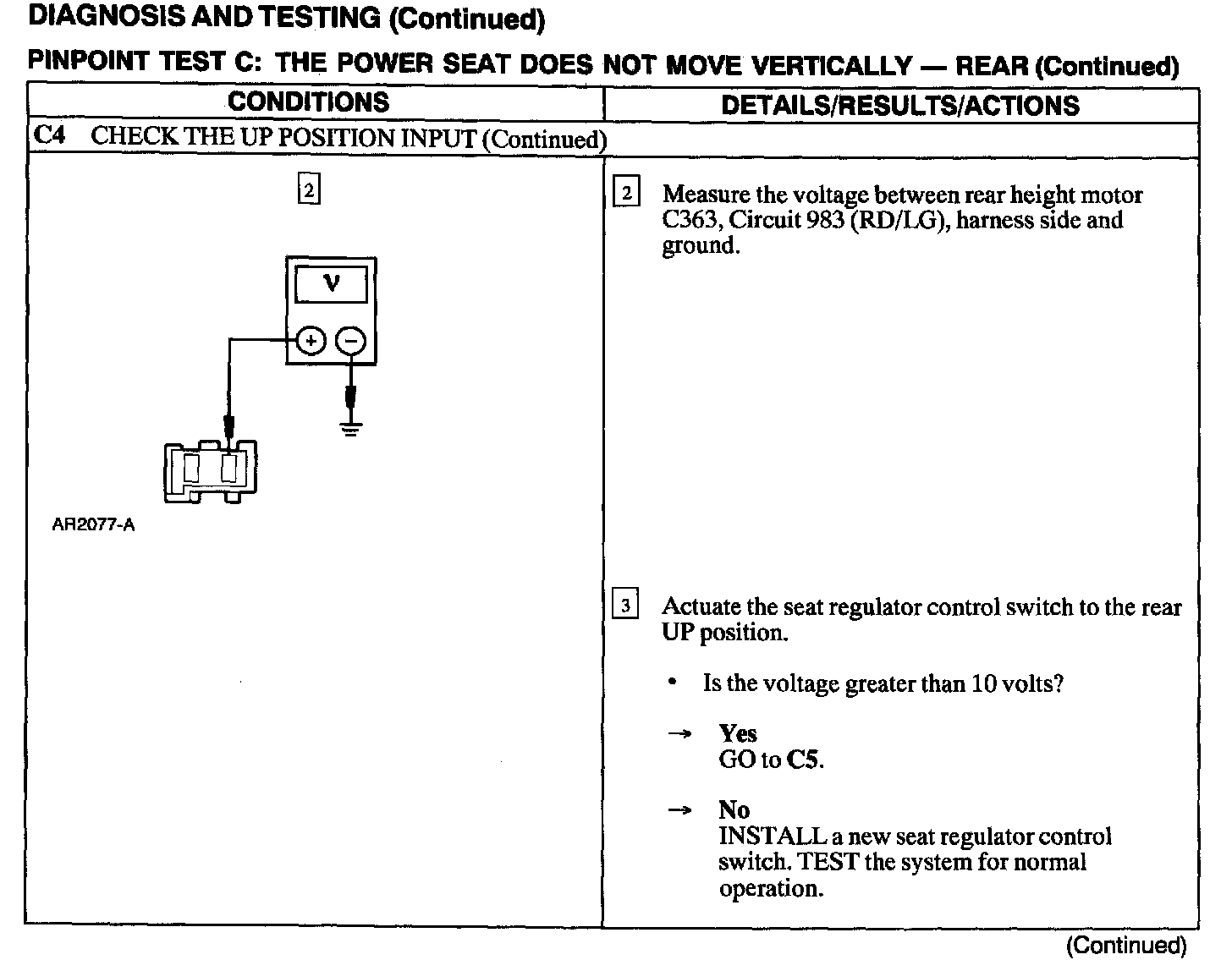

C4:

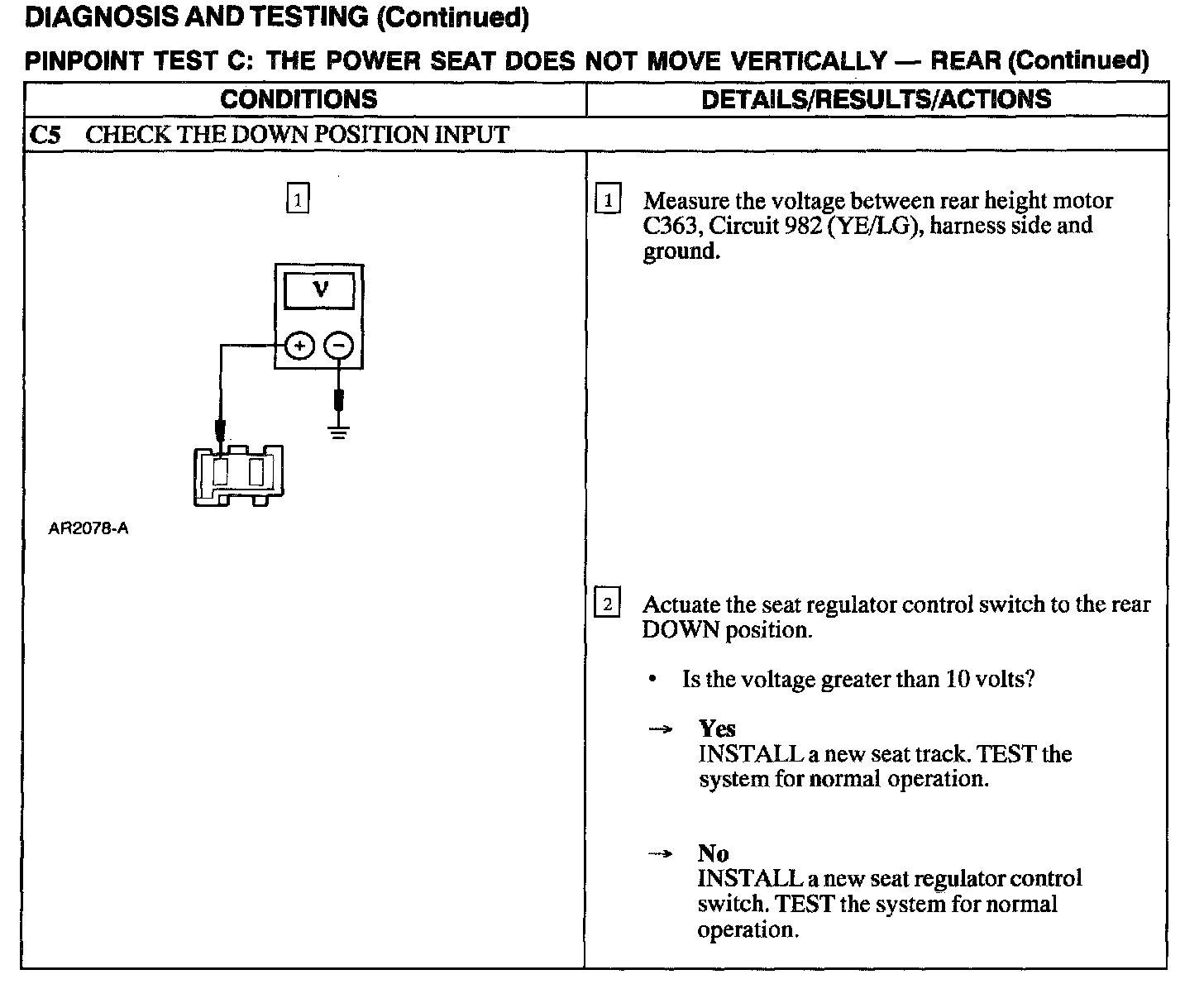

C5:
