G
>>
Anti-Lock Brakes with Traction Control
Anti-Lock Brakes with Traction Control
PINPOINT TEST G: DTC C1222, ANTI-LOCK BRAKE SENSOR MISMATCH

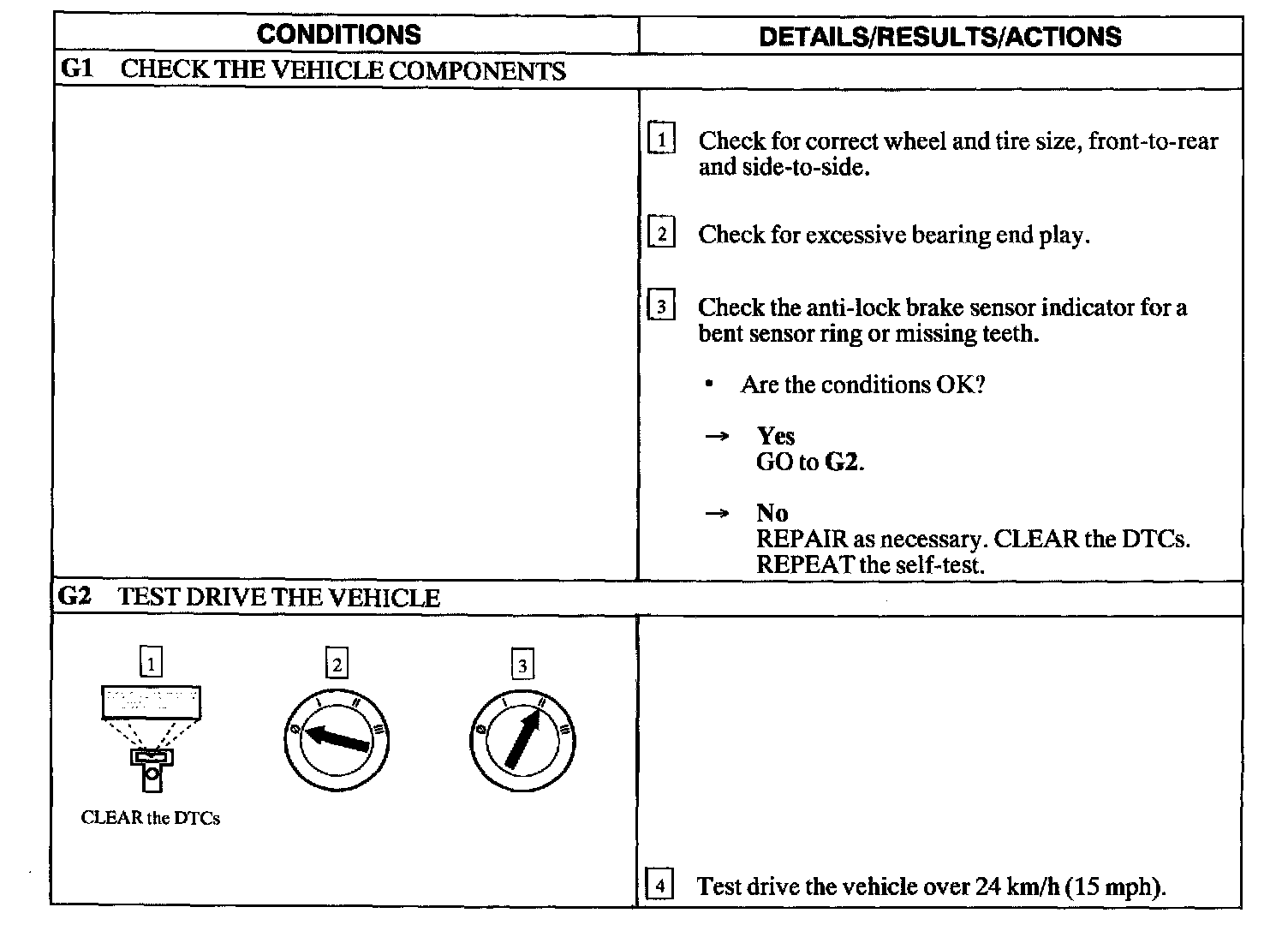

Test G1-G2:

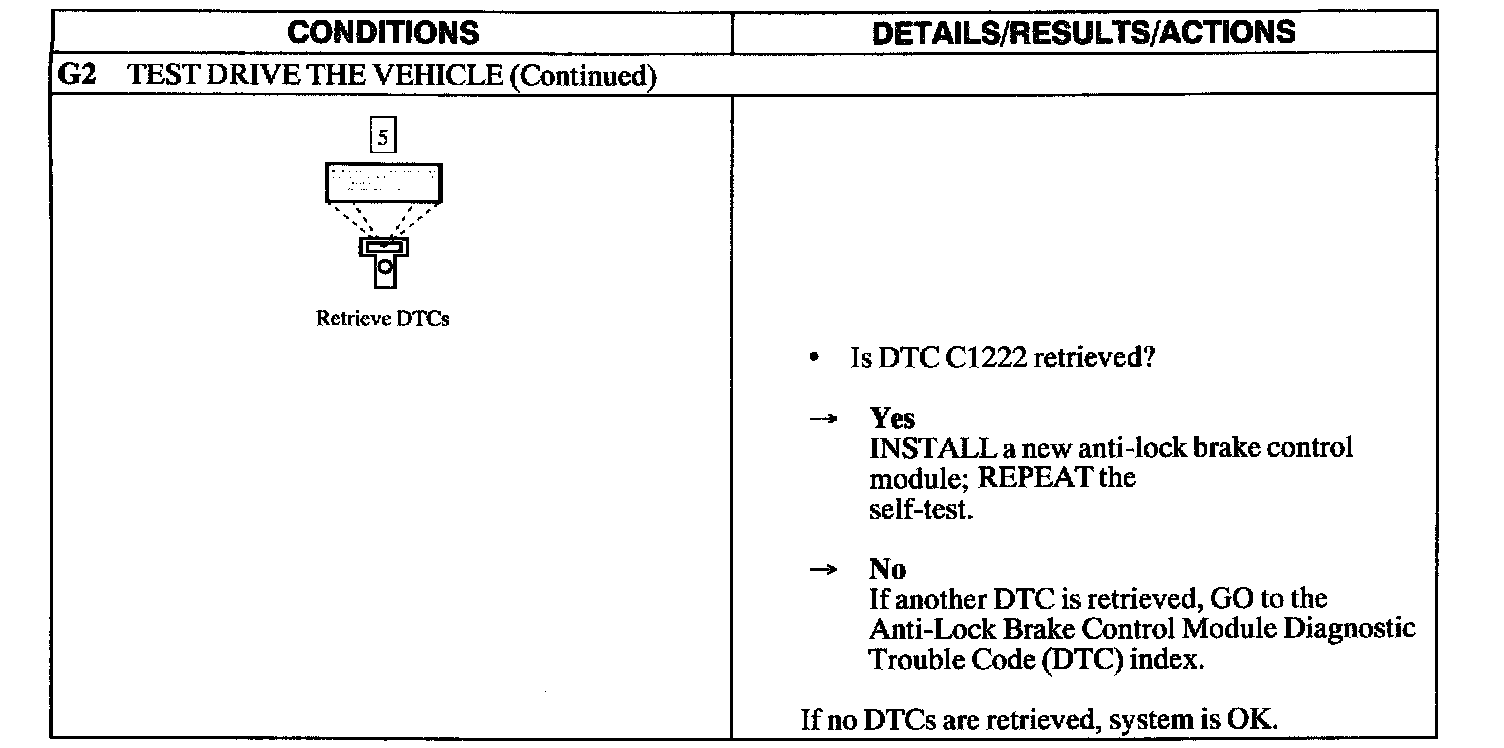

Test G2 Continued:
