Anti-Lock Brakes with Traction Control

PINPOINT TEST J: SPONGY BRAKE PEDAL WITH NO WARNING INDICATOR

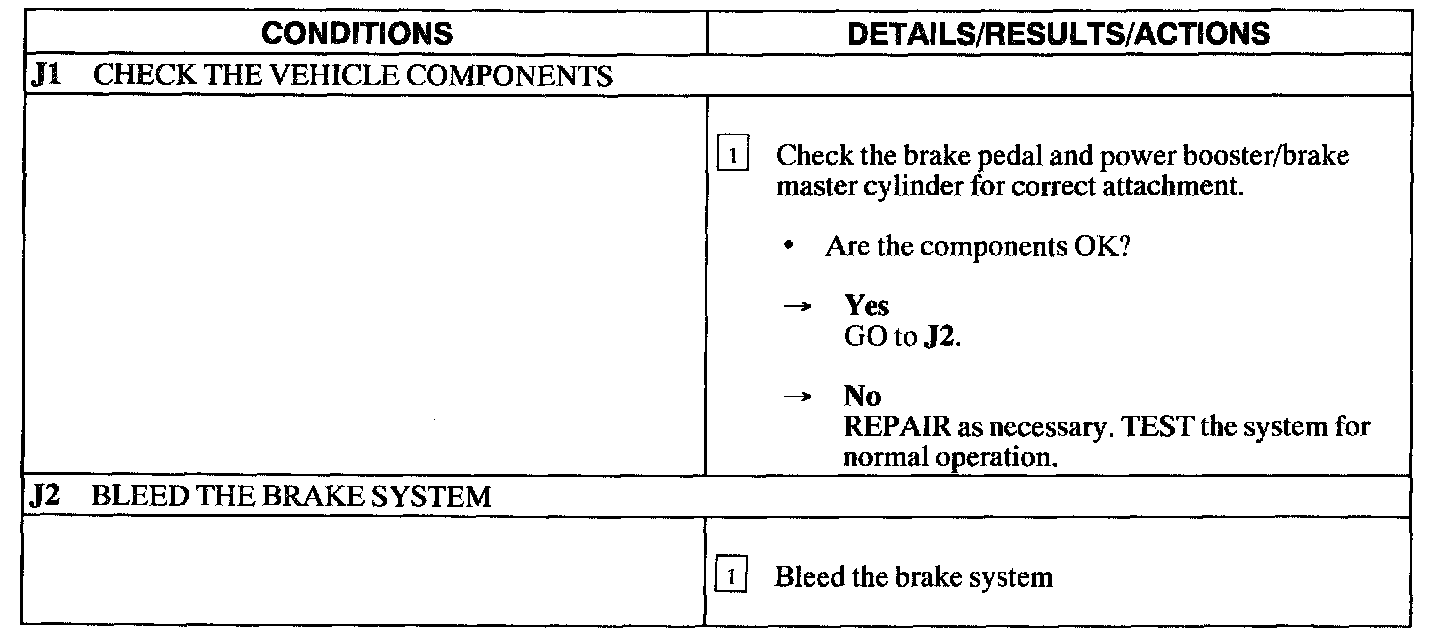

Test J1-J2:

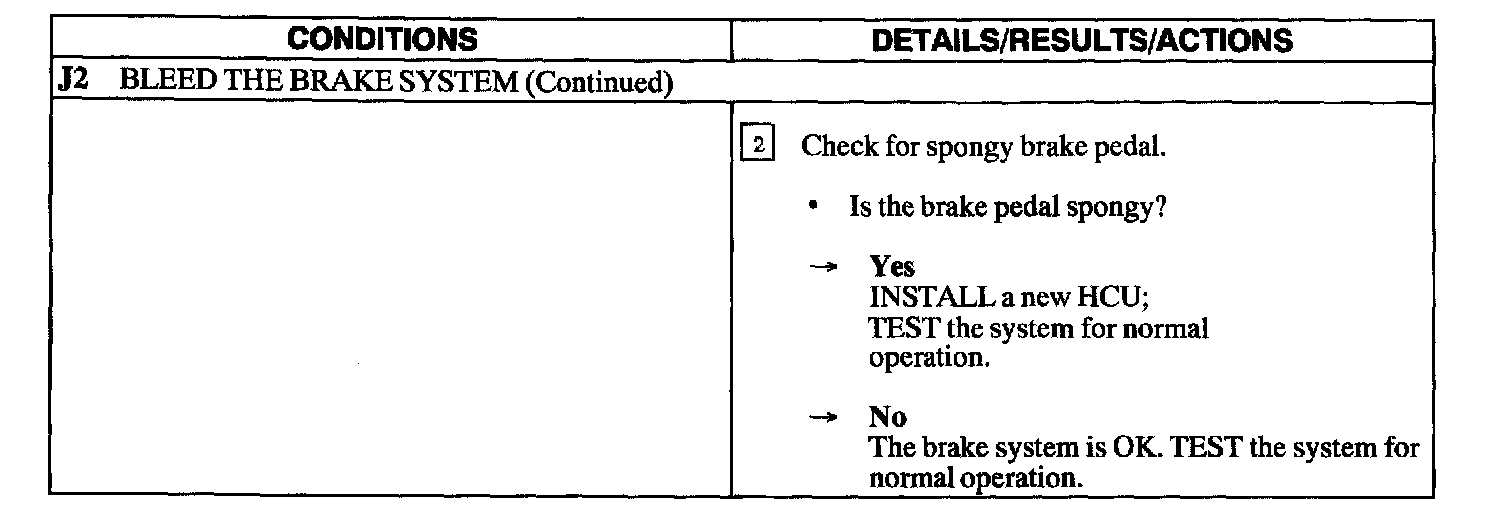

Test J2 Continued:
