Anti-Lock Brakes with Traction Control
Anti-Lock Brakes with Traction Control
PINPOINT TEST K: POOR VEHICLE TRACKING
Test K1-K2:
Test K2-K4:

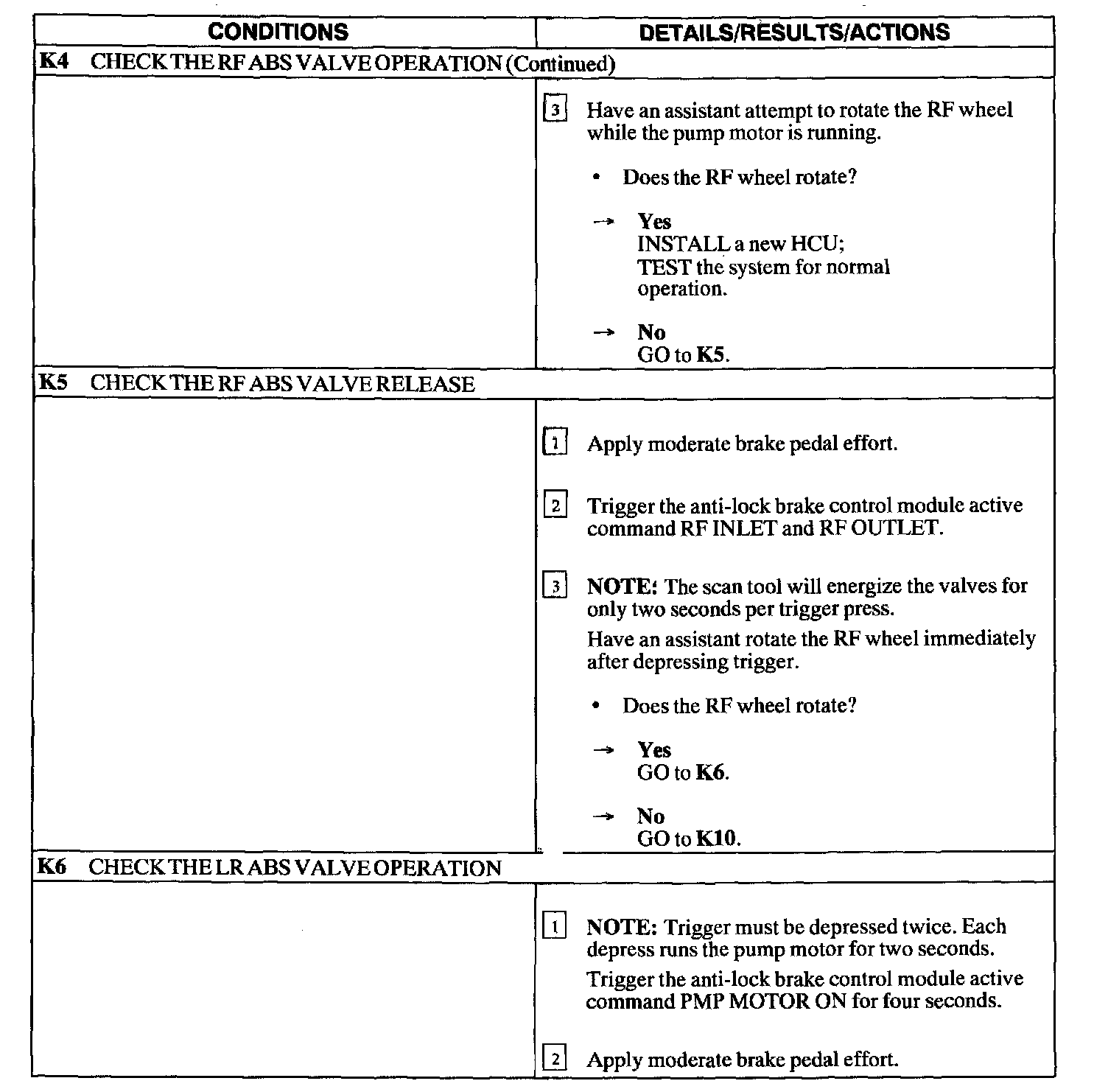

Test K4-K6:

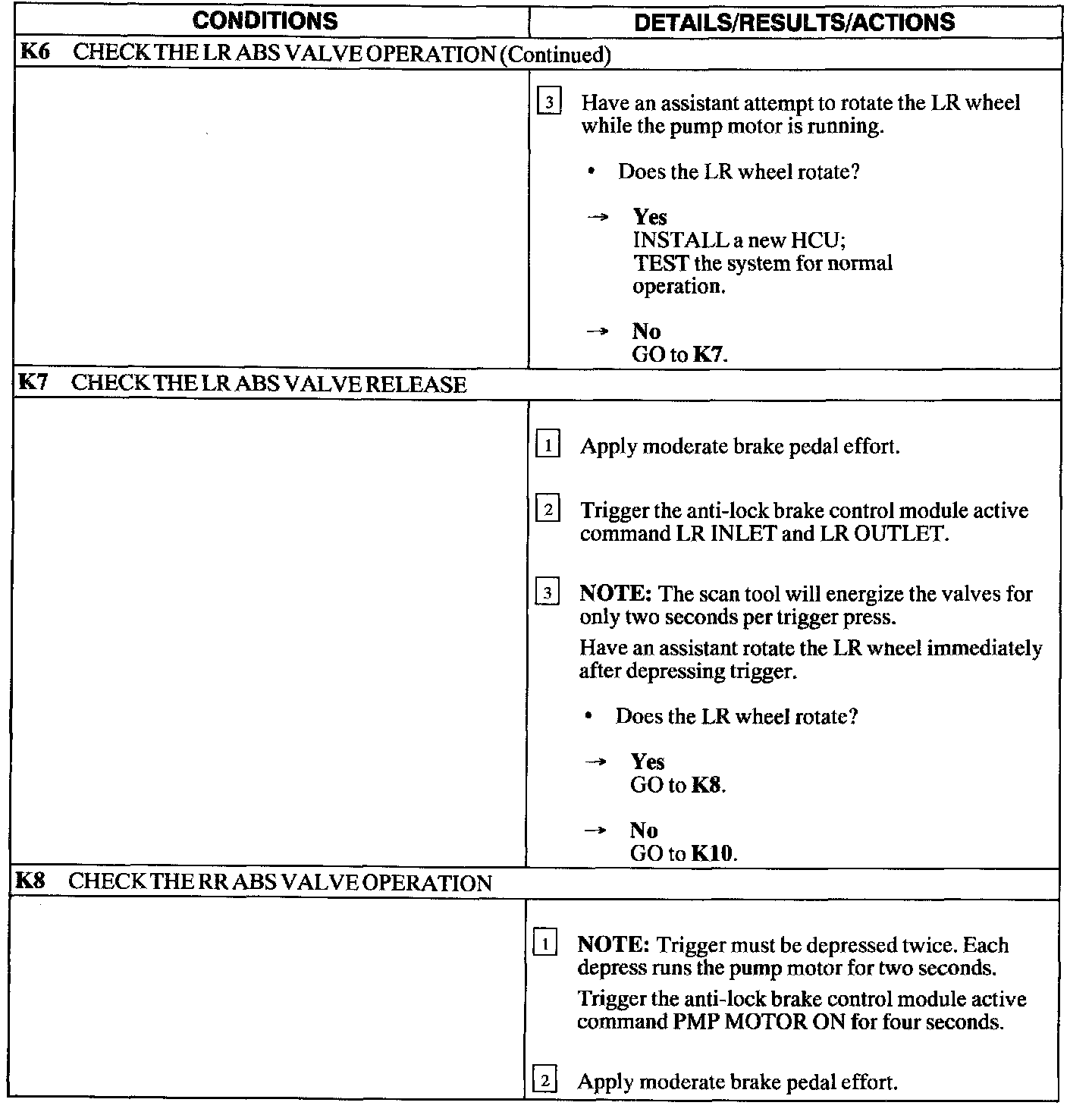

Test K6-K8:

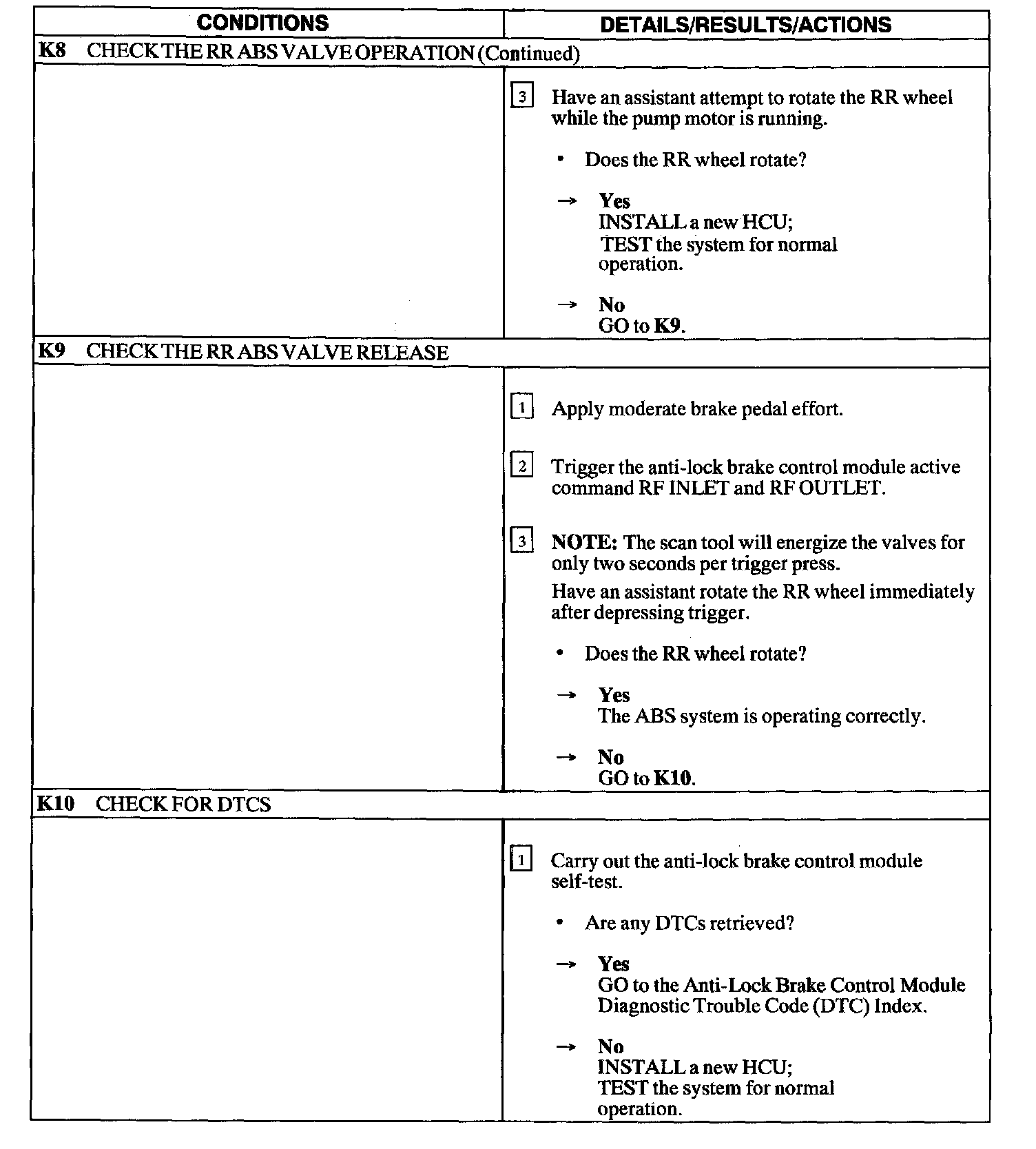

Test K8-K10:
