Test C: Incorrect Fuel Gauge Indication

C1 - C2:

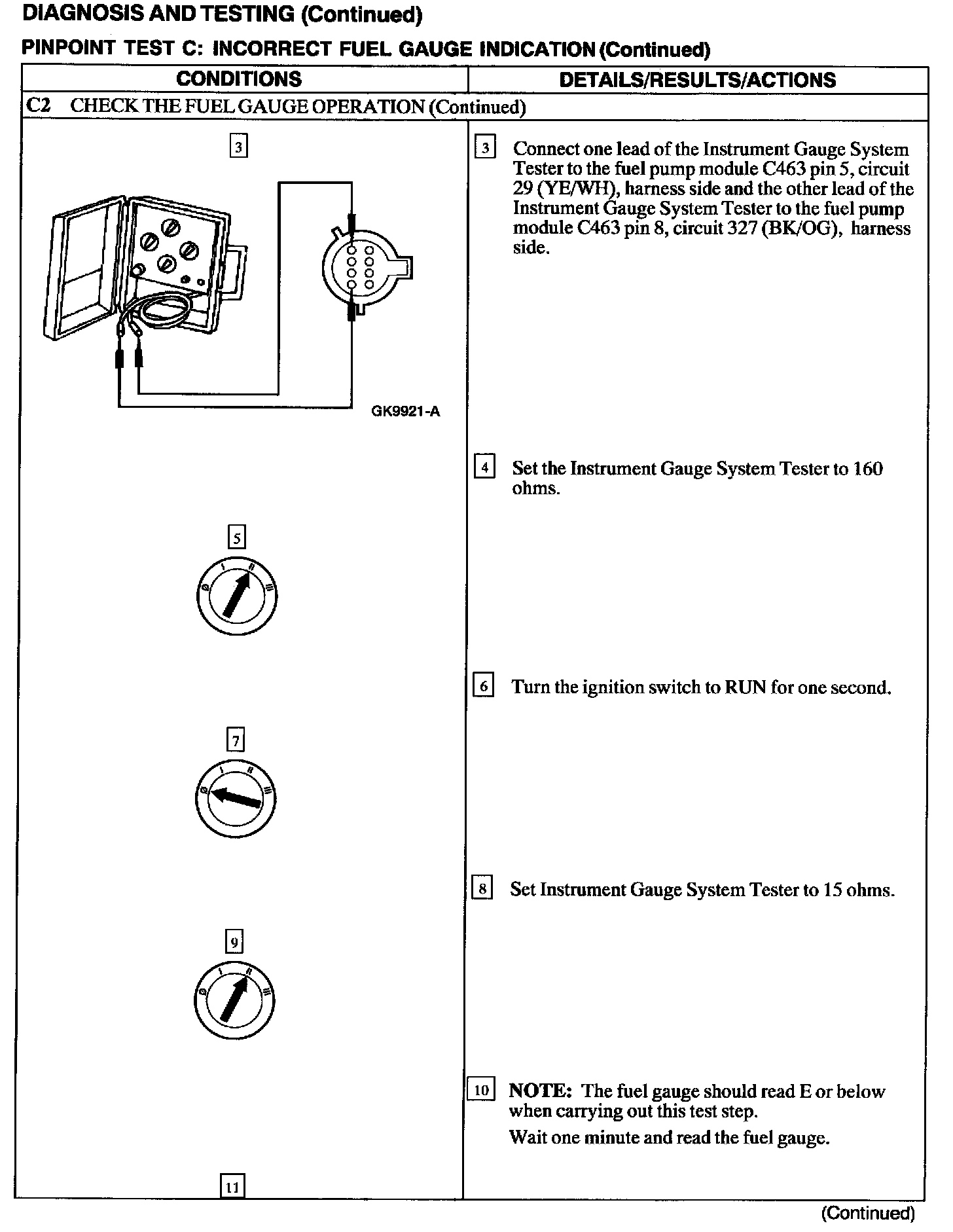

C2:






C2 - C3:






C4 - C6:

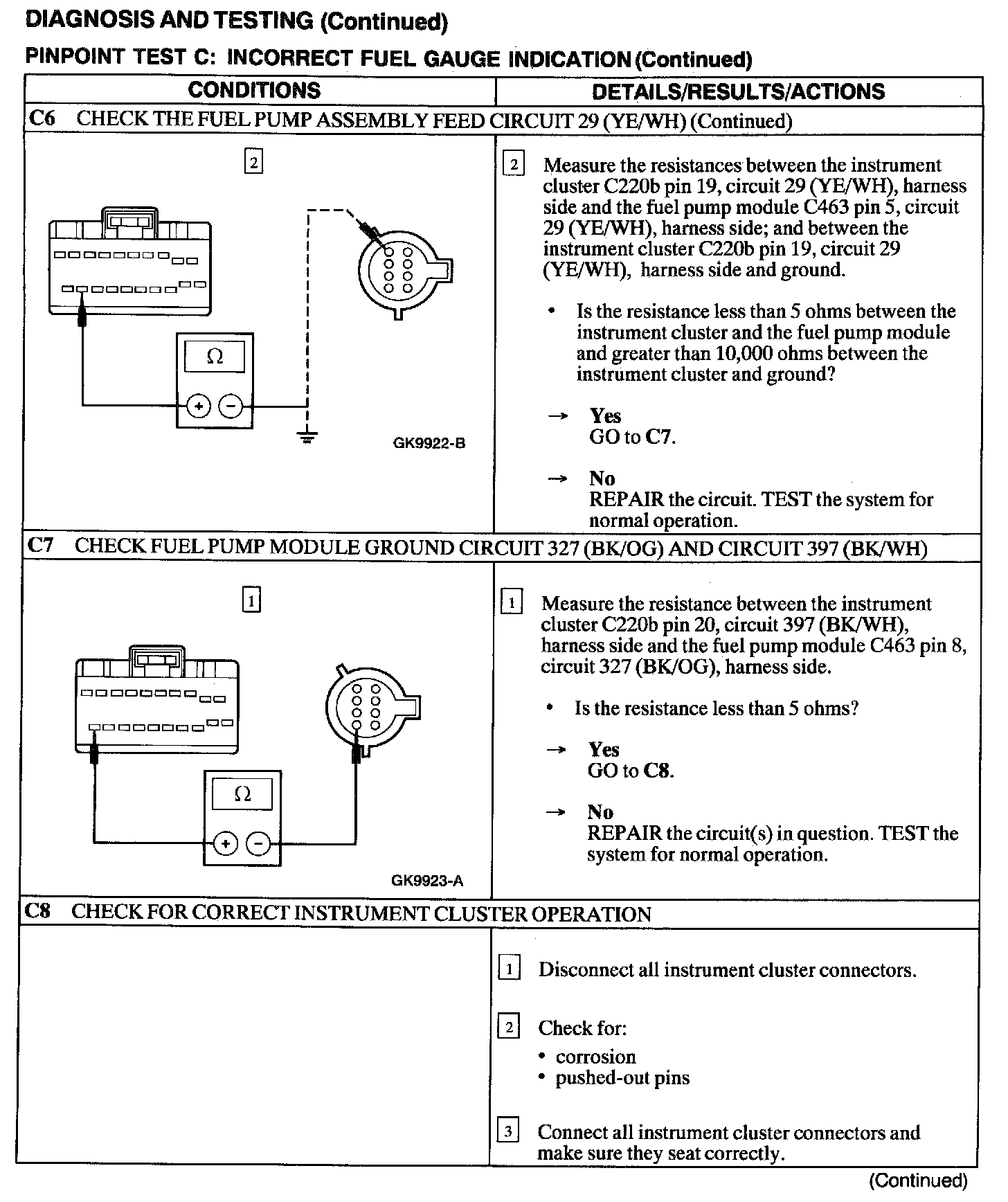

C6 - C8:






C8:
