Headlamp: Service and Repair

REMOVAL

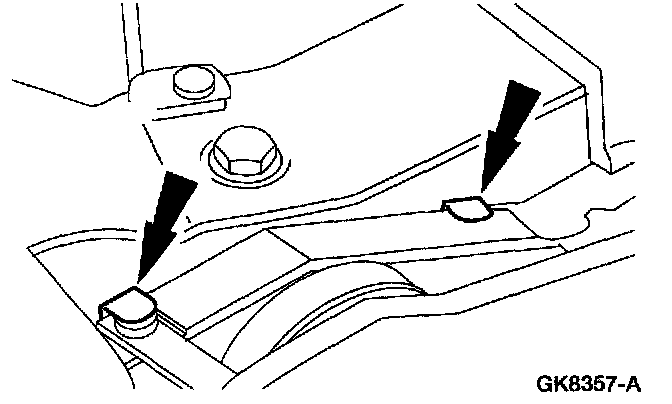

1. Raise the headlamp retainers.

NOTE: Make sure that the headlamp switch and the ignition switch are in the OFF position.







2. Remove the headlamp assembly.
^ Disconnect the electrical connectors and replace the lamp if necessary.

INSTALLATION
1. To install, reverse the removal procedure.
^ If necessary, adjust the headlamps.
