Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
C311 - C1010
>>

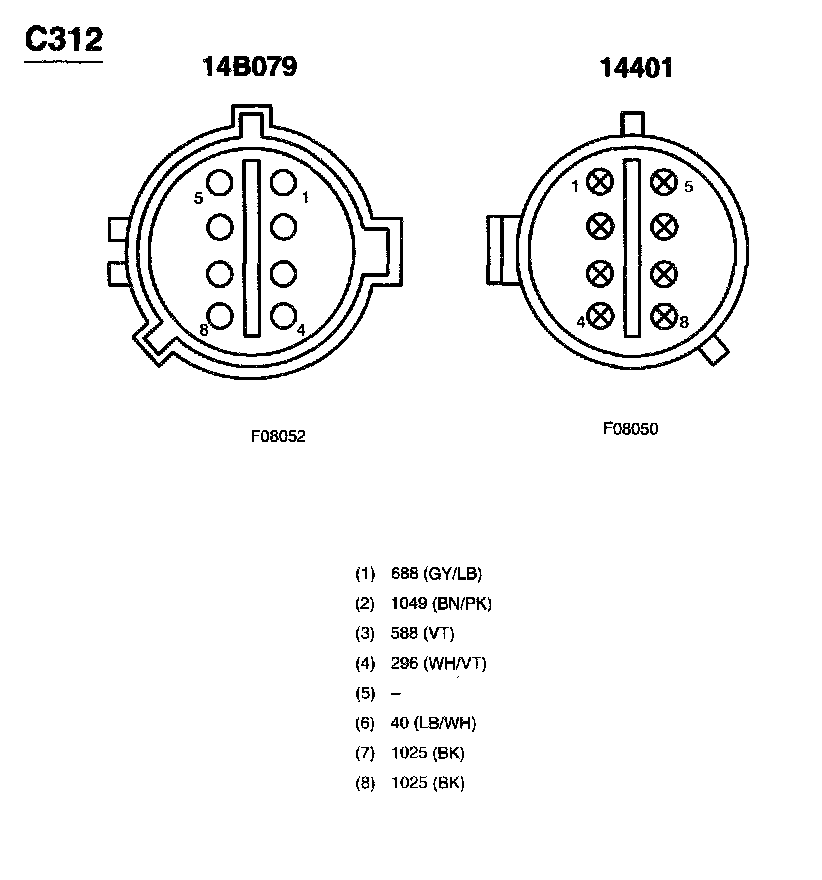

C312
C312
