Ignition Cable: Service and Repair

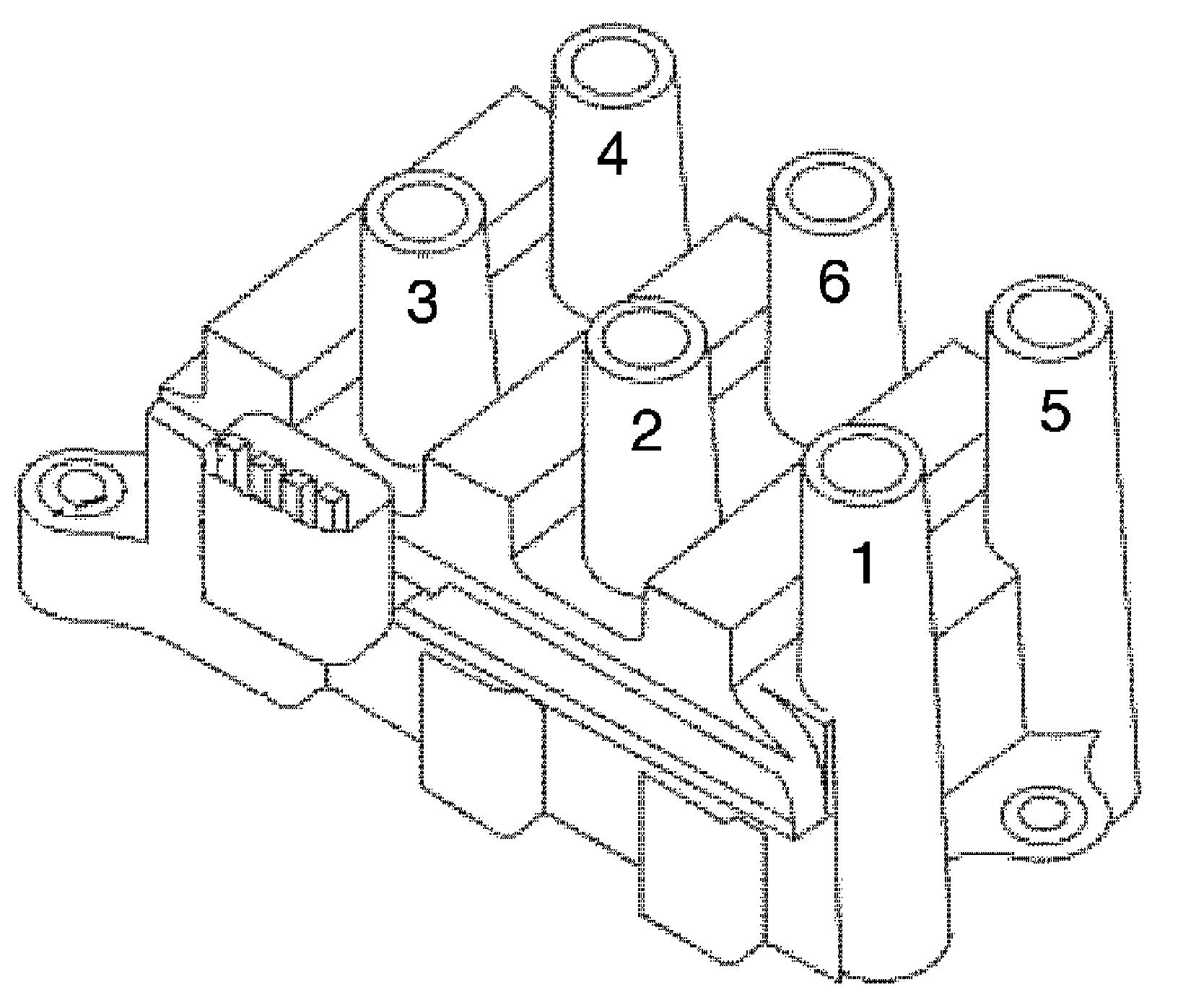

"AllData Editors Note:

Customers have reported success using the following spark plug wire placement on the coil pack."

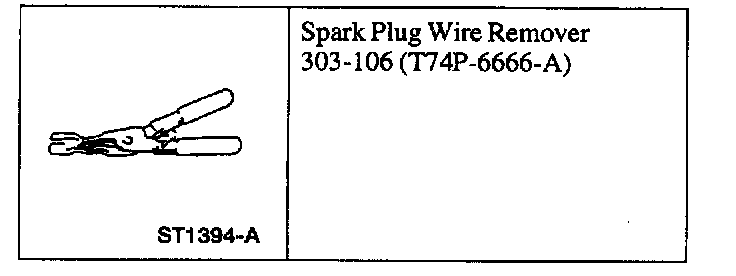

Spark Plug Wire Remover:

SPECIAL TOOL(S)

REMOVAL

CAUTION:
^ It is important to twist the spark plug wire boots while pulling upward to avoid possible damage to the spark plug wire.
^ Spark plug wires must be connected to the correct ignition coil terminal. Mark spark plug wire locations before removing them.

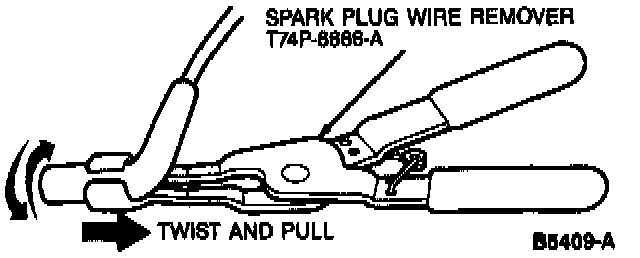

Spark Plug Wire Remover:

1. Using the special tool, remove the spark plug wire from the spark plug using a twisting motion.

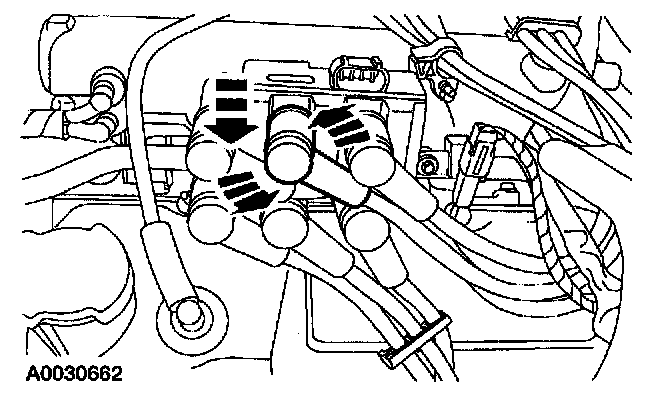

2. Twist while pulling upward to disconnect the spark plug wires from the ignition coil.

INSTALLATION
1. To install, reverse the removal procedure.

CAUTION: Be sure to orient the spark plug boots so the spark plug wires do not contact the exhaust manifold.

NOTE: Apply silicone brake caliper grease and dielectric compound to the inside of spark plug and ignition coil boots of the spark plug wire.
