Test L: B1892 - Air Bag Warning Circuit Shorted to Grd/Open

L1:

L1:

L2:

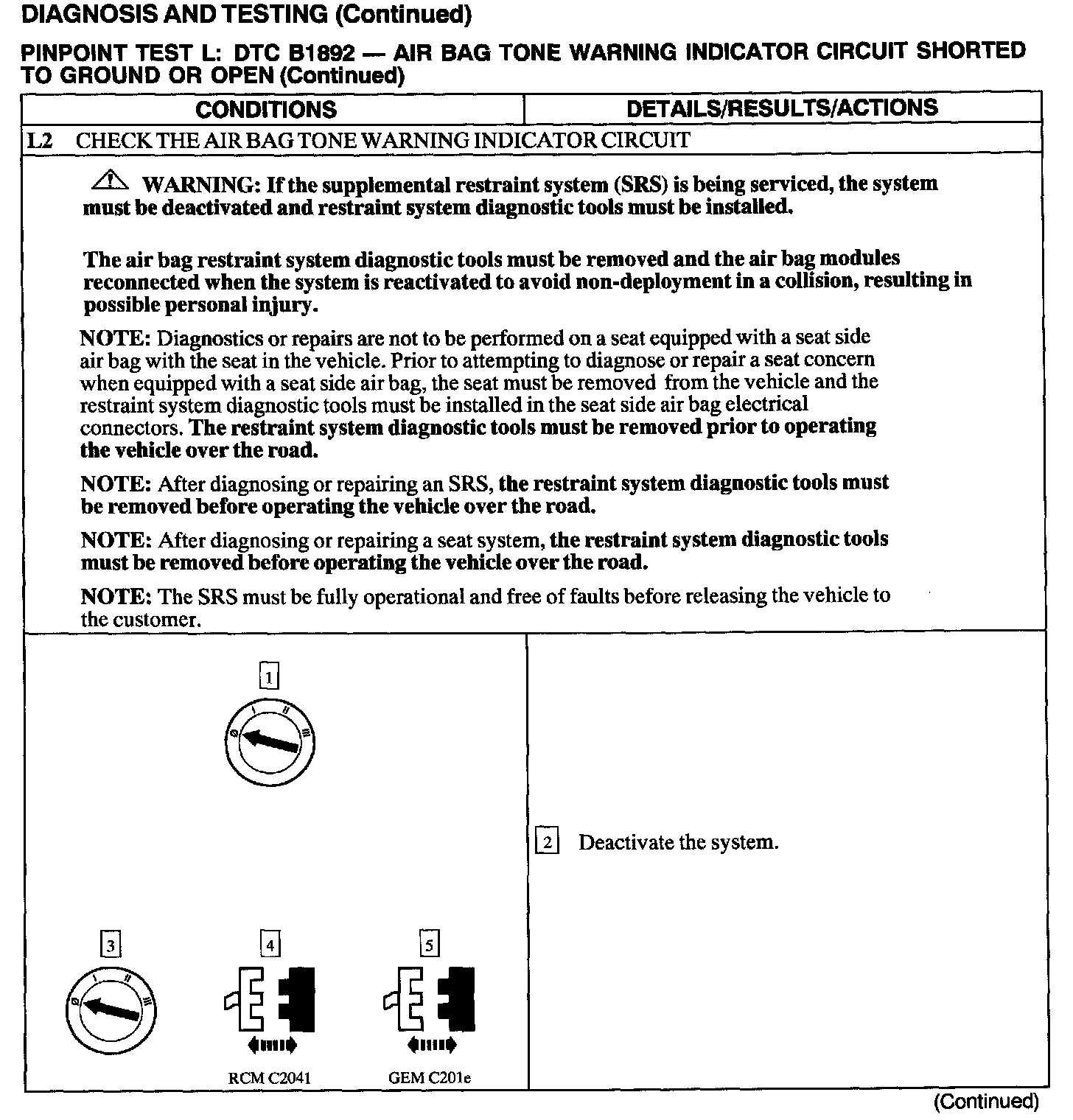

L2 - L3:

L4 - L5:

L6:

Normal Operation
The Restraints Control Module (RCM) monitors its connection to the Generic Electronic Module (GEM) at C201e pin 10. This connection is used to signal a chime if the air bag indicator is inoperative and another SRS fault exists. If the RCM detects a short to ground or open on the connection to the GEM, it will store a Diagnostic Trouble Code (DTC) B1892 in memory.

Possible Causes
An air bag tone warning indicator circuit short to ground or open can be caused by:
^ a short to ground or open on circuit 1083 (LB/BK).
^ a damaged or inoperative GEM.
