Power Distribution Diagrams

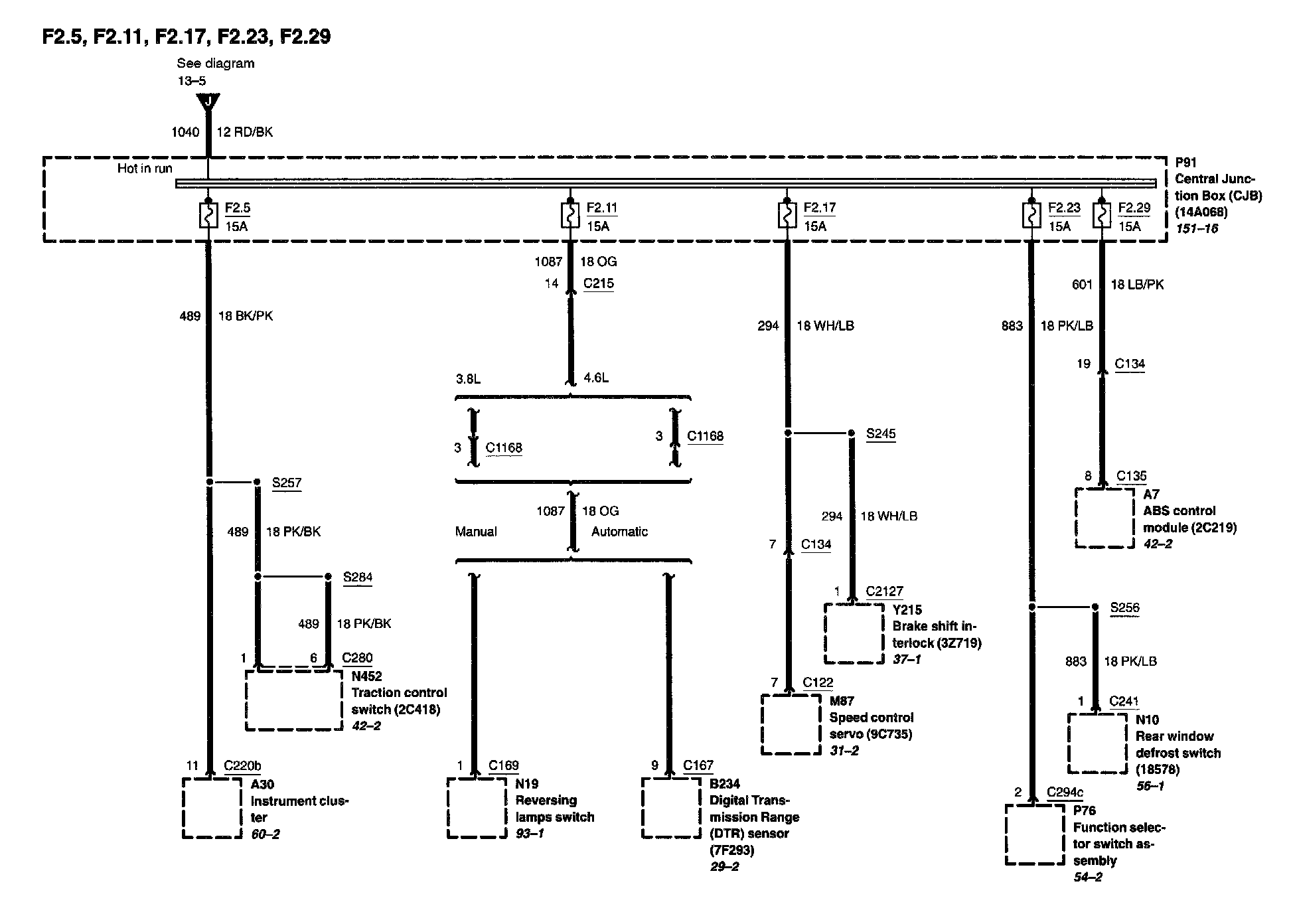

Diagram 13-1:

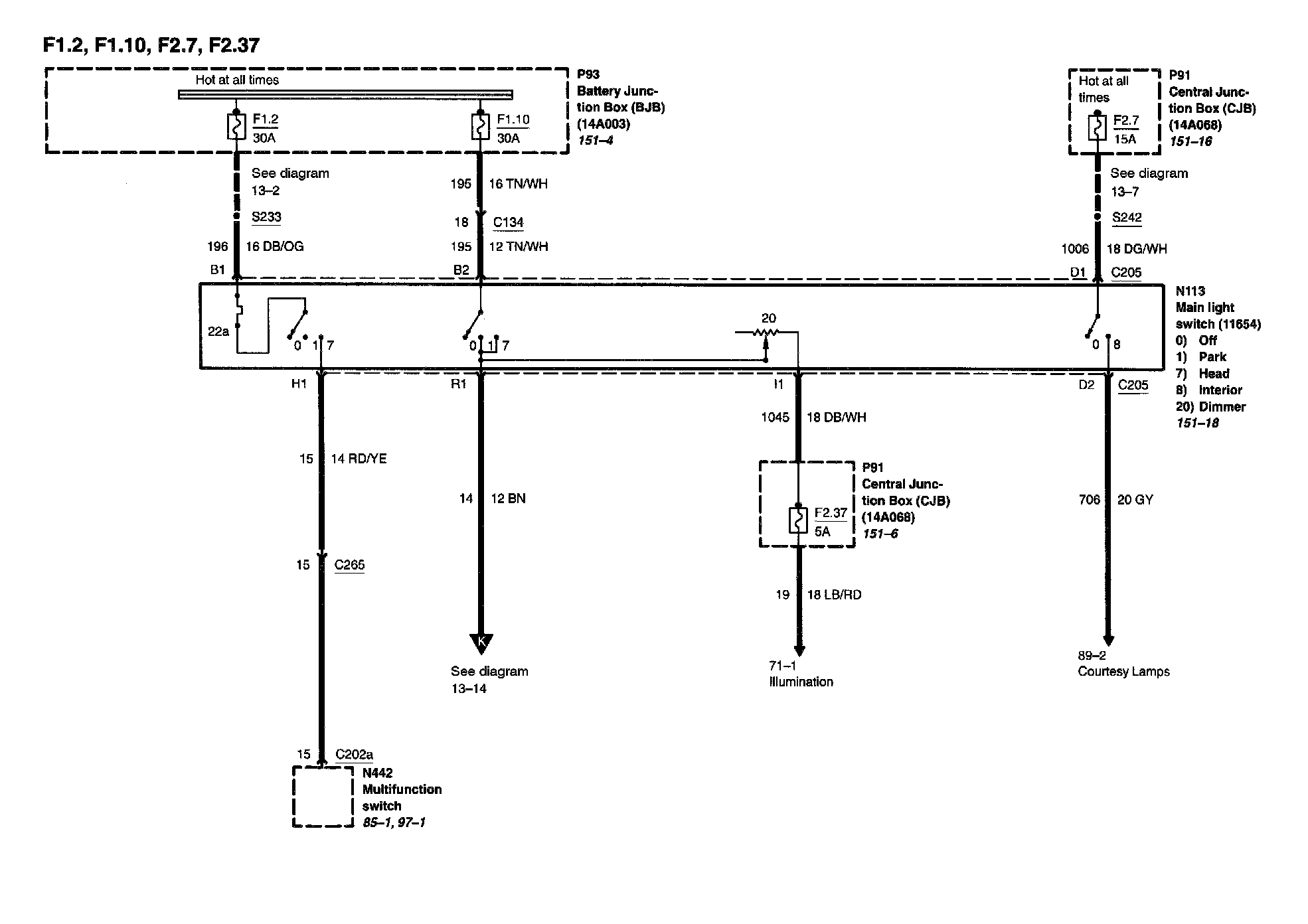

Diagram 13-2:

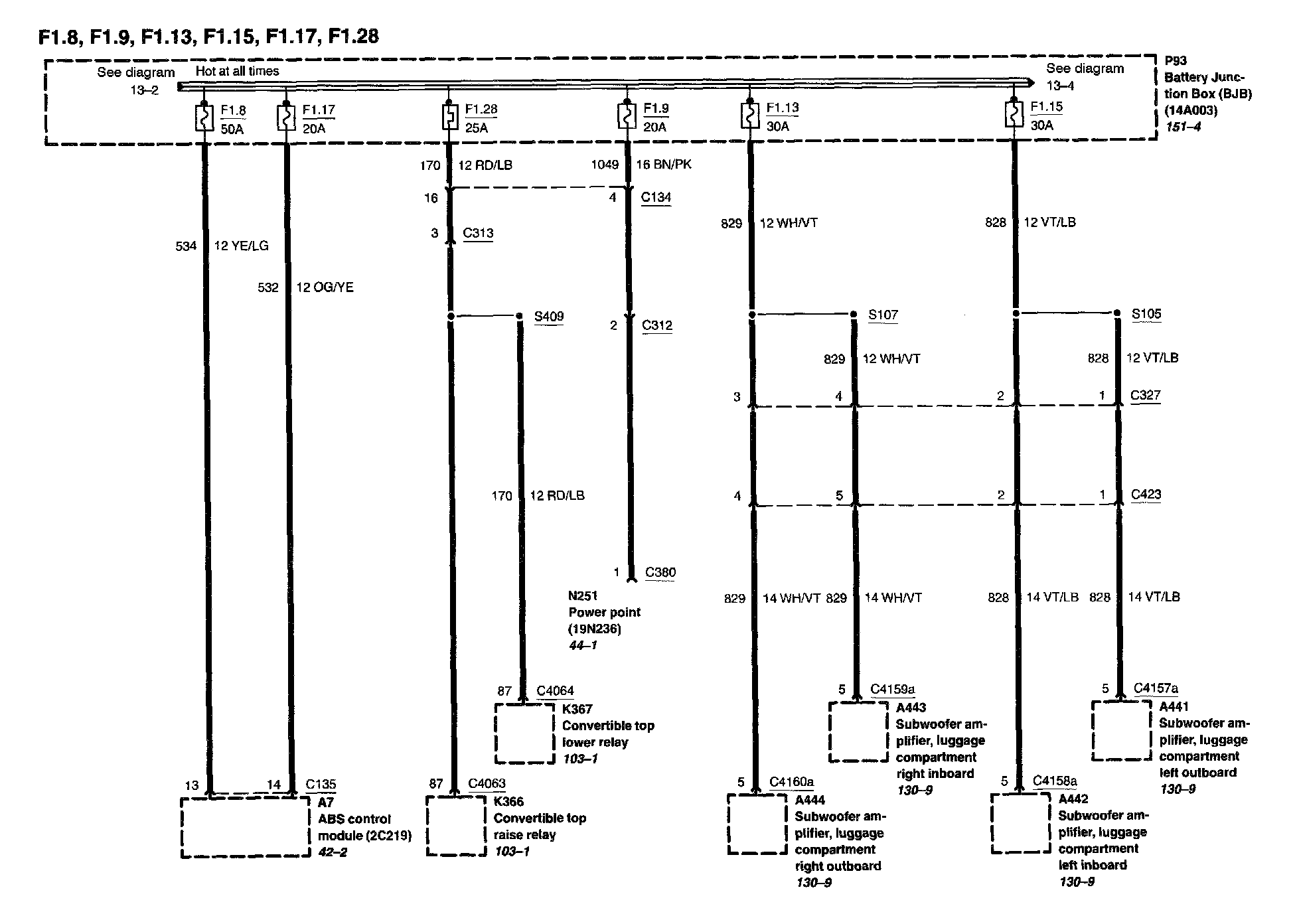

Diagram 13-3:

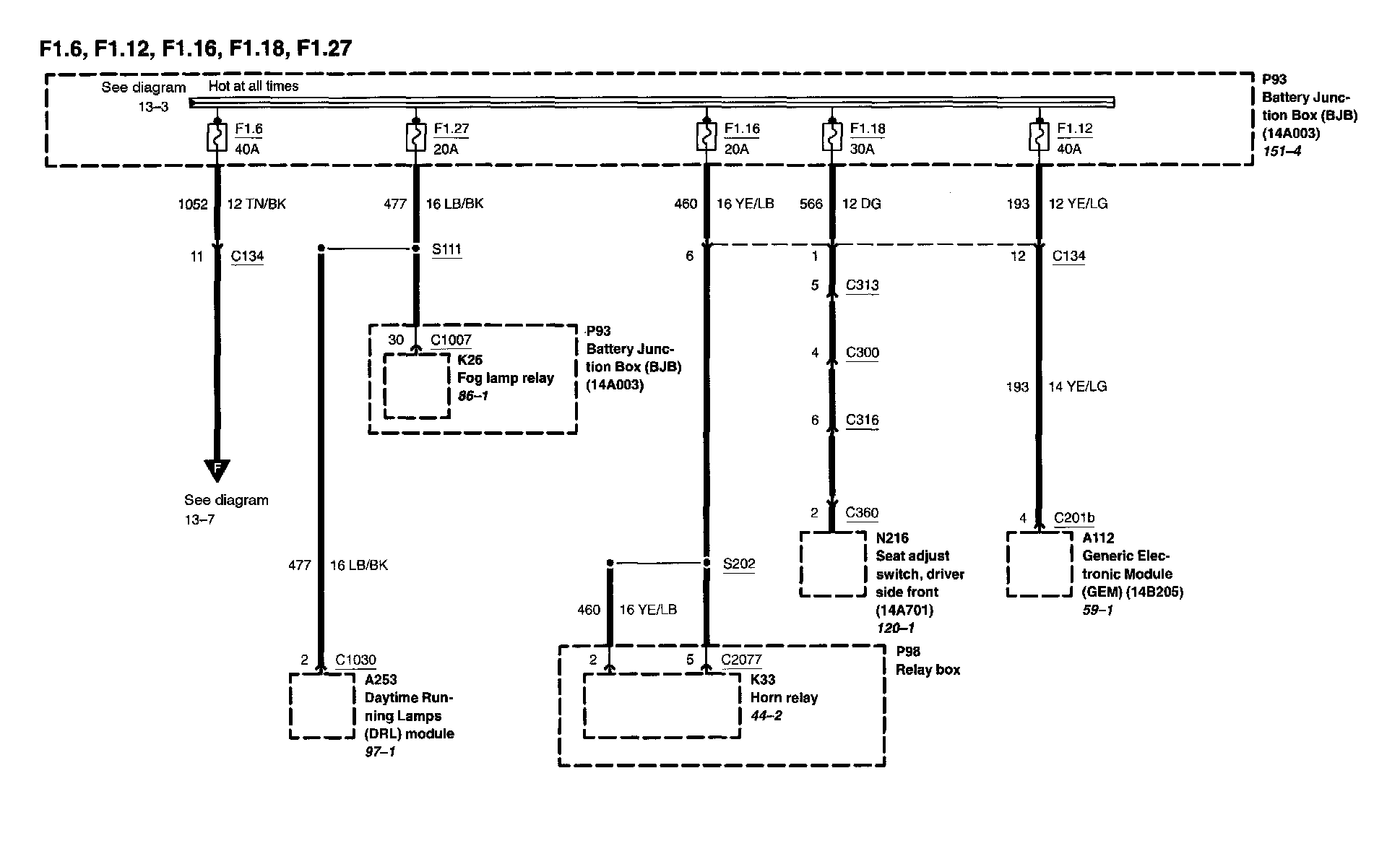

Diagram 13-4:

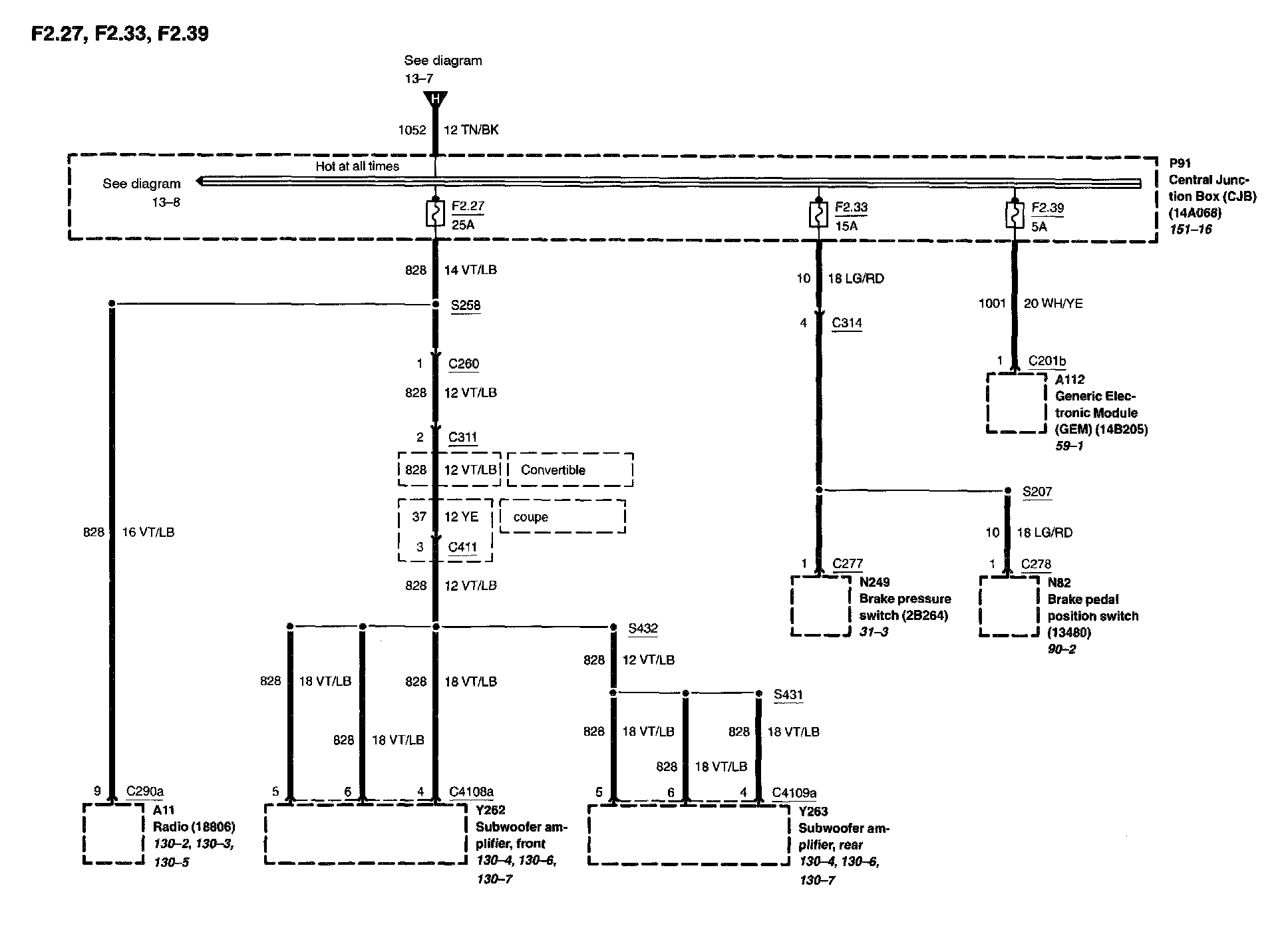

Diagram 13-5:

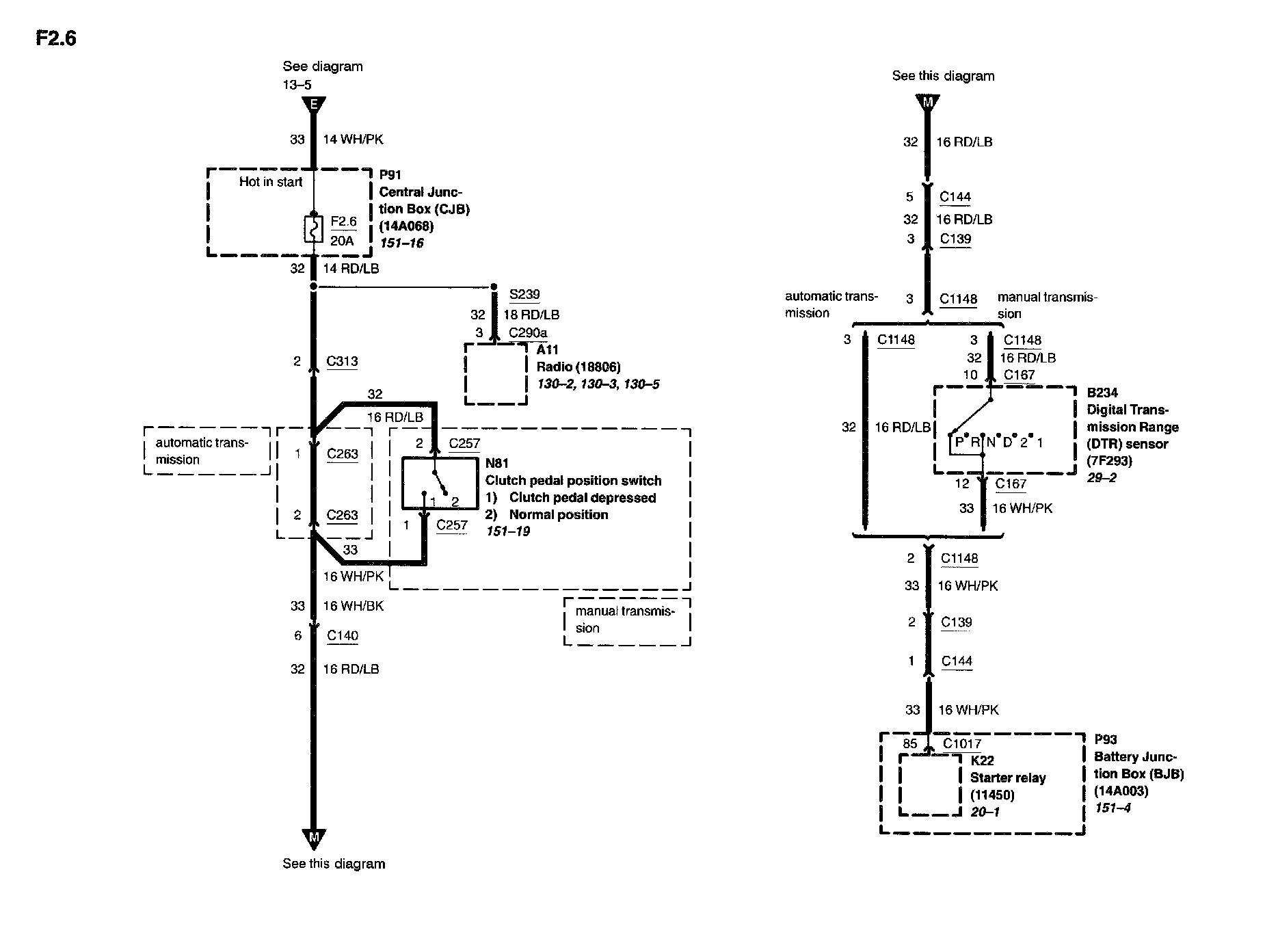

Diagram 13-6:

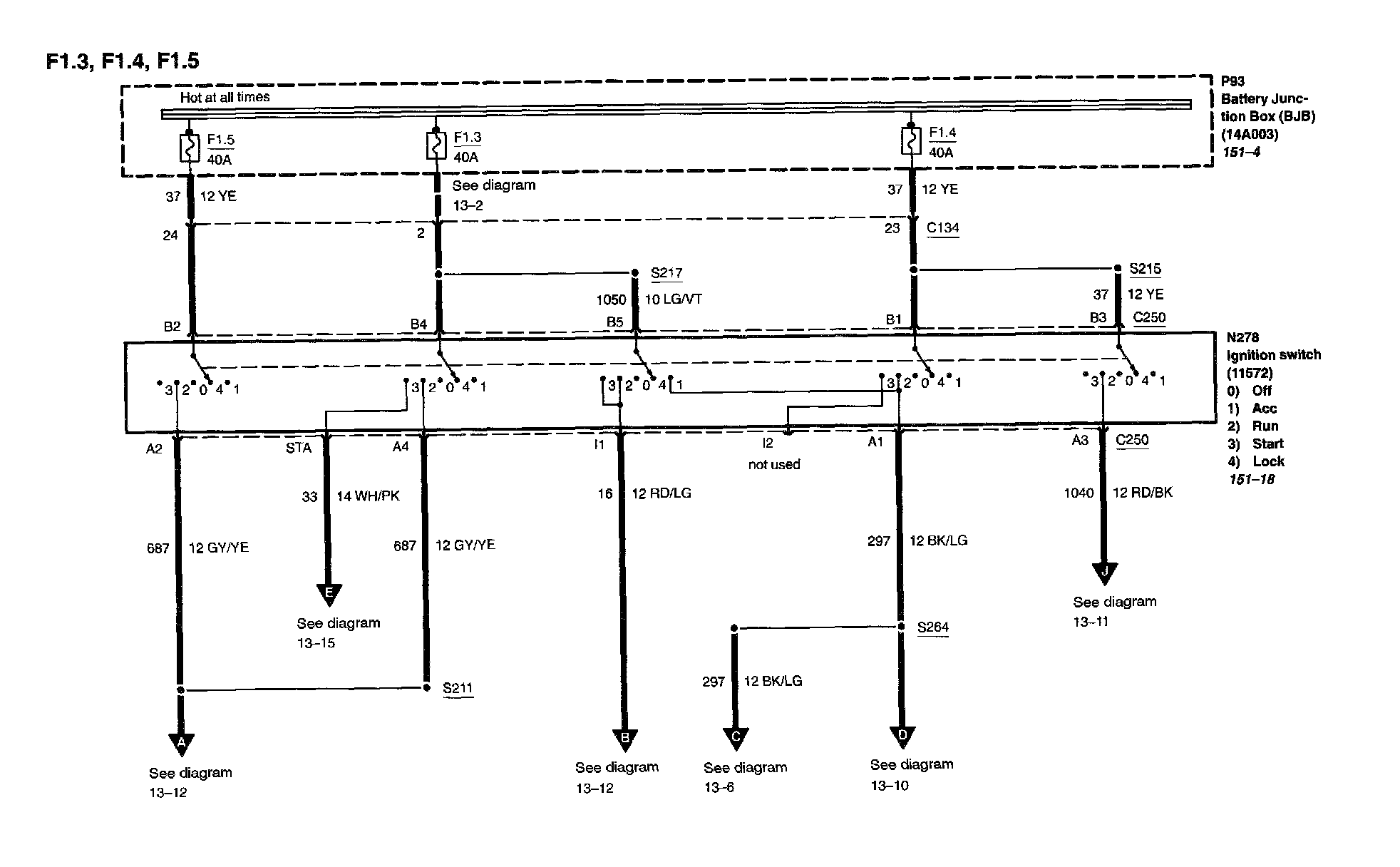

Diagram 13-7:

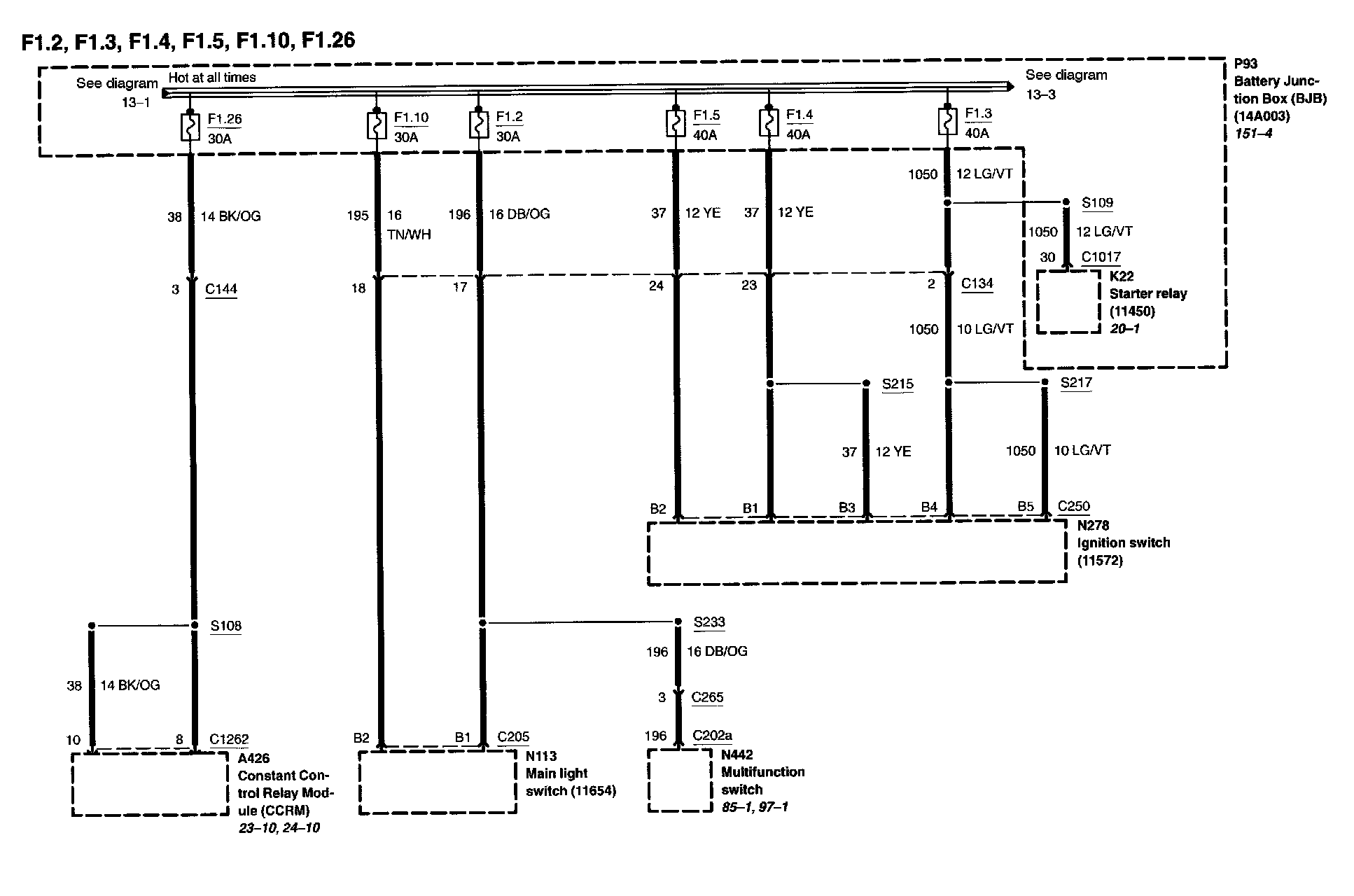

Diagram 13-8:
Diagram 13-9:
Diagram 13-10:
Diagram 13-11:
Diagram 13-12:
Diagram 13-13:
Diagram 13-14:
Diagram 13-15:
