Manual Transmission and Clutch
Manual Transmission and Clutch

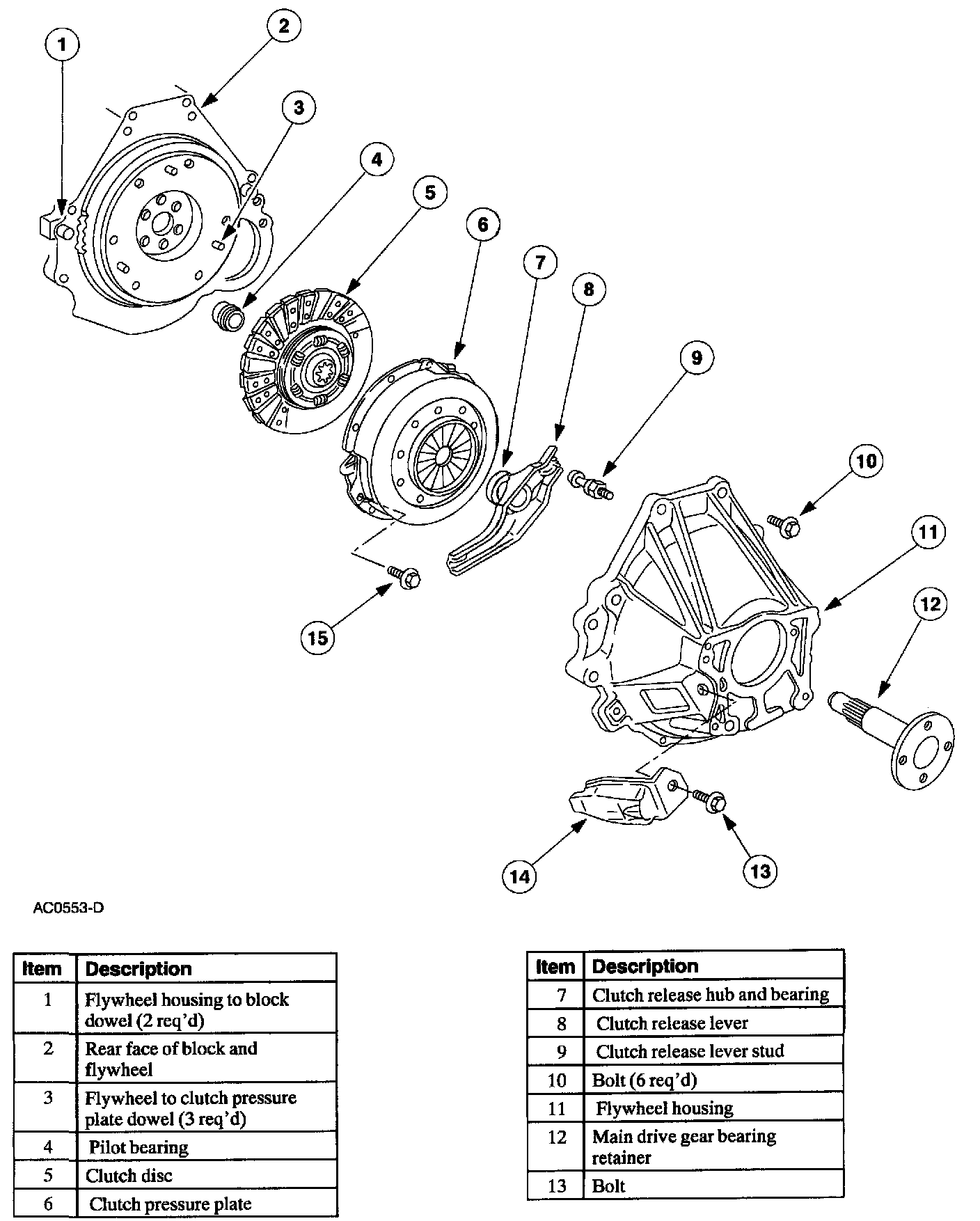

Clutch Disc
and Clutch Pressure Plate
Part 1 of 2

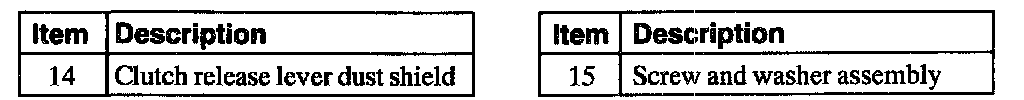

Part 2 of 2
