Home >> Ford >> 2002 >> Ranger 2WD L4-2.3L VIN D >> Repair and Diagnosis >> Locations >> Component Locations >> Location Views >> View 151-2 (Engine Compartment, LH Side, Front)

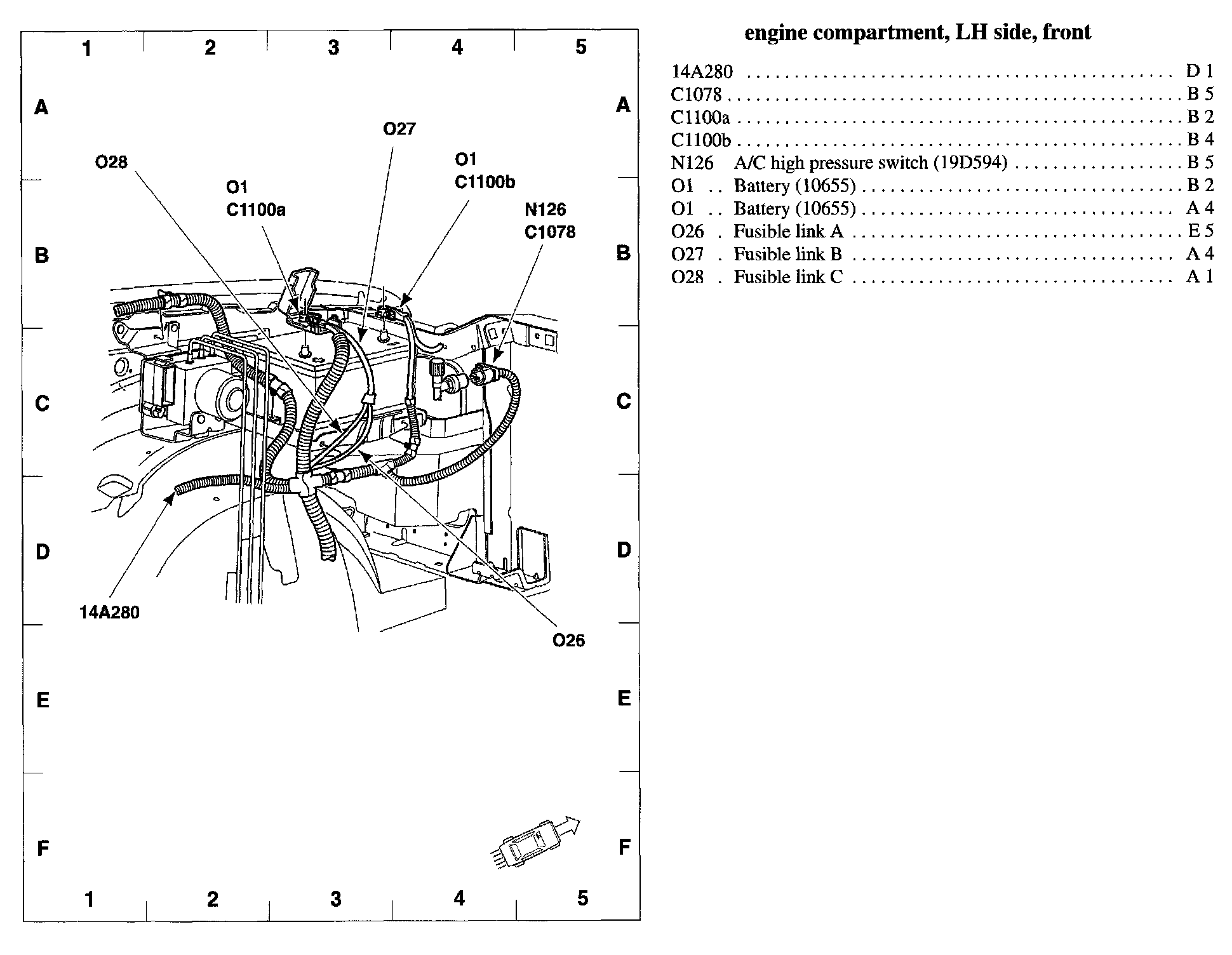

View 151-2 (Engine Compartment, LH Side, Front)

View 151-2:
