Home
>>
Ford
>>
2002
>>
Ranger 2WD L4-2.3L VIN D
>>
Repair and Diagnosis
>>
Locations
>>
Component Locations
>>
Location Views
>>

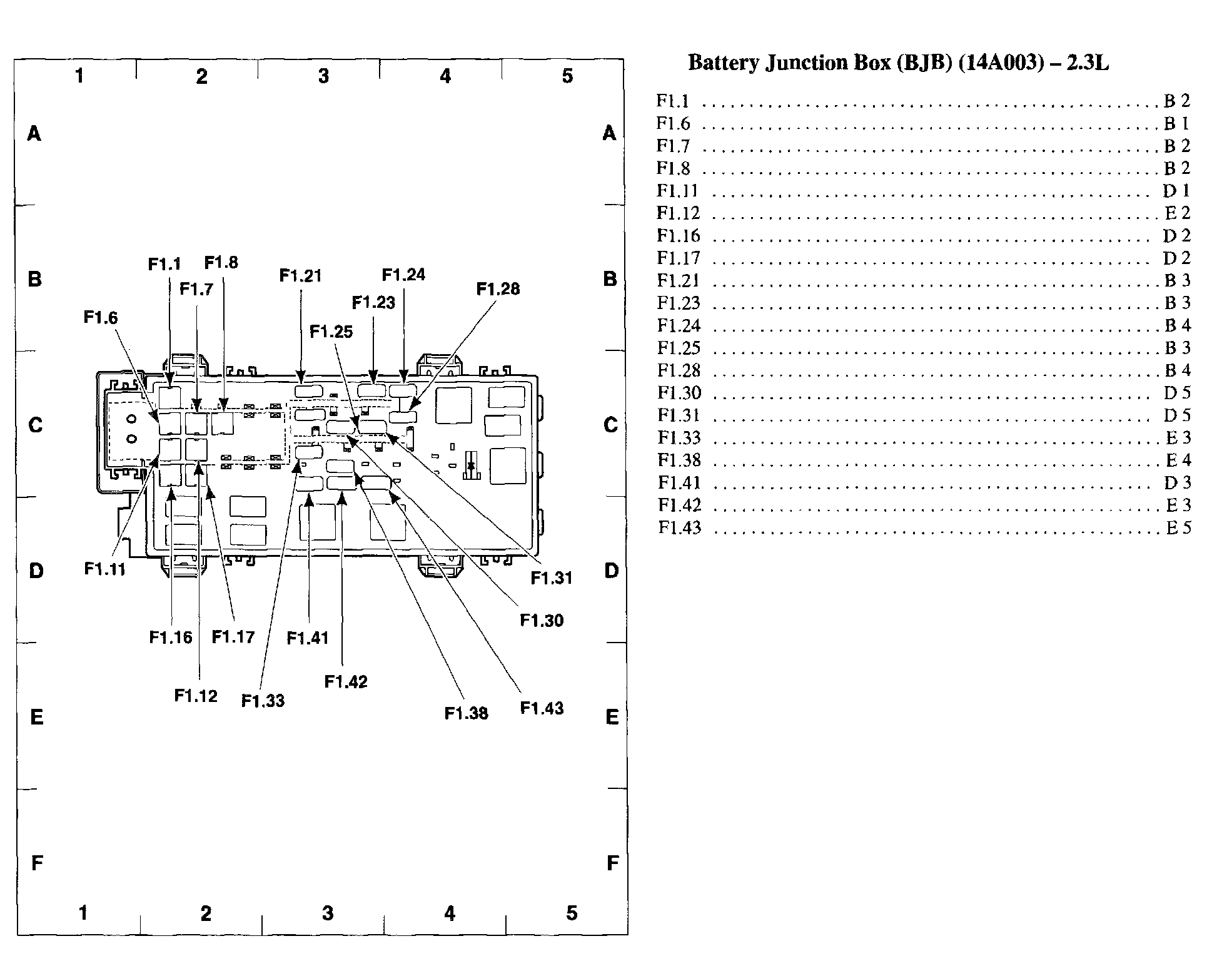

View 151-43 (Battery Junction Box)
View 151-43 (Battery Junction Box)
View 151-43:
