Fluid Line/Hose: Service and Repair

Tubes

Removal
1. Raise the vehicle on a hoist.

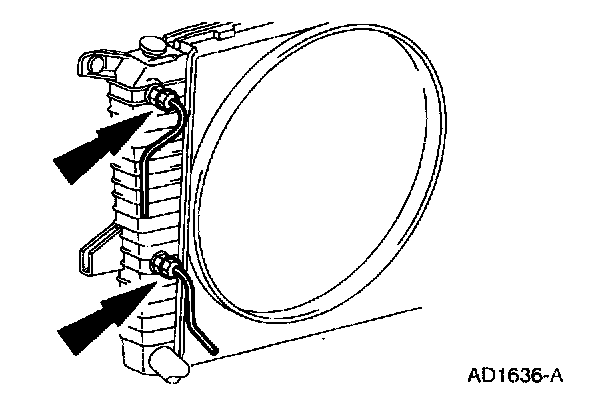

2. Disconnect the fluid cooler inlet tube from the radiator.

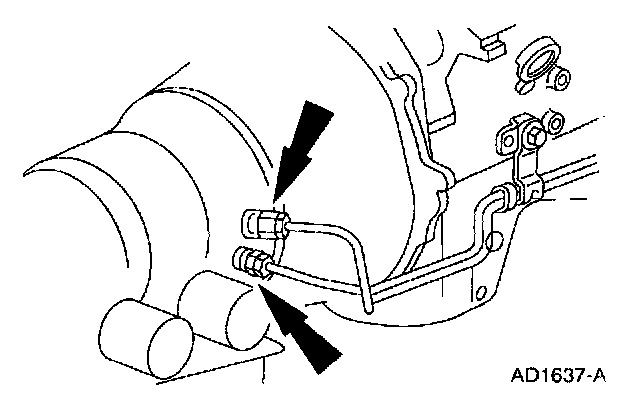

3. Disconnect the fluid cooler inlet tube and the fluid cooler tube from the transmission.

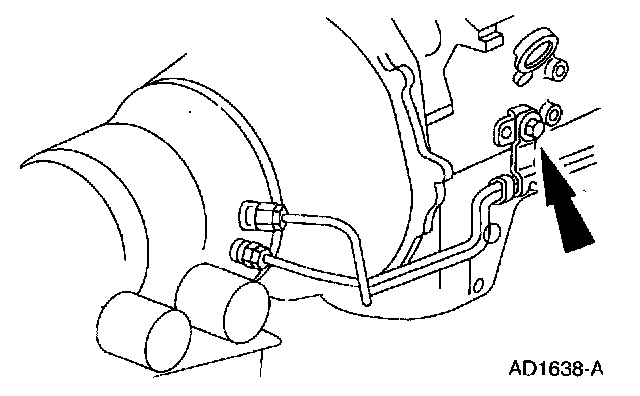

4. Remove the transmission fluid cooler line clip, the fluid cooler inlet tube and the fluid cooler tube from the engine.

Installation

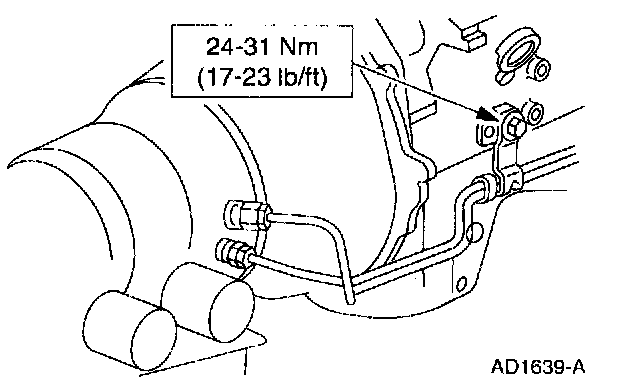

1. Position the fluid cooler inlet tube and fluid cooler tube. Install the transmission fluid cooler line clip on the engine.

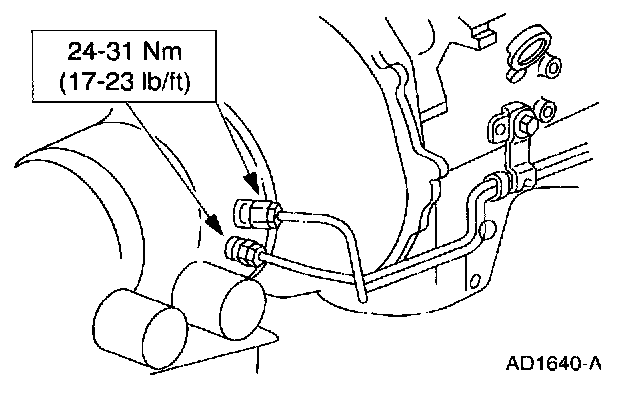

2. Connect the fluid cooler inlet tube and fluid cooler tube to the transmission.

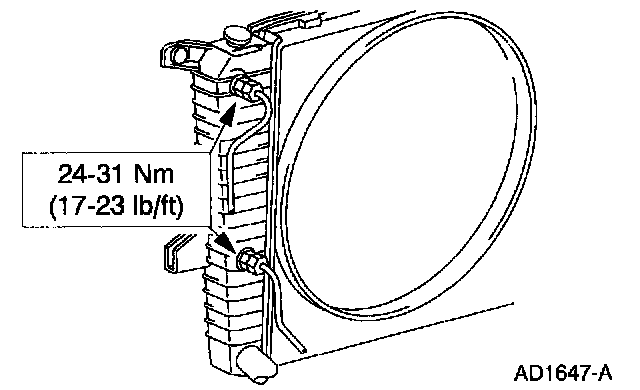

3. Connect the fluid cooler inlet tube and fluid cooler tube to the radiator.
