Door Glass Top Run

REMOVAL
1. Remove the door glass.







2. Remove the front door belt line inside and outside weather-strips.

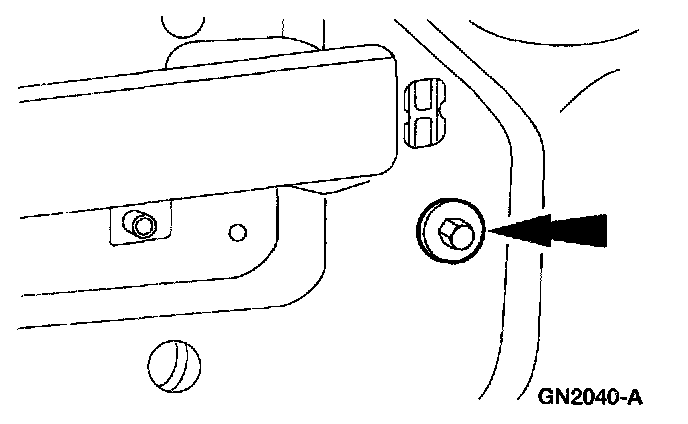

3. Remove the door glass top run bolt.

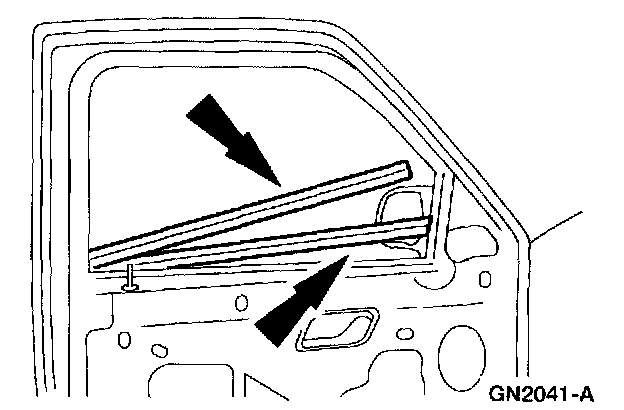

4. Remove the door glass top run.

INSTALLATION







1. To install, reverse the removal procedure.
