Transfer Case-Mechanical Shift

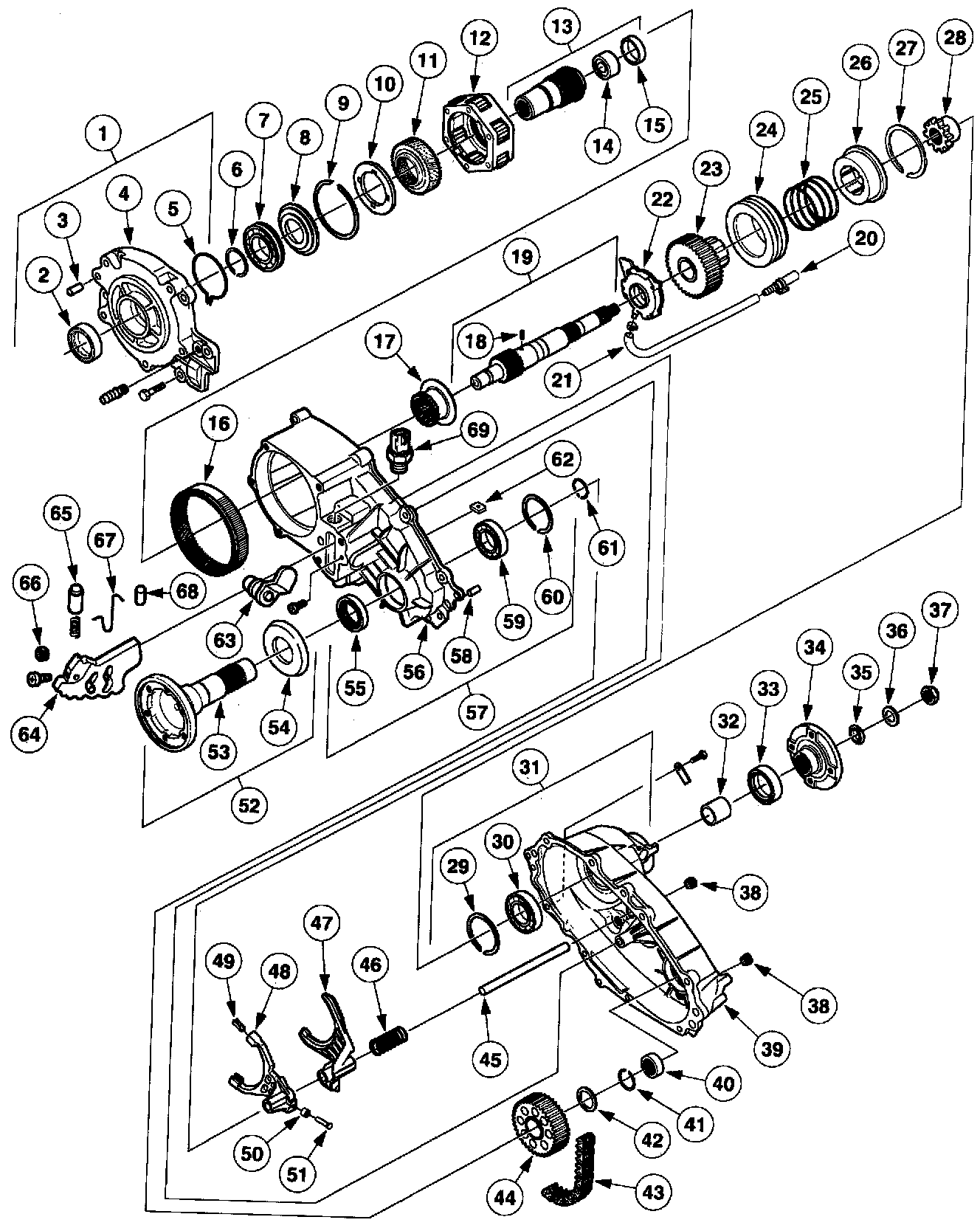

Transfer Case, Borg-Warner 13-54 Manual Shift-Disassembled View





Part 1 of 2

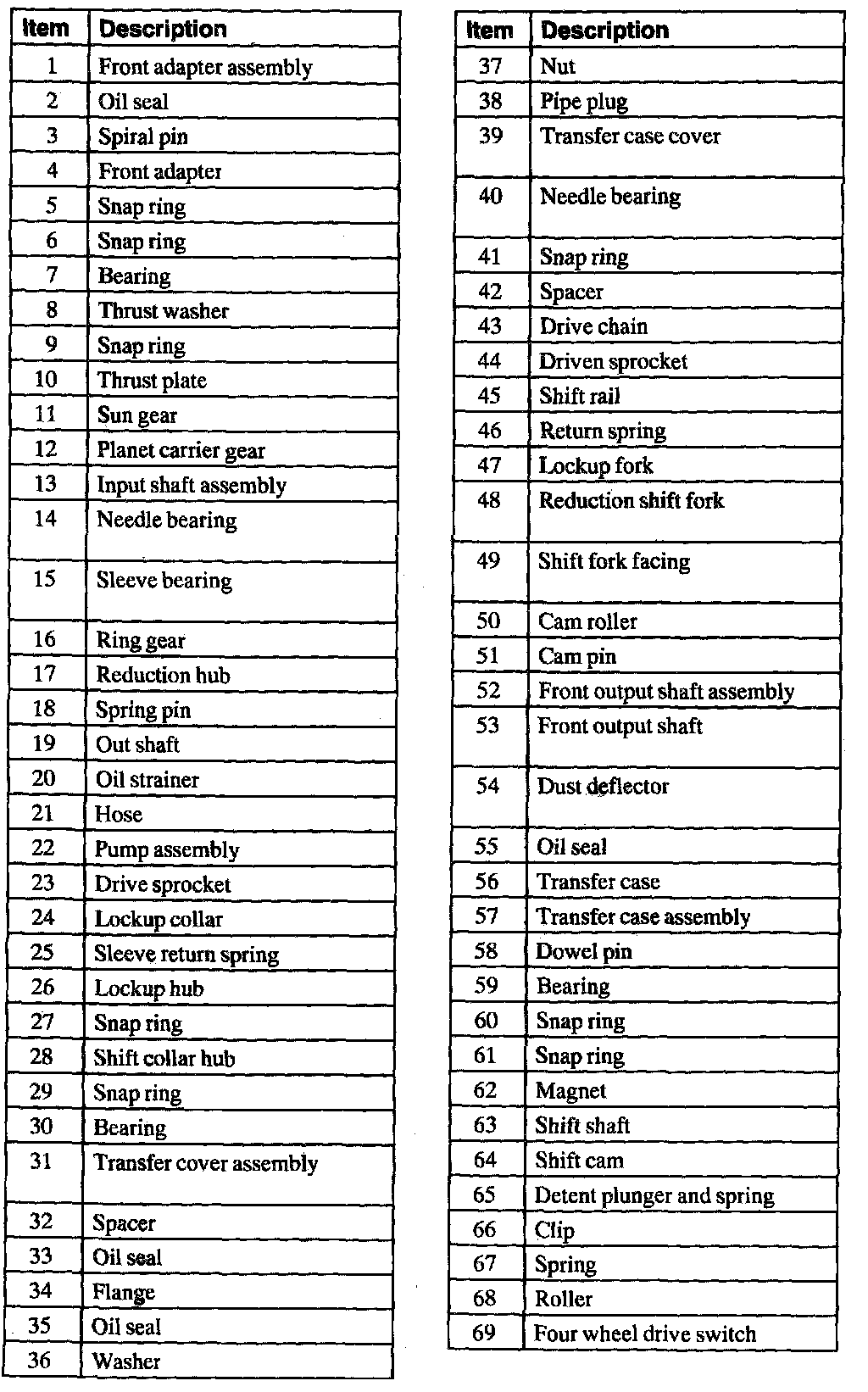

Part 2 of 2
