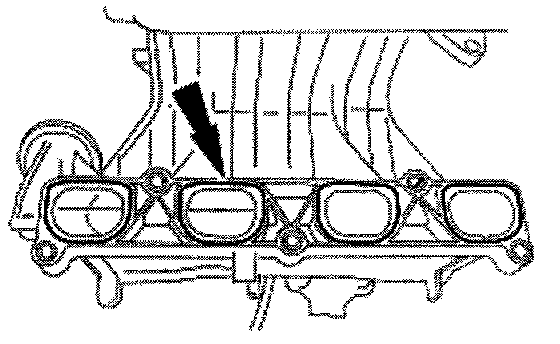

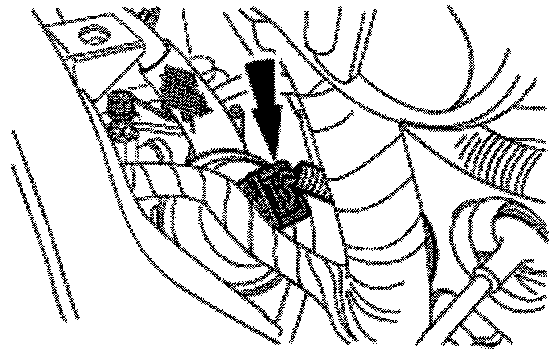

1. Inspect and install new intake manifold gaskets, if necessary.






2. NOTE:Engine removed for clarity.

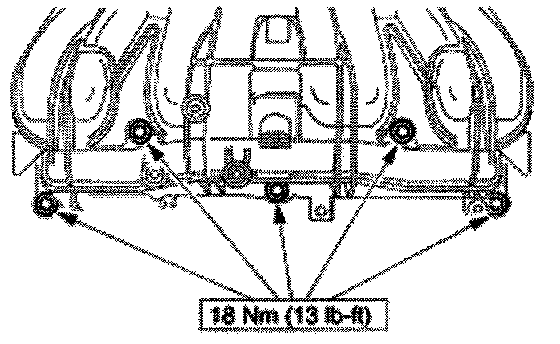

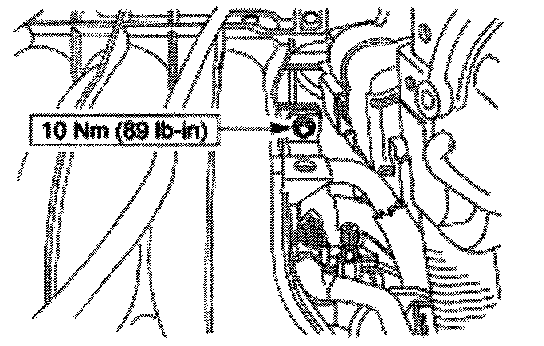

Install the intake manifold and the five mounting bolts.






3. Connect the fuel manifold vacuum hose.






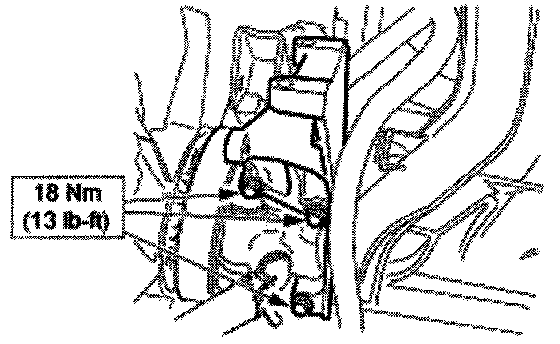

4. Position the air cleaner outlet tube bracket and install the bolts.






5. Connect the wiring pushpin to the bottom of the intake manifold.
6. Connect the engine KS connector to the intake manifold and connect the electrical connector.






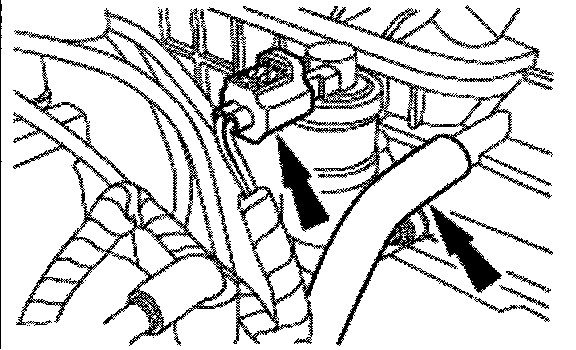

7. Attach the 42-pin electrical connector to the bracket and connect the vapor purge hose.






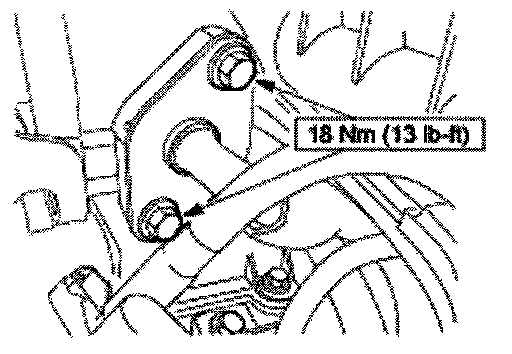

8. Install the EGR flange mounting bolts.







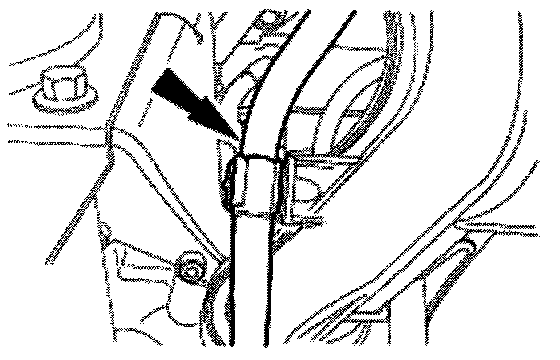

9. Connect the fuel line into the clip.






10. Connect the swirl control valve electrical connector.






11. Connect the swirl control valve vacuum solenoid electrical connector.






12. Install the EGR tube bracket bolt.






13. Position the engine wiring harness and connect the pushpins.






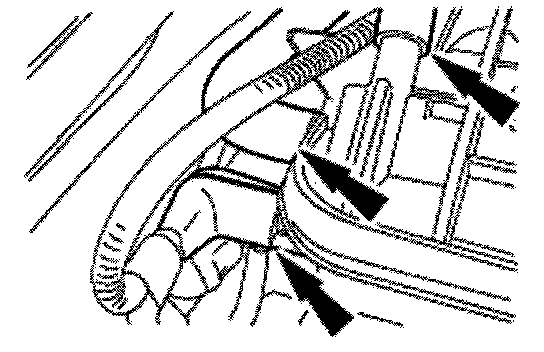

14. Connect the engine vacuum harness, brake booster hose and the crankcase breather hose.






15. Connect the vapor purge hose and the IAC valve electrical connector.






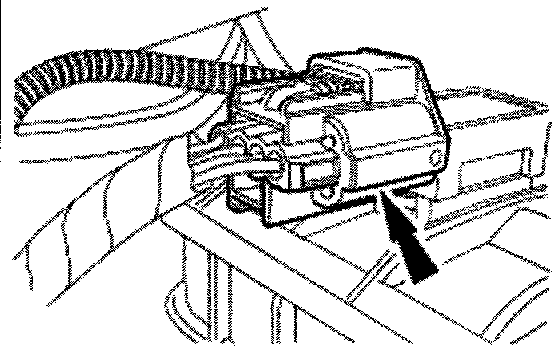

16. Connect the MAP sensor electrical connector.






17. Connect the TP sensor electrical connector.






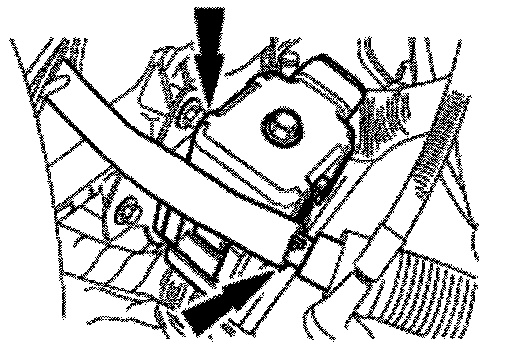

18. Connect the throttle cables to the intake manifold and the throttle body.

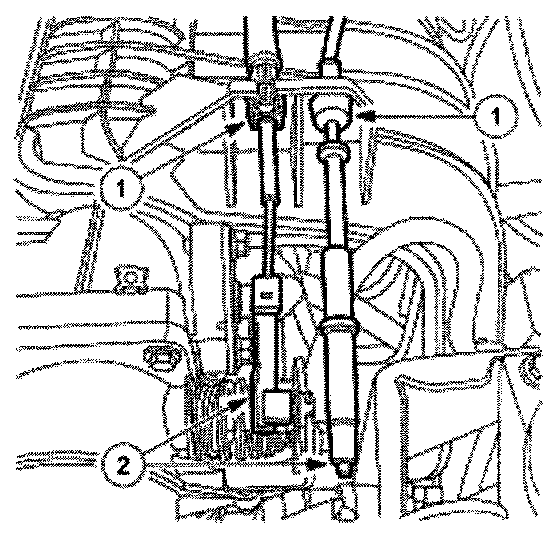

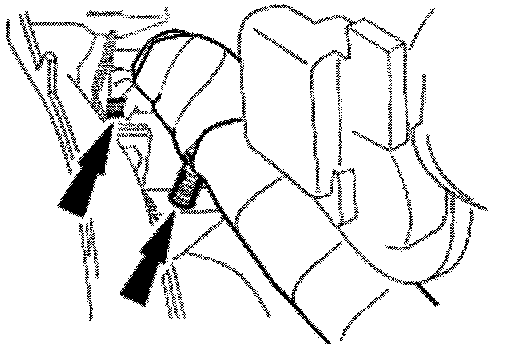

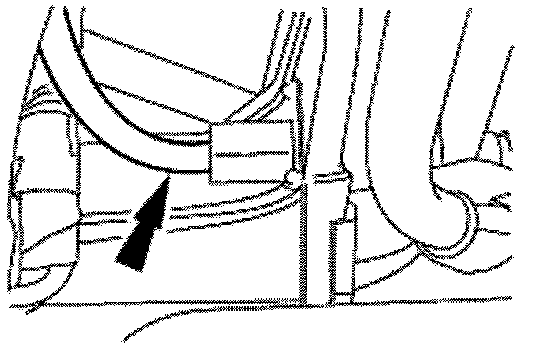

1. Connect the accelerator cable and speed control cable (if so equipped) into the mounting bracket.
2. Connect the accelerator cable and speed control cable (if so equipped) onto the throttle linkage.






19. Install the air cleaner outlet tube.

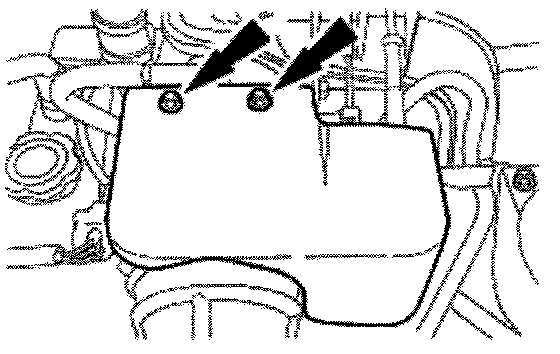

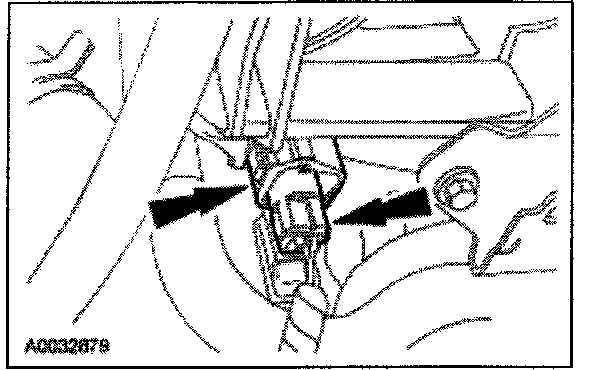

20. Install the accelerator control snow shield.
