System Specifications

Automatic Transmission 5R44E and 5R55E

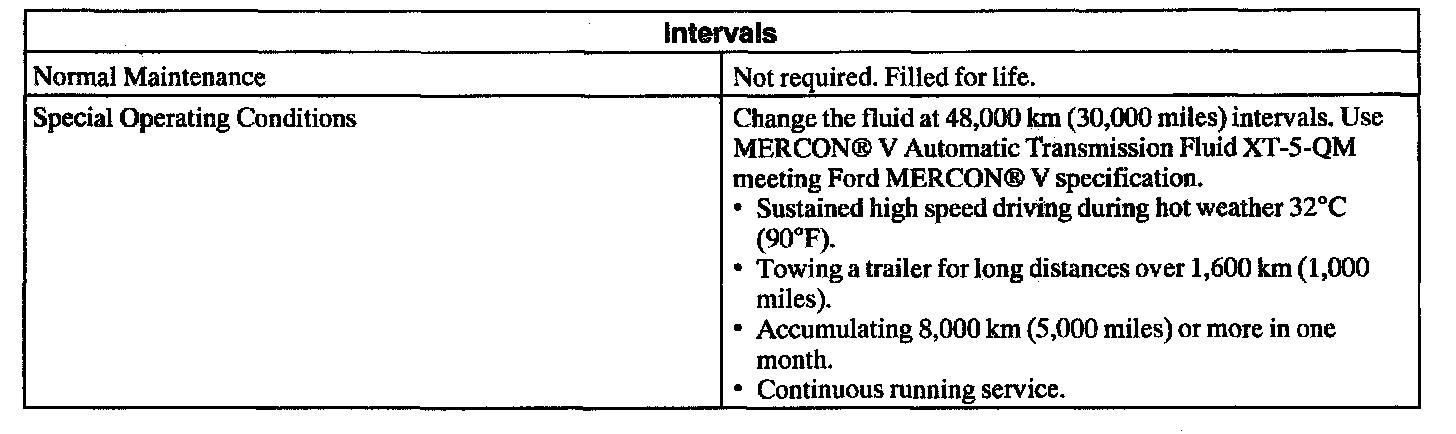

Fluid Maintenance

CAUTION: Use only MERCON V Automatic Transmission Fluid XT-5-QM meeting Ford MERCON V specification. Use of any other fluids can result in a transmission malfunction or failure.





General Specifications

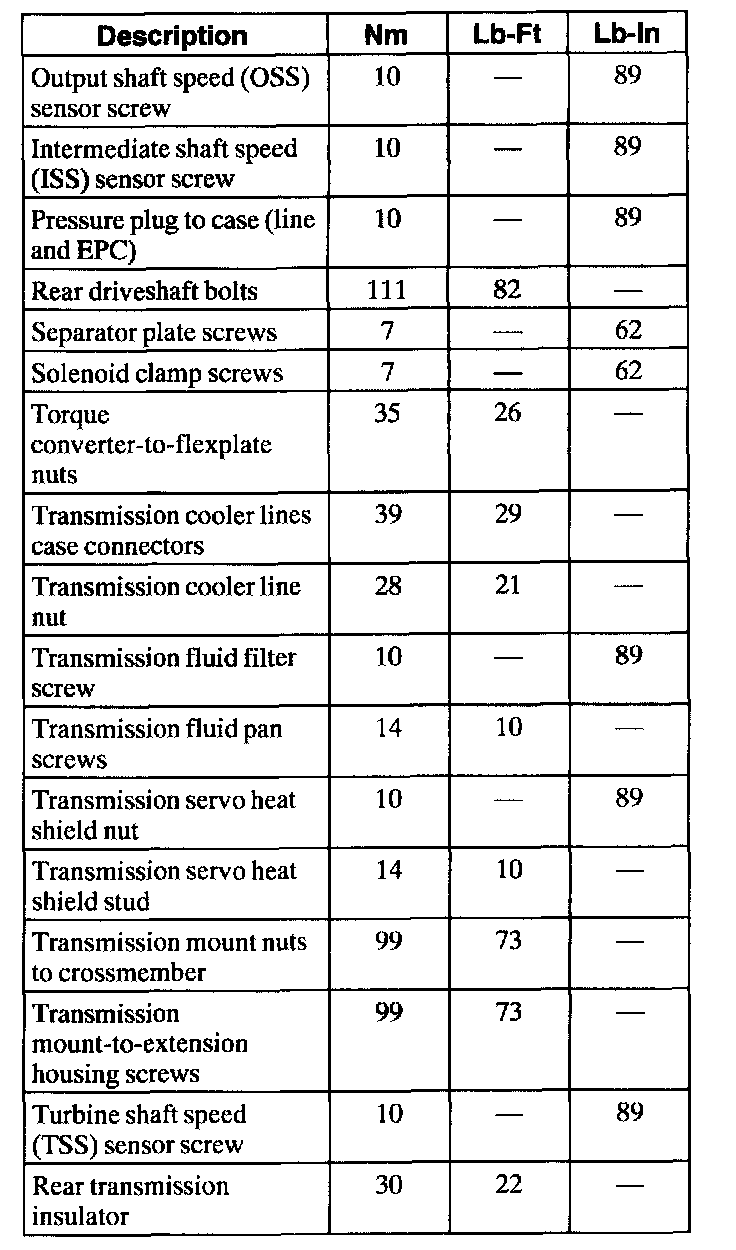

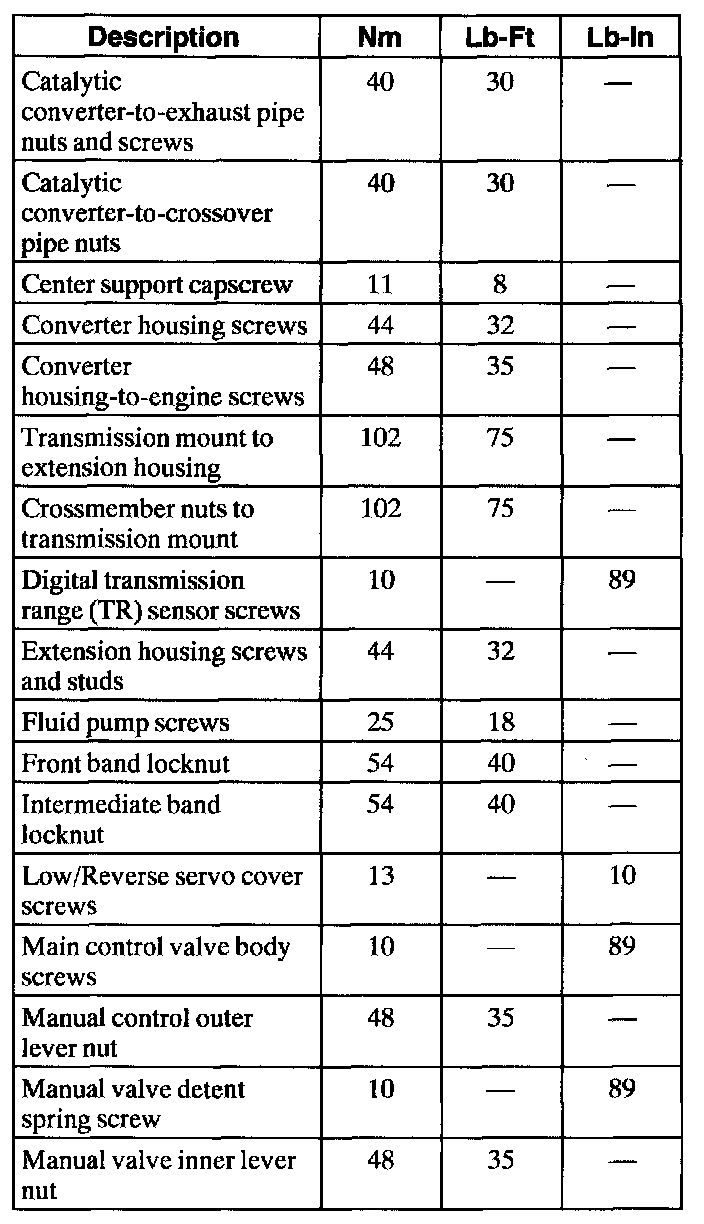

Torque Specifications

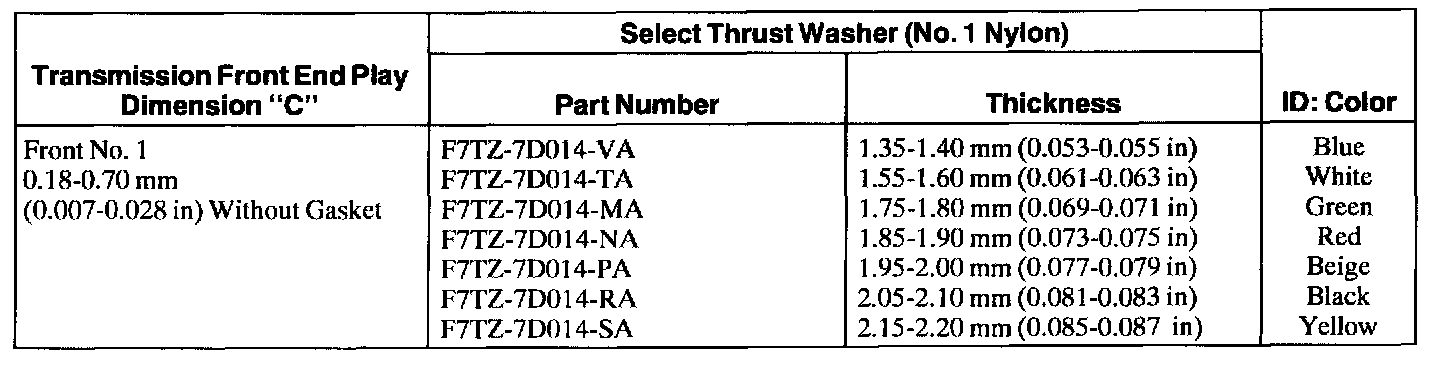

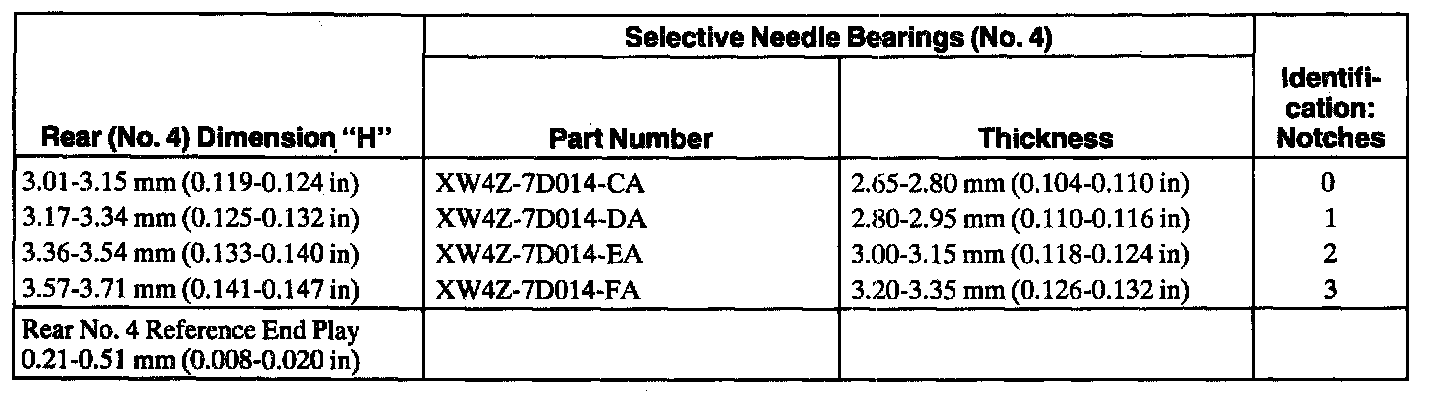

End Play Specifications

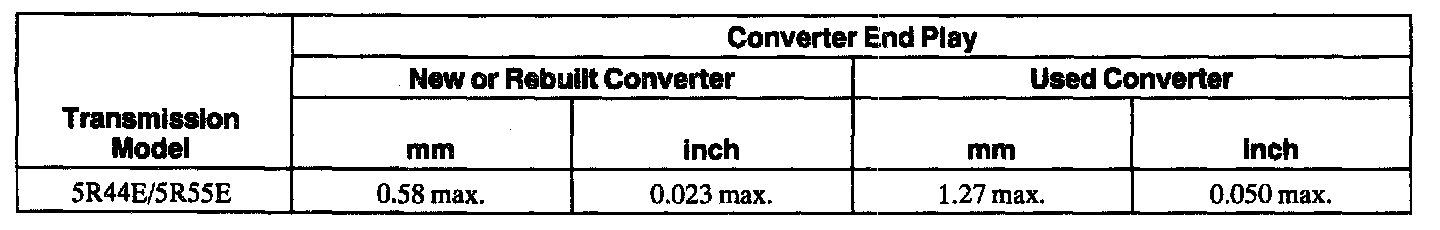

Torque Converter End Play

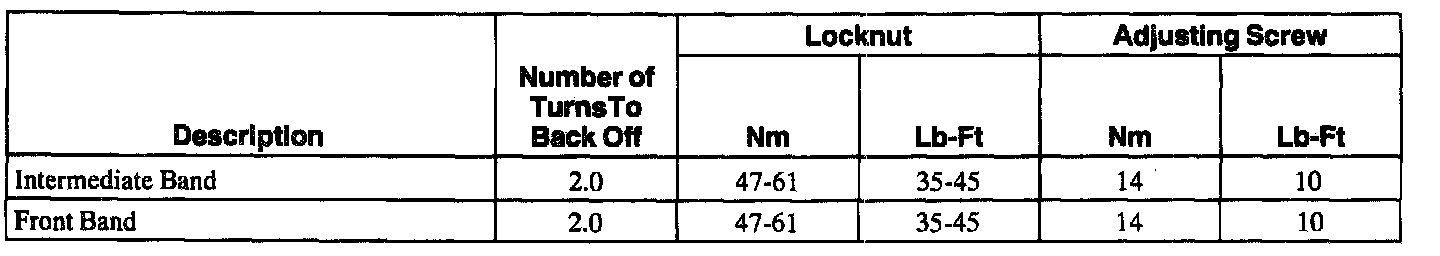

Band Adjustment And Torque Chart

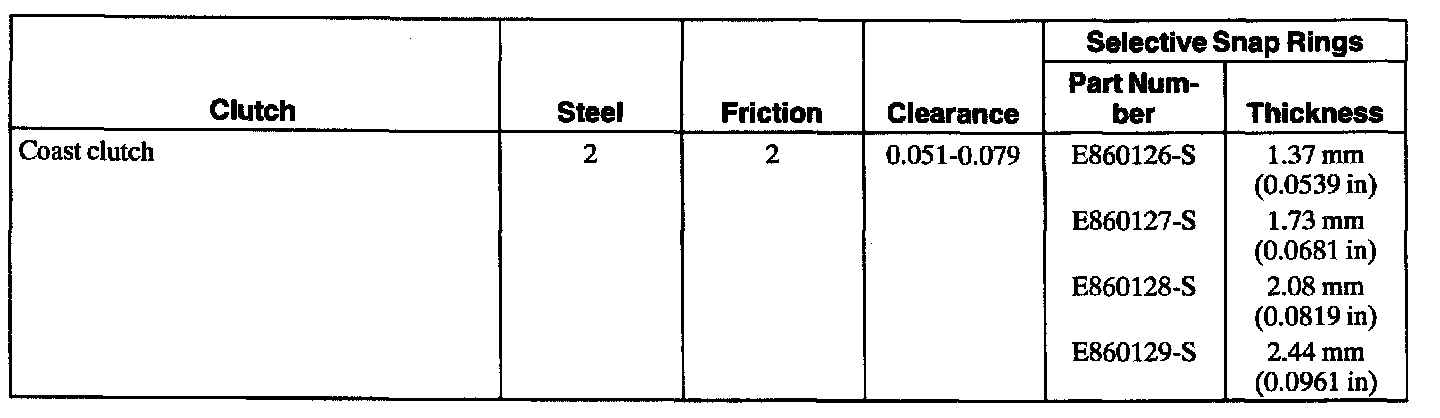

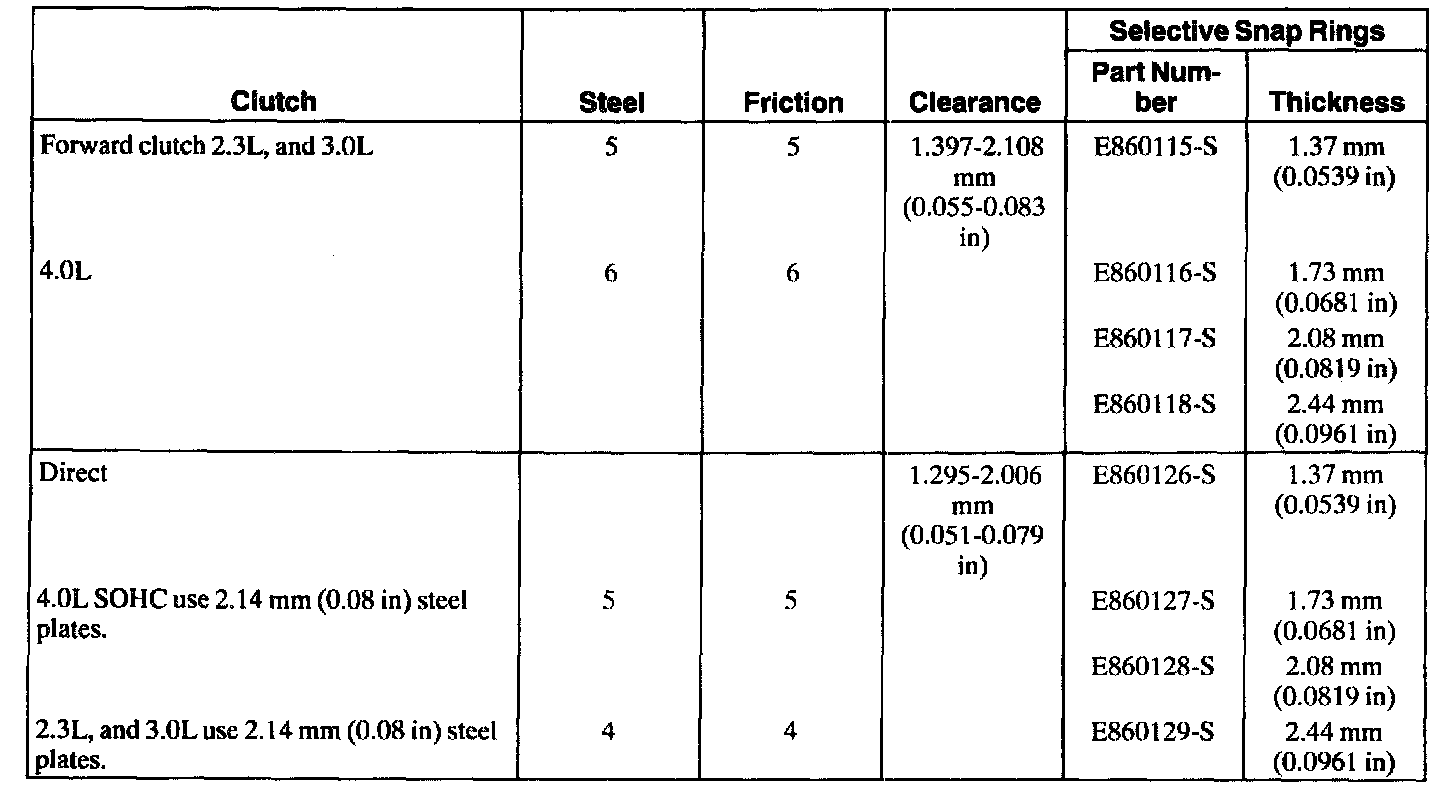

Clutch Plate Usage And Clearance Specifications

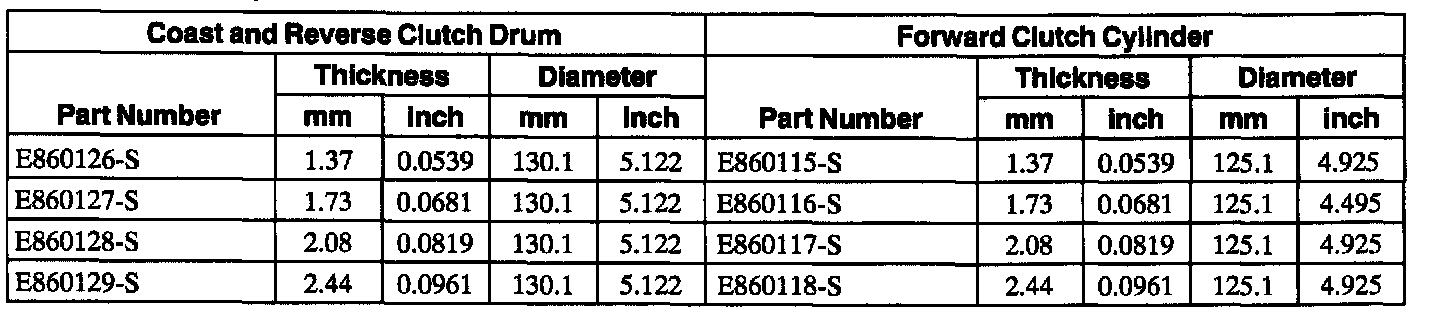

Selective Snap Rings

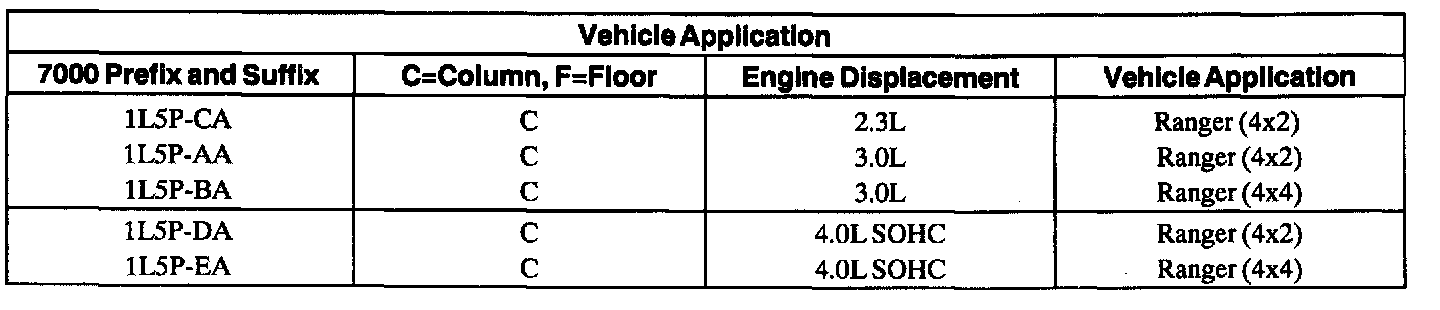

Service Identification Model Chart

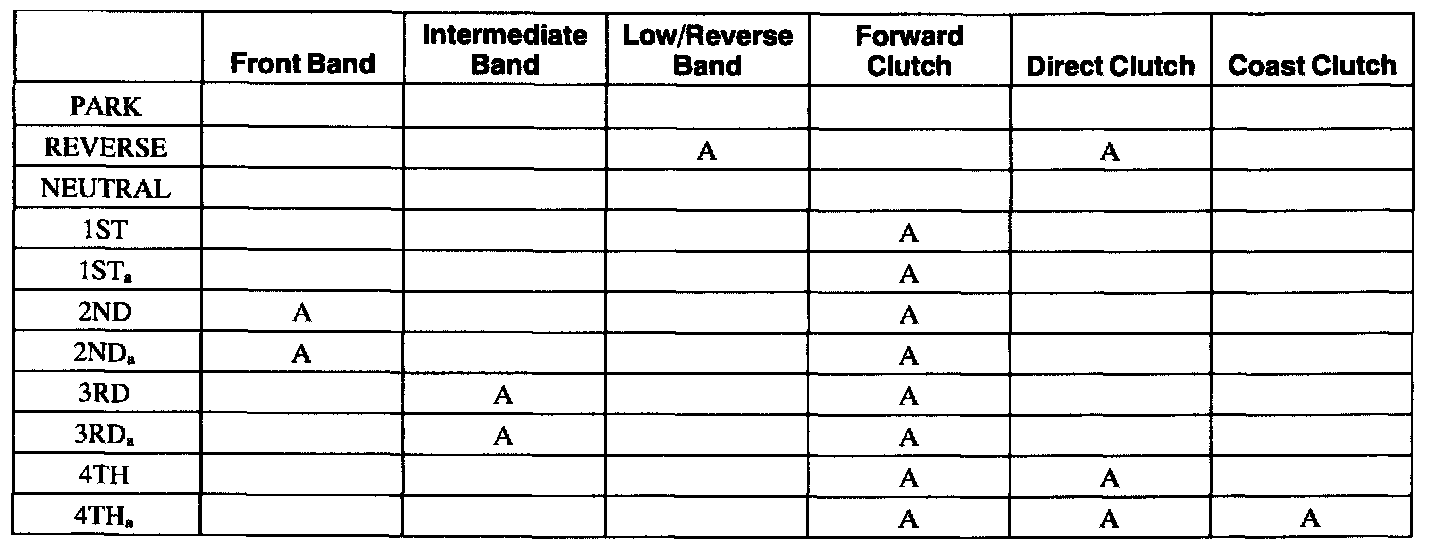

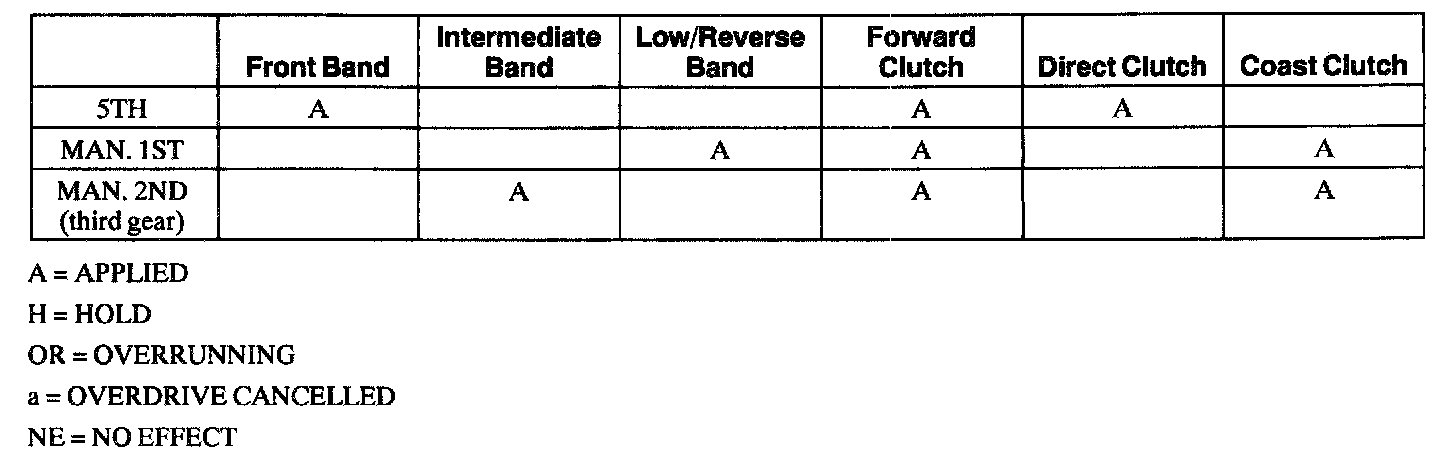

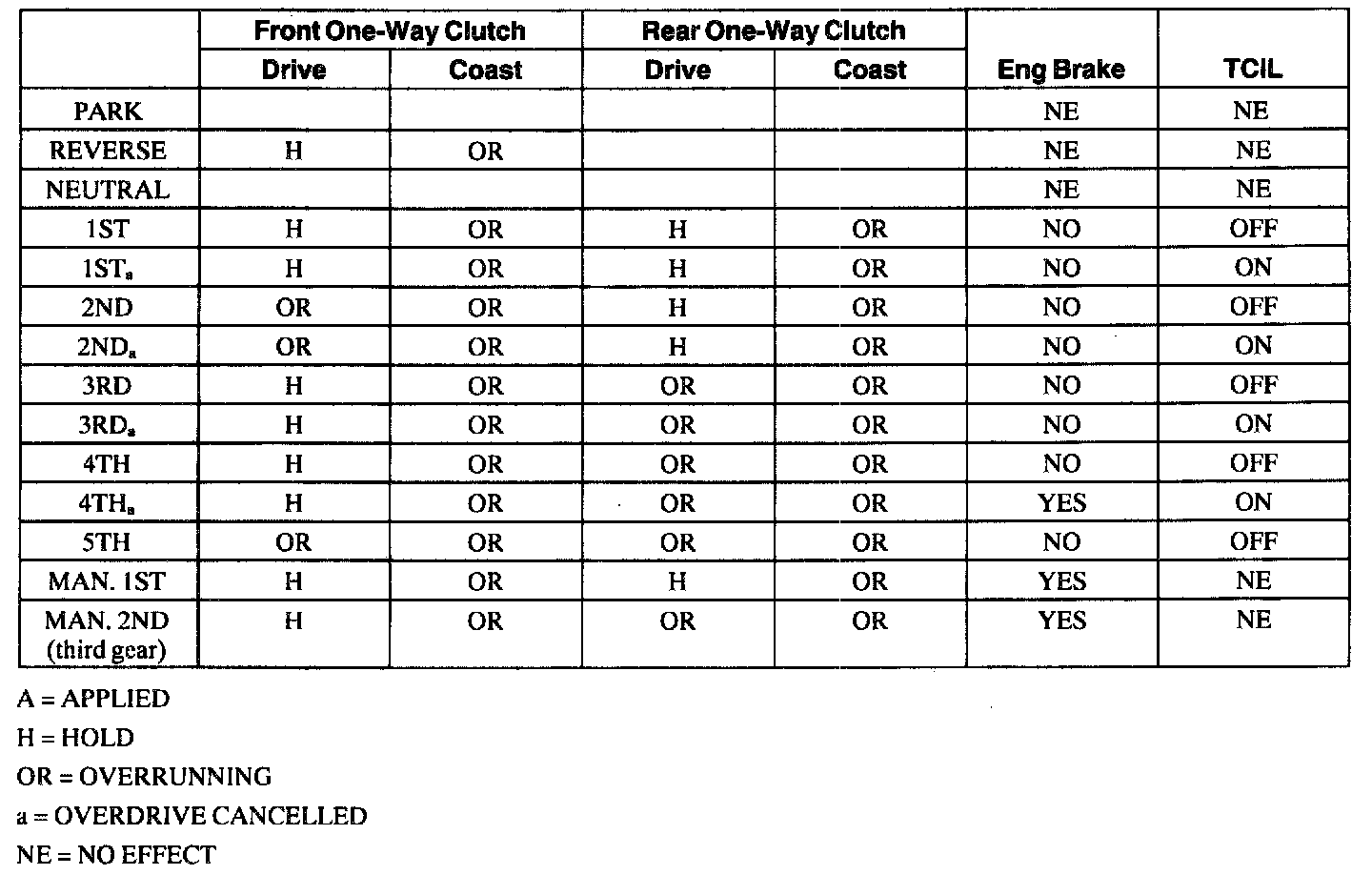

Band/Clutch Application Chart








Solenoid Operation Chart





Line Pressure Chart

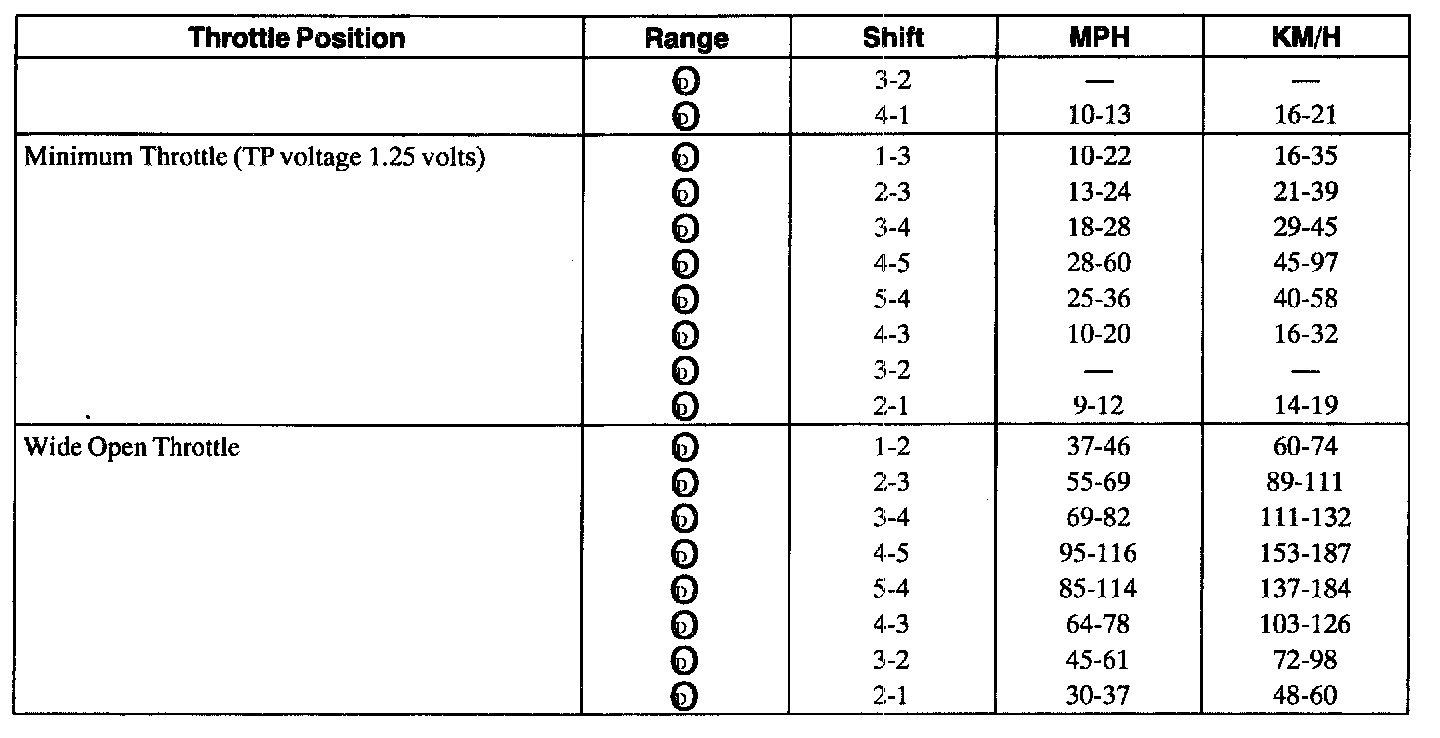

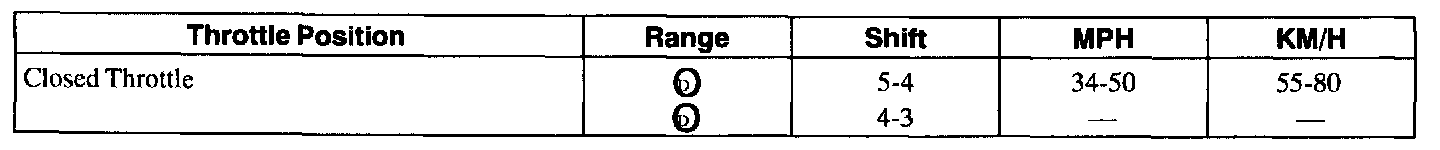

Shift Speeds

NOTE: Shift speed ranges are approximate for all applications.





Stall Speed Chart

Automatic Transaxle/Transmission External Controls

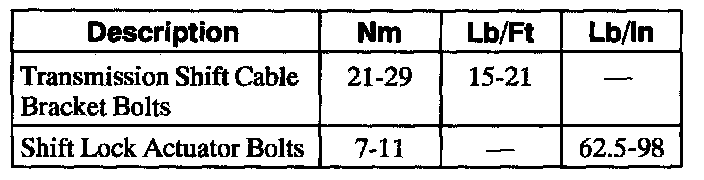

Torque Specifications

Transaxle/Transmission Cooling

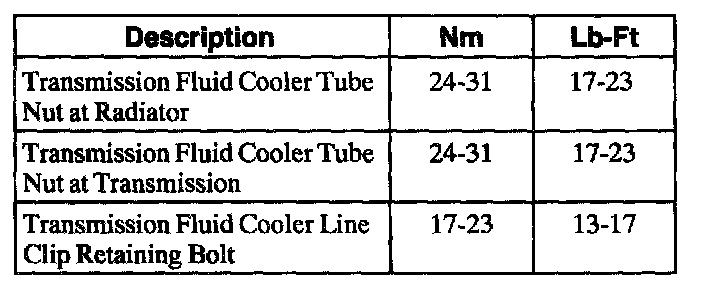

Torque Specifications

Tightening Sequence

Flex Plate
Refer to Service and repair
