Test F: Panic Feature Is Inoperative/Does Not Operate Correctly

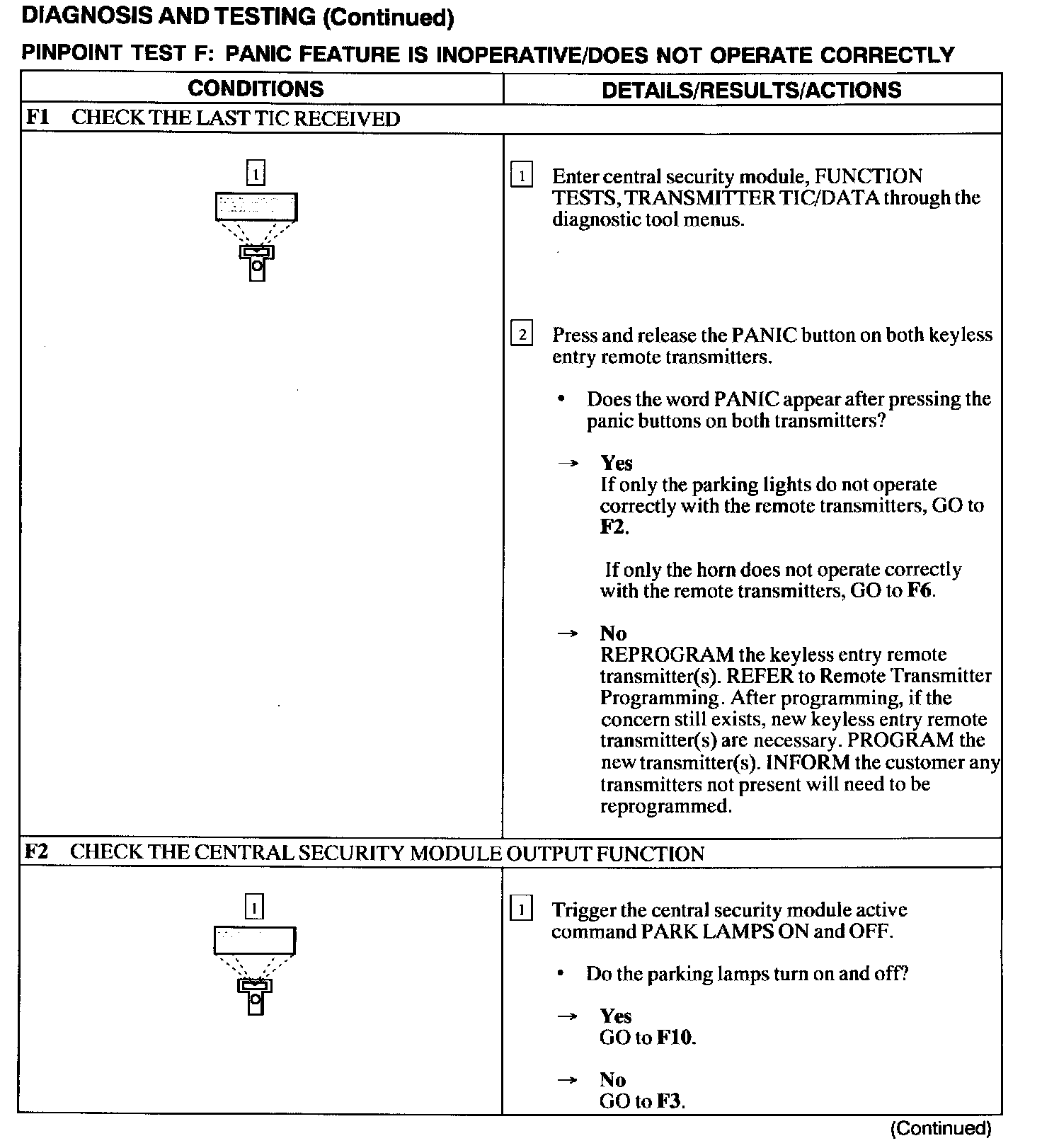

F1 - F2:

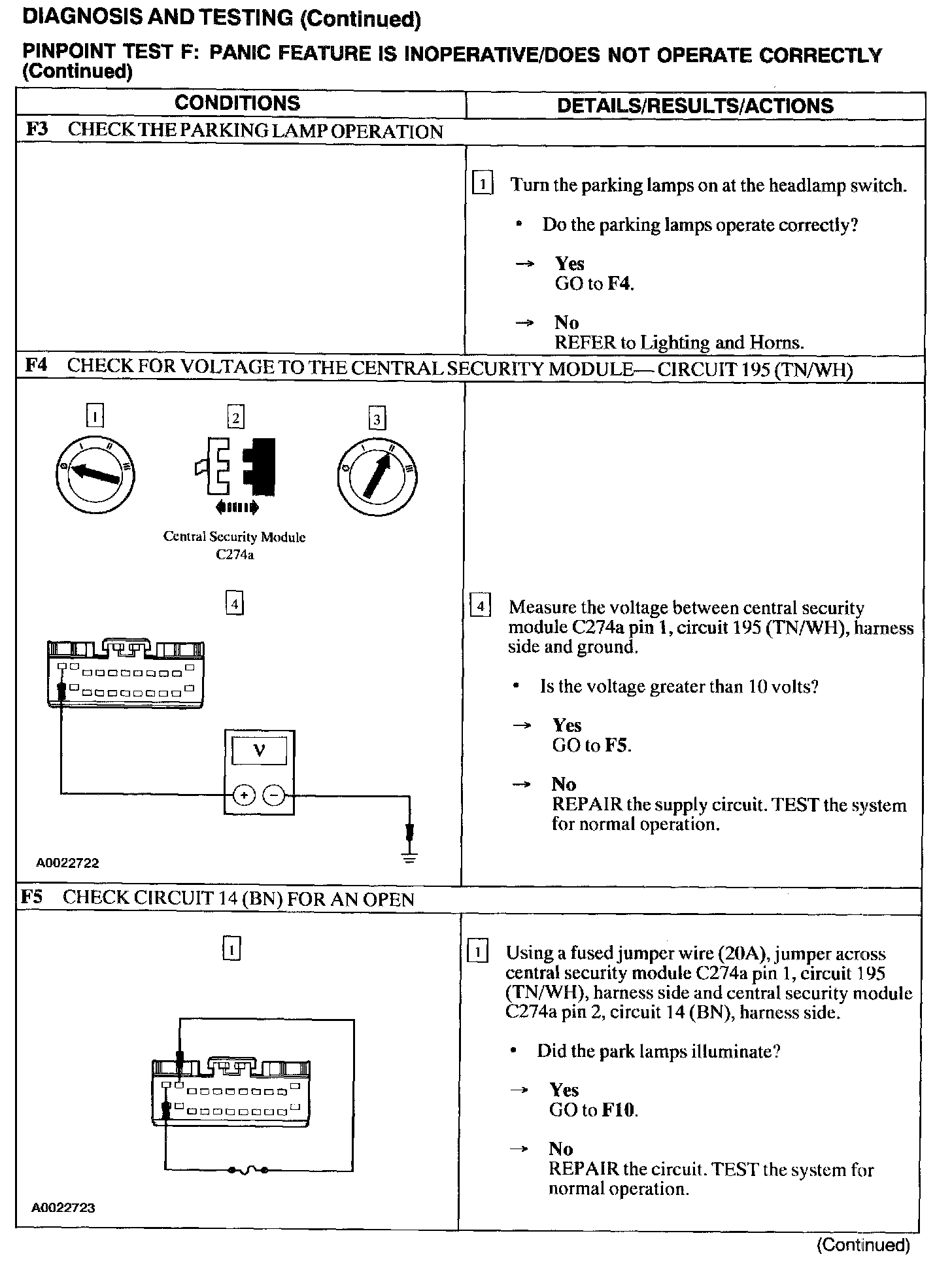

F3 - F5:






F6 - F8:

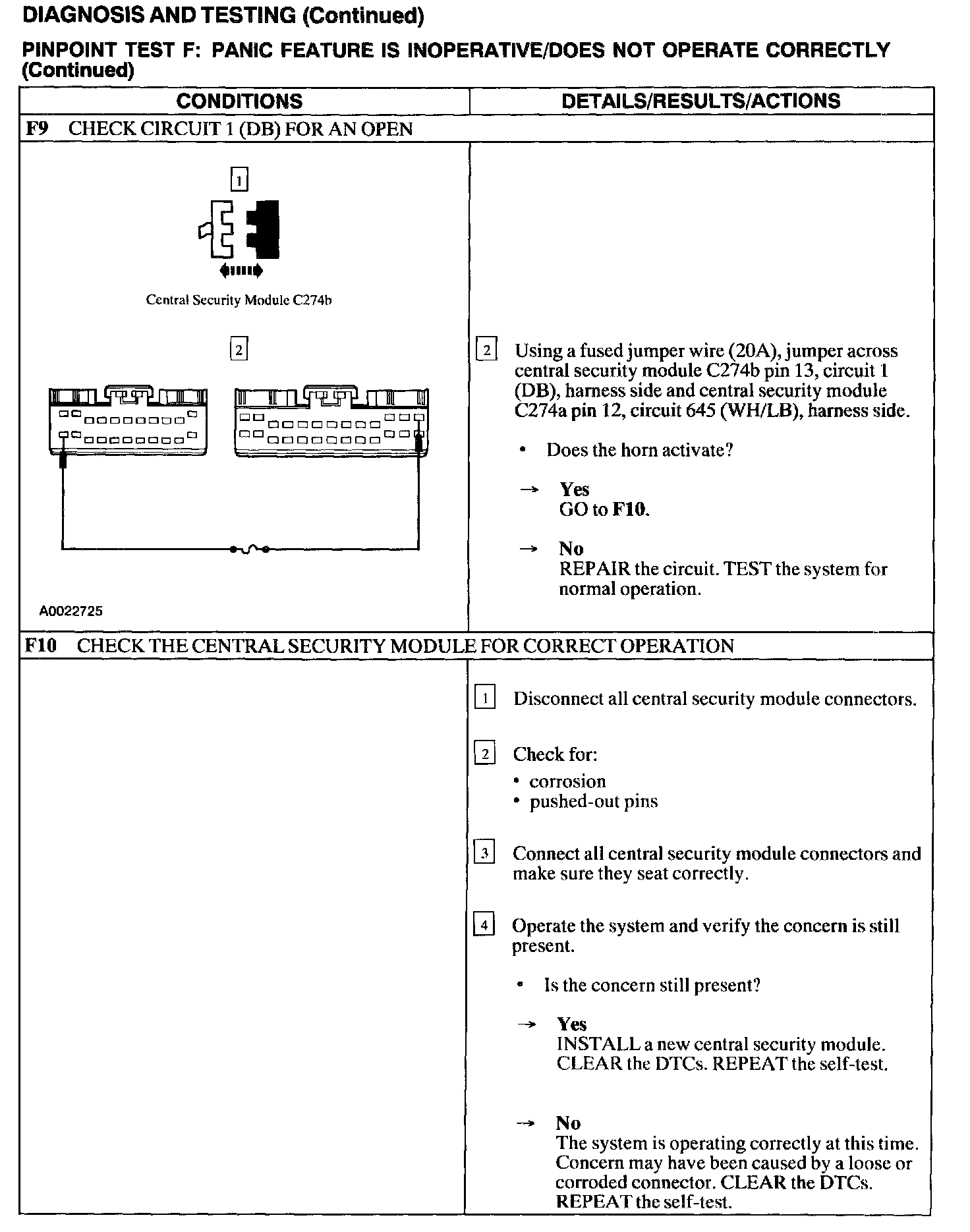

F9 - F10:
