Home >> Ford >> 2002 >> Ranger 4WD V6-3.0L VIN U >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Automatic Transmission/Transaxle >> System Diagram

System Diagram

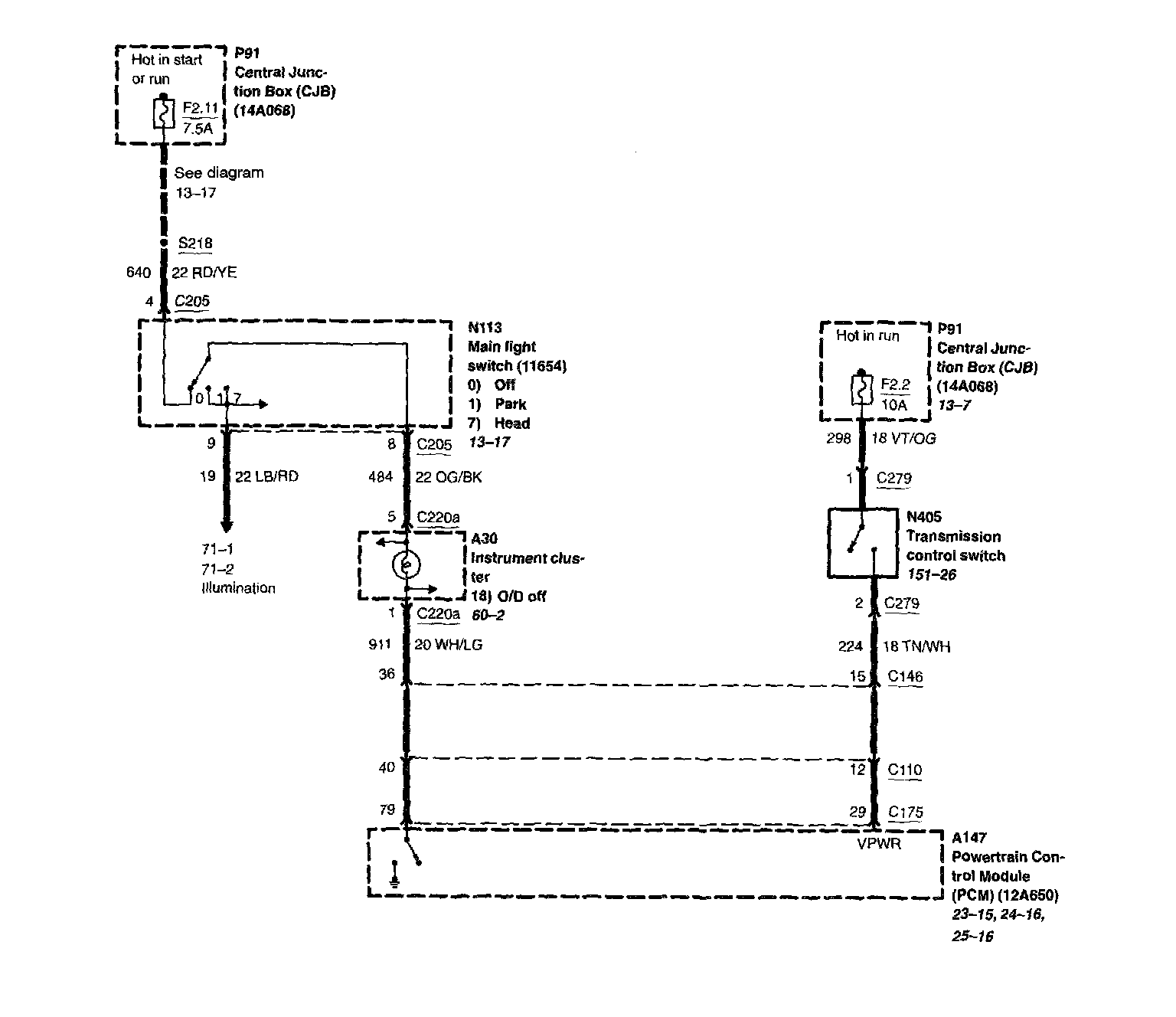

Diagram 30-1:

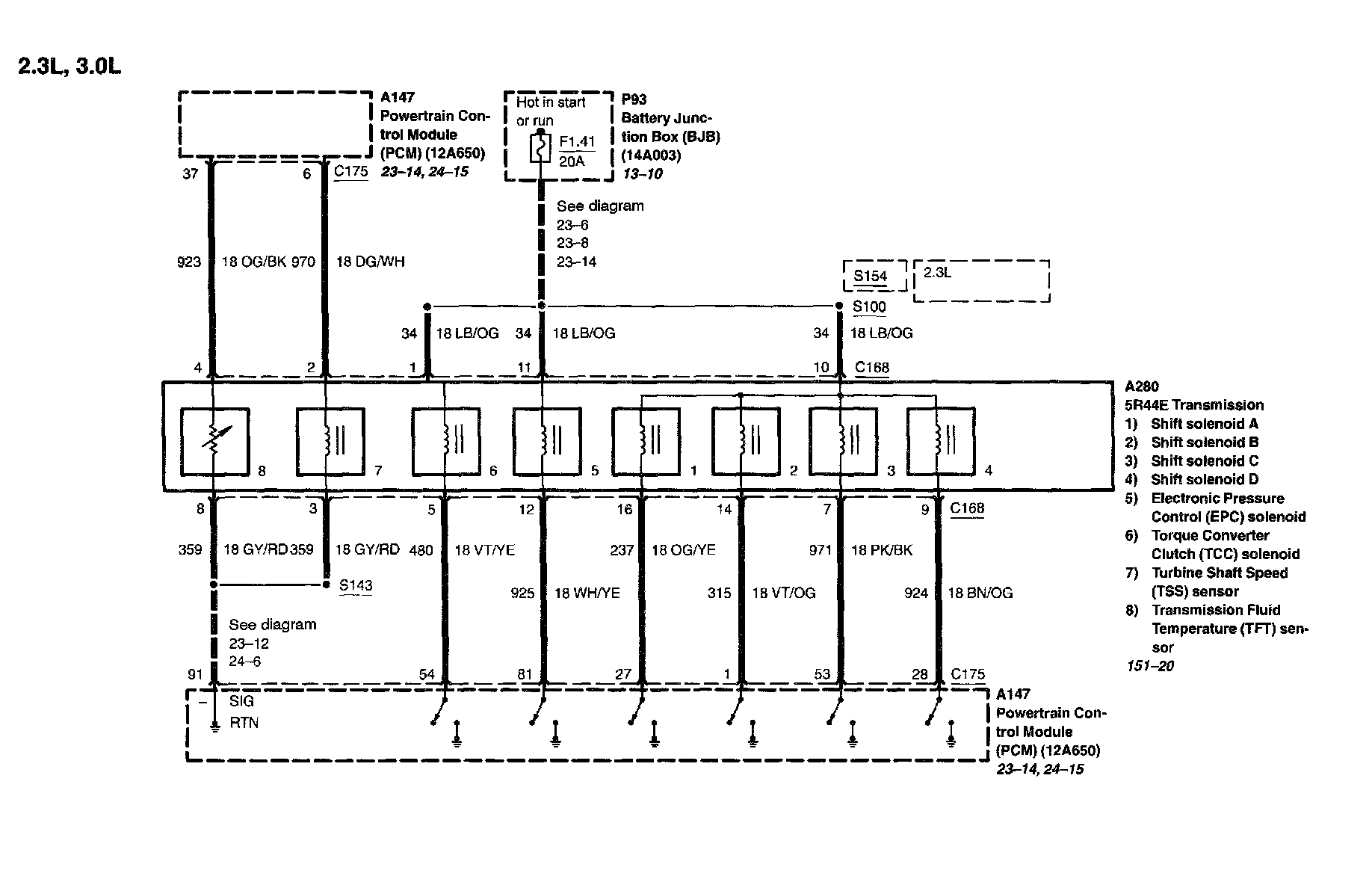

Diagram 30-2:






Diagram 30-3:






Diagram 30-4:






Diagram 30-7:
