Brake Caliper Anchor Plate

Brake Caliper Anchor Plate

Removal

1. NOTE: 4x4 shown, 4x2 similar.

Remove the pads.

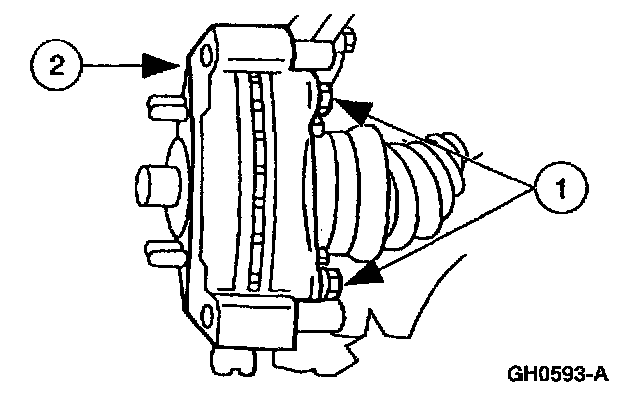

2. Remove the front disc brake caliper anchor plate.
1. Remove the two front disc brake caliper anchor plate bolts.
2. Remove the front disc brake caliper anchor plate.

Installation

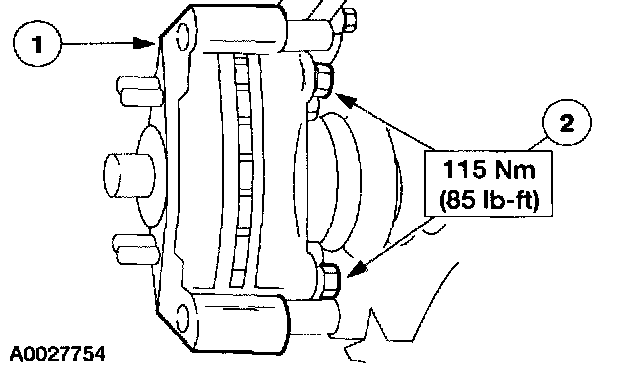

1. Install the front disc brake caliper anchor plate.
1. Position the front disc brake caliper anchor plate.
2. Install the front disc brake caliper anchor plate bolts.
2. Install the pads.
