Home >> Ford >> 2002 >> Ranger 4WD V6-4.0L VIN E >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Pinpoint Tests >> Test J: Flash Code 4 - Speed Signal

Test J: Flash Code 4 - Speed Signal

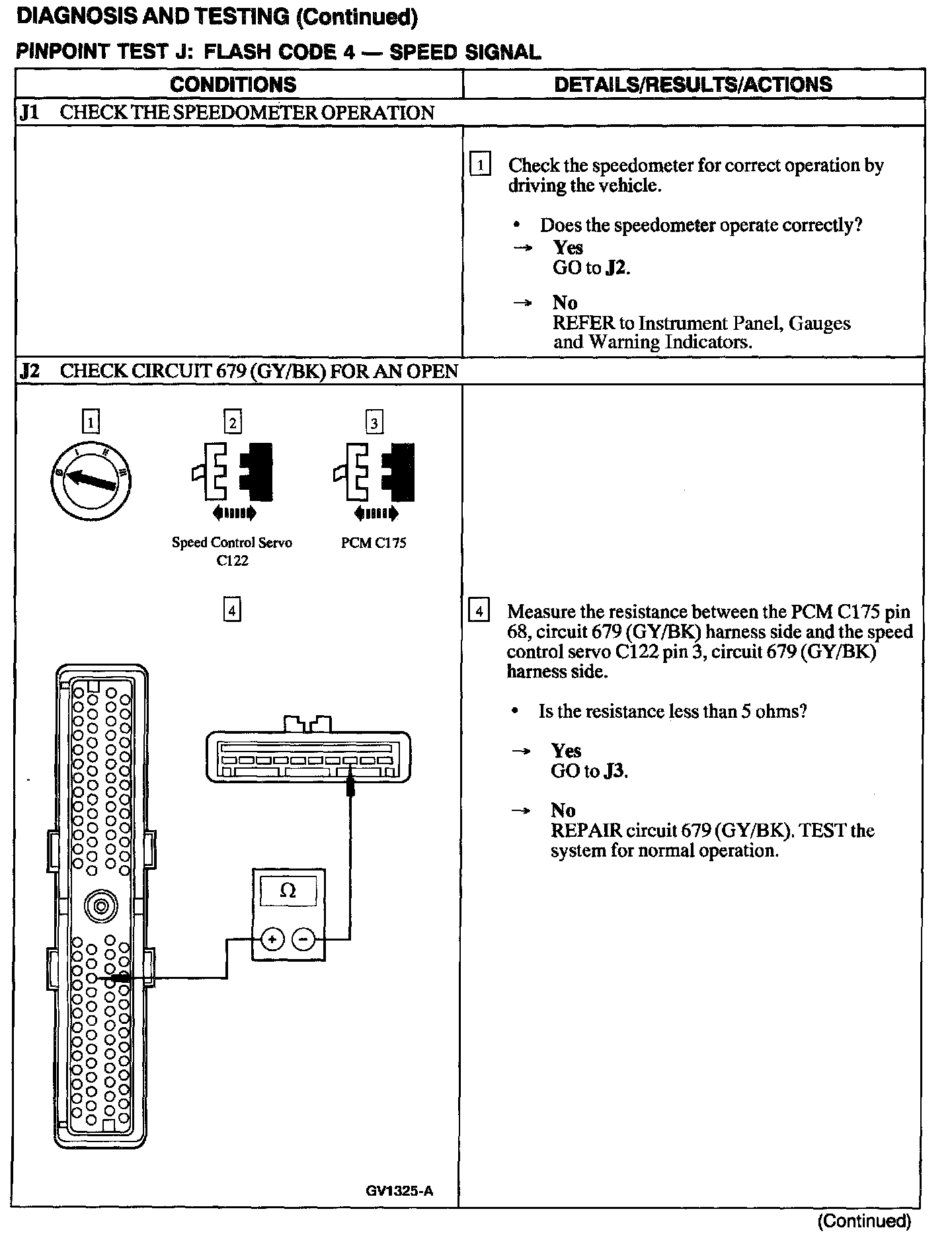

J1 - J2:

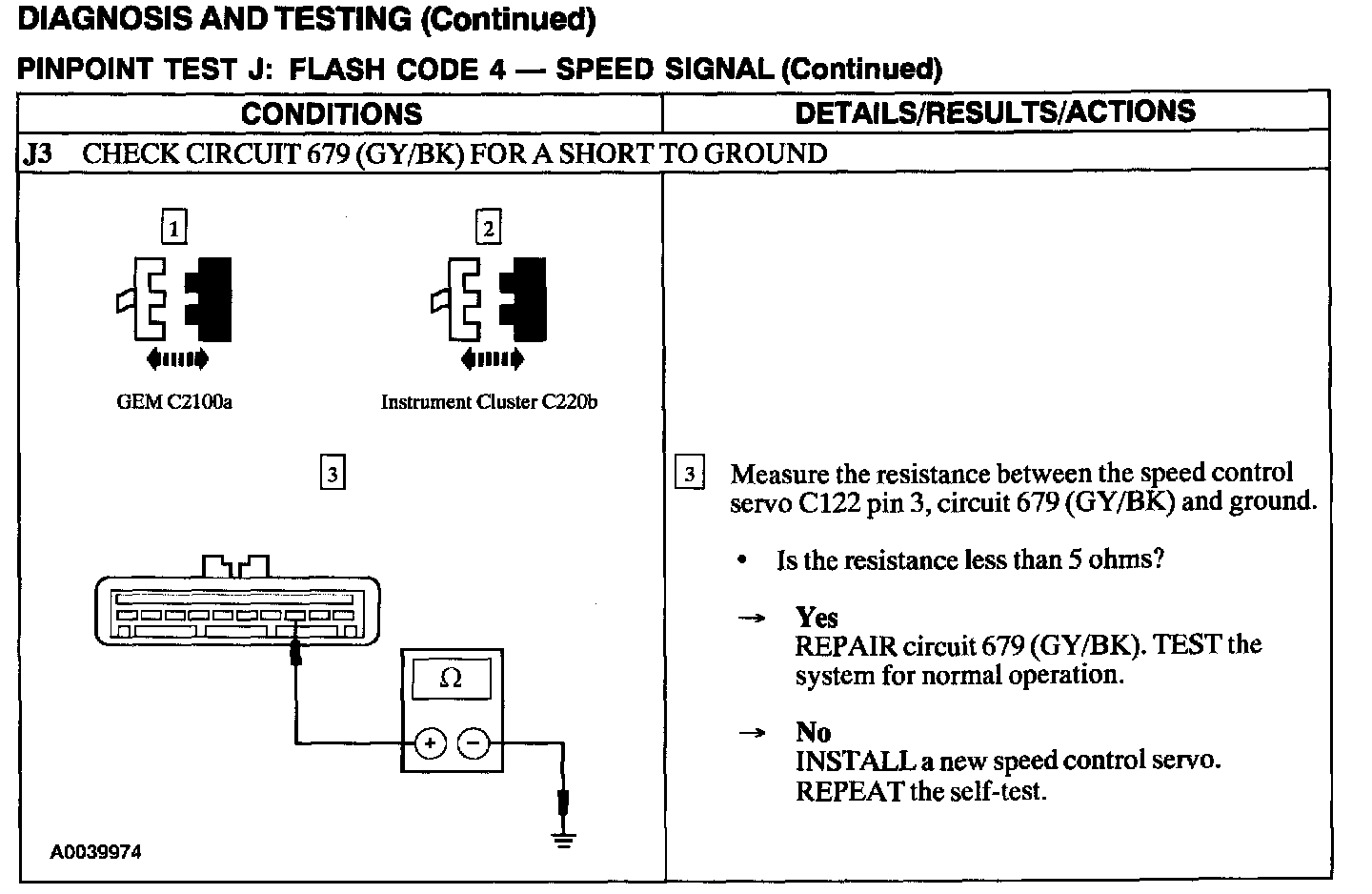

J3:
