Ranger 4WD V6-4.0L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Drive/Propeller Shaft
>>

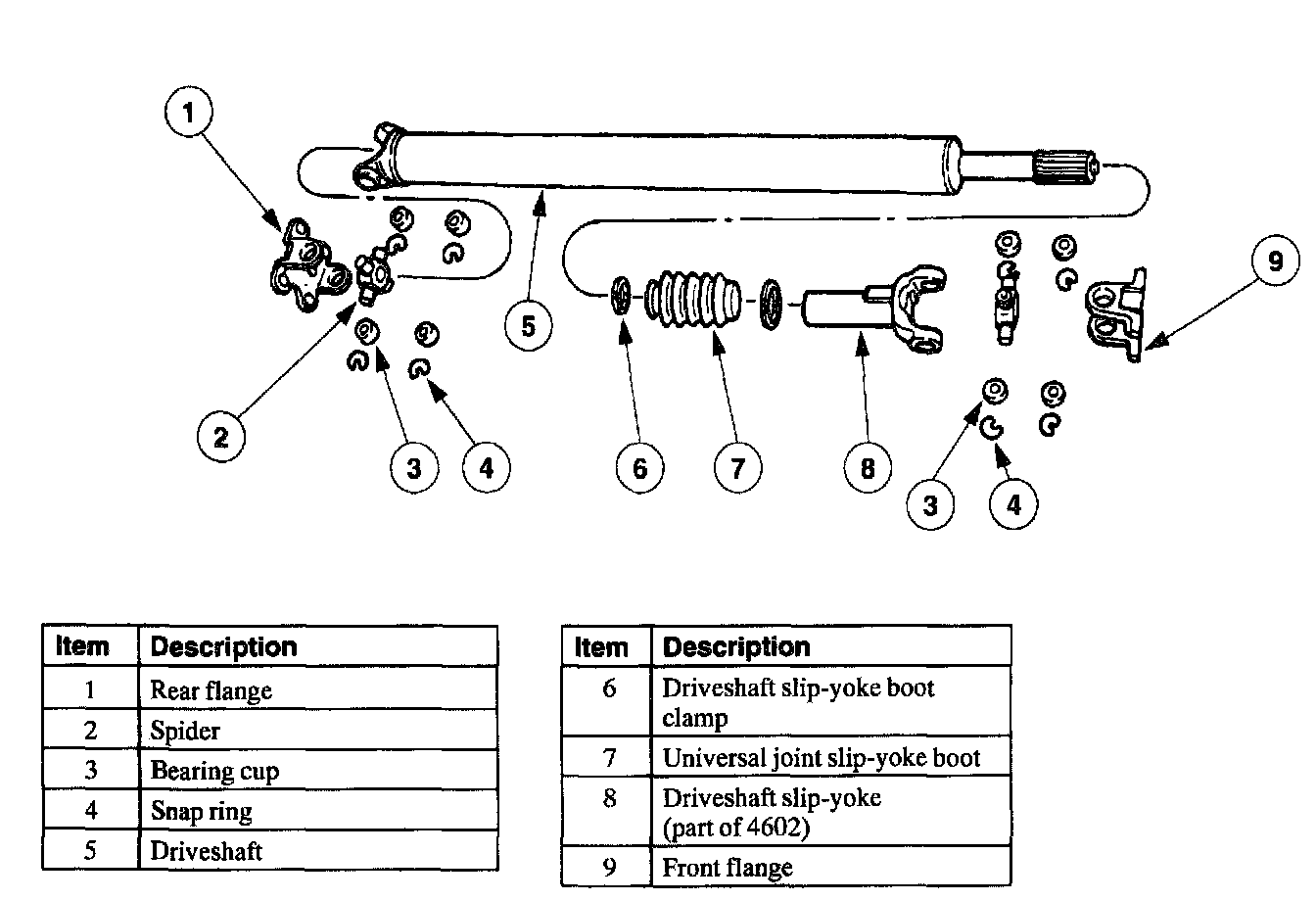

Driveshaft-Rear
Driveshaft-Rear
