Symptom Related Diagnostic Procedures

Symptom Chart

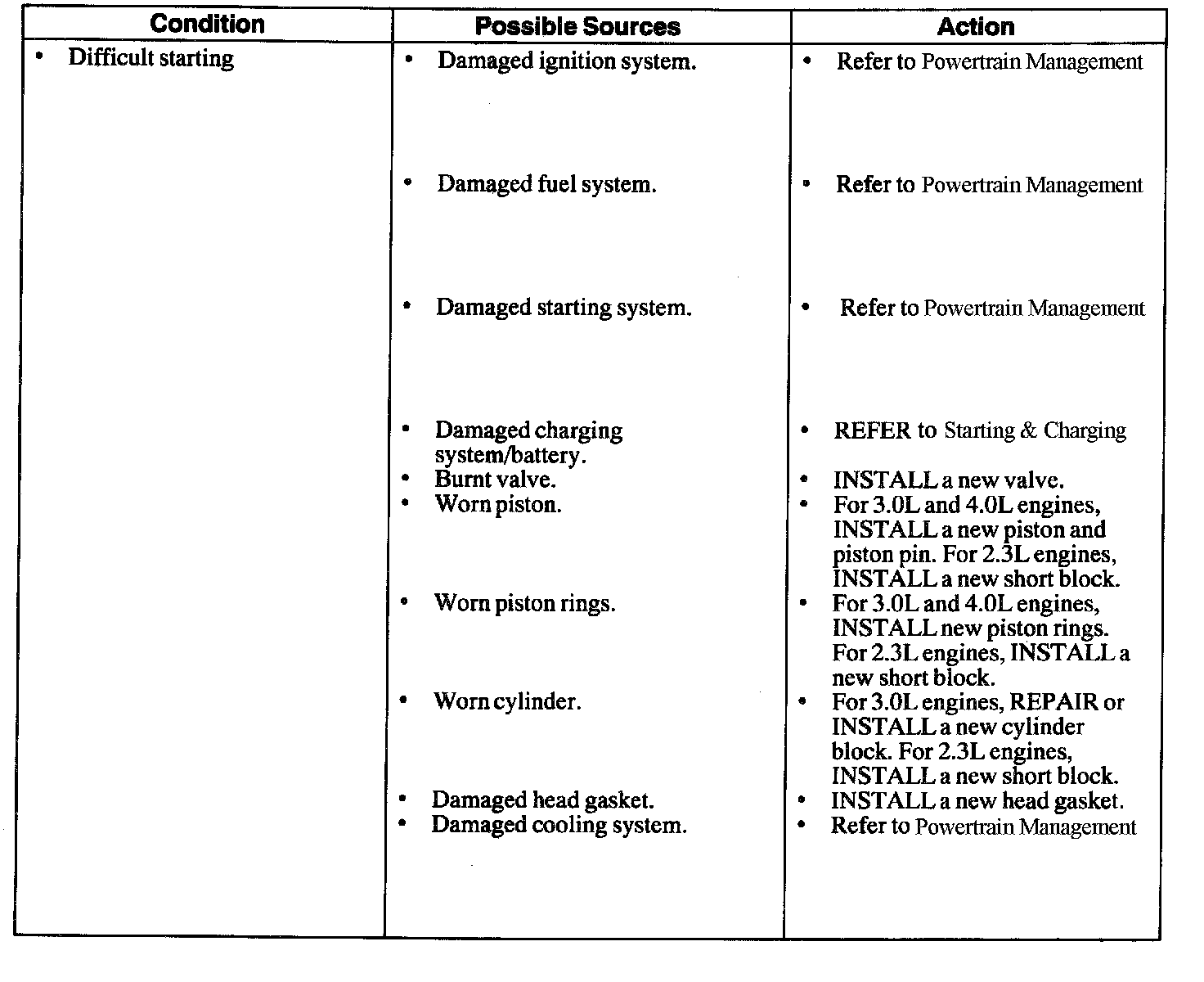

Part 1 of 6

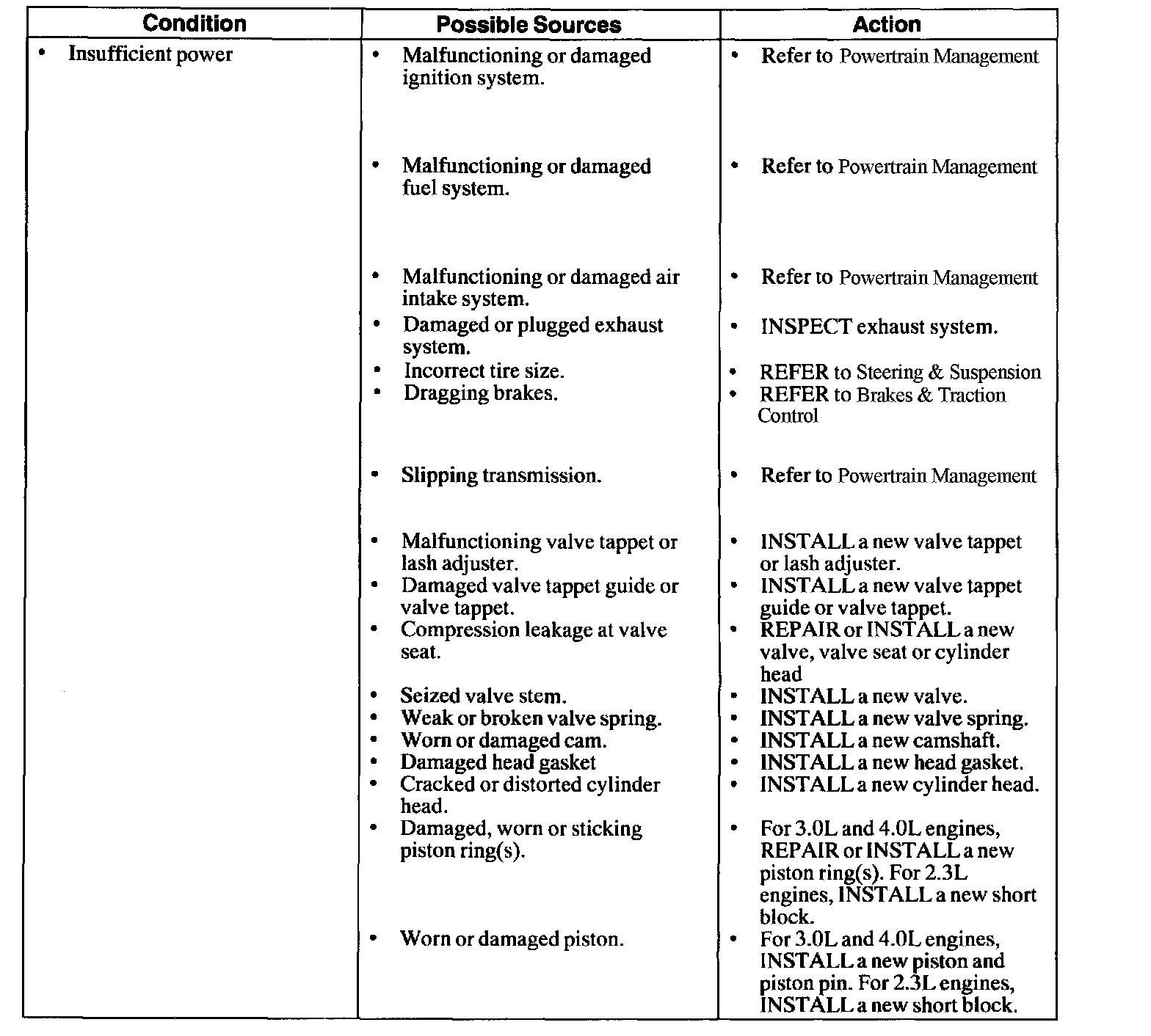

Part 2 of 6

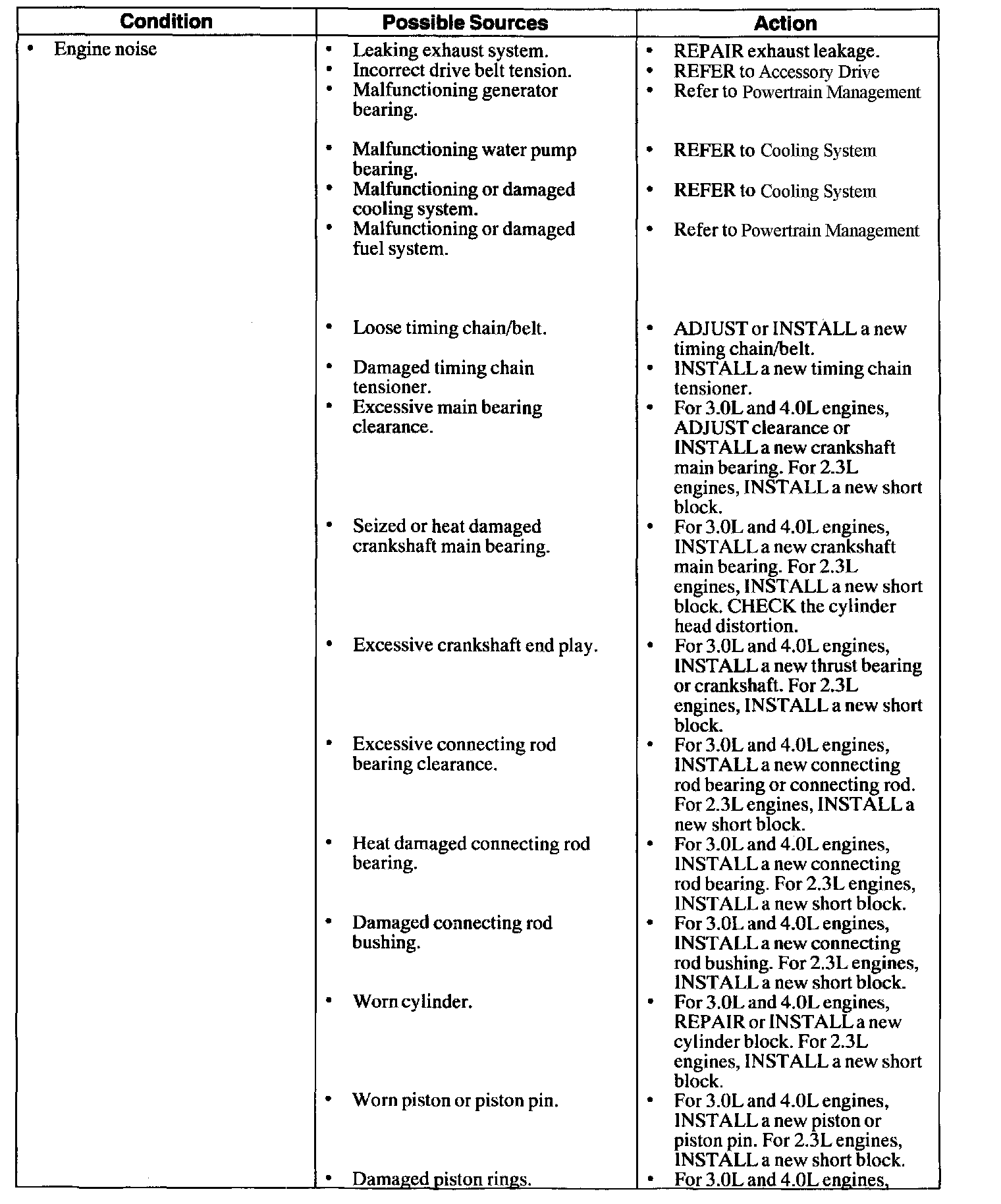

Part 3 of 6

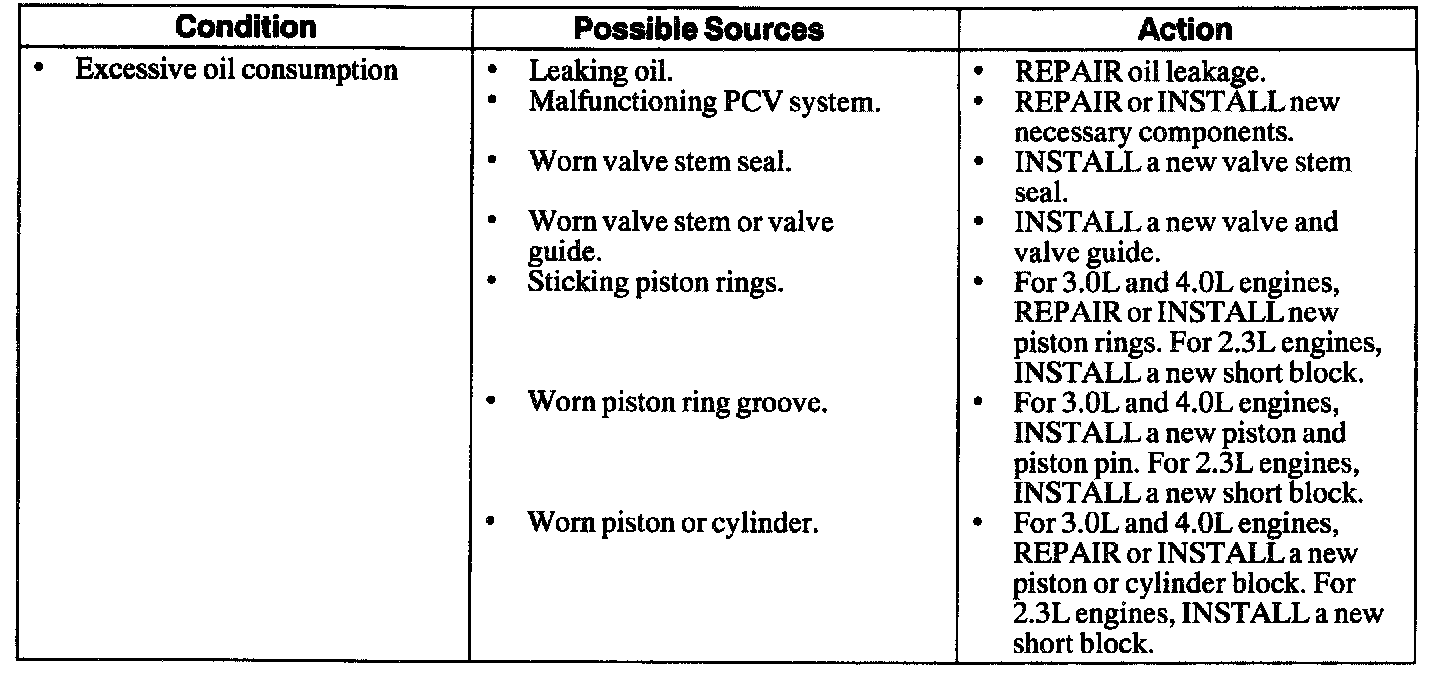

Part 4 of 6

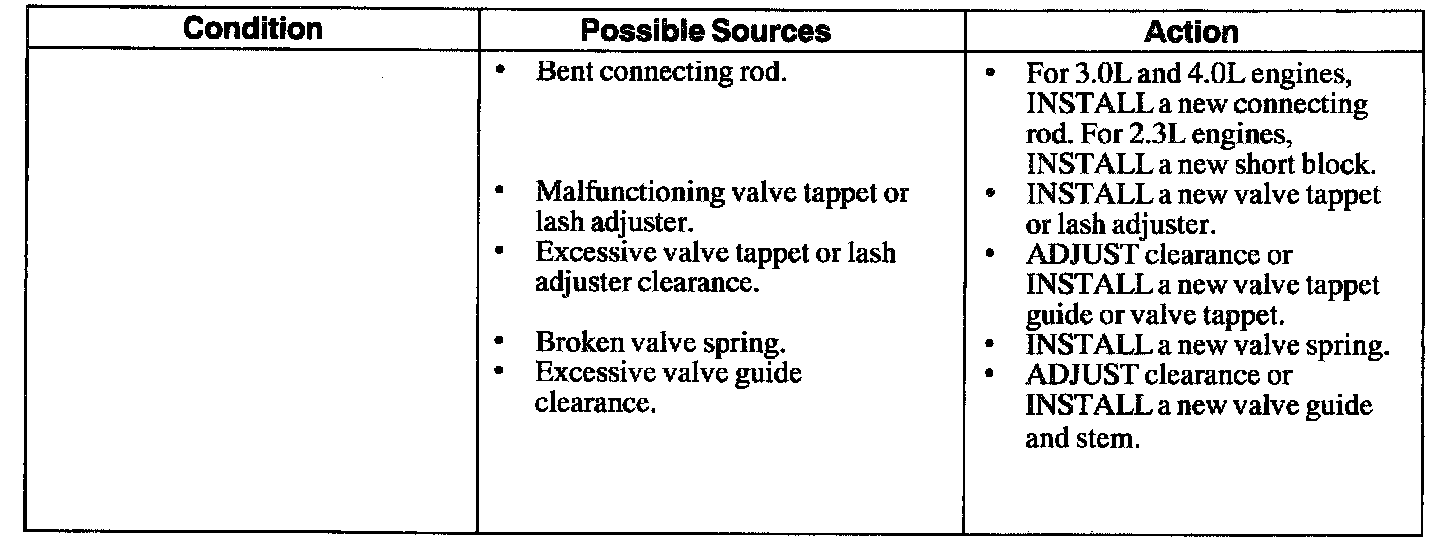

Part 5 of 6





Part 6 of 6
