Compressor HVAC: Service and Repair

REMOVAL

CAUTION: If installing a new air conditioning compressor due to an internal failure of the old unit, you must carry out the following procedures to remove contamination from the air conditioning system.
- If A/C flushing equipment is available, carry out the flushing of the air conditioning system prior to installing a new air conditioning compressor.
- If A/C flushing equipment is not available, carry out filtering of the air conditioning system after a new air conditioning compressor has been installed.
- Install a new evaporator core orifice as directed by the A/C flushing or filtering procedure.
- Install a new suction accumulator as directed by the A/C flushing or filtering procedure.

NOTE: Installation of a new suction accumulator is not required when repairing the air conditioning system except when there is physical evidence of system contamination from a failed A/C compressor or damage to the suction accumulator.

1. If flushing of the refrigerant system has not been performed, recover the refrigerant.
2. Remove the drive belt from the A/C compressor pulley.

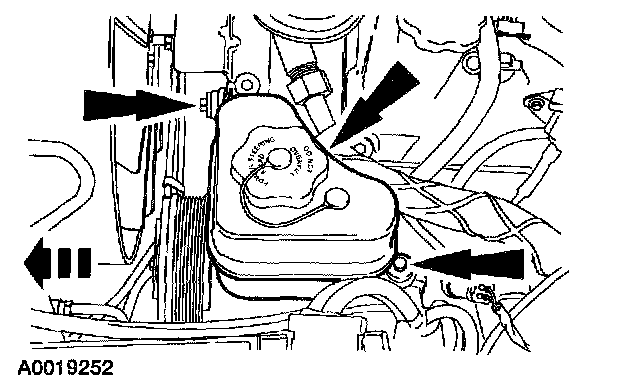

3. Remove the bolts and detach the power steering fluid reservoir.







4. Remove the bolts and the bracket.

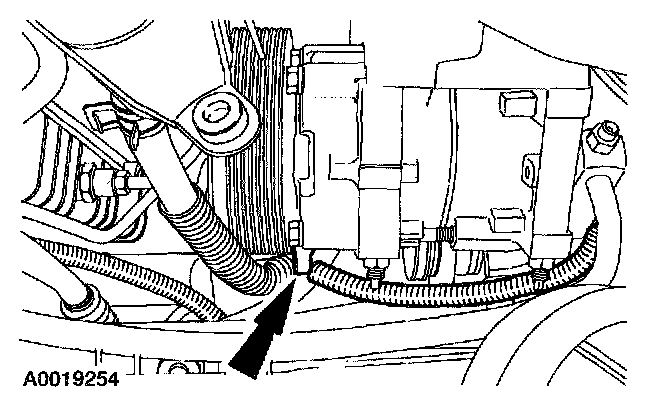

5. Disconnect the electrical connector.

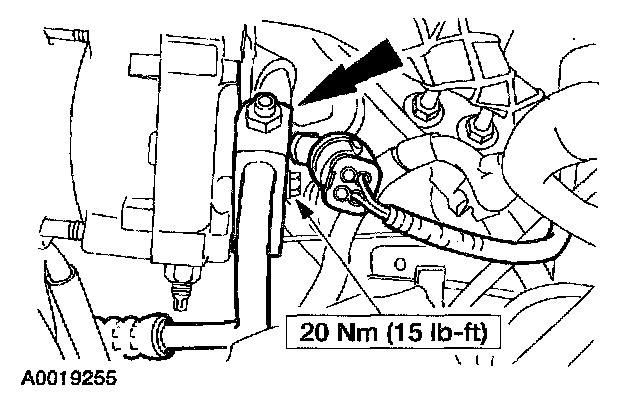

6. Loosen the bolt and disconnect the compressor manifold and tube assembly from the A/C compressor.

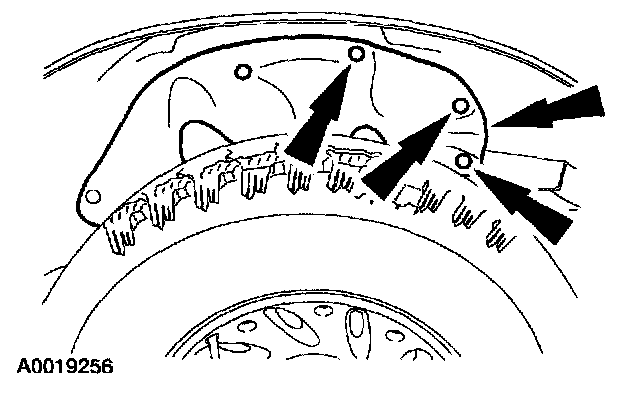

7. Remove the pin-type retainers and position aside the inner fender well access cover.

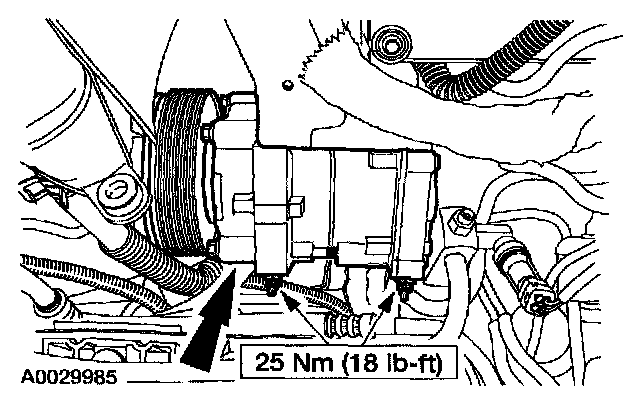

8. Remove the four nuts, four studs, and the A/C compressor.
- Discard the O-ring seals.

NOTE: The two lower nuts and studs are accessible through the inner fender well.

INSTALLATION
1. To install, reverse the removal procedure.
- If a new A/C compressor is to be installed, the A/C compressor clutch field coil and the A/C clutch plate must be transferred from the old unit.
- If filtering of the refrigerant system is not to be performed, lubricate the refrigerant system with the correct amount of clean PAG oil or equivalent.
- Install new O-ring seals lubricated in clean PAG oil or equivalent.

2. If filtering of the refrigerant system is not to be performed, evacuate, leak test, and charge the refrigerant system.
