Home >> Ford >> 2002 >> Ranger 4WD V6-4.0L VIN E >> Repair and Diagnosis >> Lighting and Horns >> Daytime Running Lamp >> Daytime Running Lamp Control Unit >> Diagrams

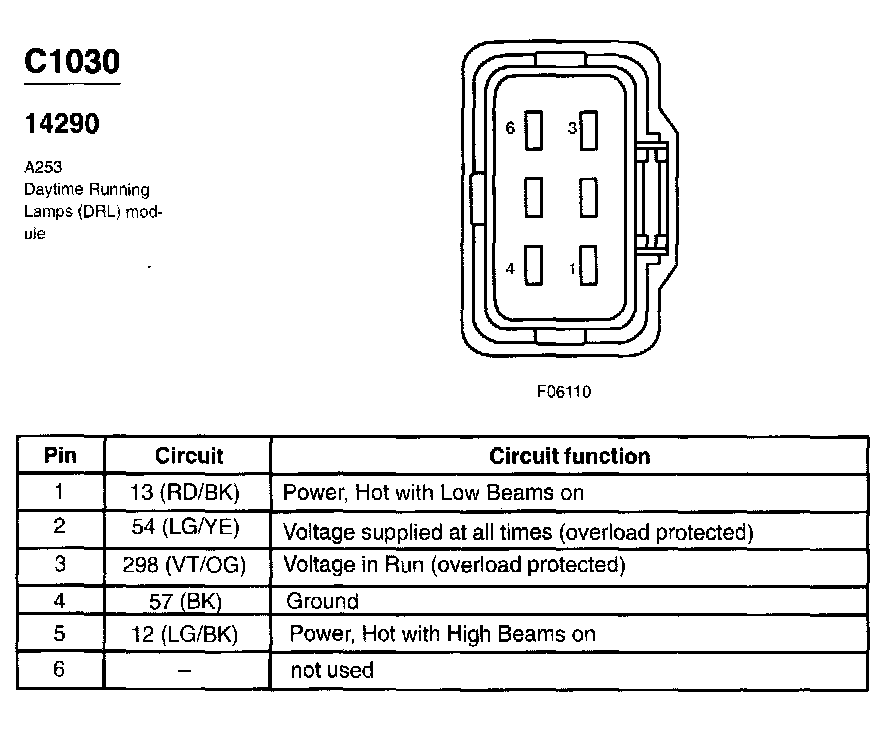

Daytime Running Lamp Control Unit: Diagrams
