Ranger 4WD V6-4.0L VIN E
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Relays and Modules - Lighting and Horns
>>
Turn Signal Relay
>>
Diagrams
>>

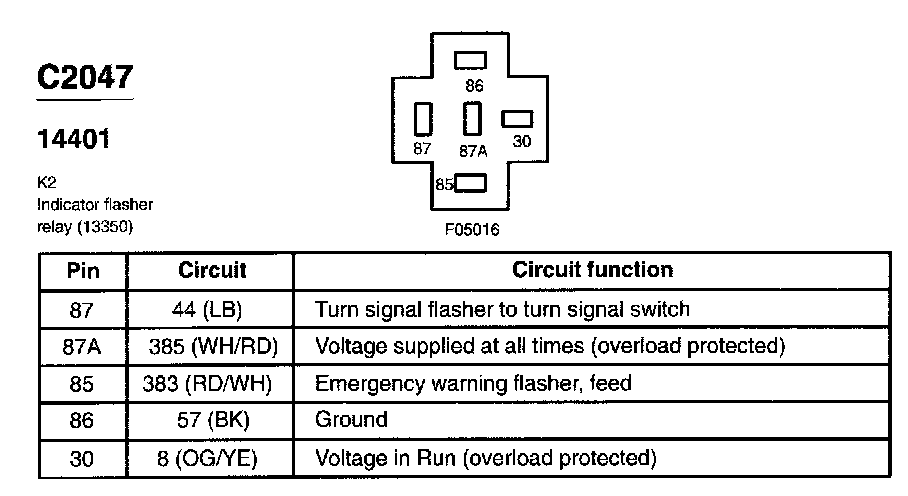

Connector Views
Connector Views
