Home >> Ford >> 2002 >> Ranger 4WD V6-4.0L VIN E >> Repair and Diagnosis >> Locations >> Component Locations >> Location Views >> View 151-19 (On Starter)

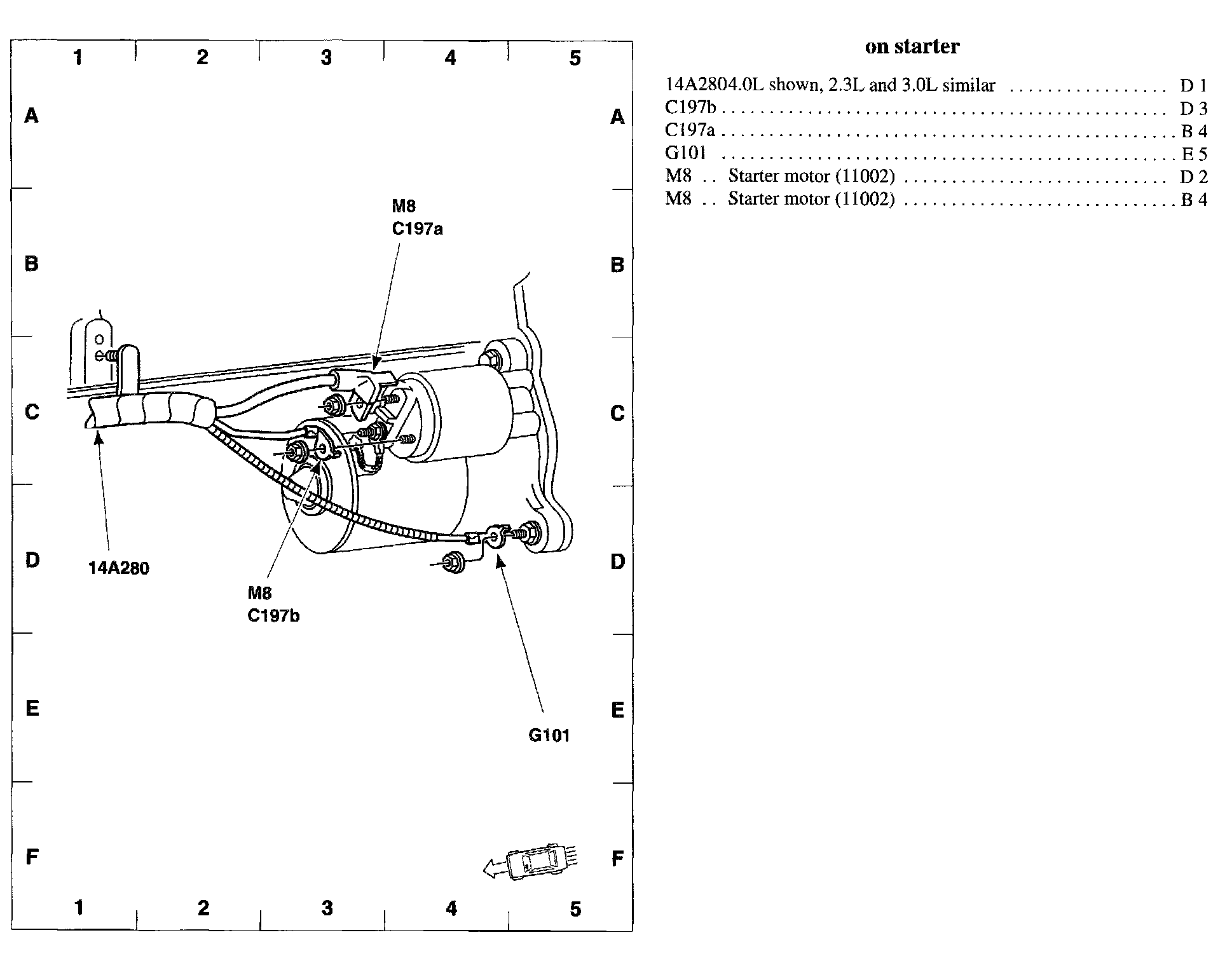

View 151-19 (On Starter)

View 151-19:
