Home >> Ford >> 2002 >> Ranger 4WD V6-4.0L VIN E >> Repair and Diagnosis >> Locations >> Component Locations >> Location Views >> View 151-38 (Vehicle Underbody, LH Side)

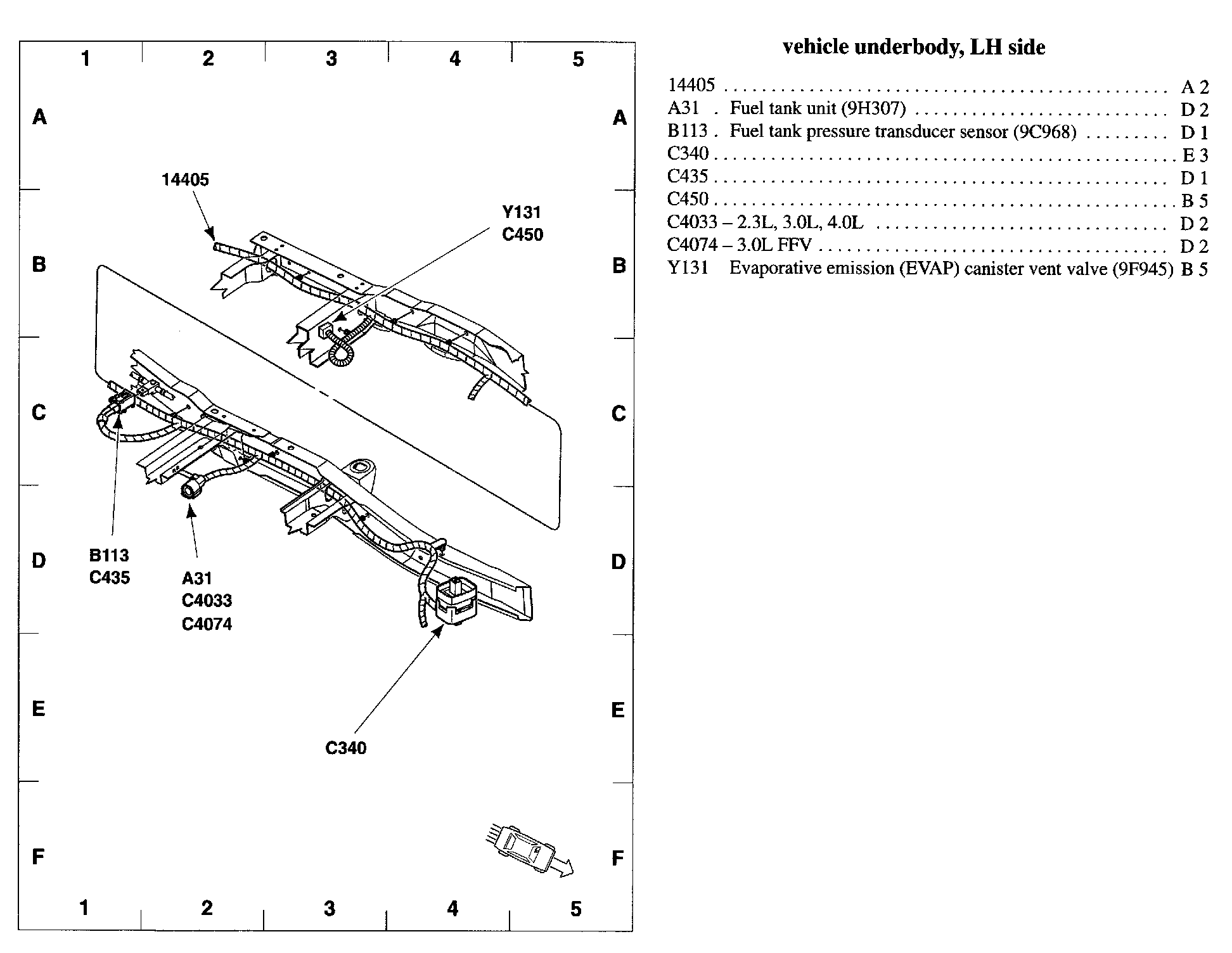

View 151-38 (Vehicle Underbody, LH Side)

View 151-38:
