Locations
>>
Harness Locations
Harness Locations

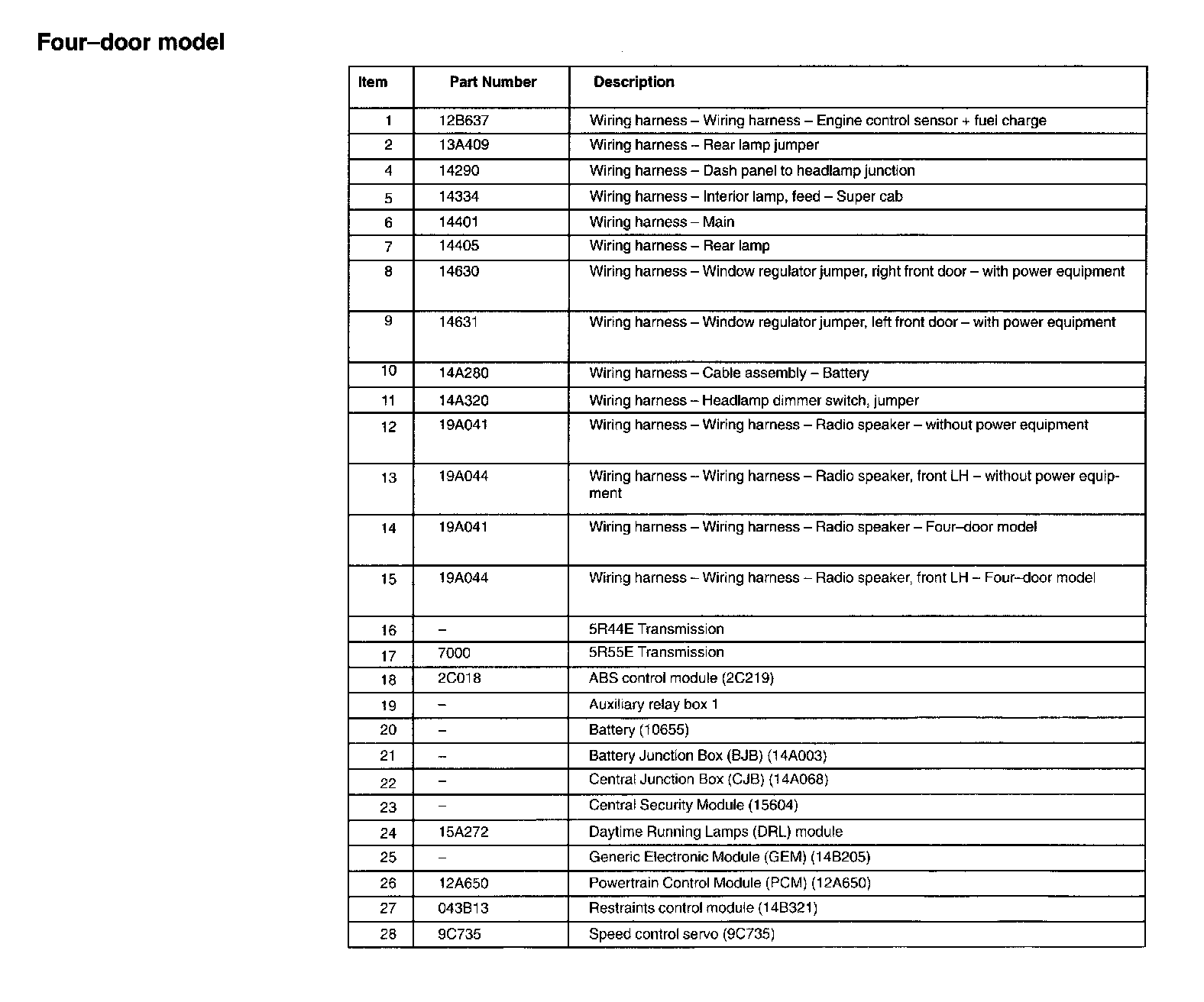

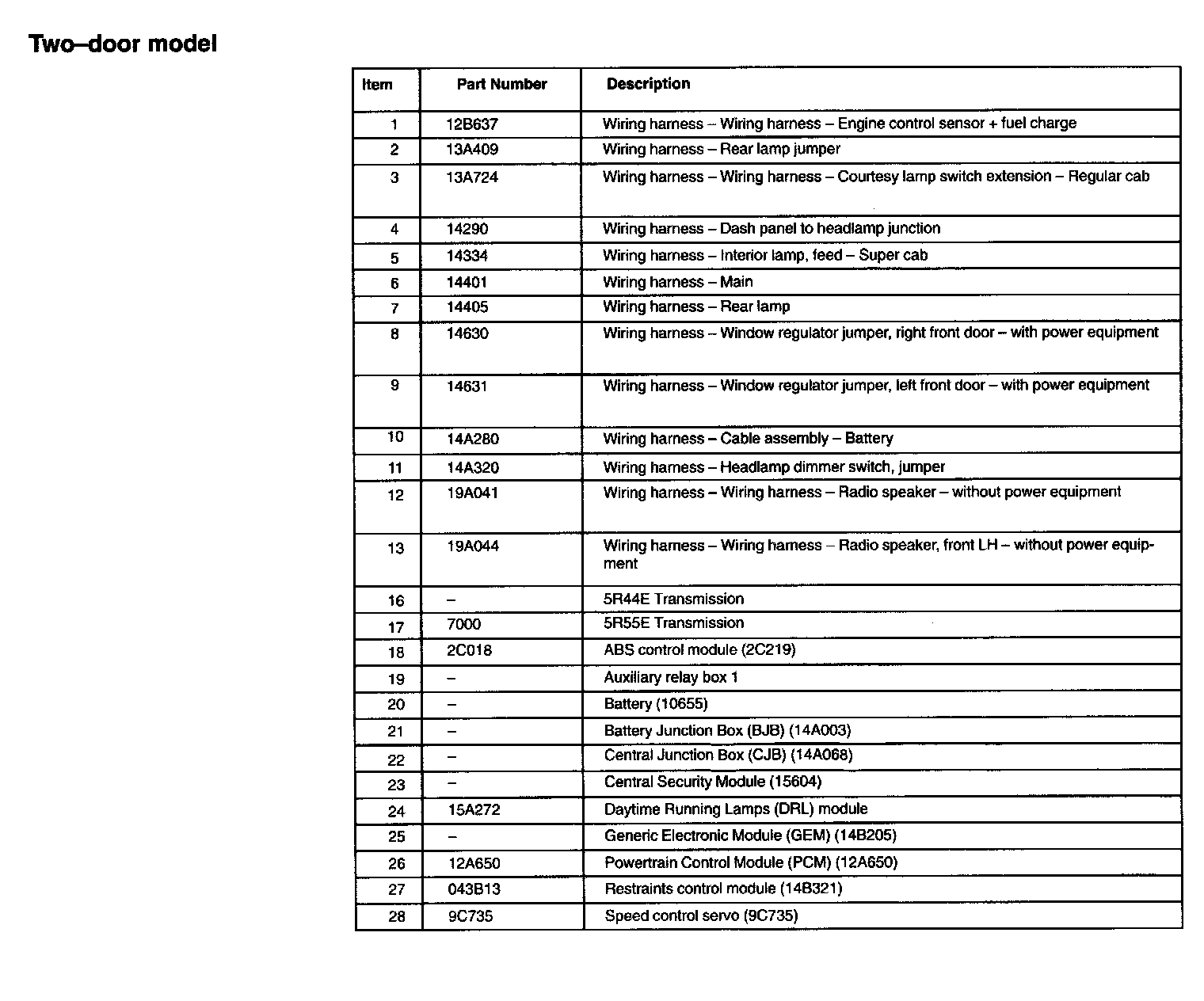

Wiring Harness Overview Part 1:

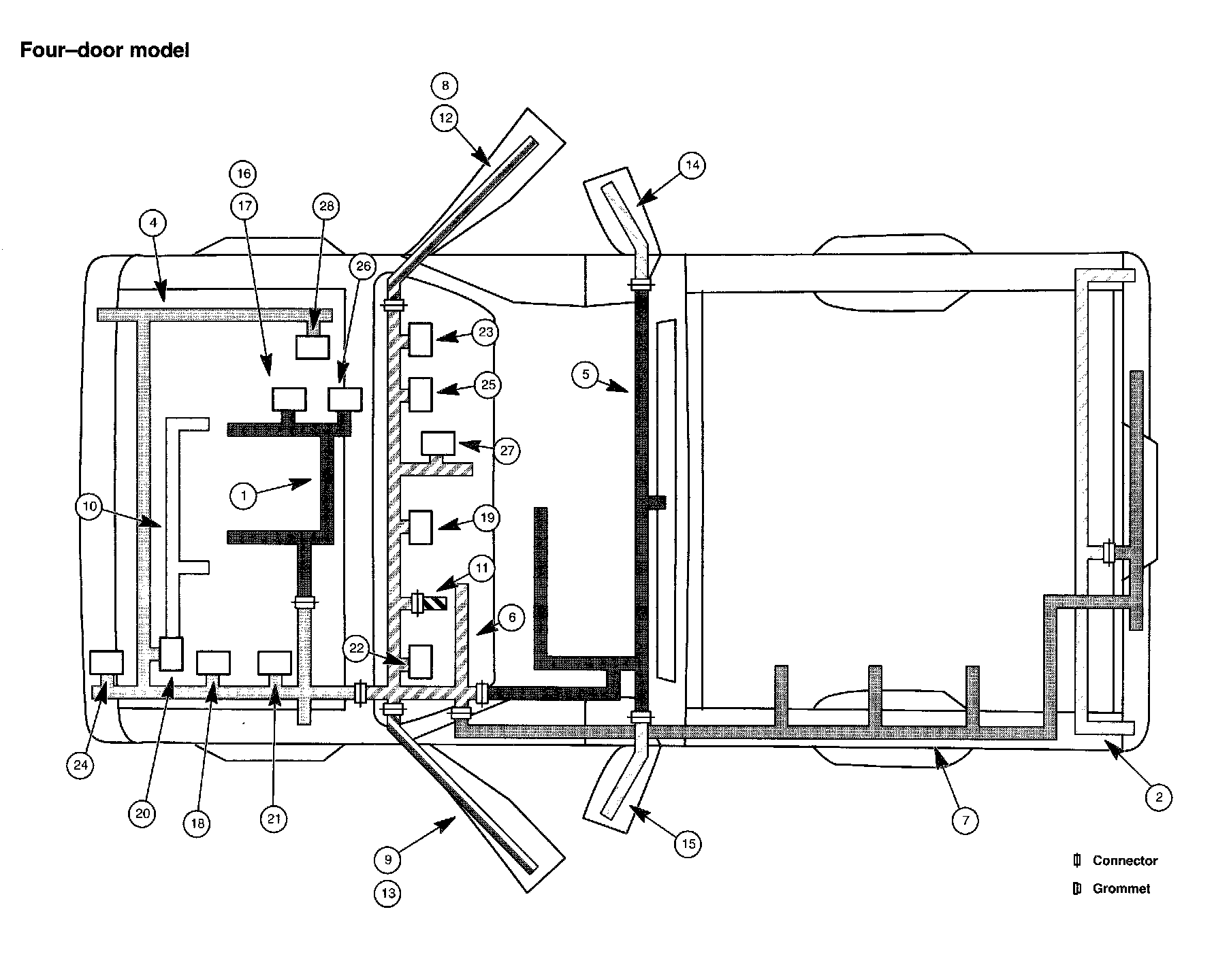

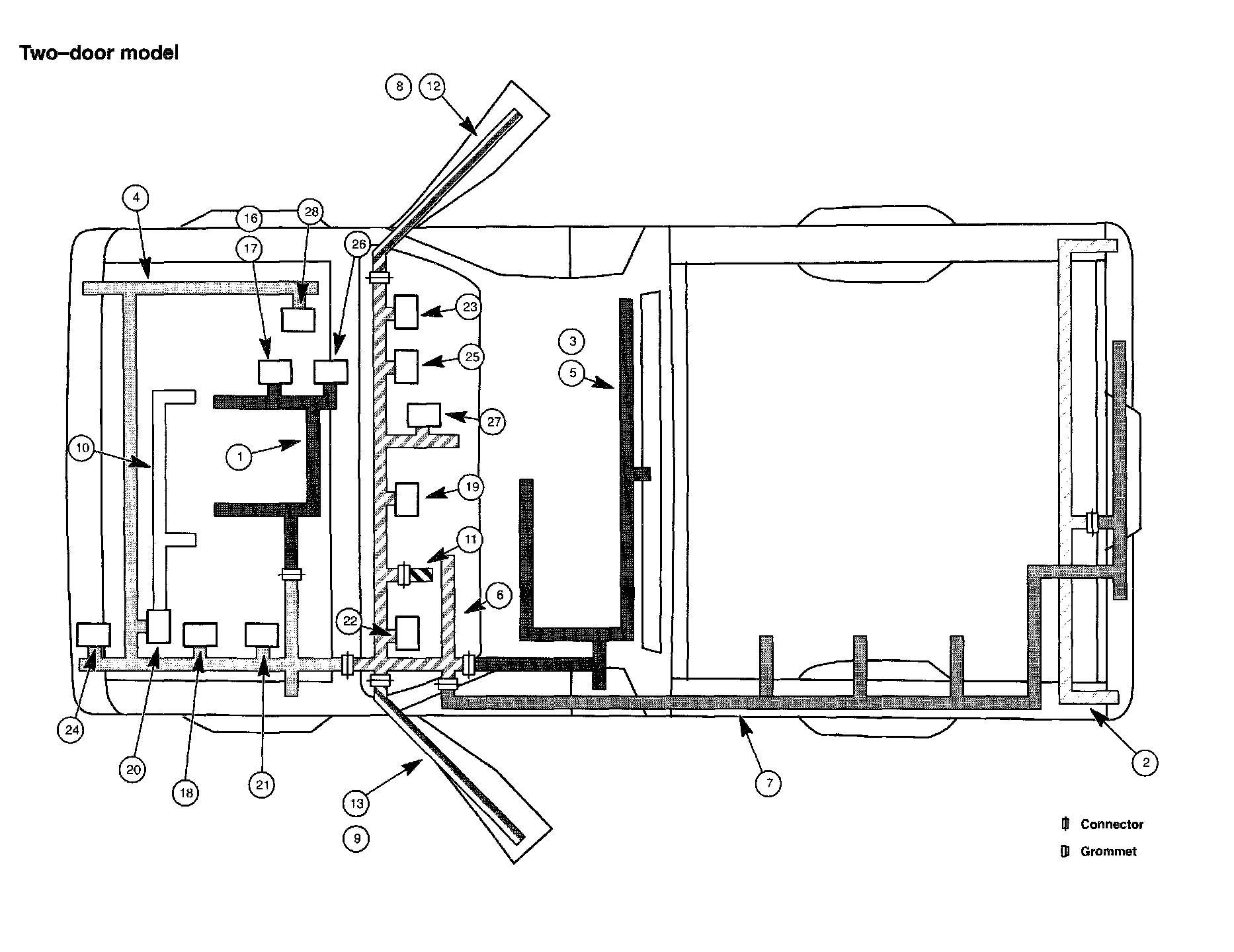

Wiring Harness Overview Part 2:
Wiring Harness Overview Part 1:
Wiring Harness Overview Part 2:
