Tests DP: Vehicle Speed Sensor/Transfer Case Speed Sensor

Operation CHARM: Car repair manuals for everyone.

>> >> >> >> >> >> >> >> >>

Manuals through 2025 now available!

Our trusted friends have launched a new website named LEMON, which has newer manuals. It also contains all the CHARM manuals.

LEMON is the logical successor to CHARM, I recommend you try it!

Link: lemon-manuals.la

pro multis · About Operation CHARM

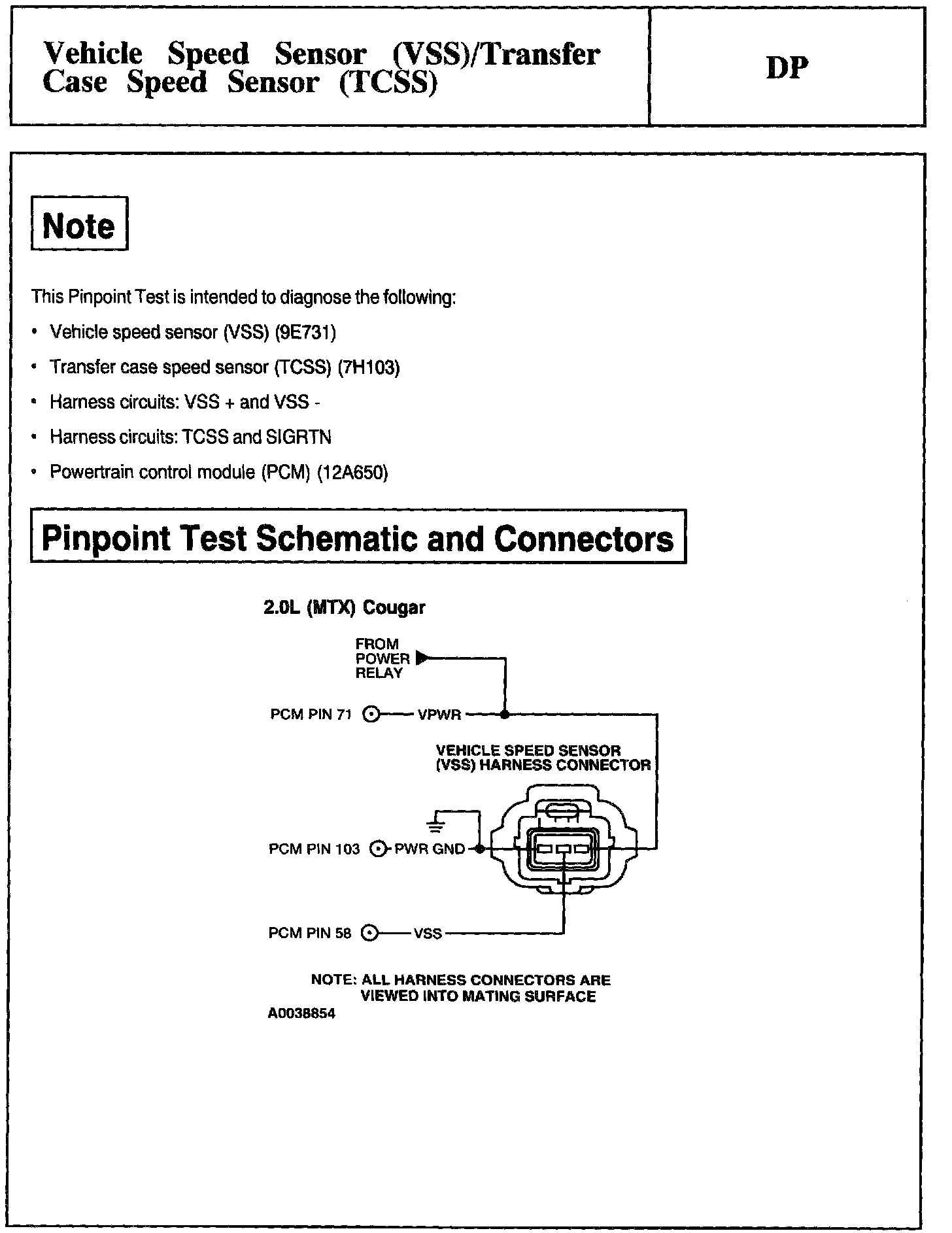

Note, Schematic and Connectors:

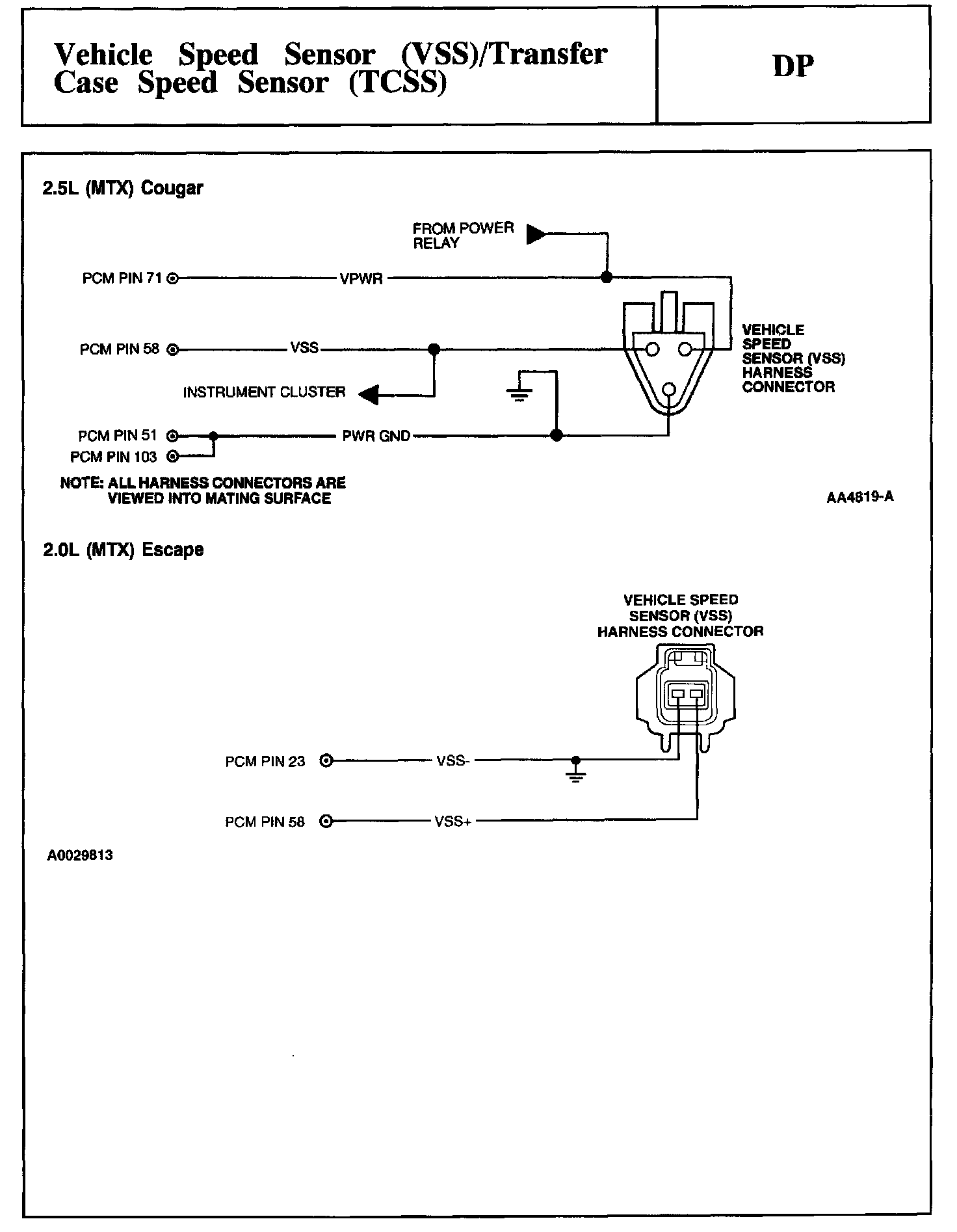

Test Schematic:

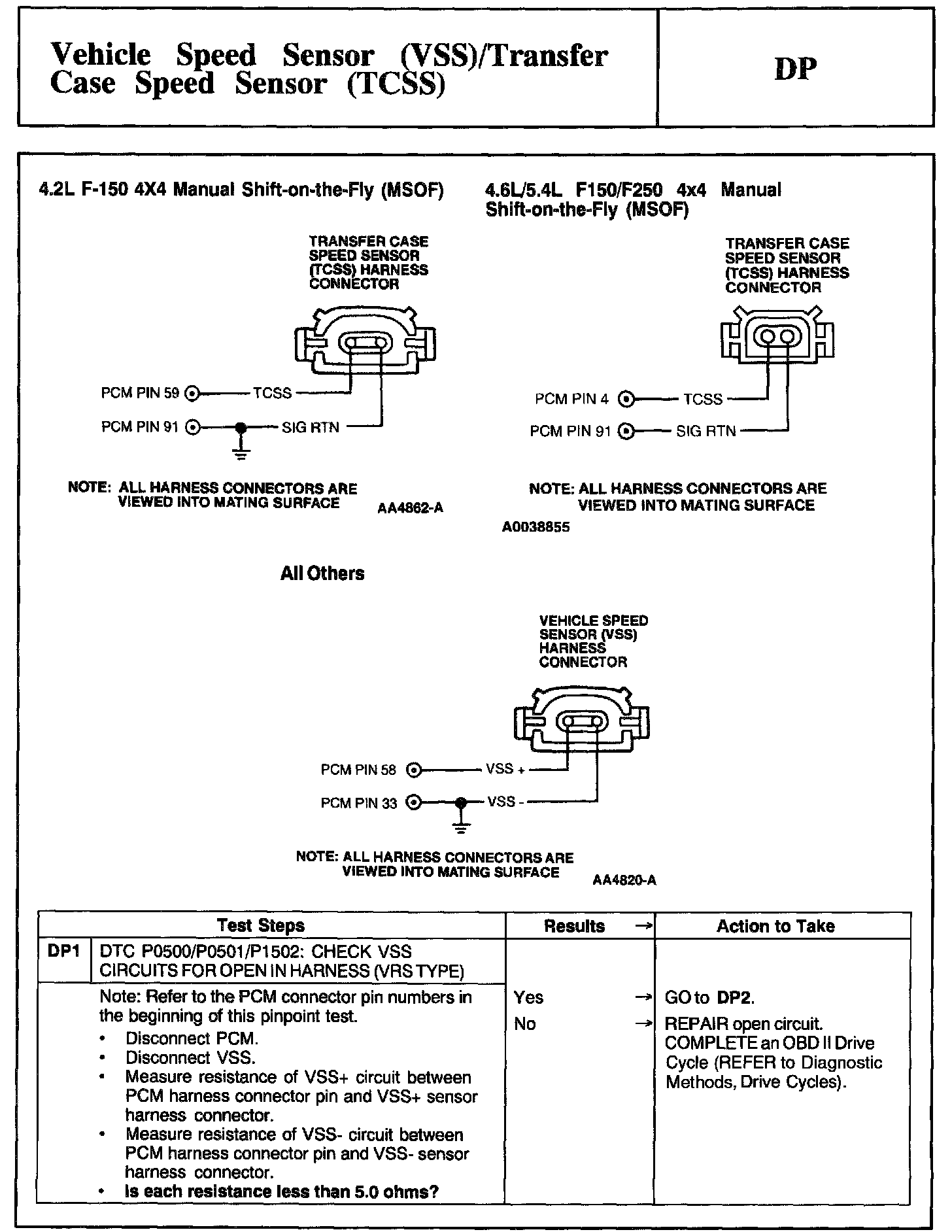

Schematic, Test DP1:

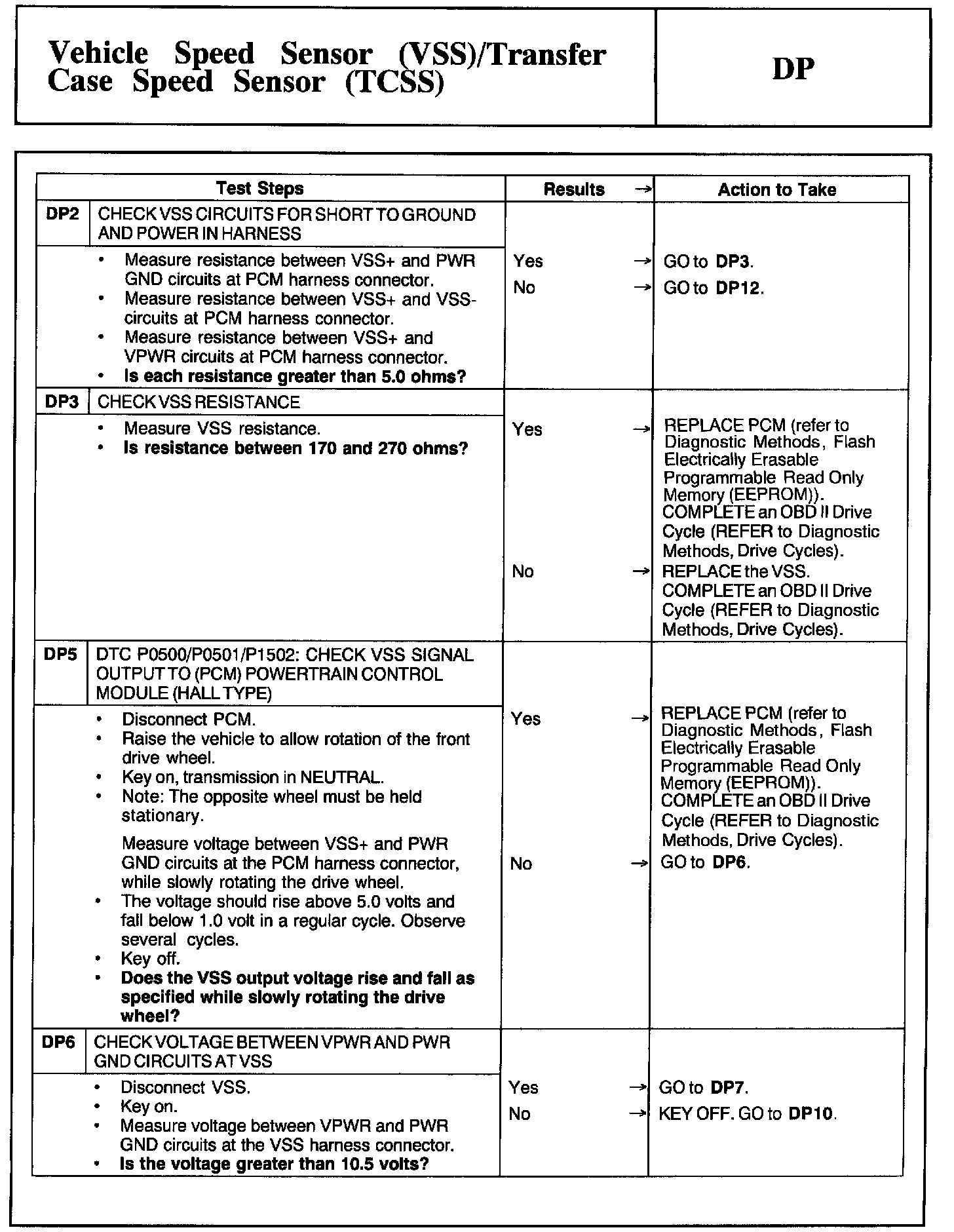

DP2 - DP6:

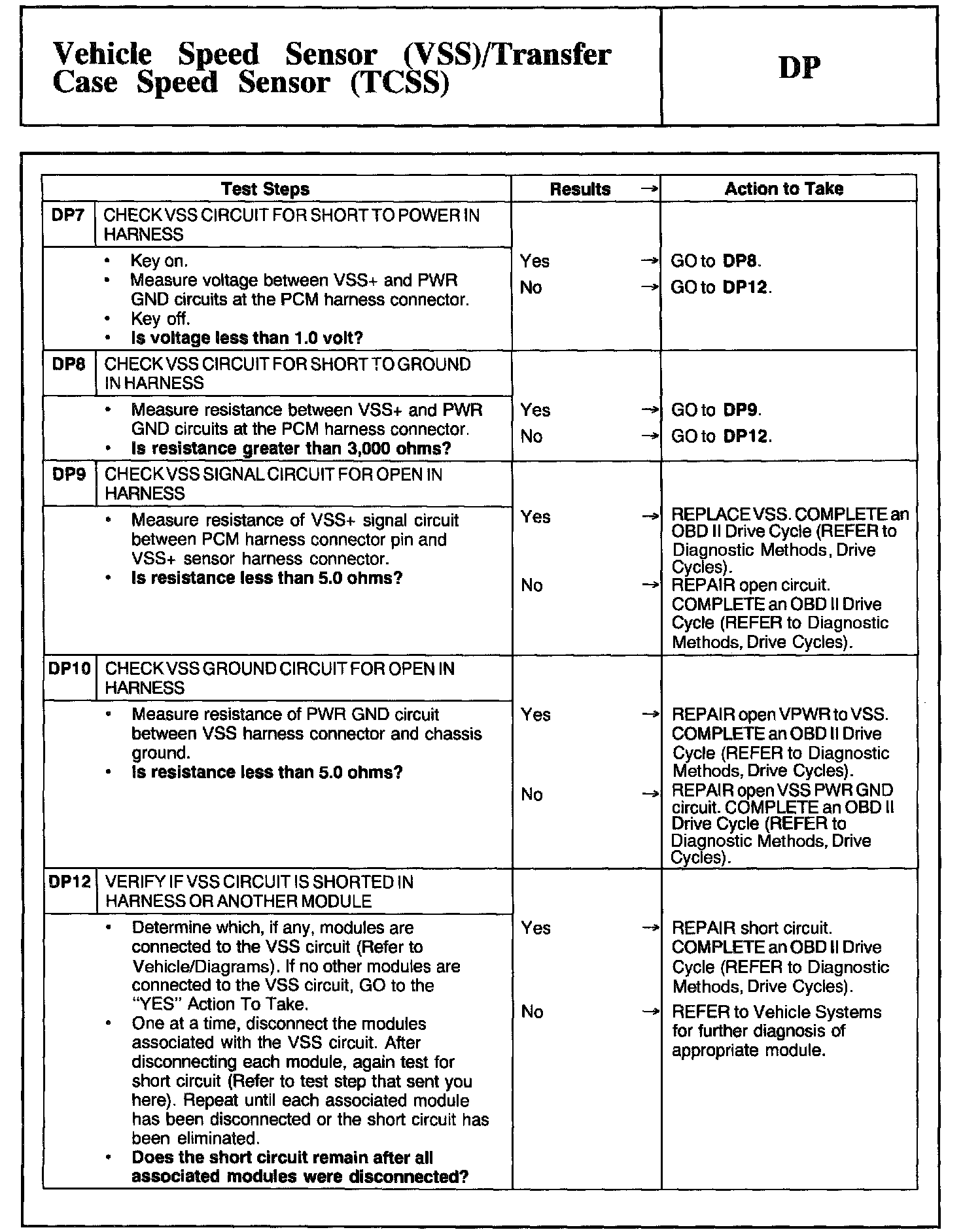

DP7 - DP12:

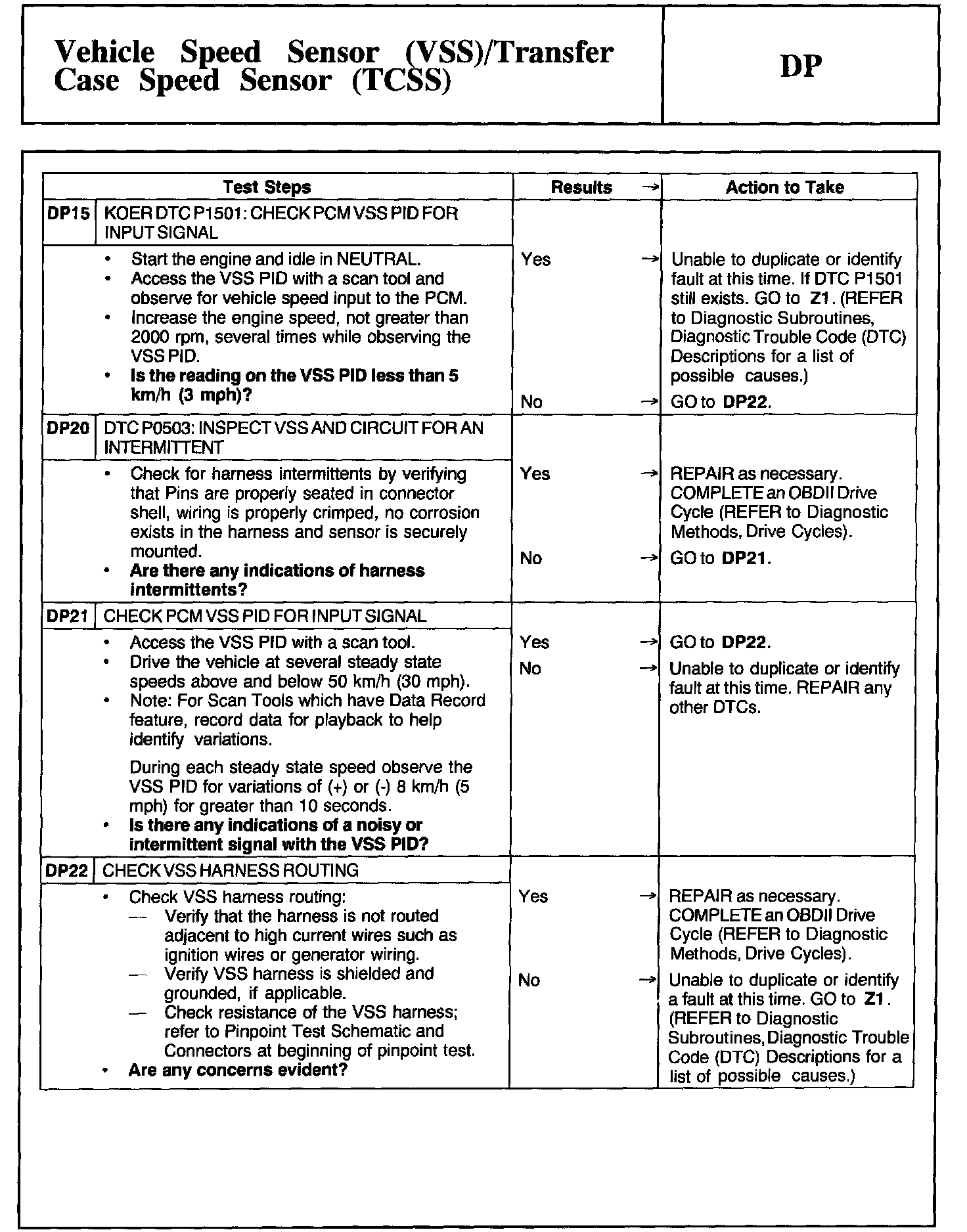

DP15 - DP22:

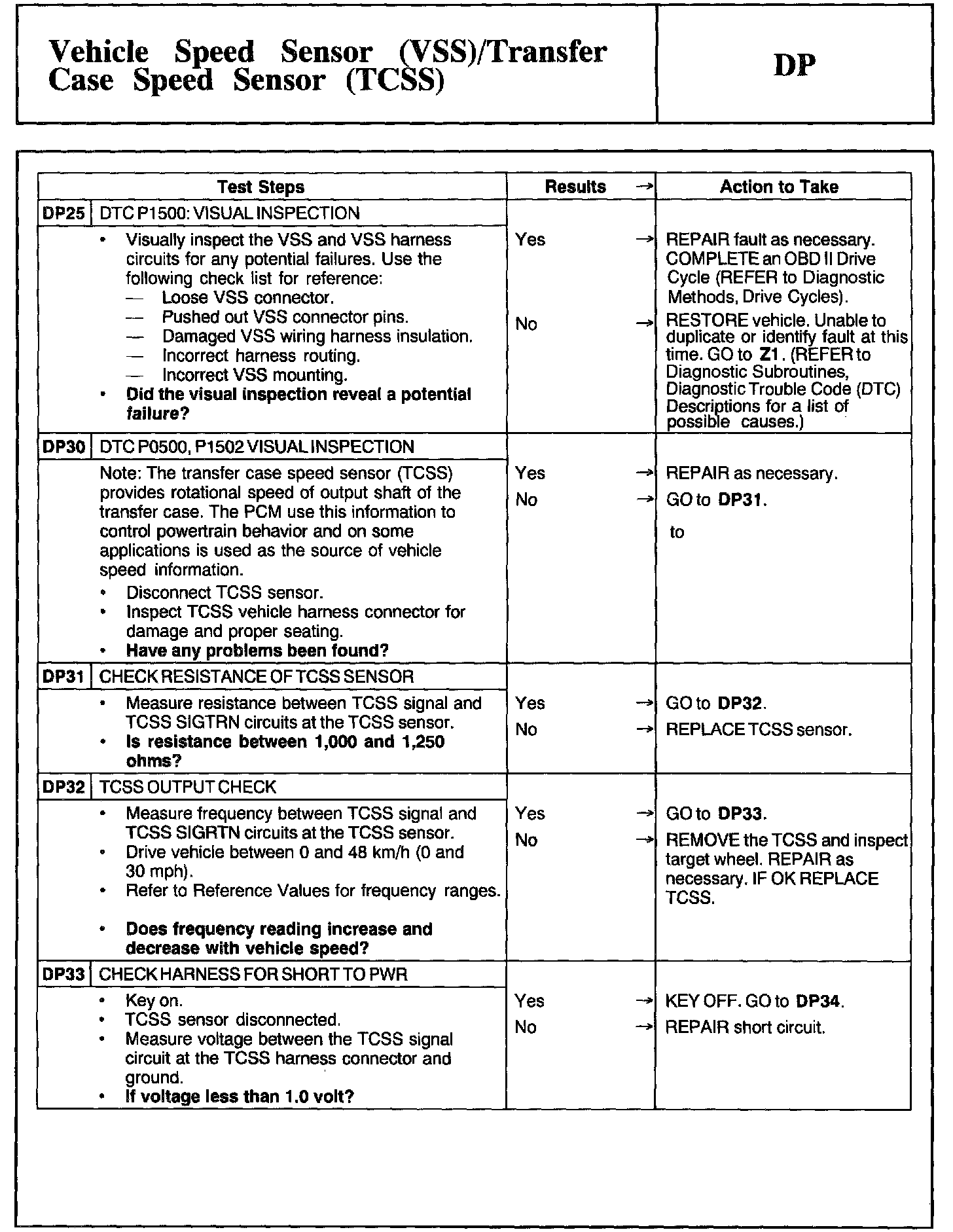

DP25 - DP33:

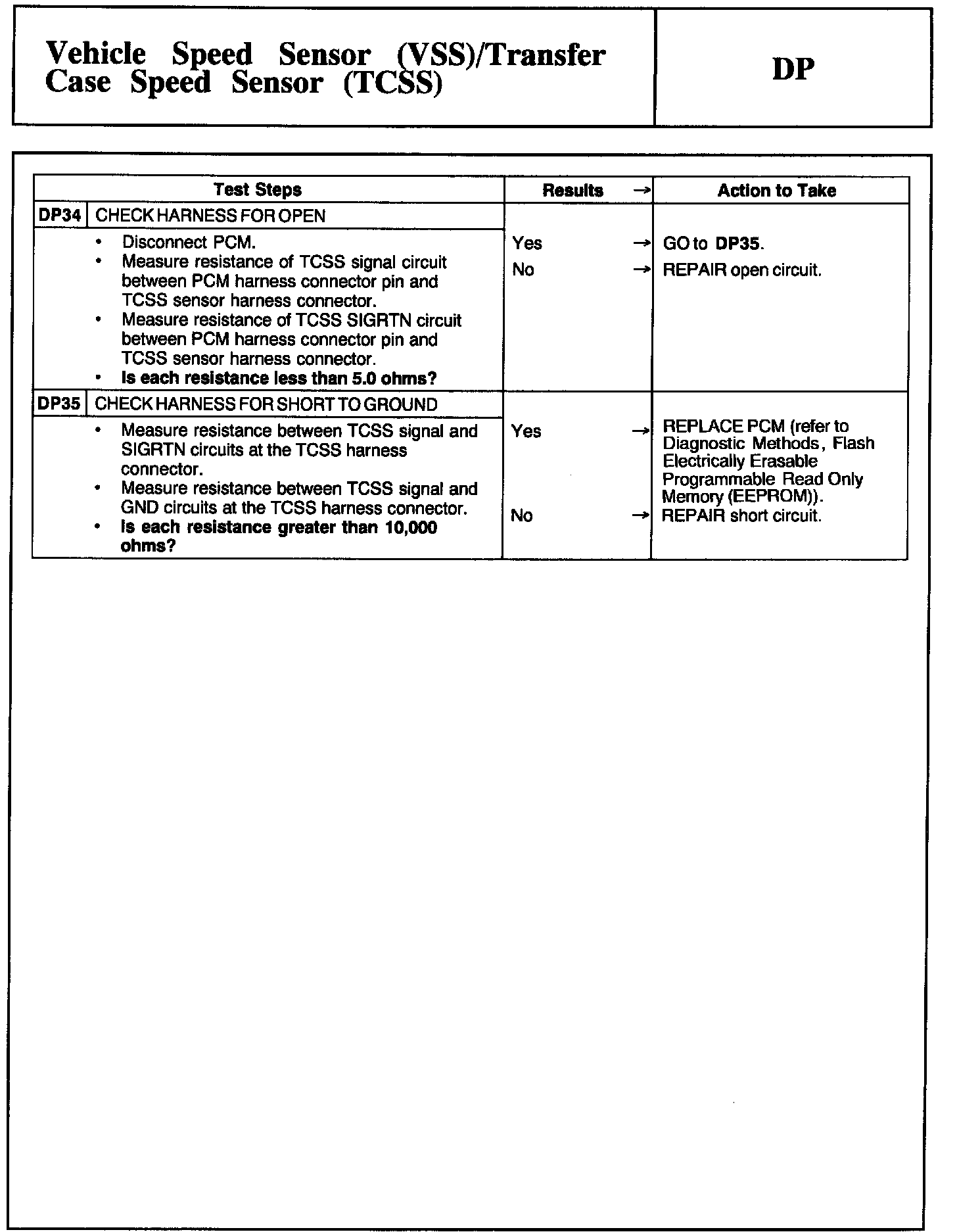

DP34 - DP35:
