Test K
PINPOINT TEST K: LFC 35/DTC B1935 - PASSENGER AIR BAG CIRCUIT RESISTANCE LOWK1:

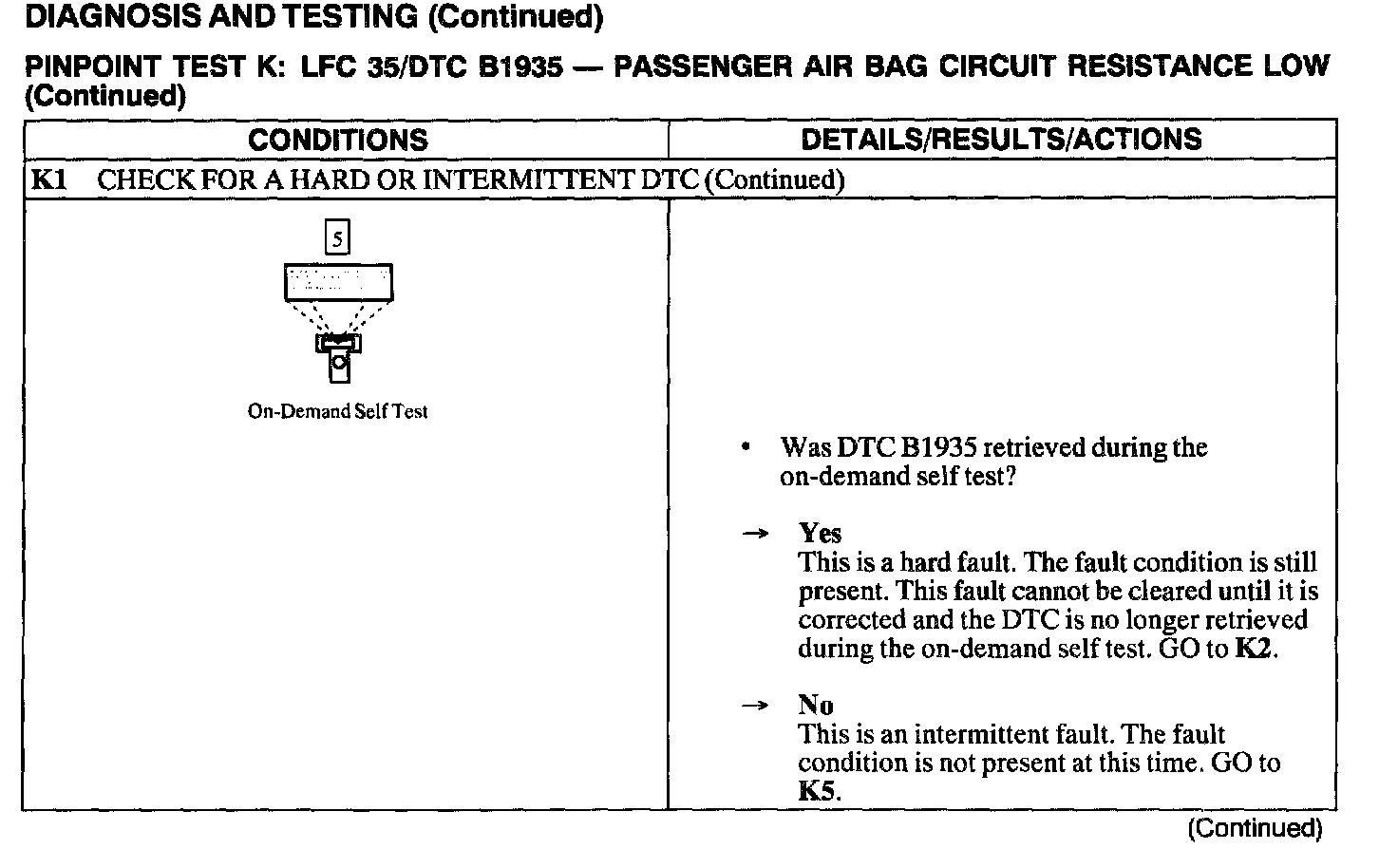

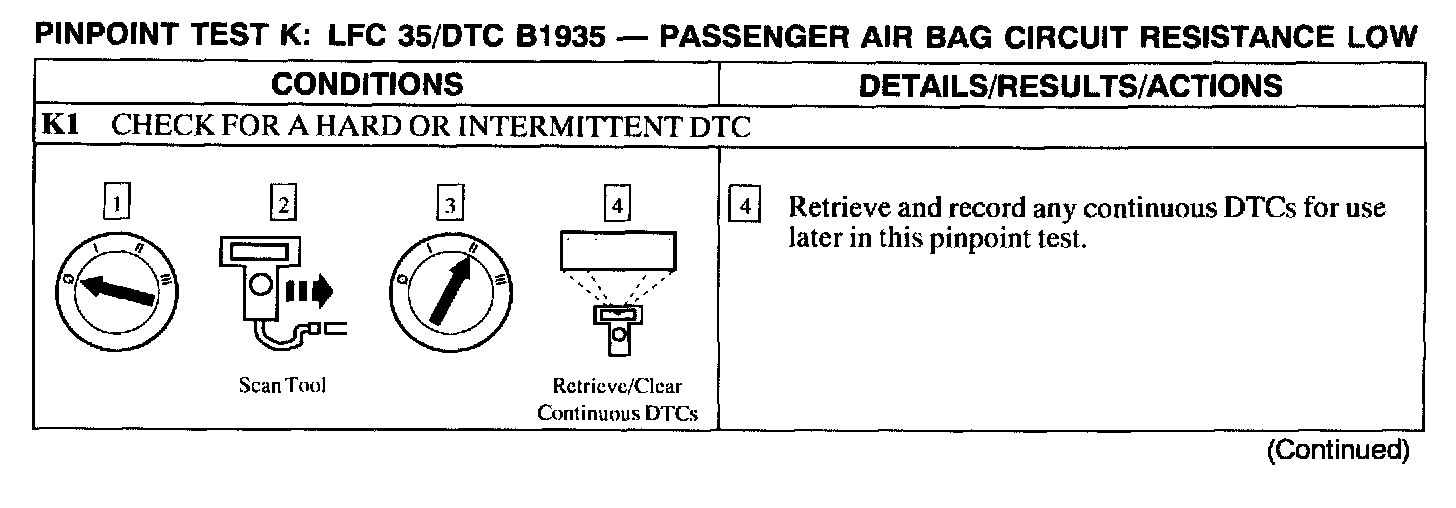

K1:

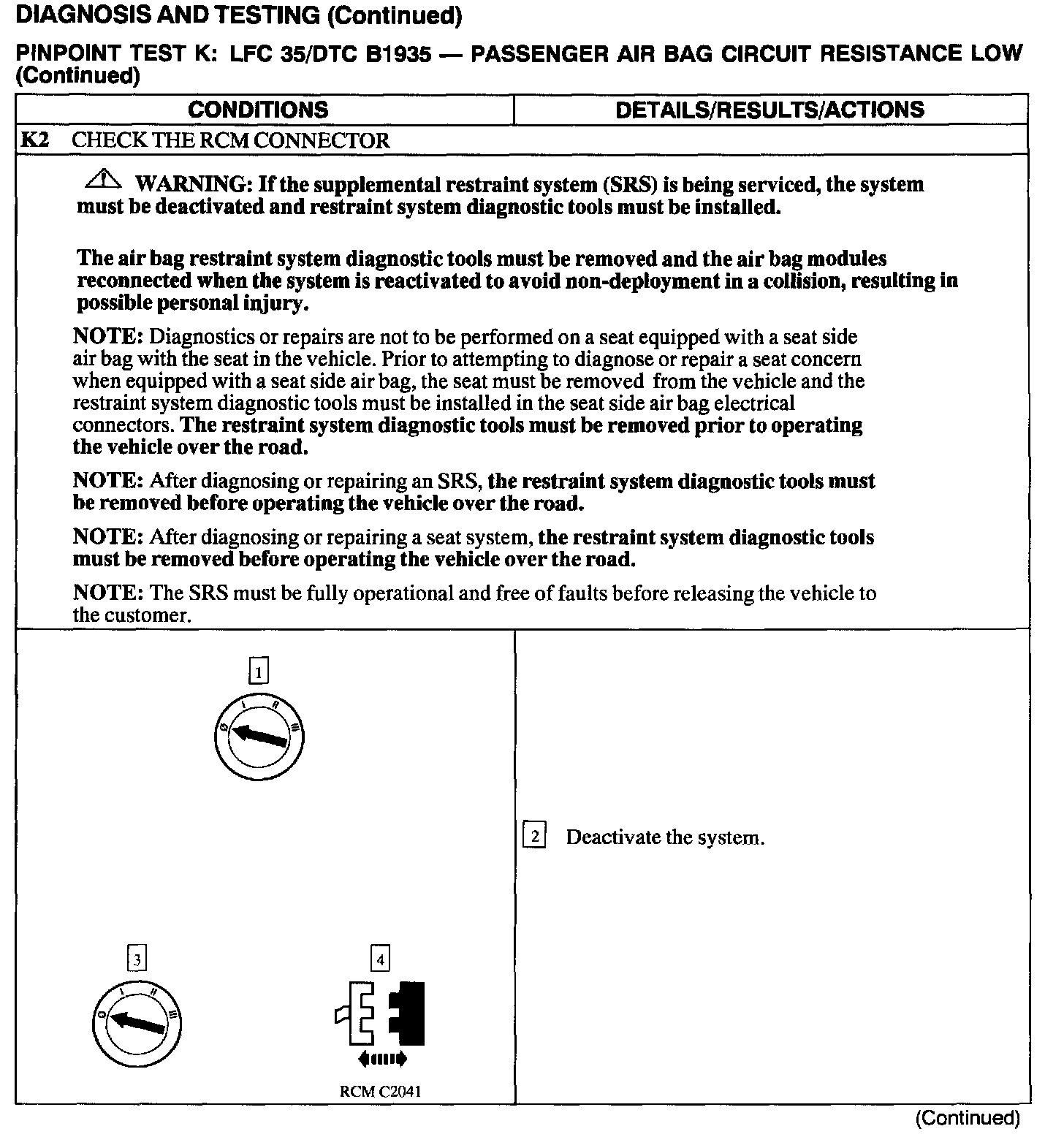

K2:

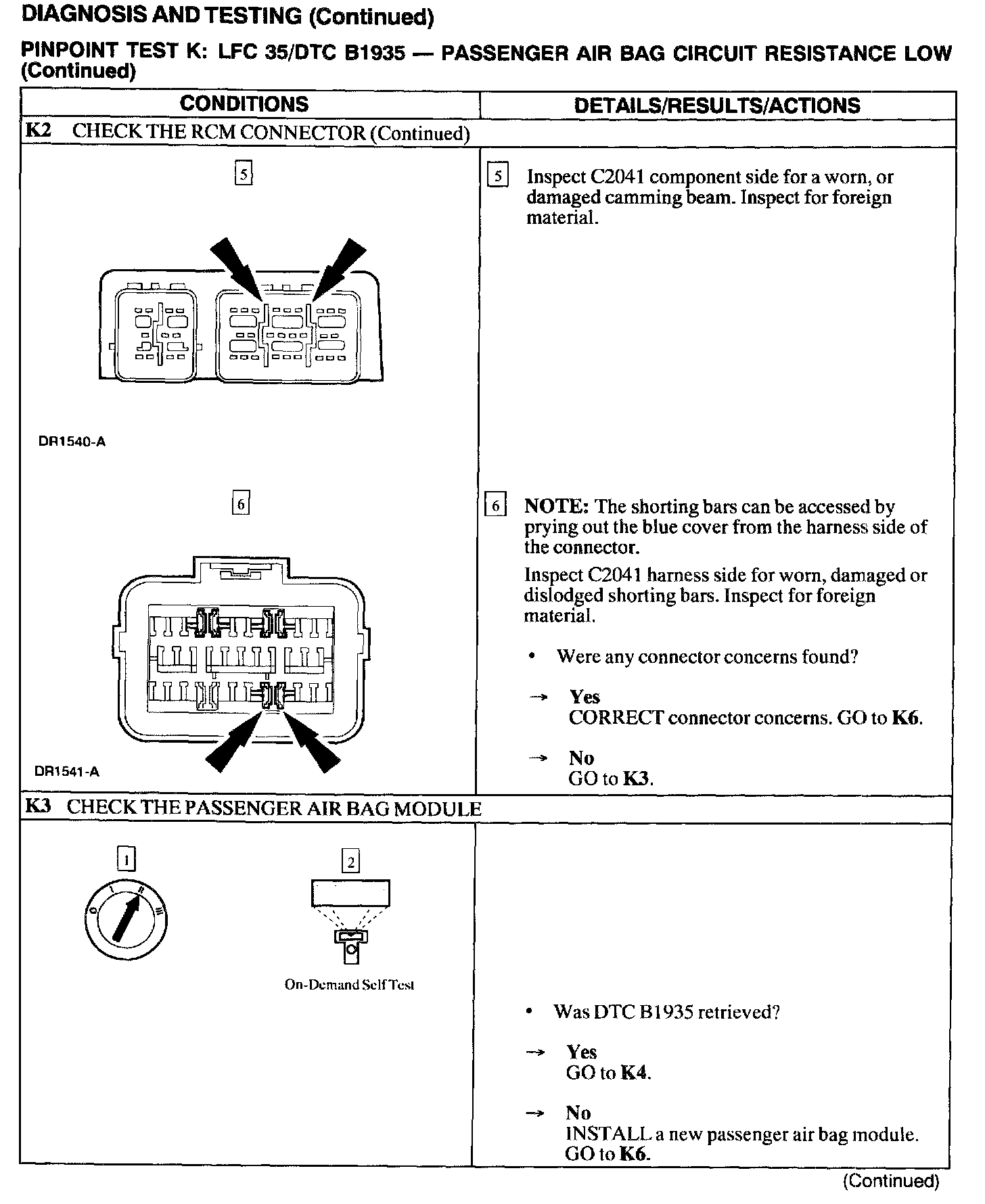

K2 - K3:

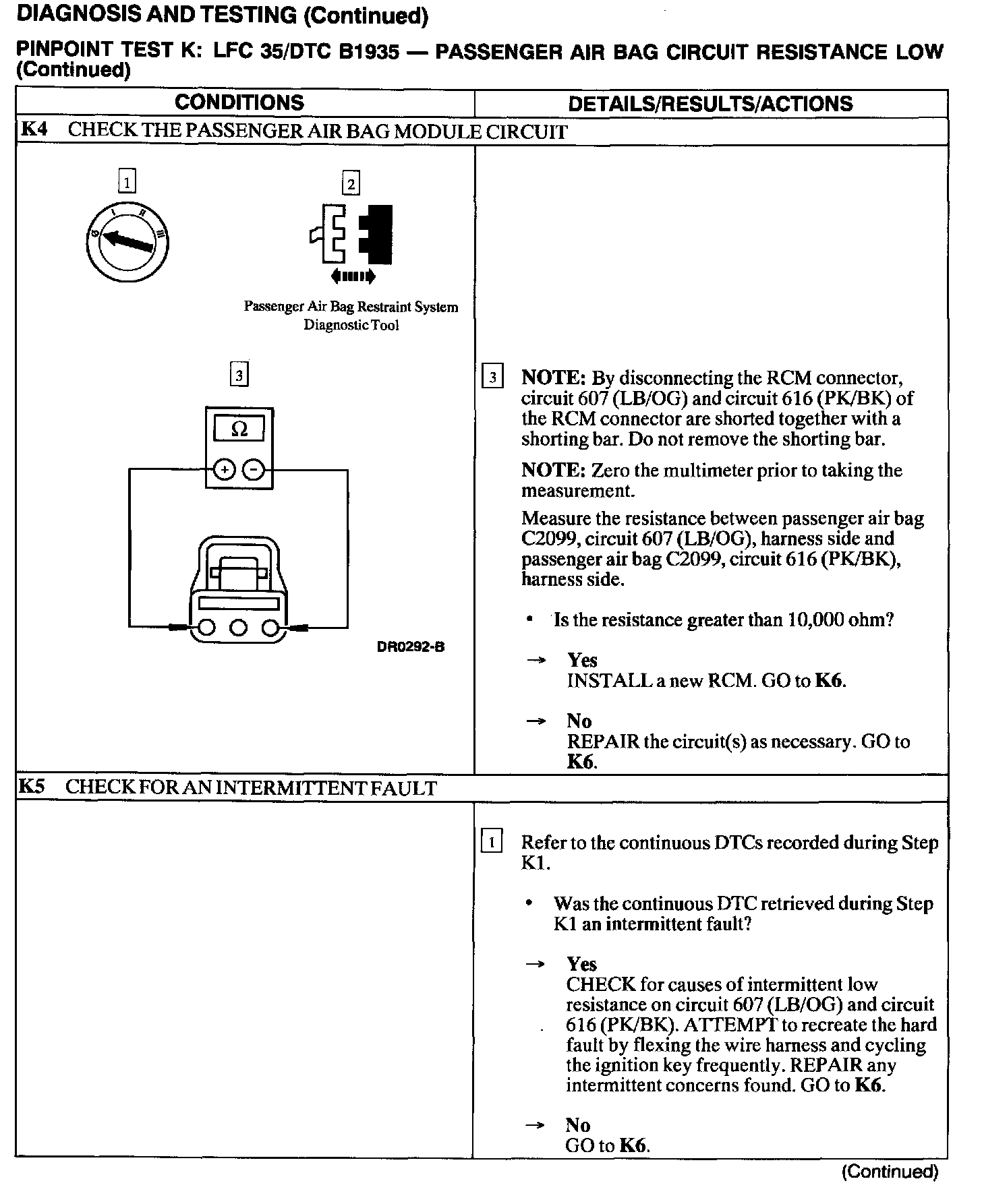

K4 - K5:
K6:
Normal Operation
The Restraints Control Module (RCM) monitors the resistance of the passenger air bag ignitor by measuring the resistance between pins 6 and 7. If the RCM detects low resistance between these pins, it will store a Diagnostic Trouble Code (DTC) B1935 in memory and flash a Lamp Fault Code (LFC) 35 (or higher priority code if one exists) on the air bag indicator.
Possible Causes
Passenger air bag low resistance could be caused by:
^ wiring, terminals, or connectors.
^ a low resistance in the passenger air bag module.
^ an RCM internal concern.
