Ranger 4WD V6-4.0L VIN E
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Automatic Transmission/Transaxle
Automatic Transmission/Transaxle

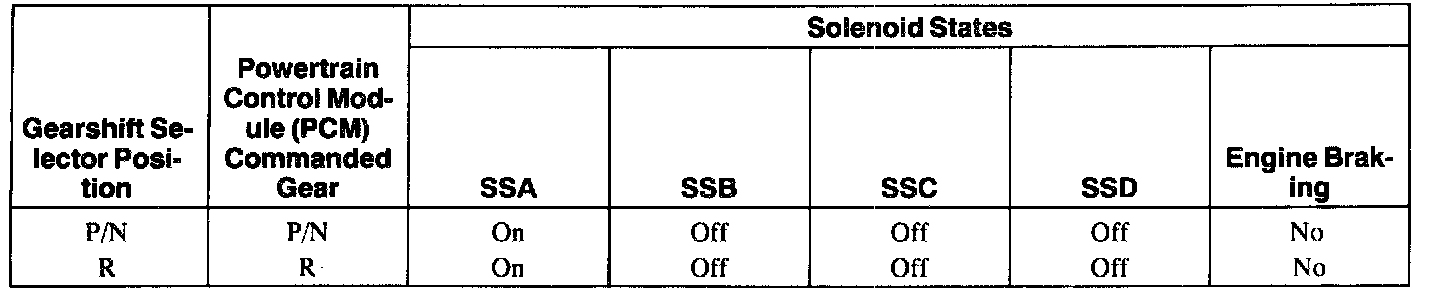

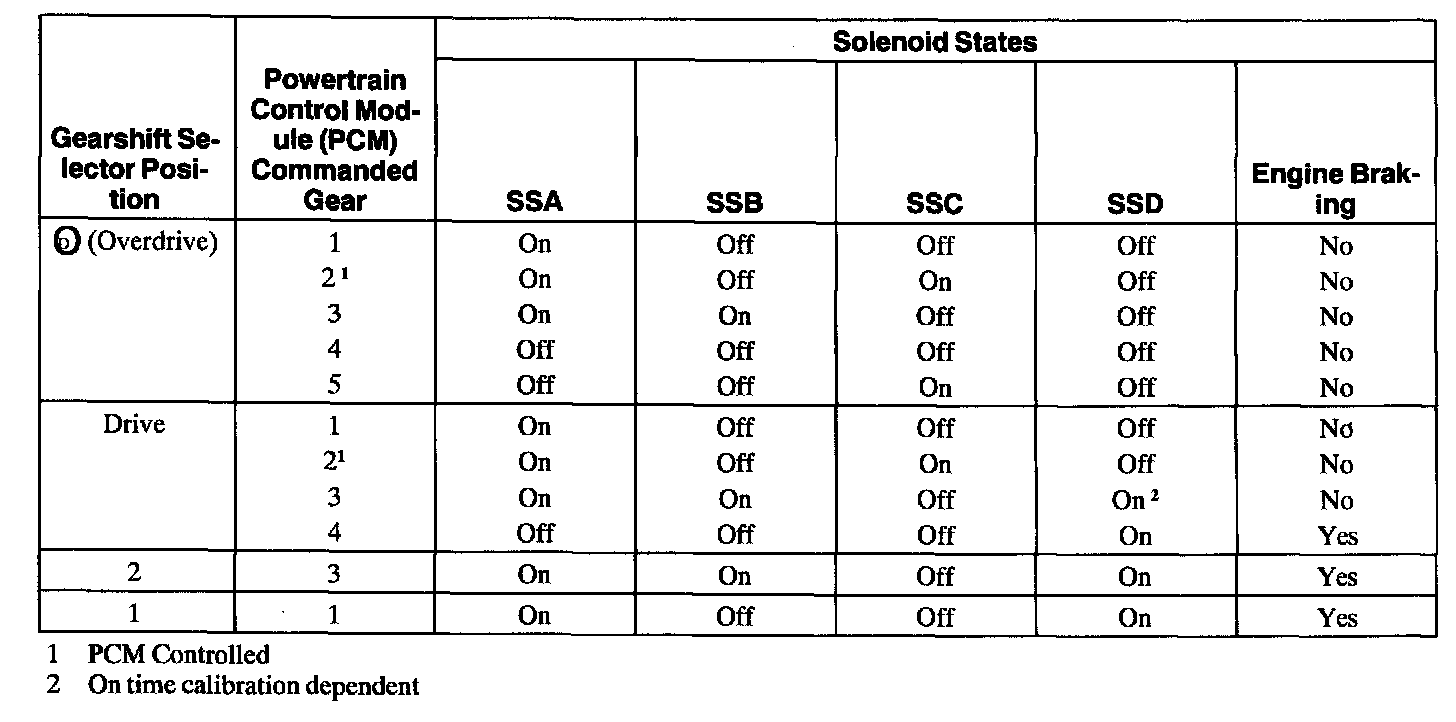

Solenoid
Operation Chart
