Stabilizer Bar: Service and Repair

Bar and Link

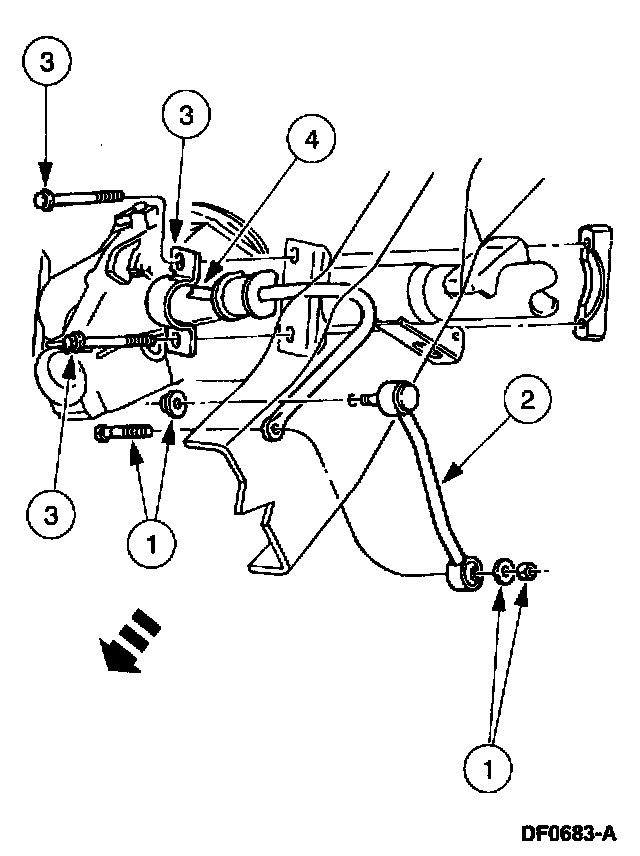

Removal
1. Raise the vehicle and install safety stands.
2. Remove the wheel and tire assembly.





3. Remove the rear stabilizer bar.
1. Remove the rear stabilizer bar link nuts and bolt.
2. Remove the rear stabilizer bar link.
3. Remove the rear stabilizer bar mounting bracket bolts and remove the brackets.
4. Remove the rear stabilizer bar.

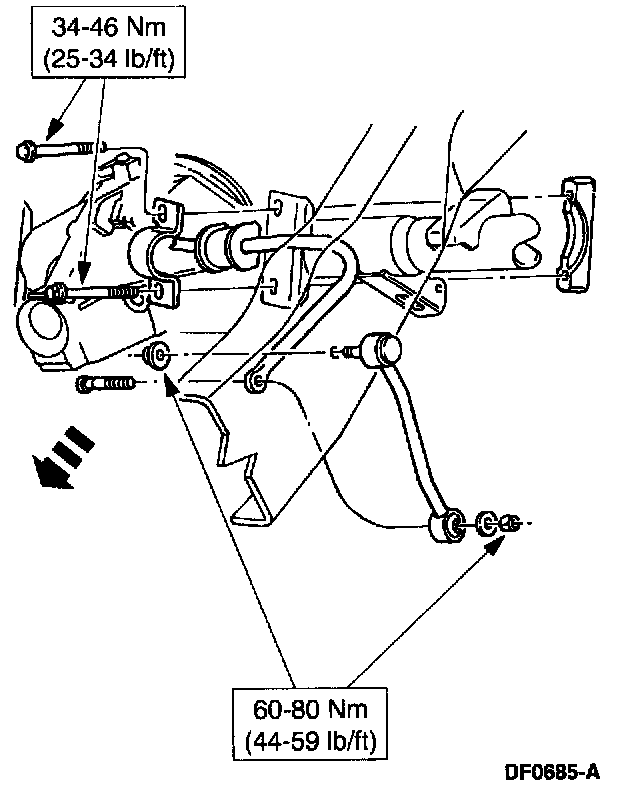

Installation





1. Follow the removal procedure in reverse order.
