Heat Shield

Heat Shield

Removal
1. Raise and support the vehicle.

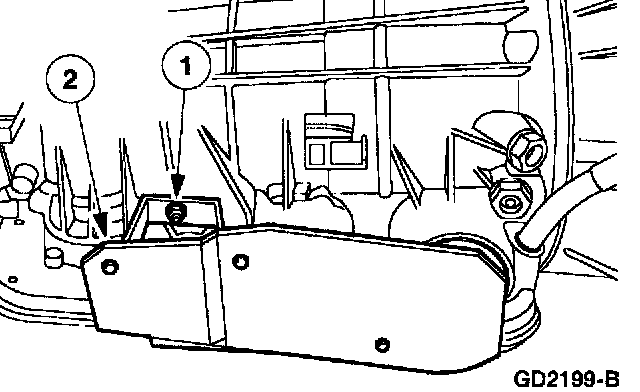

2. If equipped, remove the transmission servo heat shield.
1. Remove the transmission servo heat shield nut.
2. Remove the transmission servo heat shield.

Installation





1. Follow the removal procedure in reverse order.
