Trouble Code to Pinpoint Test Charts

Diagnostic Trouble Code Charts

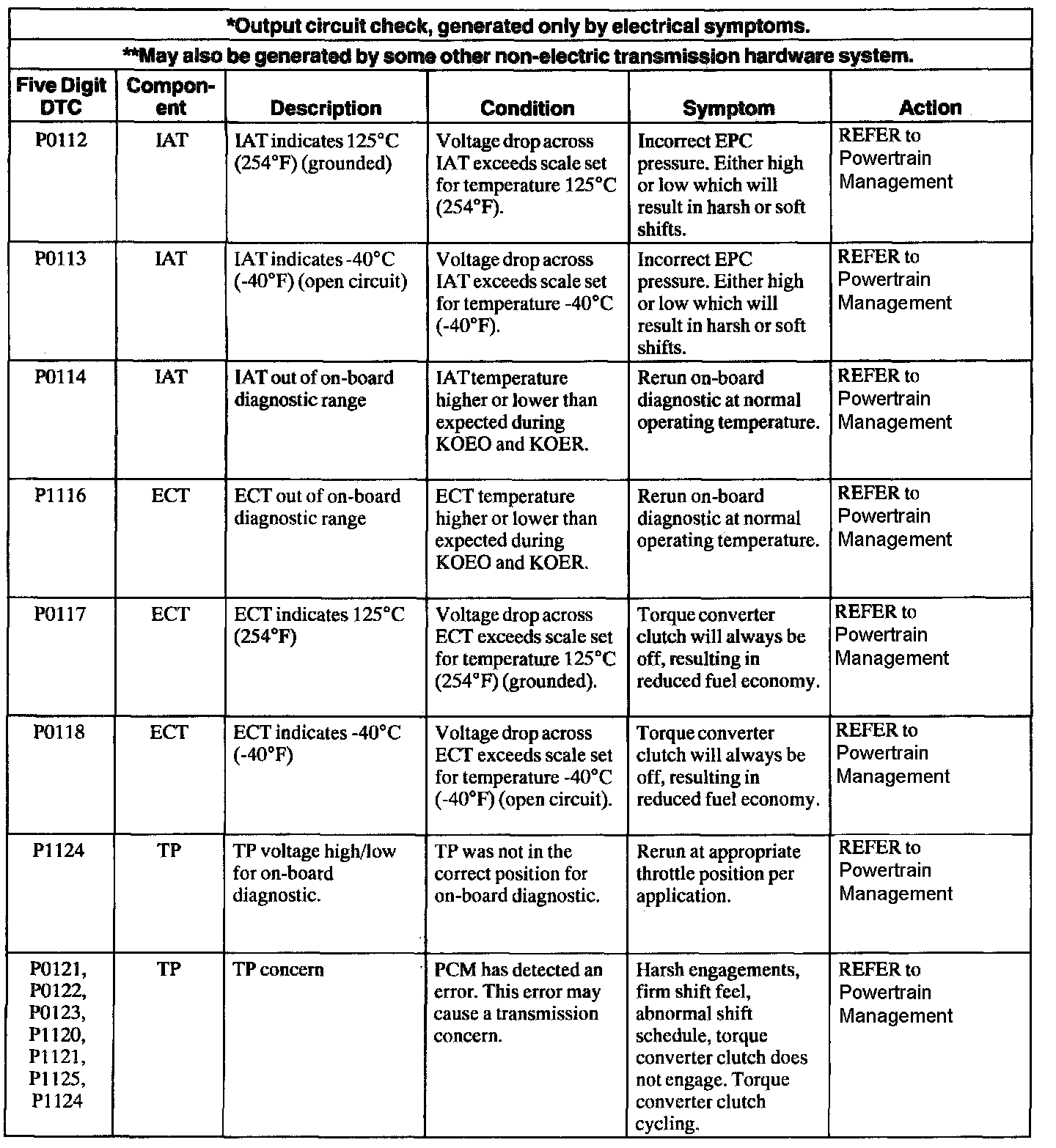

P0112-P1124:

Part 1 of 8

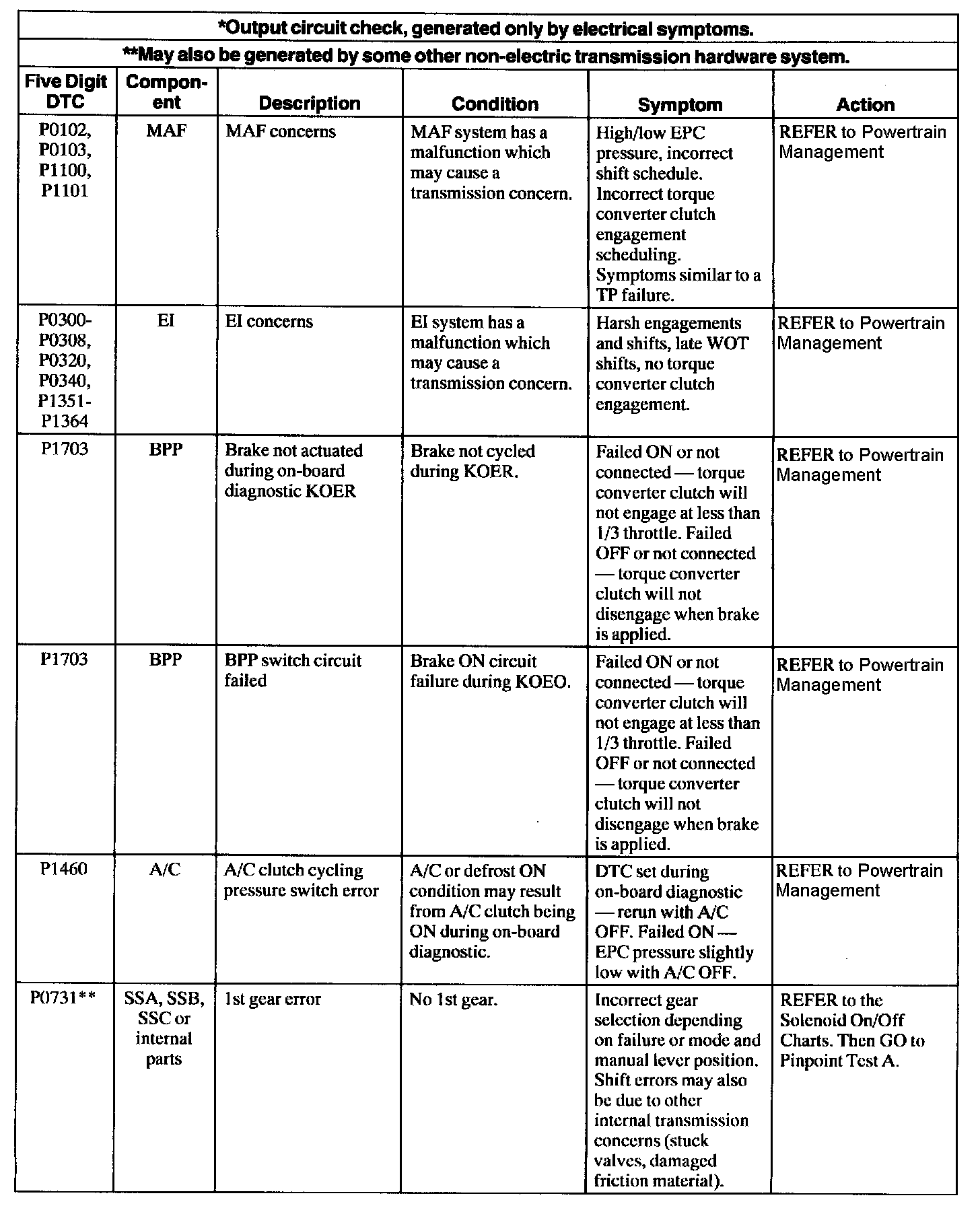

P0102-P1703:

Part 2 of 8

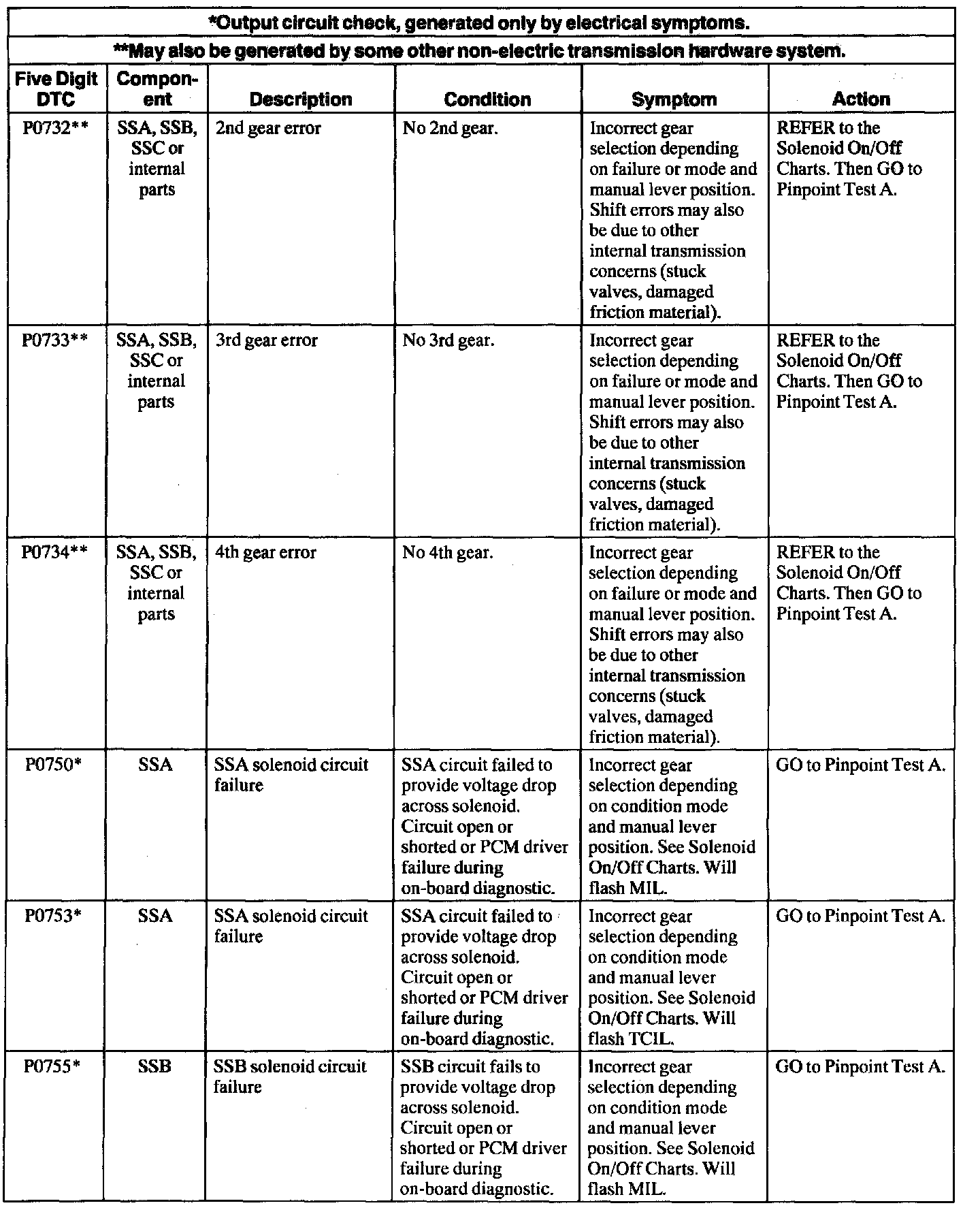

P0732-P0755:

Part 3 of 8

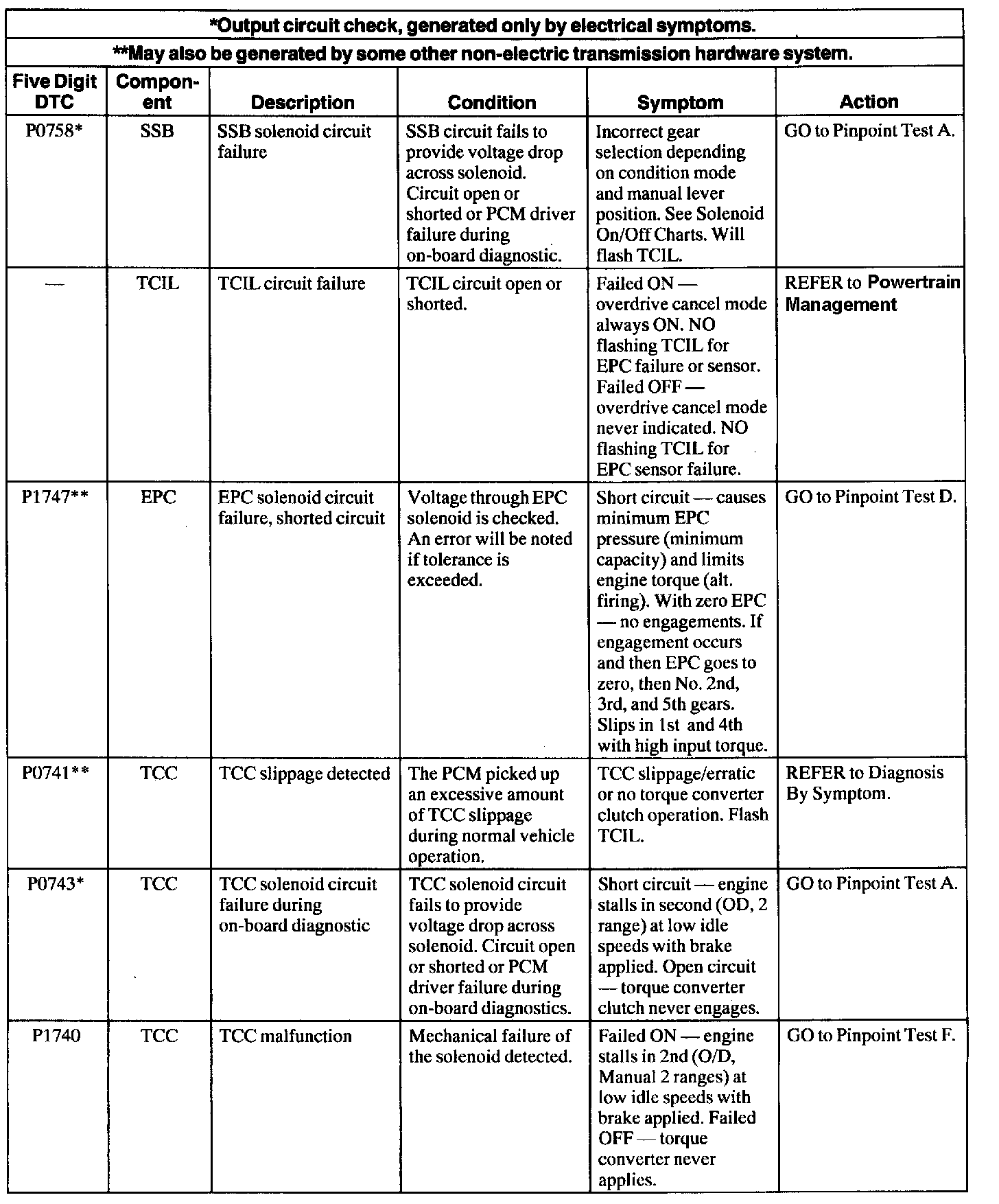

P0741-P1747:

Part 4 of 8

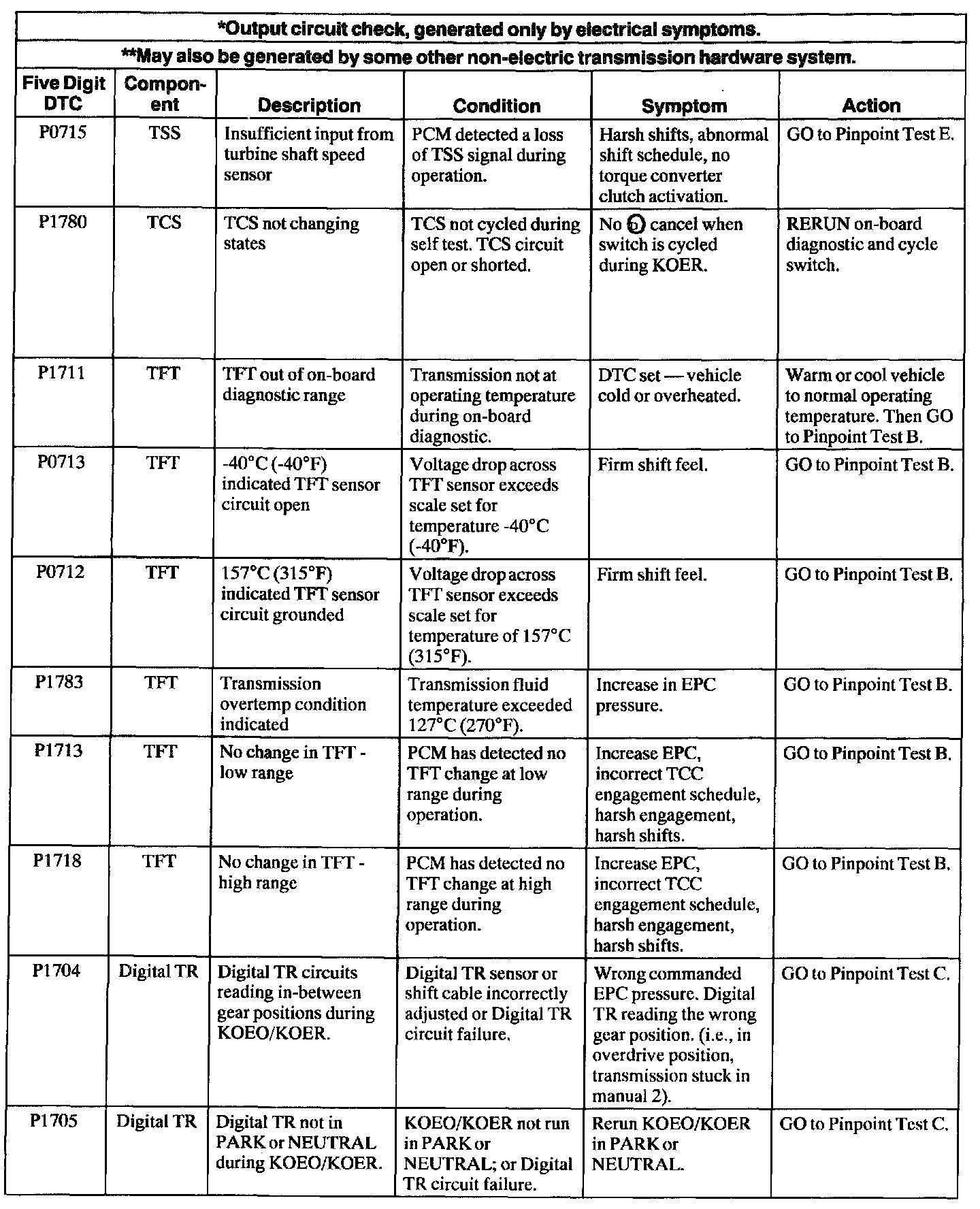

P0712-P1783:

Part 5 of 8

P0705-P1781:

Part 6 of 8

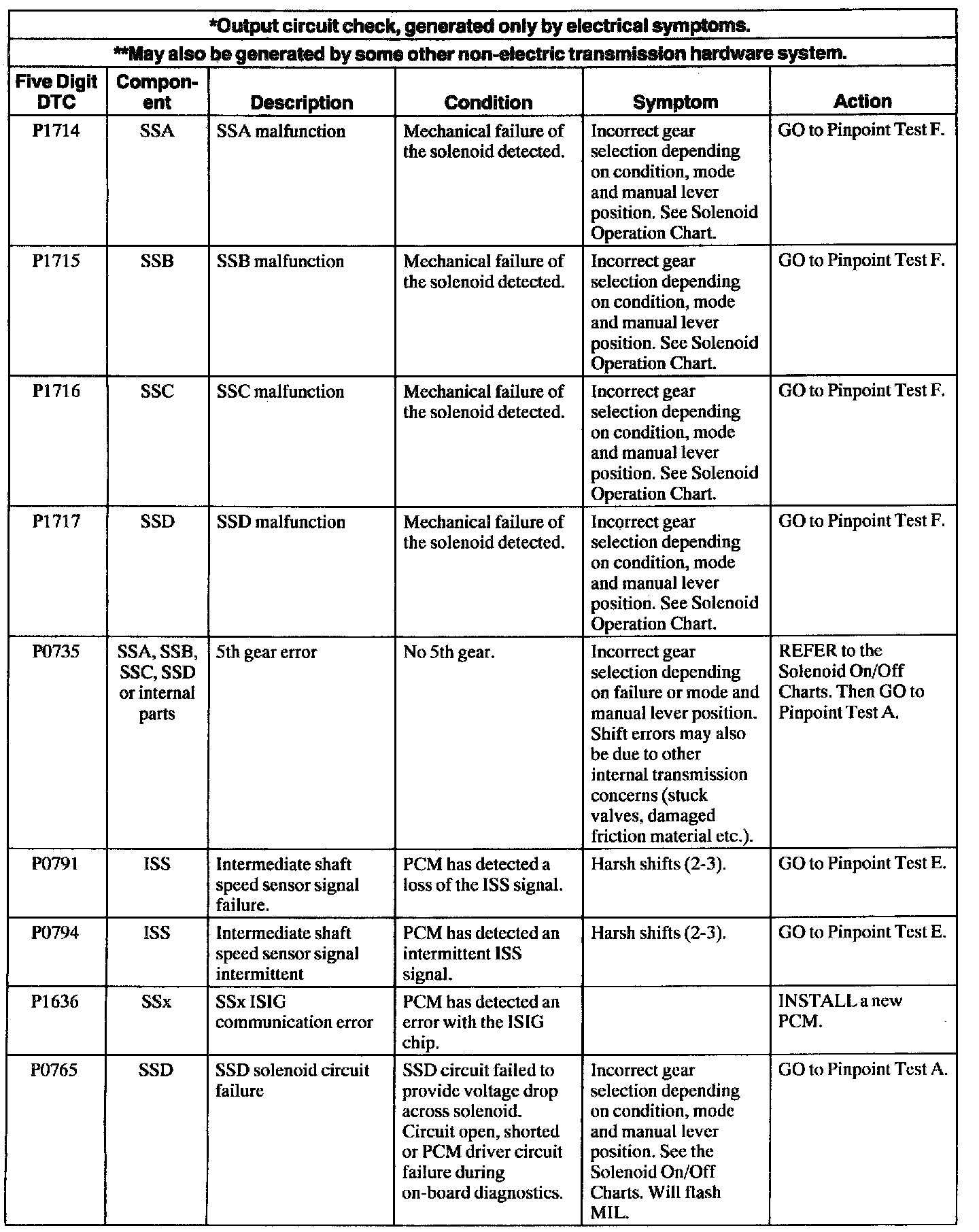

P0735-P1717:

Part 7 of 8

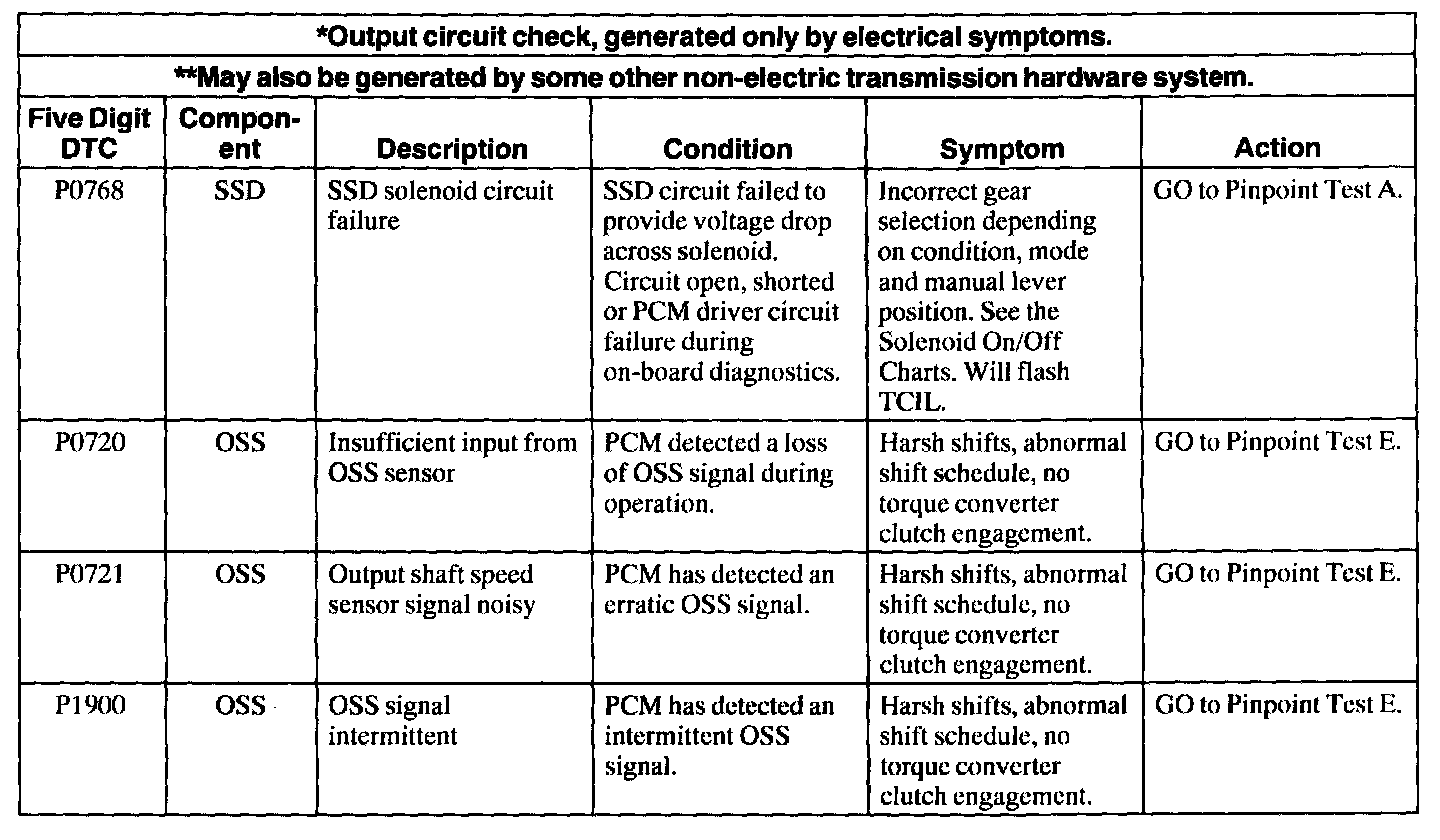

P0768-P1900:

art 8 of 8
