Test A: Shift And Torque Converter Clutch (TCC) Solenoids

PINPOINT TEST A: SHIFT AND TORQUE CONVERTER CLUTCH (TCC) SOLENOIDS

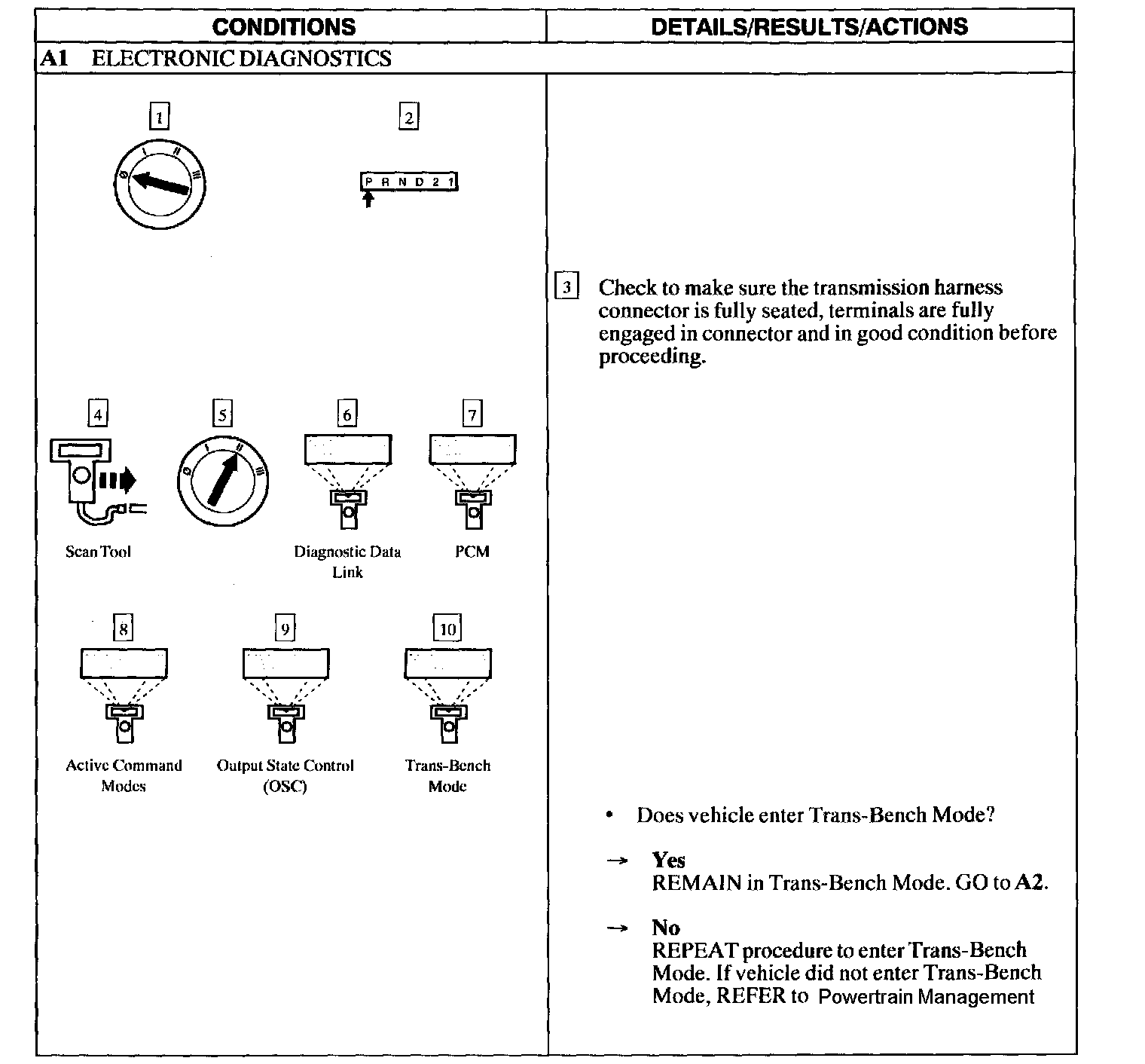

Test A1

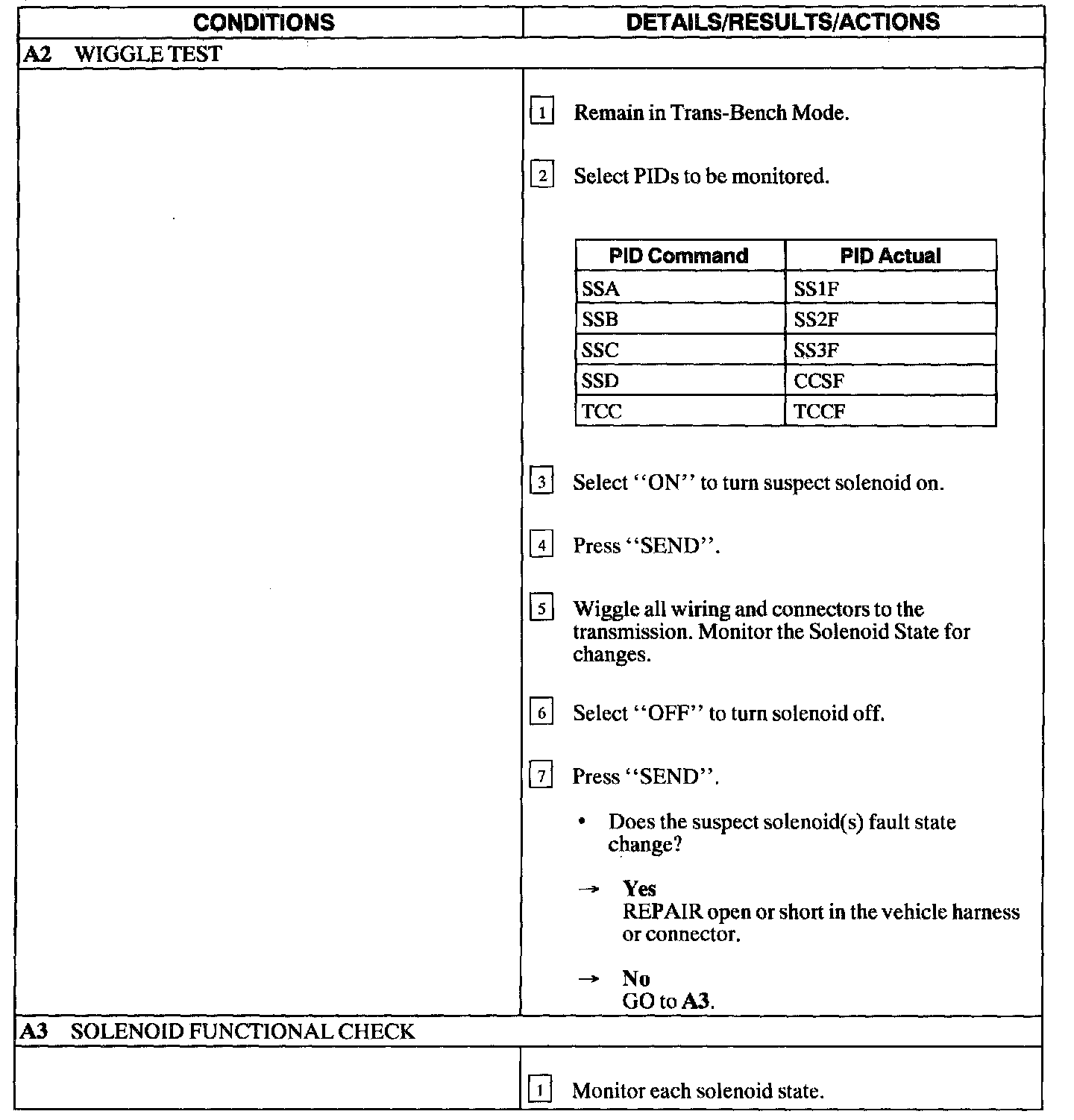

Test A2-A3

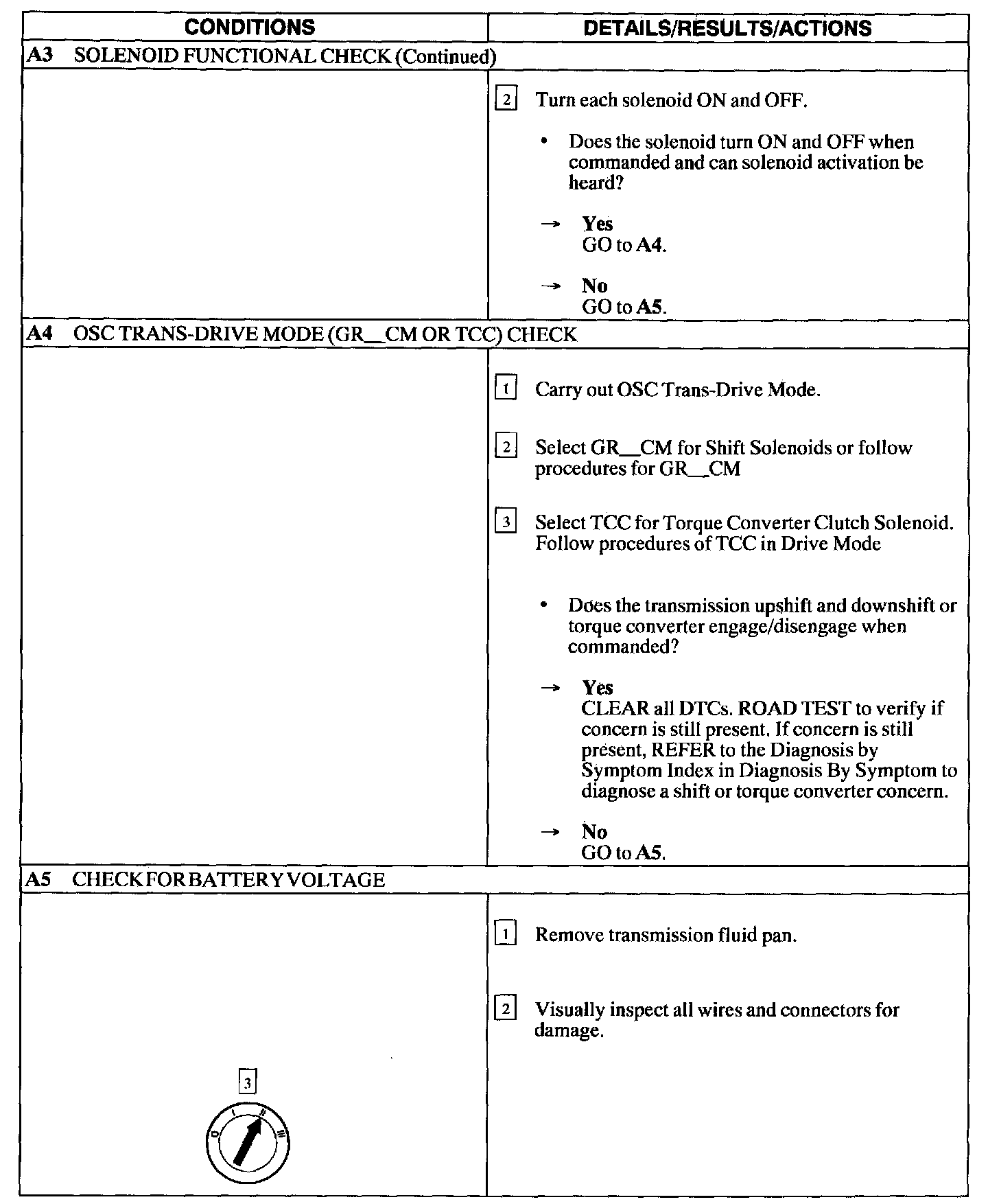

Test A3-A5

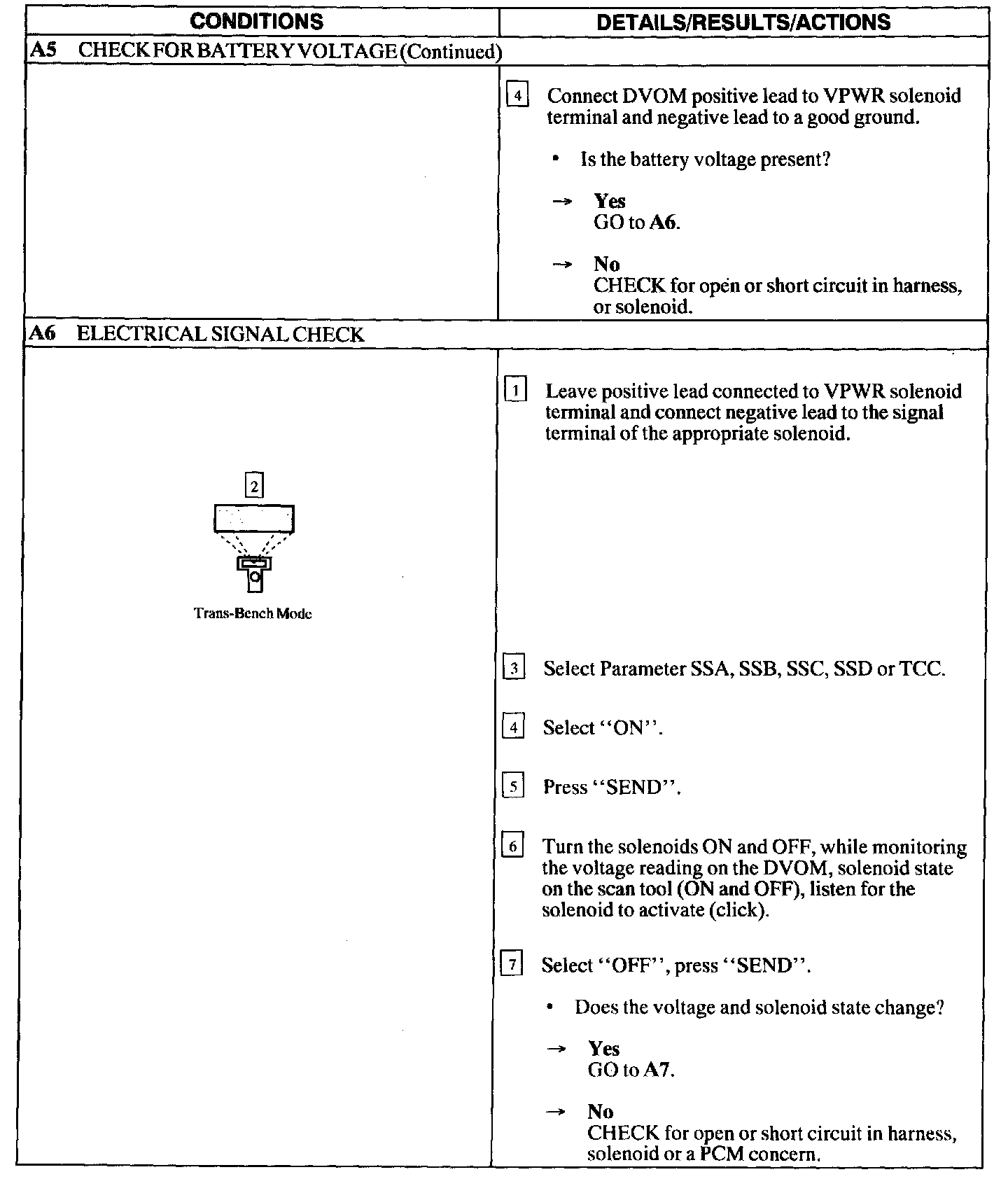

Test A5-A6

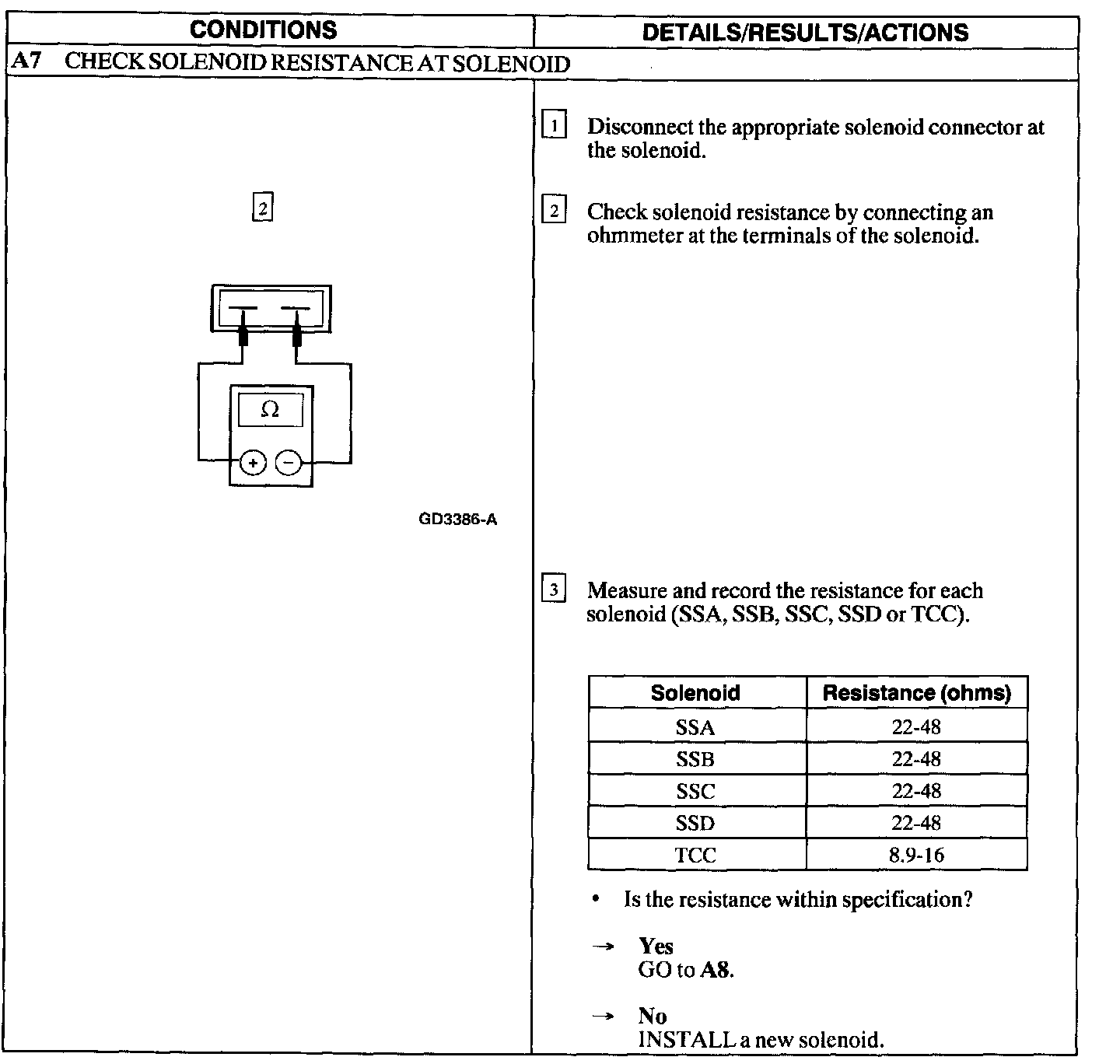

Test A7

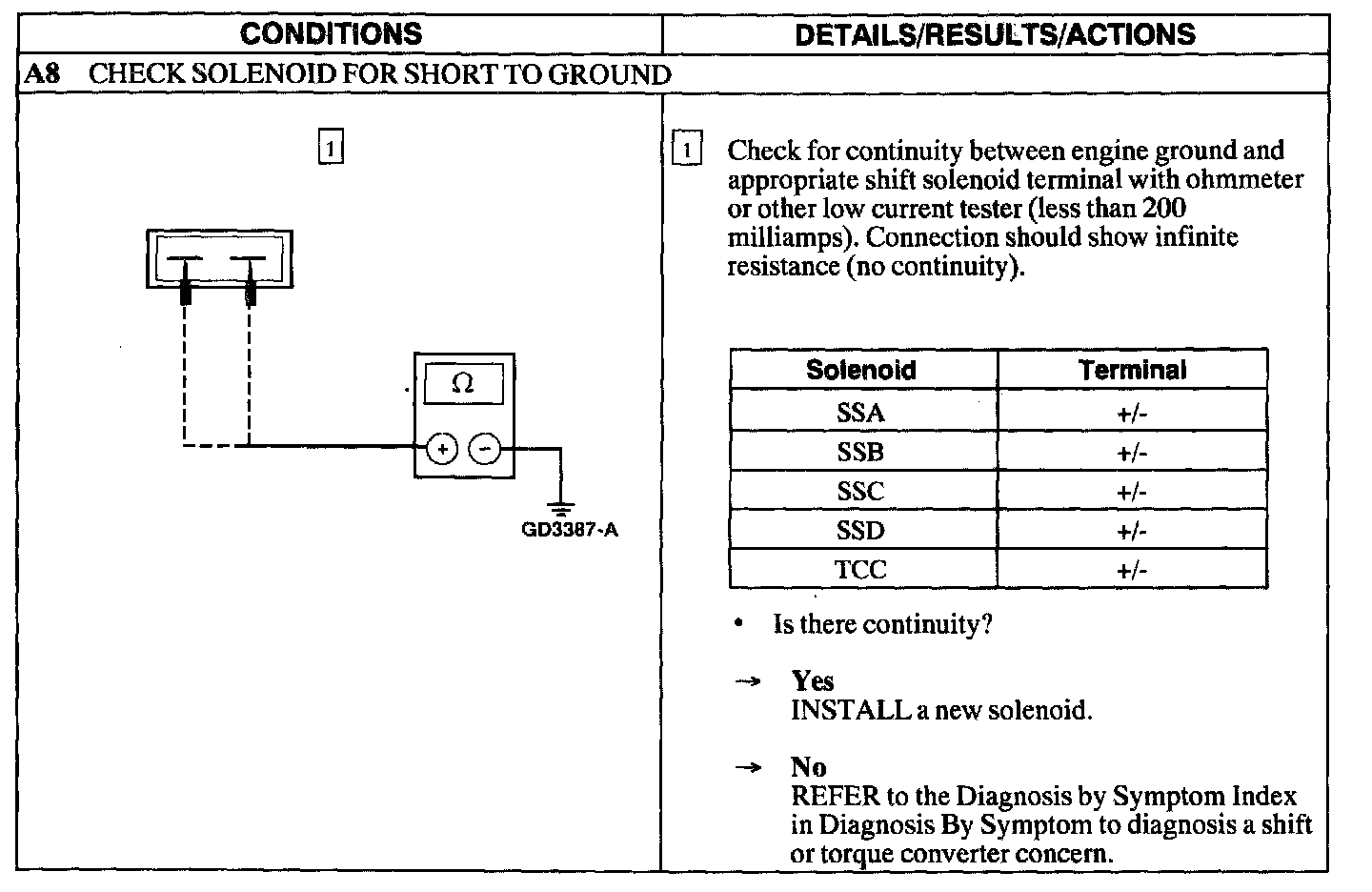

Test A8

NOTE: Refer to the Transmission Vehicle Harness Connector illustration.
NOTE: Refer to the Transmission Internal Harness Connector illustration.
NOTE: Read and record all DTCs. All Digital TR Sensor and VSS DTCs must be repaired before entering Output State Control (OSC).
