Test A: Shift Interlock System Does Not Release/Lock Correctly

PINPOINT TEST A: SHIFT INTERLOCK SYSTEM DOES NOT RELEASE/LOCK PROPERLY

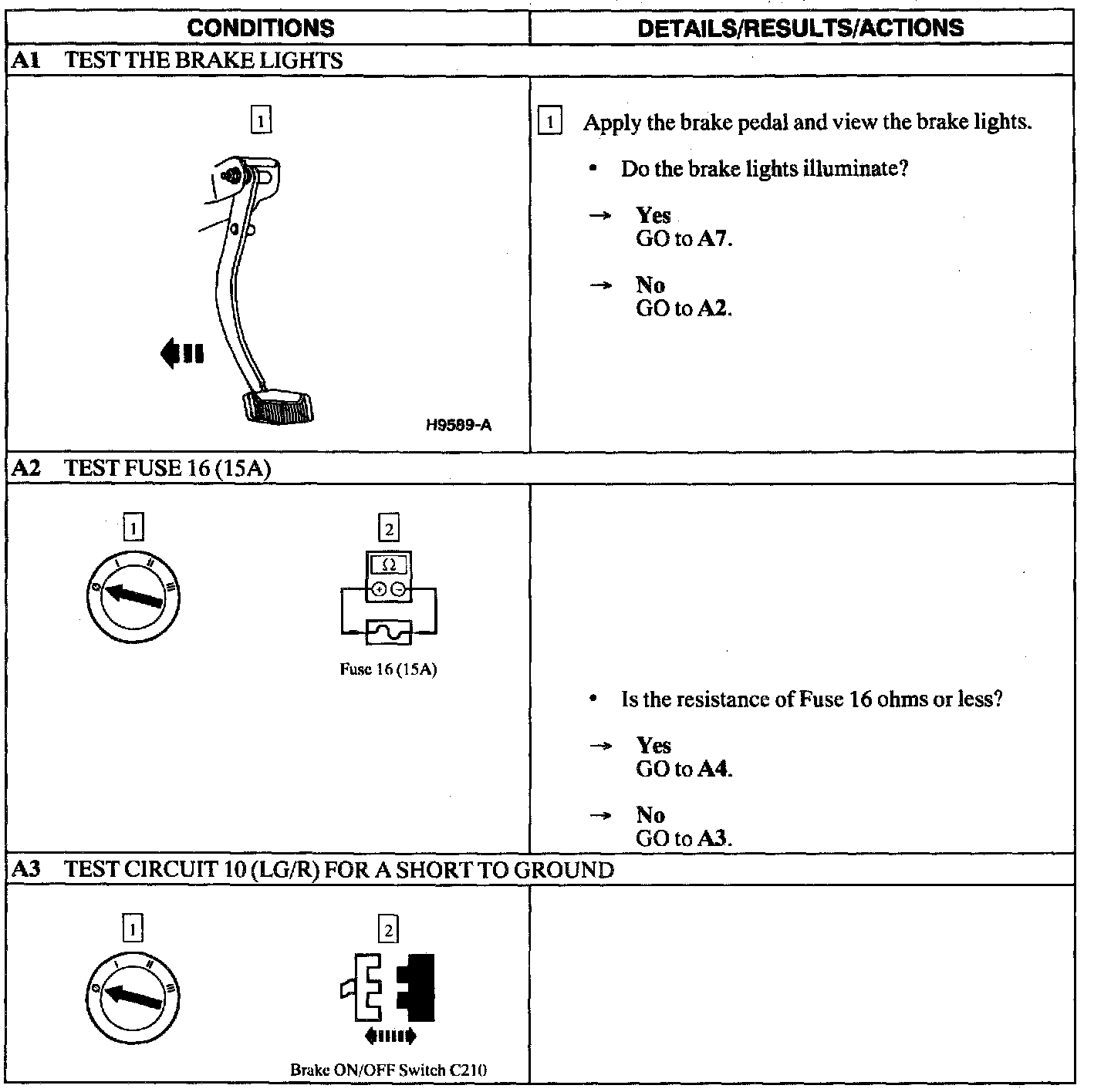

Test A1-A3

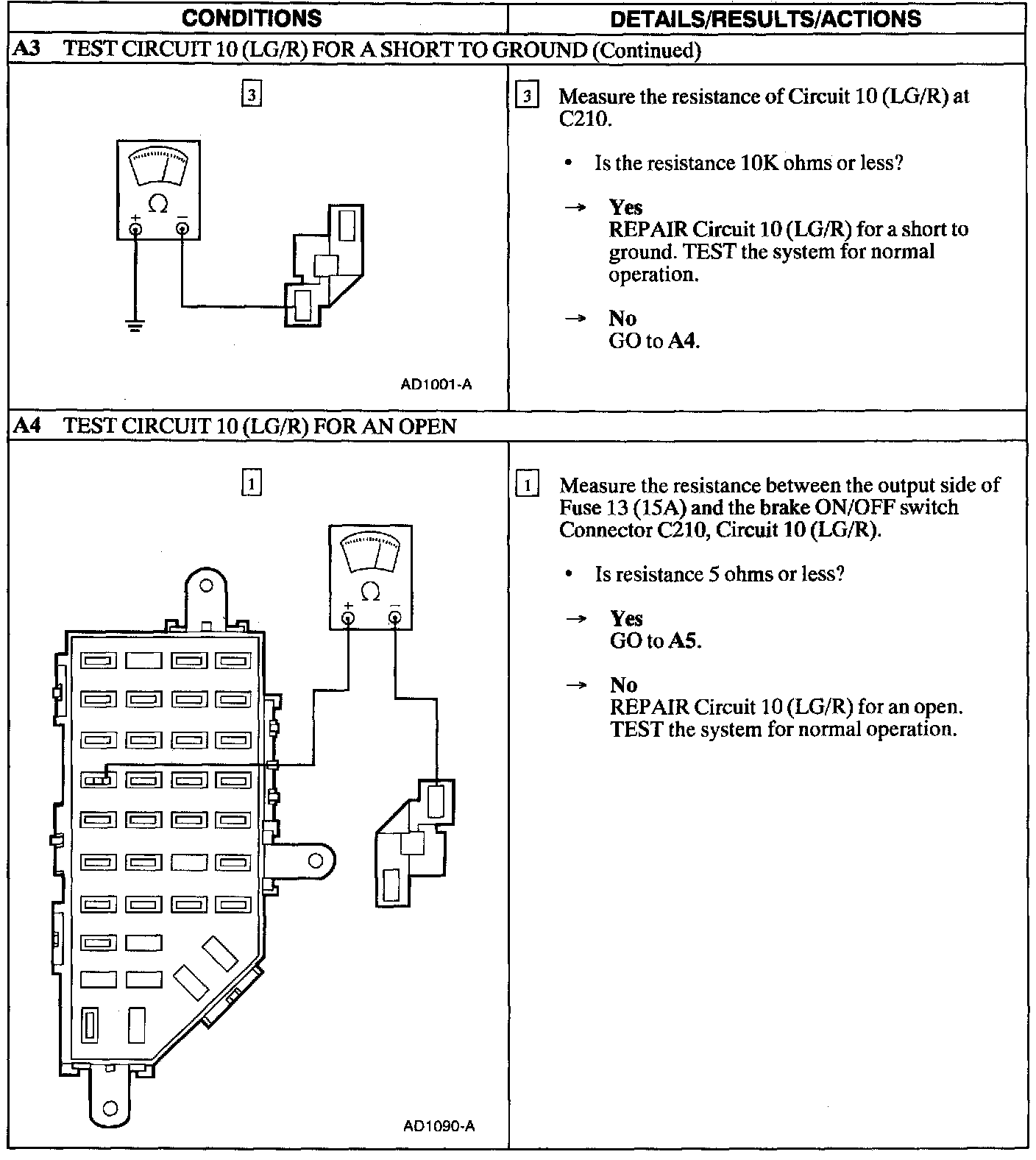

Test A3-A4

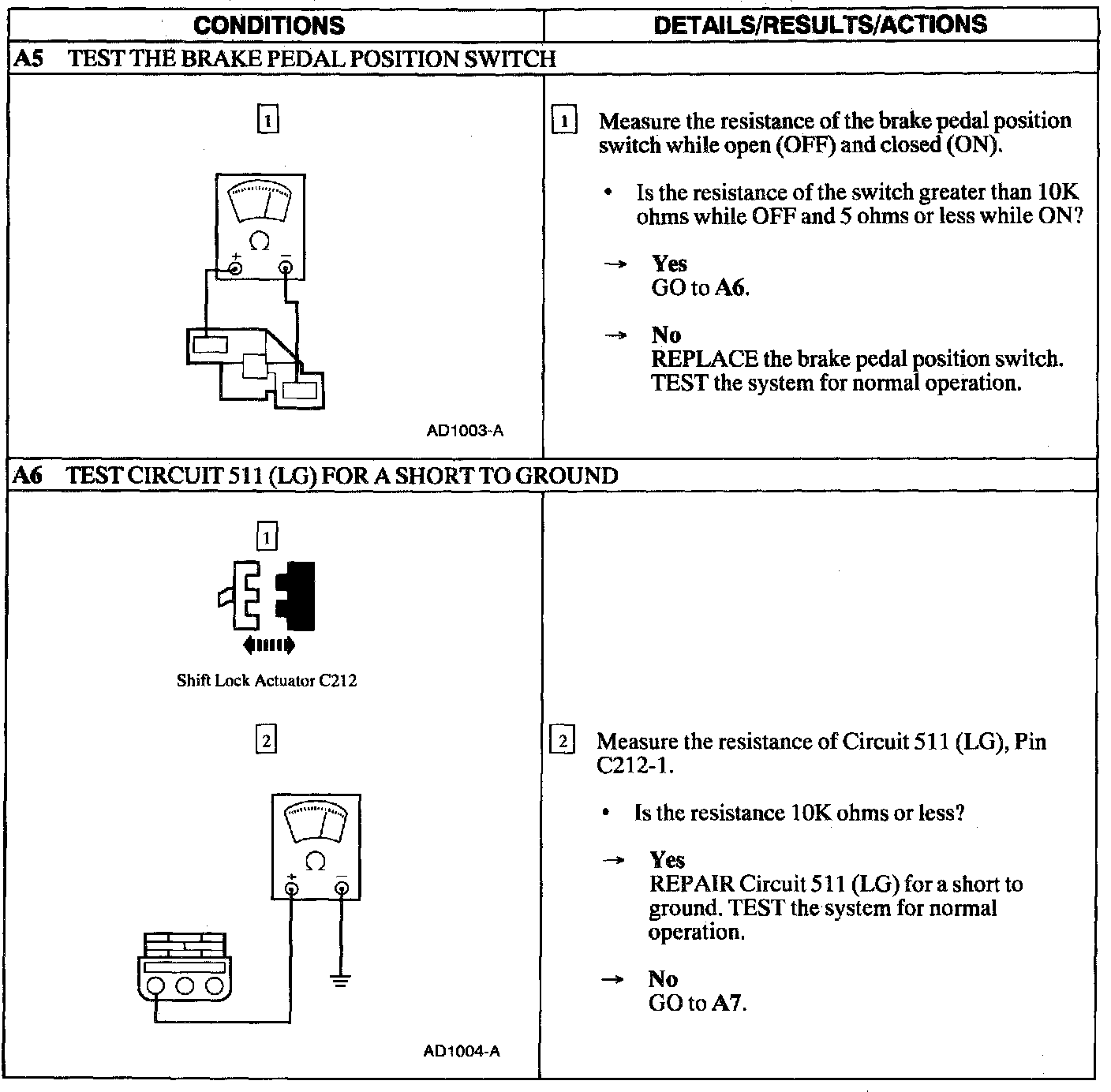

Test A5-A6

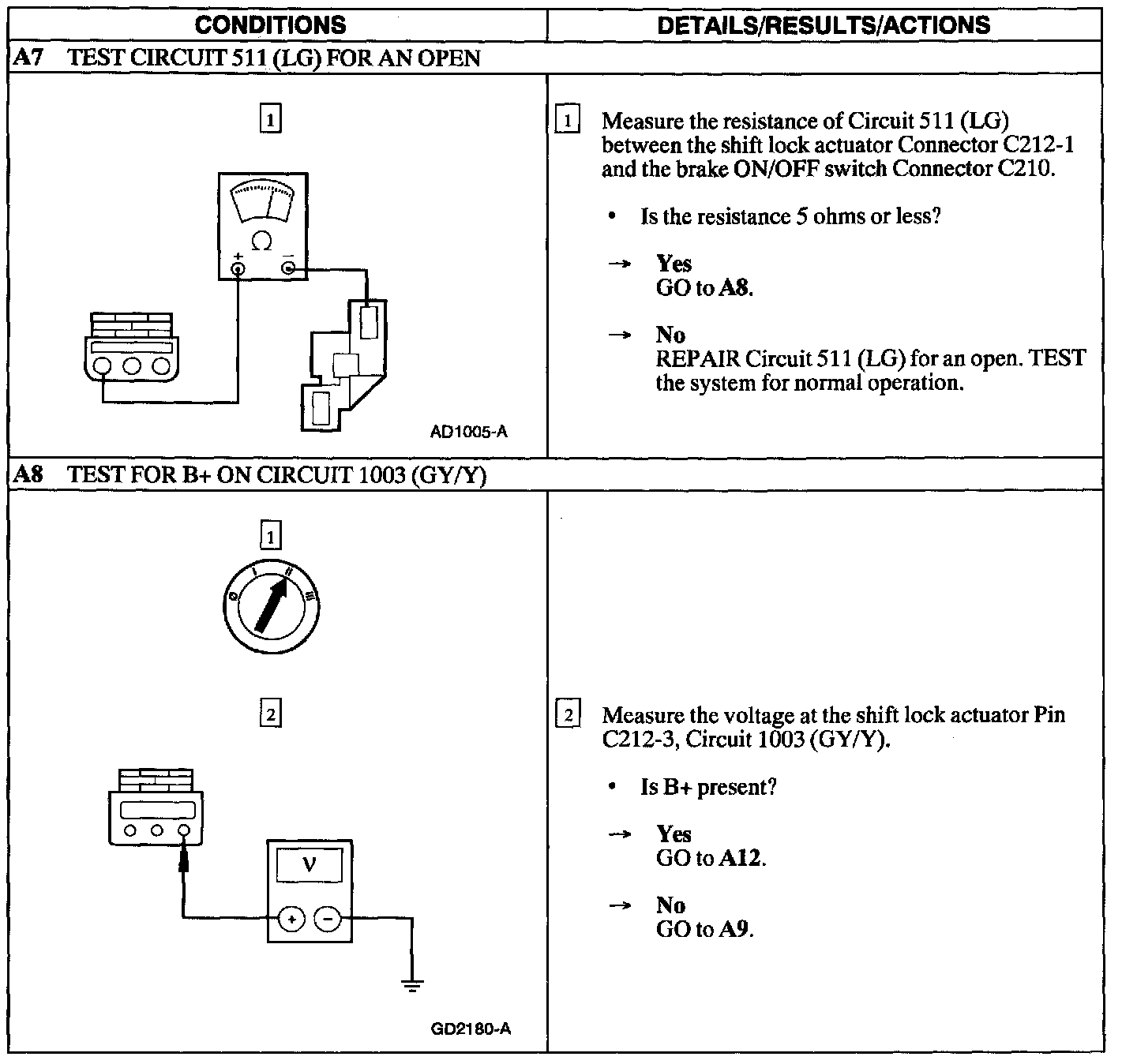

Test A7-A8





Test A9-A10

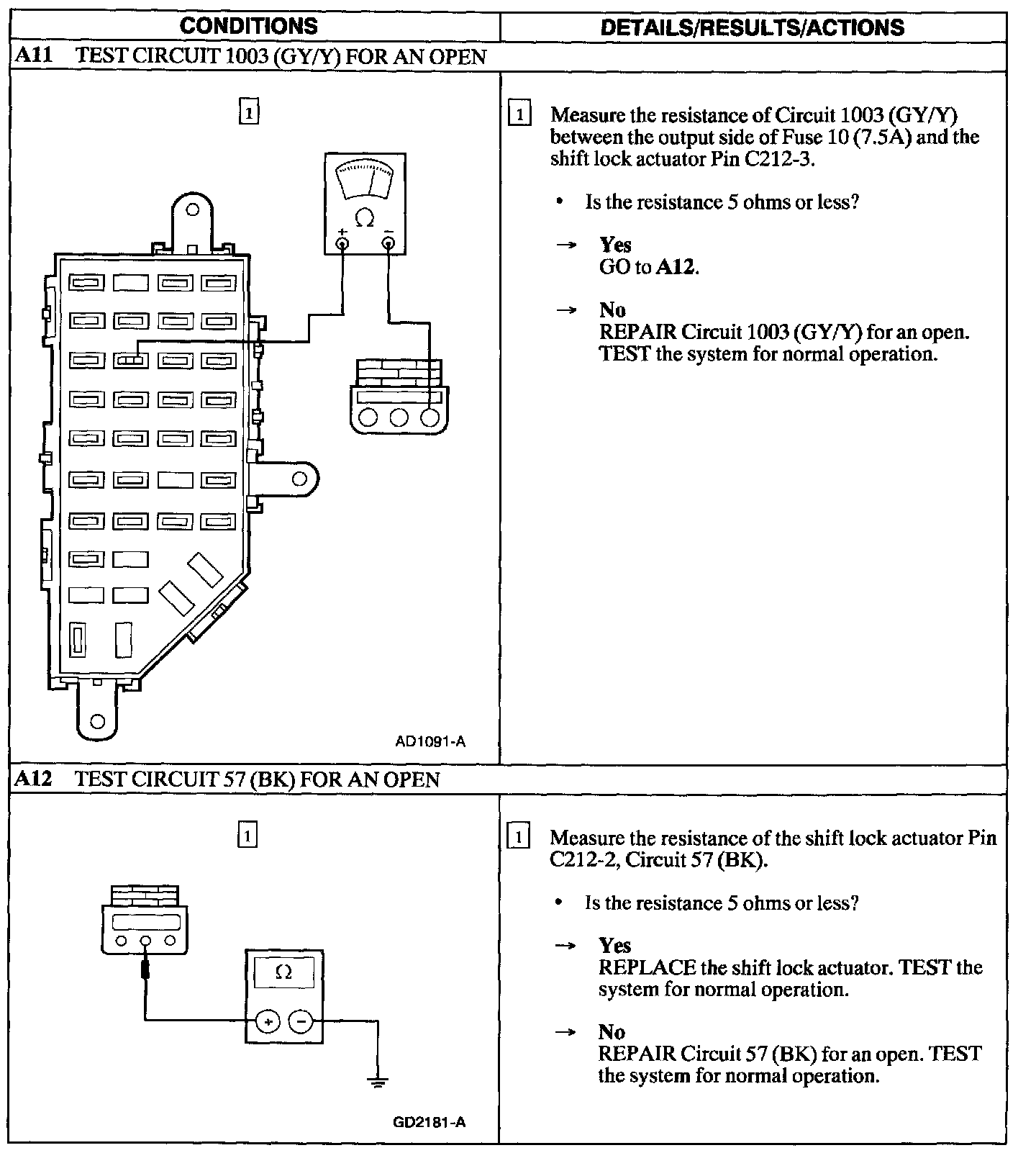

Test A11-A12
