Test B: Wipers Stay ON Continuously

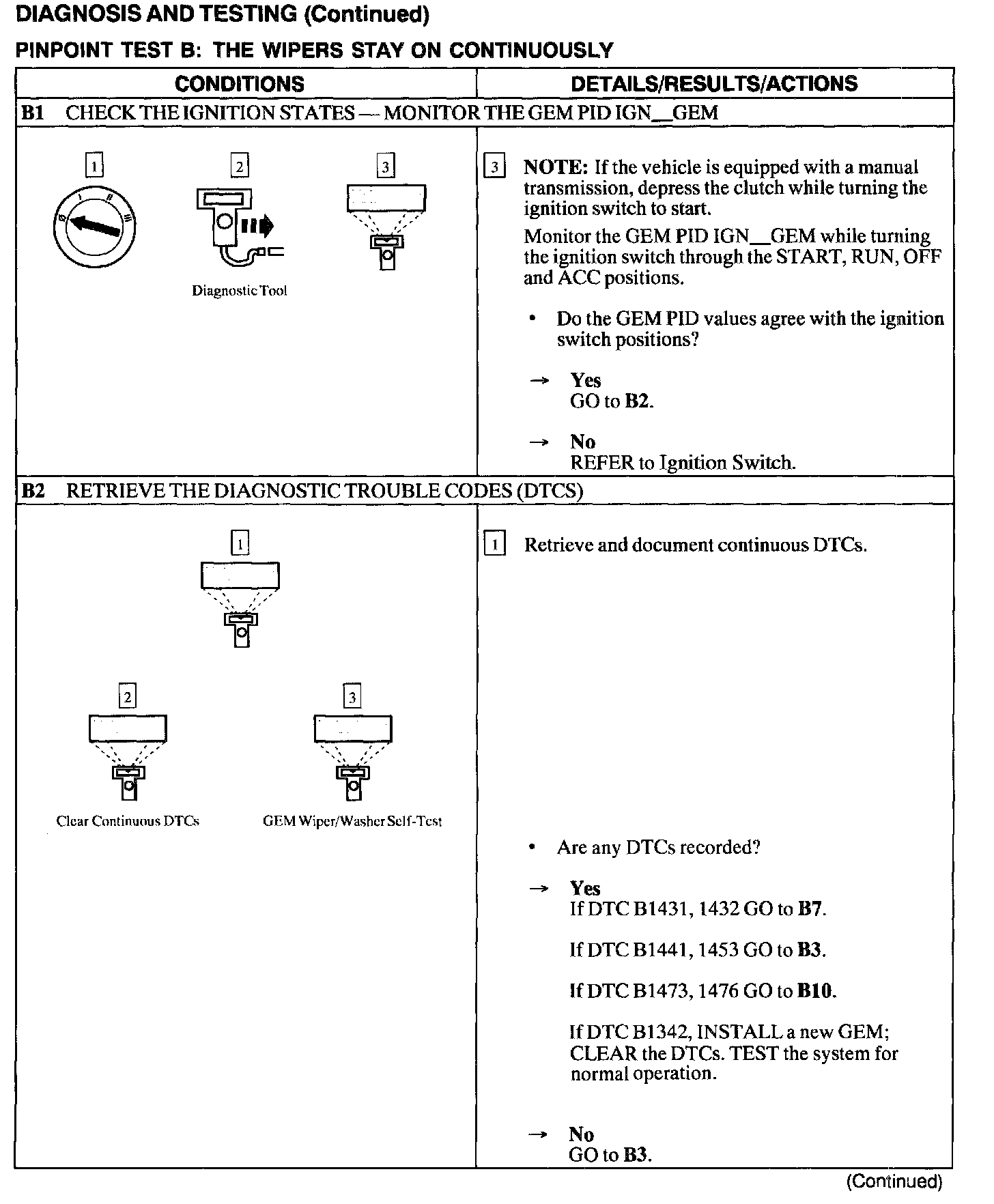

B1 - B2:






B3 - B5:

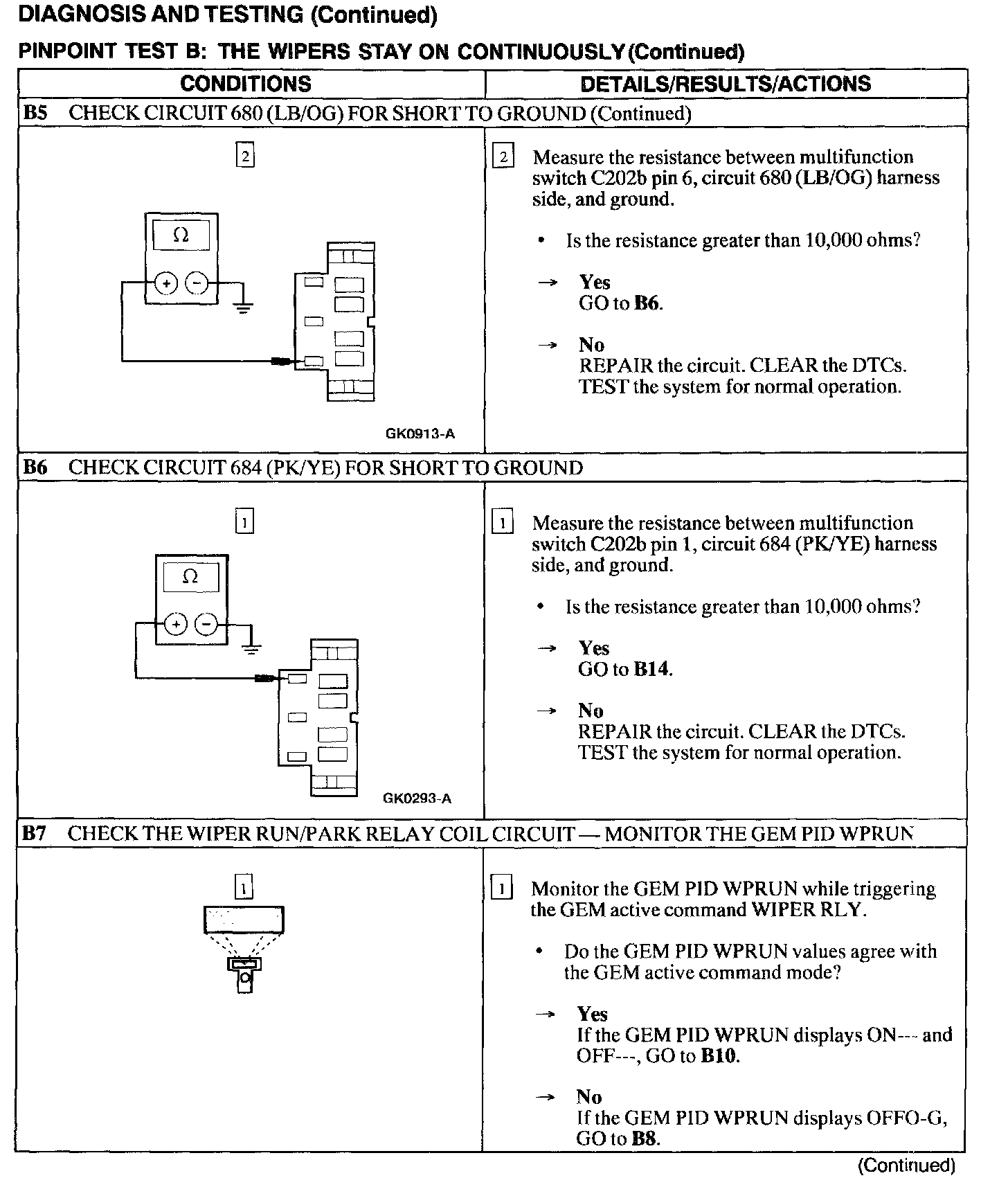

B5 - B7:

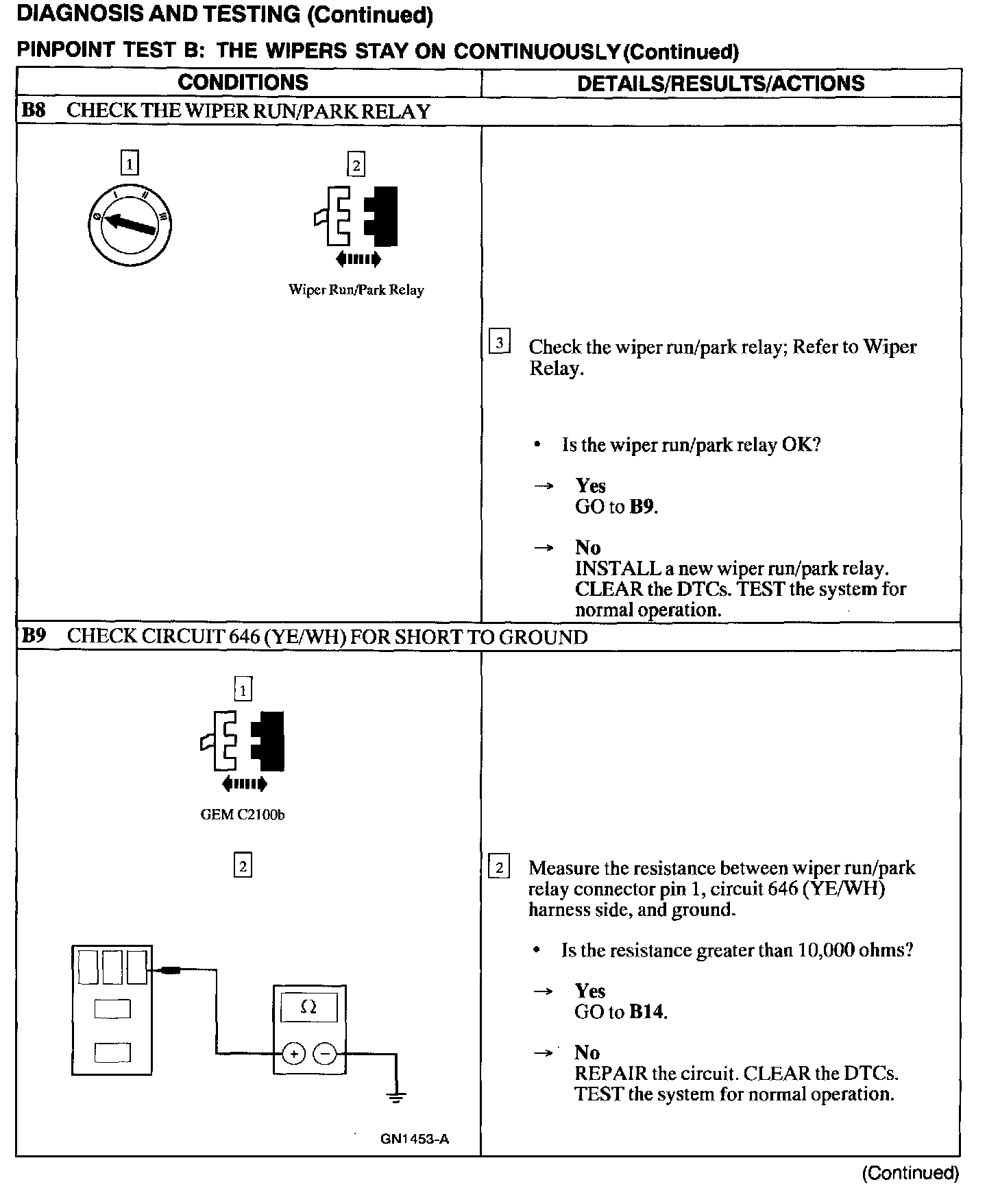

B8 - B9:

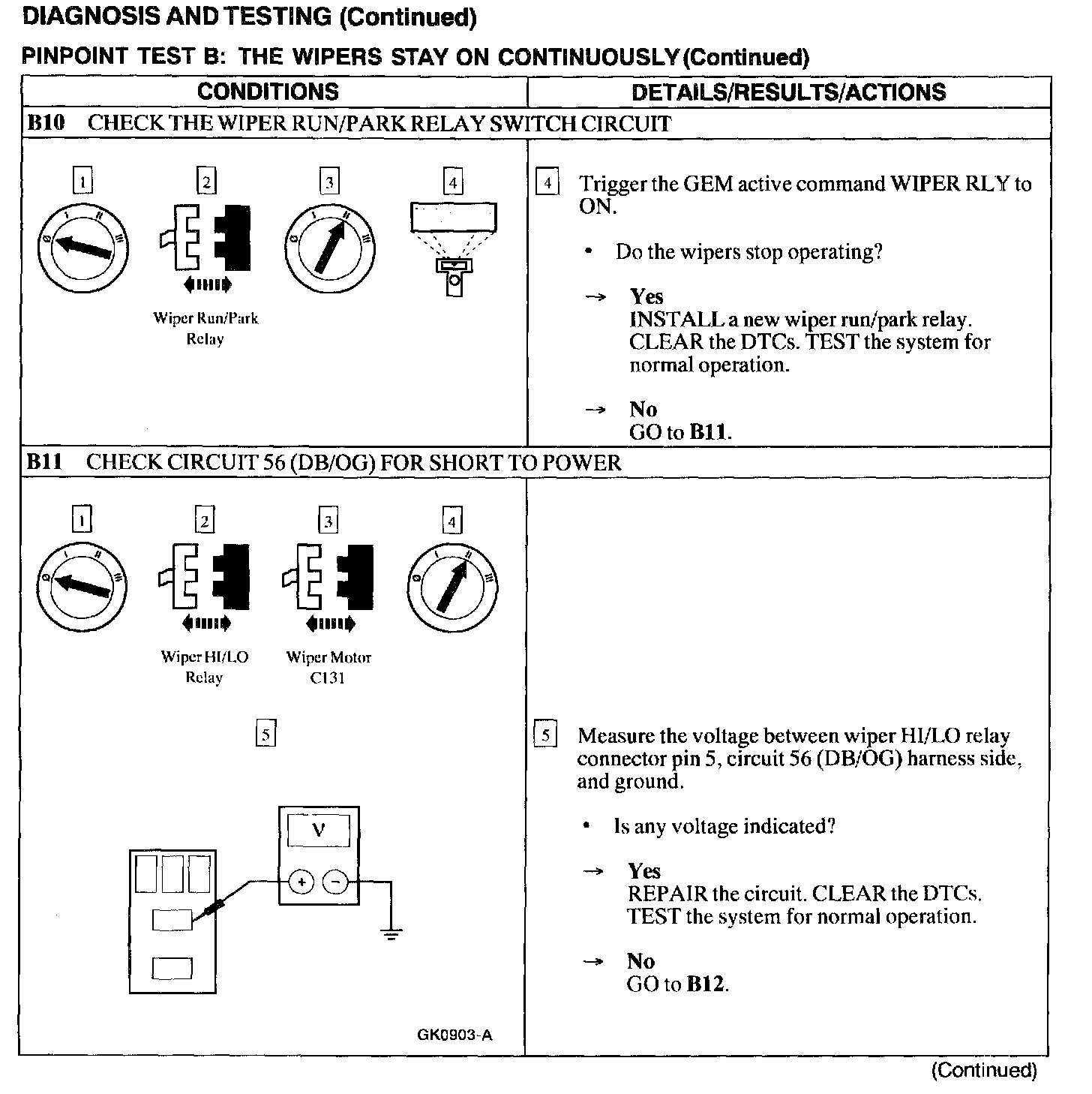

B10 - B11:

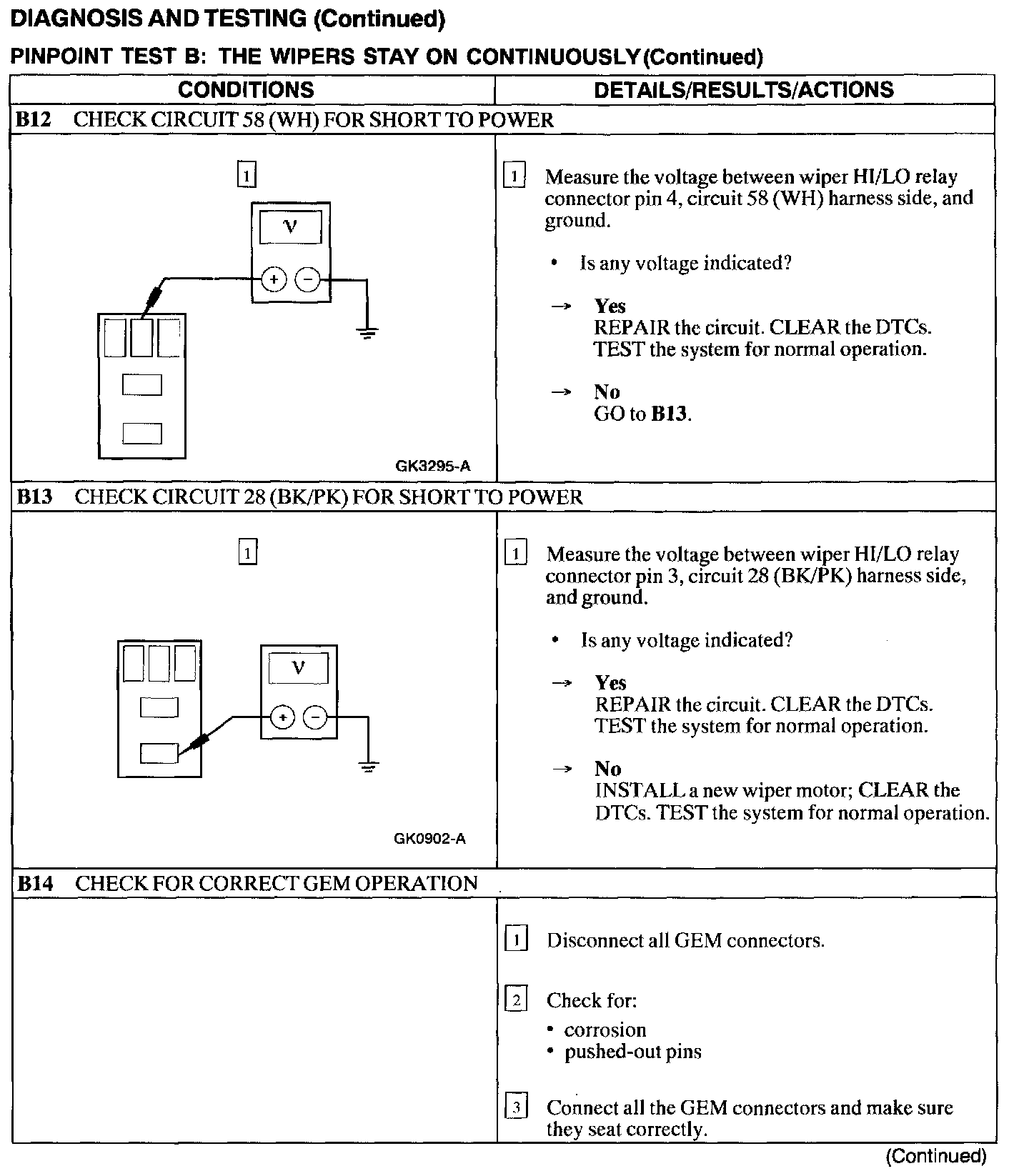

B12 - B14:

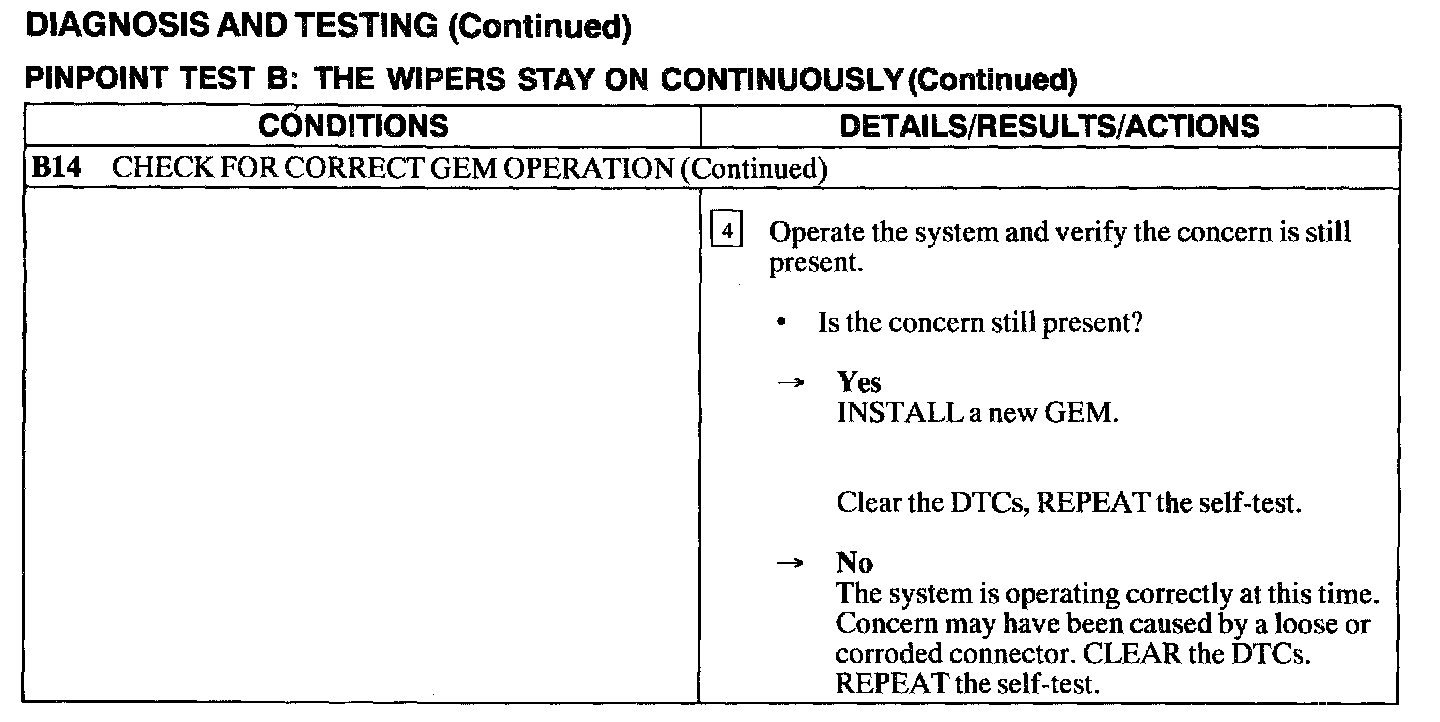

B14:
