Test D: Intermittent Wiper Speed Does Not Operate Properly
Test D: Intermittent Wiper Speed Does Not Operate Properly

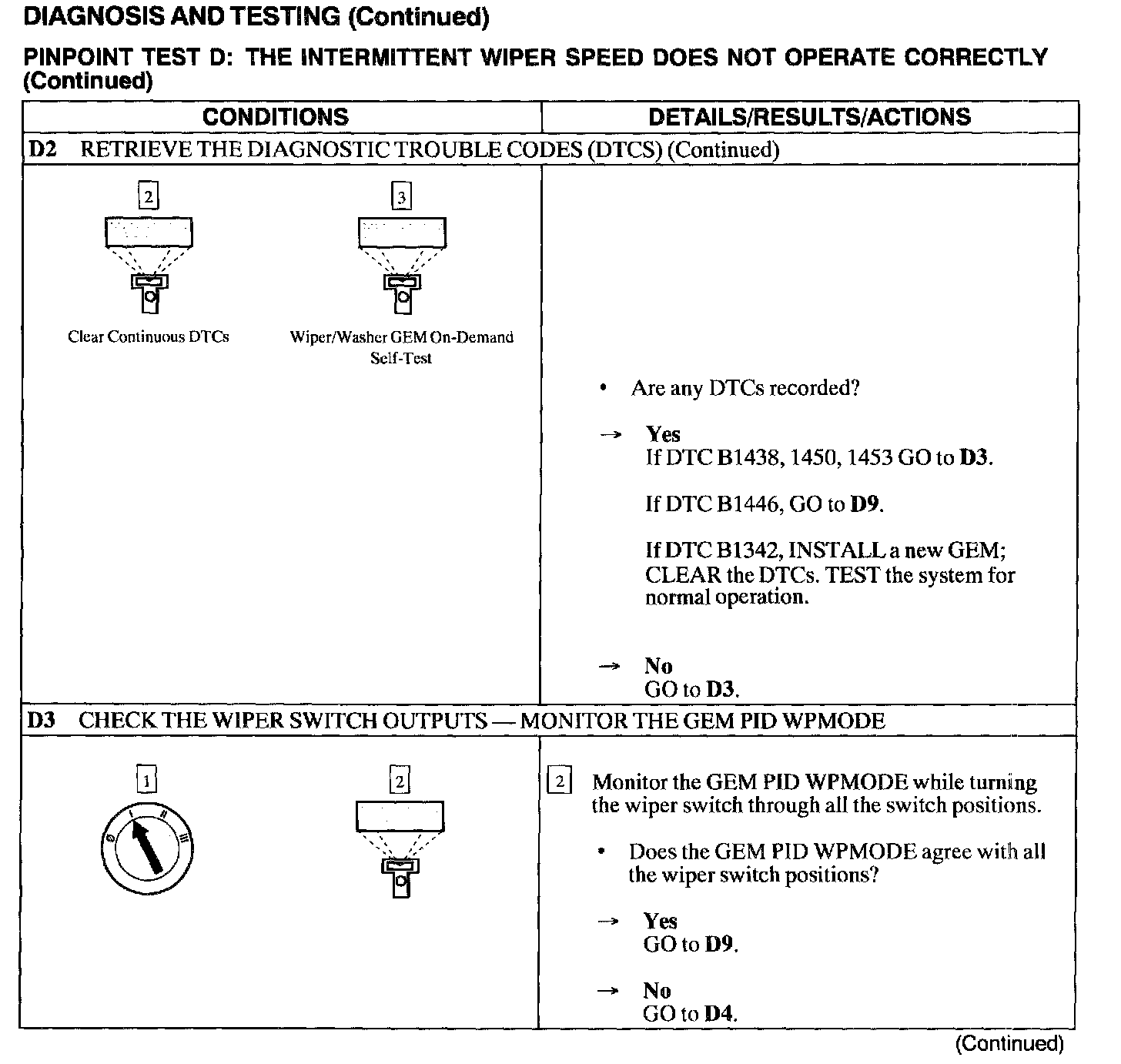

D1 - D2:
D2 - D3:

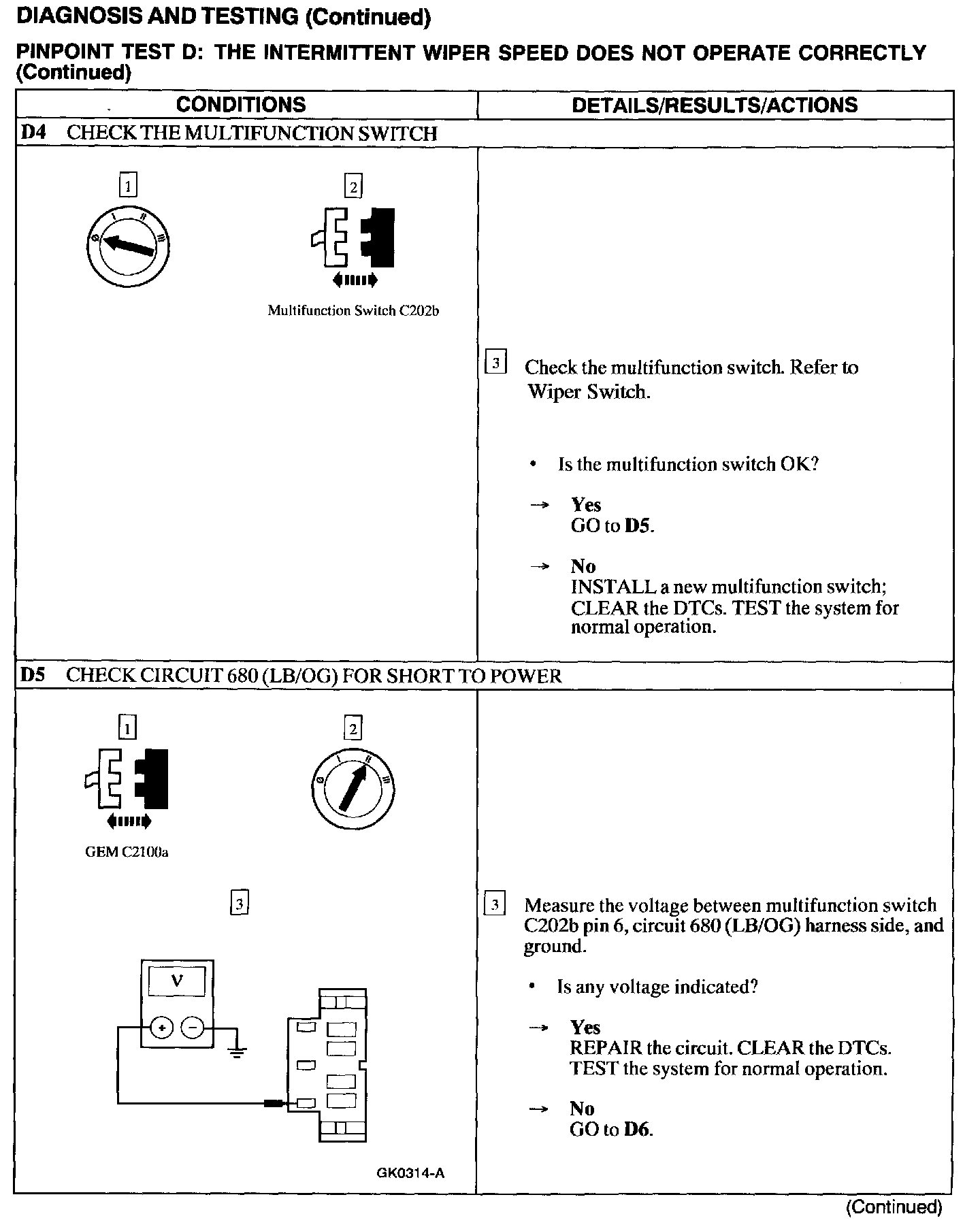

D4 - D5:

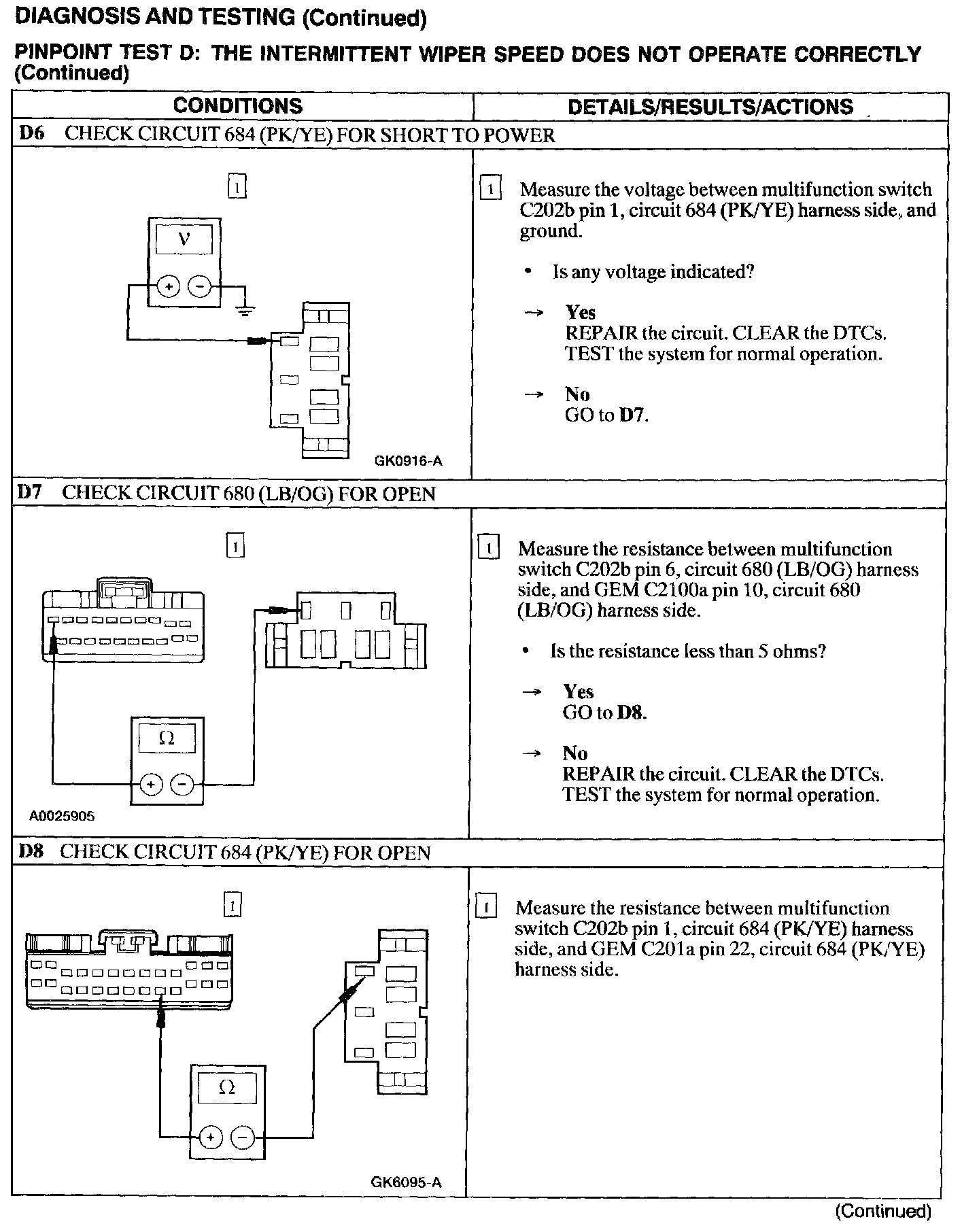

D6 - D8:

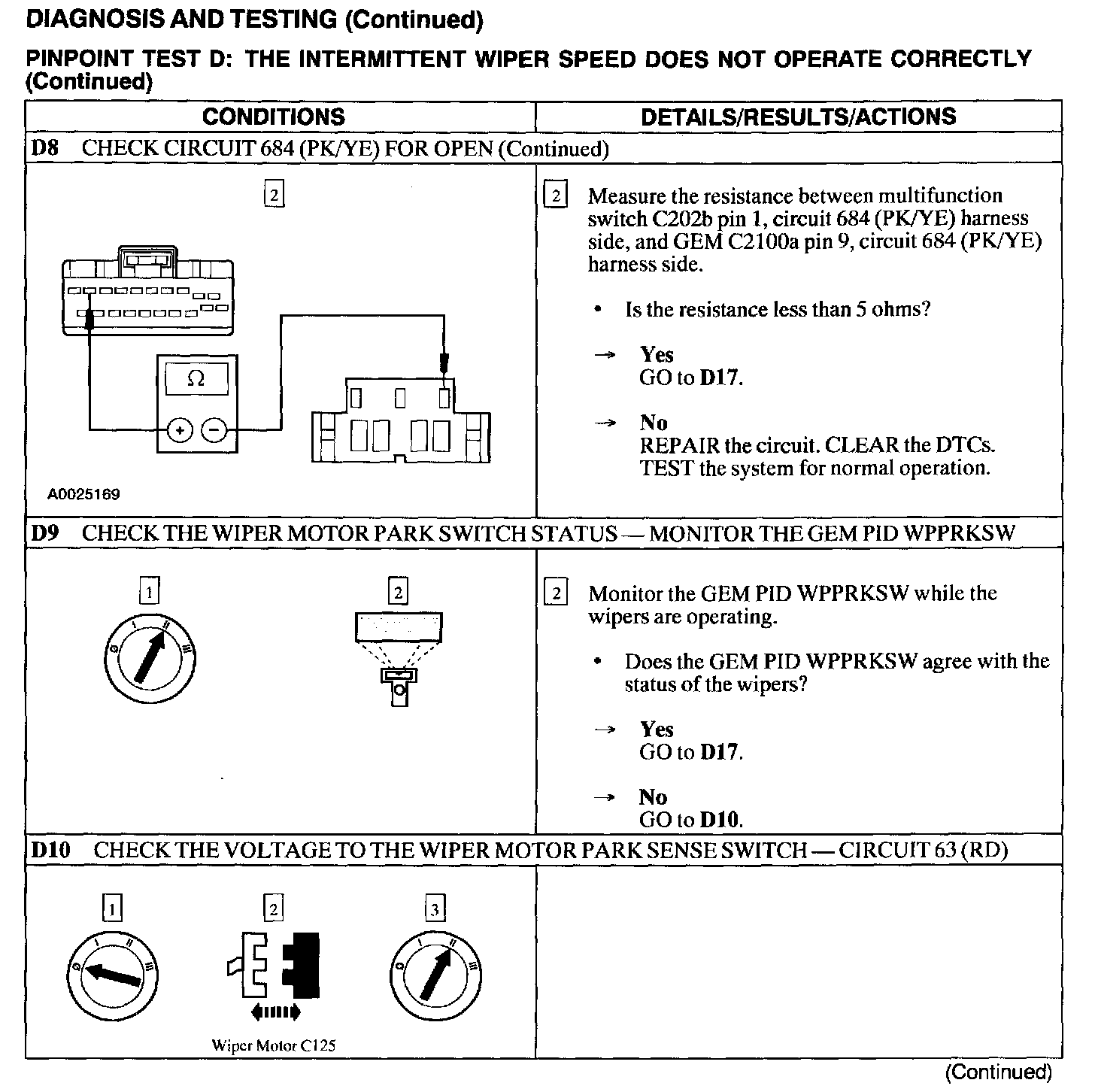

D8 - D10:

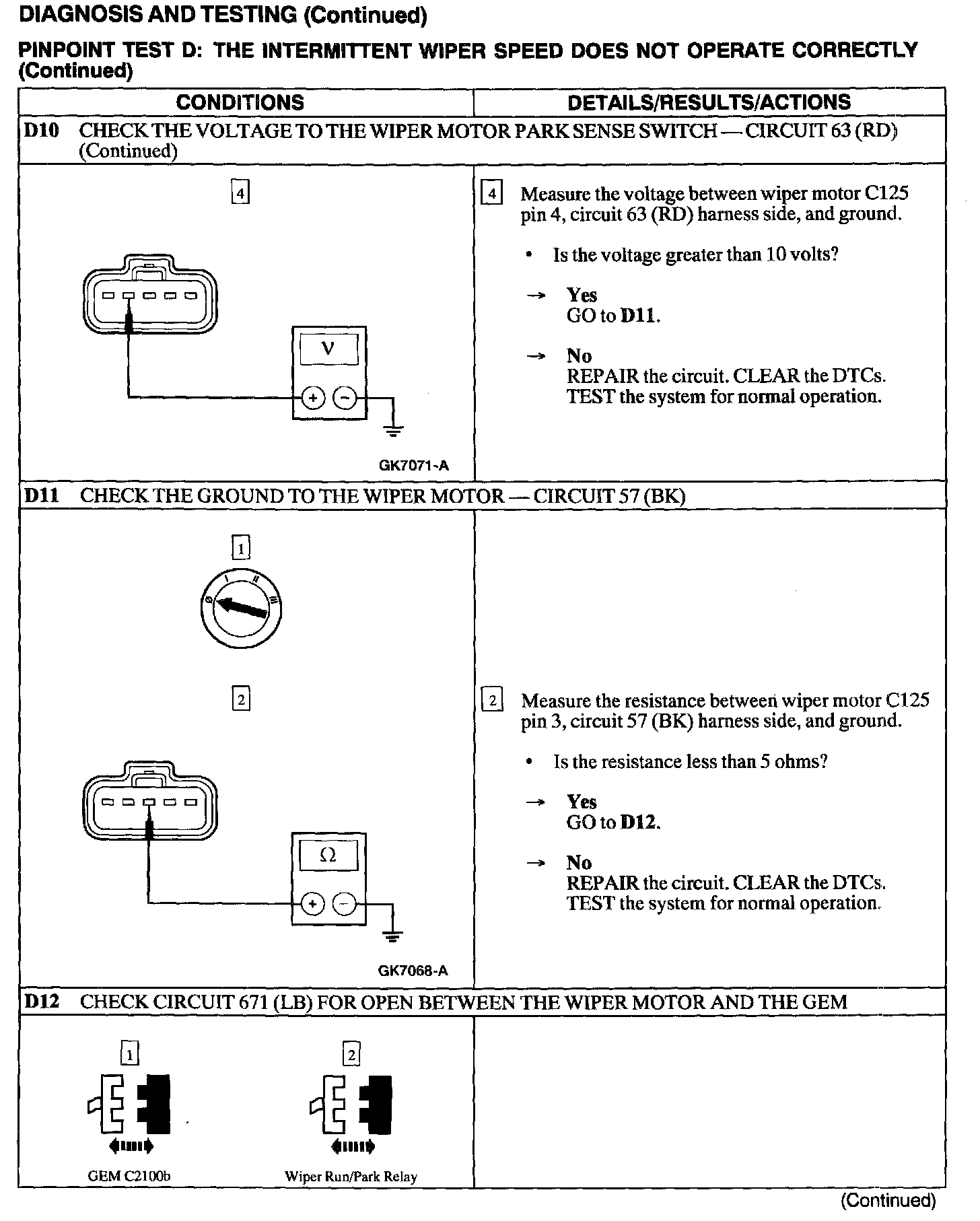

D10 - D12:

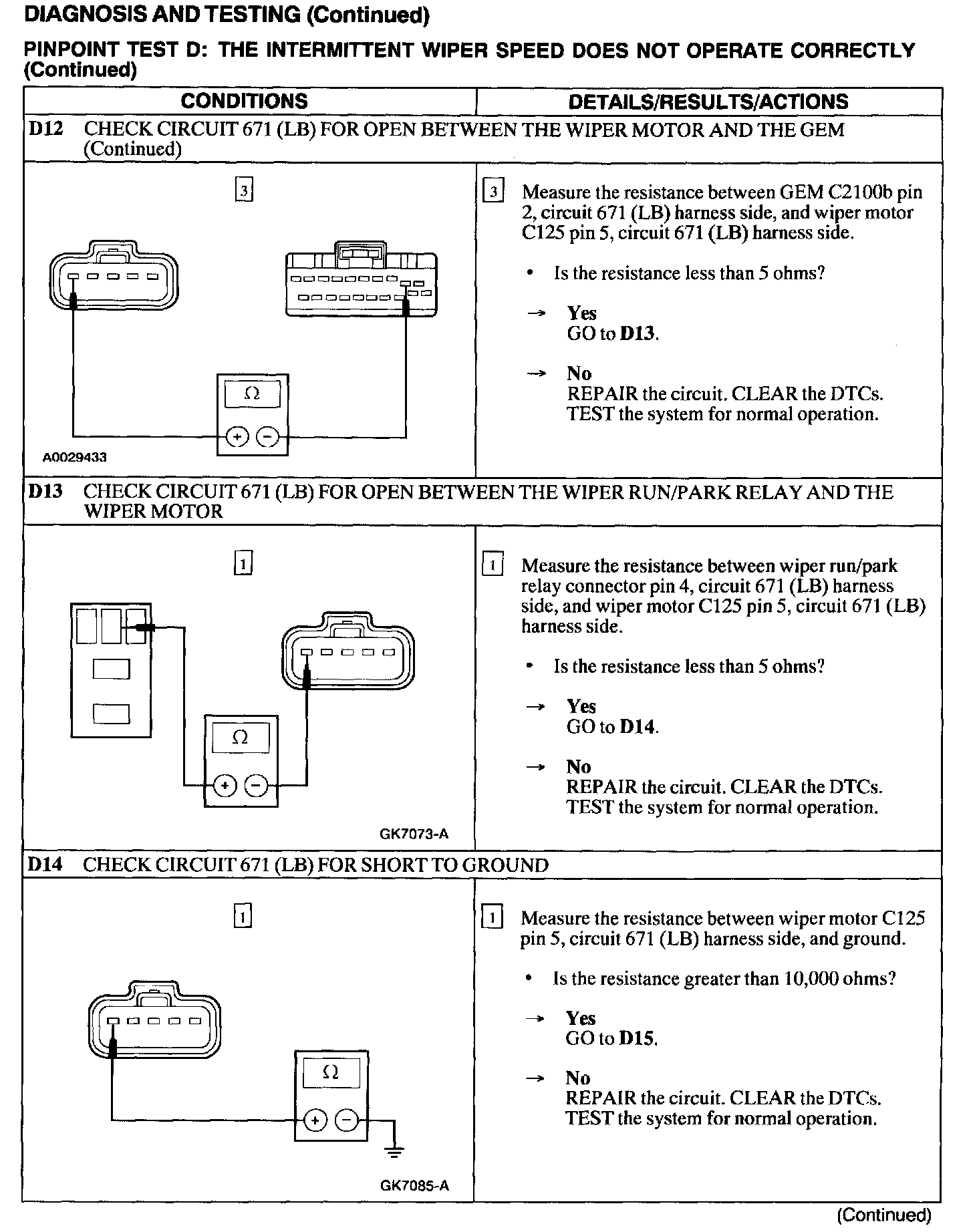

D12 - D14:

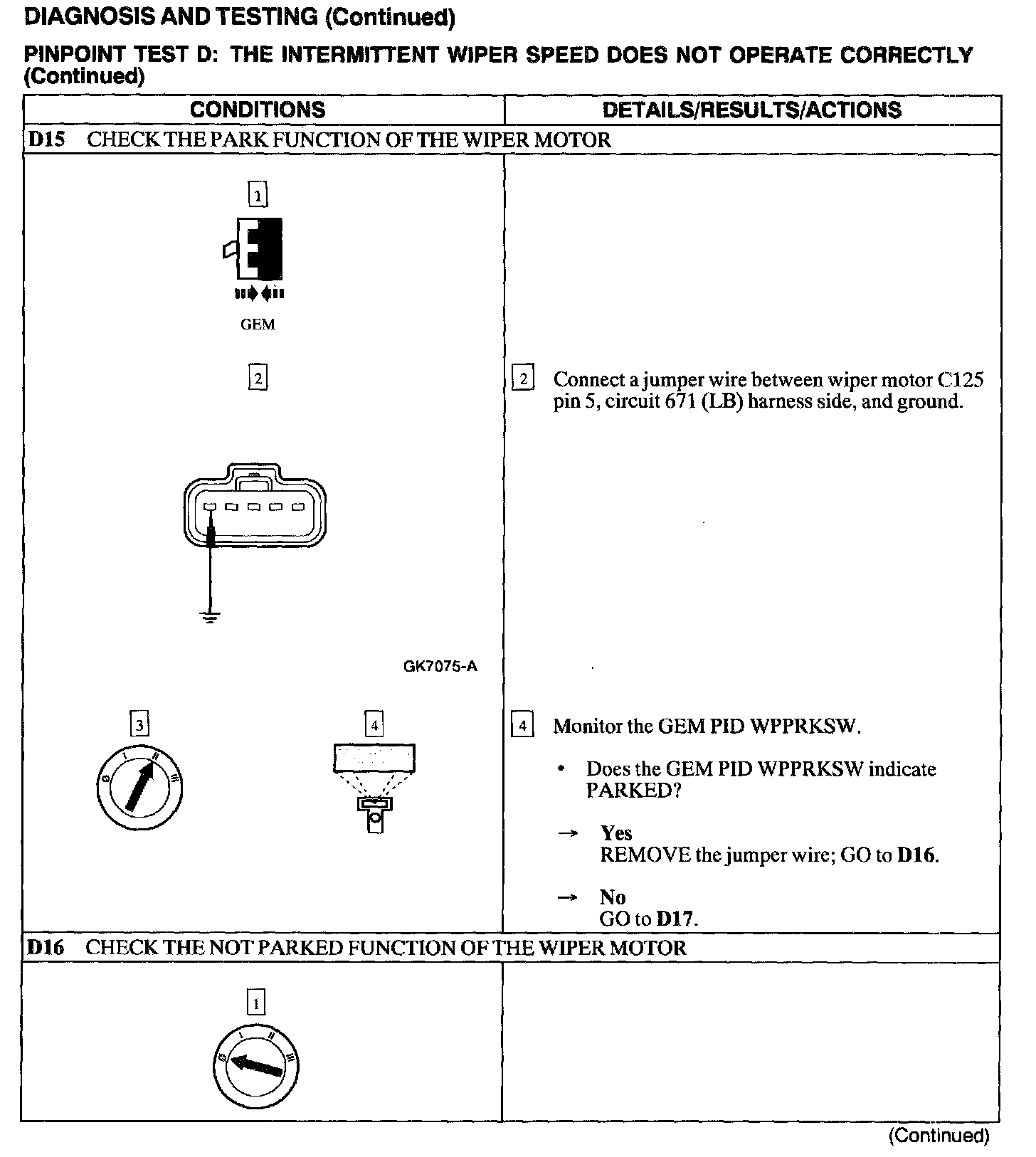

D15 - D16:

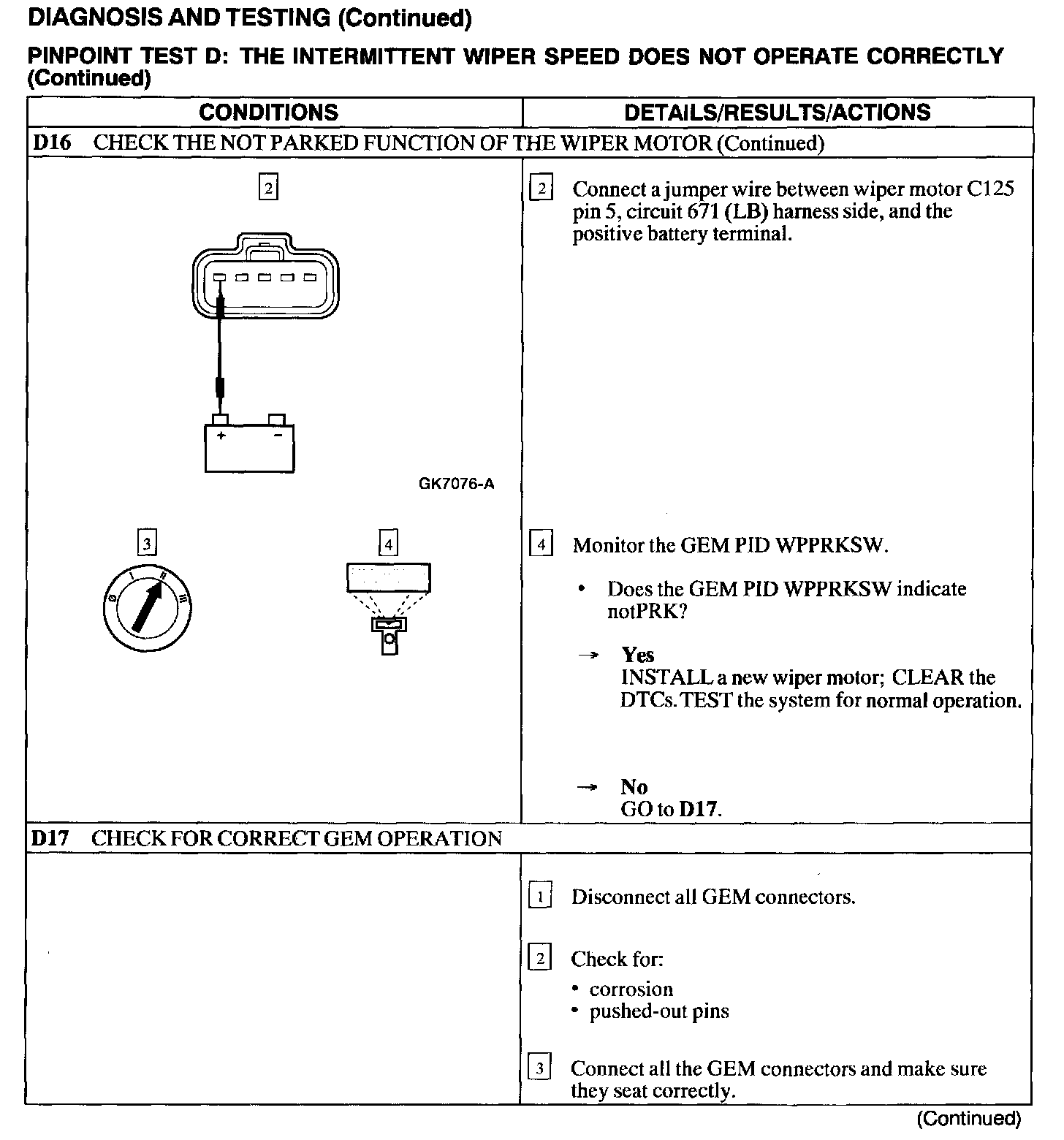

D16 - D17:

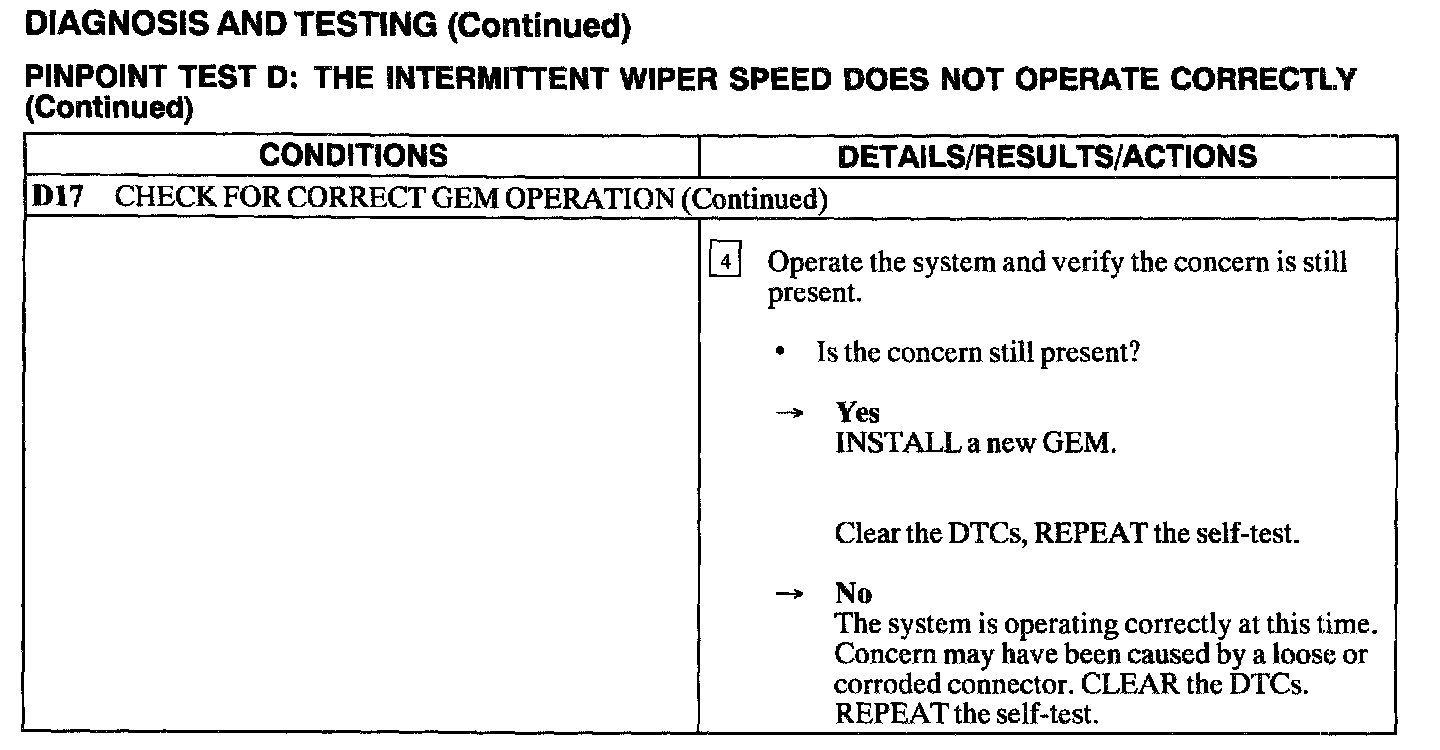

D17:
